Porangahau Ridge Details

PropertyValue
Rupture Count36,396
Ruptures Above Sect Min Mag36,390
Ruptures w/ Nonzero Rates506
Magnitude Range[7.16, 8.66]
Length Range[26, 1,056] km
Total Rate2.5284302E-4 /yr
Multi-Fault Rate2.5284302E-4 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults116

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

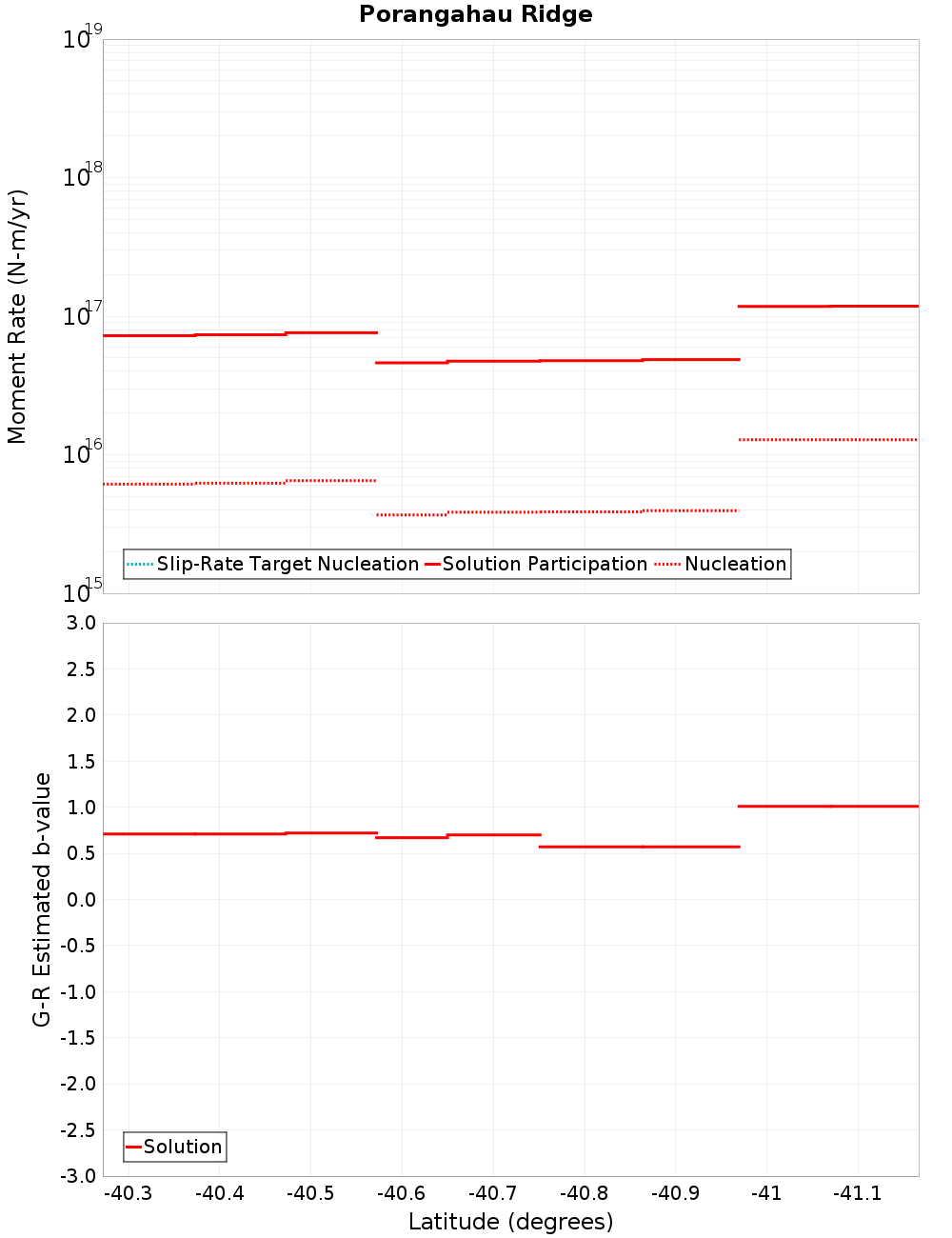

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
PorWest2 - PaoanuiRSouth, 0.14 km awayOmakere South, 5.76 km away
Pukeroro Ridge, 0.41 km awayRock Garden - Ritchie East, 6.42 km away
Paoanui Ridge North, 1.72 km awayUruti East - PorWest 1, 6.91 km away
Porangahau Northeast, 2.7 km awayAorangi Ridge, 9.74 km away
Akitio Trough West, 3.24 km awayF17 - South, 12.1 km away
Porangahau Basin, 3.3 km awayUruti Ridge 2, 13.78 km away
Aorangi Trough, 4.63 km awayAkitio Ridge, 13.98 km away
Omakere Ridge, 5.34 km awayMadden Banks, 14.87 km away

PorWest2 - PaoanuiRSouth, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?false
Co-rupture Count43
Co-rupture Rate7.482956E-15

Pukeroro Ridge, 0.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?true
Co-rupture Count2,795
Co-rupture Rate1.3988463E-6

Paoanui Ridge North, 1.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?true
Co-rupture Count2,516
Co-rupture Rate7.647411E-5

Porangahau Northeast, 2.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?true
Co-rupture Count16,196
Co-rupture Rate4.8038815E-5

Akitio Trough West, 3.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?true
Co-rupture Count3,950
Co-rupture Rate1.3255804E-5

Porangahau Basin, 3.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?true
Co-rupture Count25,649
Co-rupture Rate1.506371E-4

Aorangi Trough, 4.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?true
Co-rupture Count7,369
Co-rupture Rate5.5429533E-5

Omakere Ridge, 5.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?true
Co-rupture Count1,433
Co-rupture Rate7.481466E-9

Omakere South, 5.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?true
Co-rupture Count690
Co-rupture Rate7.2742696E-9

Rock Garden - Ritchie East, 6.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?false
Co-rupture Count9,336
Co-rupture Rate4.627258E-5

Uruti East - PorWest 1, 6.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?false
Co-rupture Count1,643
Co-rupture Rate1.7816973E-10

Aorangi Ridge, 9.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?false
Co-rupture Count47
Co-rupture Rate1.0267443E-14

F17 - South, 12.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Uruti Ridge 2, 13.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?false
Co-rupture Count4,456
Co-rupture Rate1.4078266E-4

Akitio Ridge, 13.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?false
Co-rupture Count61
Co-rupture Rate0.0

Madden Banks, 14.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
