Wairarapa: 2 Details

PropertyValue
Rupture Count33,741
Ruptures Above Sect Min Mag33,738
Ruptures w/ Nonzero Rates523
Magnitude Range[6.81, 8.67]
Length Range[18, 1,083] km
Total Rate0.0010137502 /yr
Multi-Fault Rate0.0010136273 /yr (99.99%)
Directly-Connected Faults6
All Co-Rupturing Faults192

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

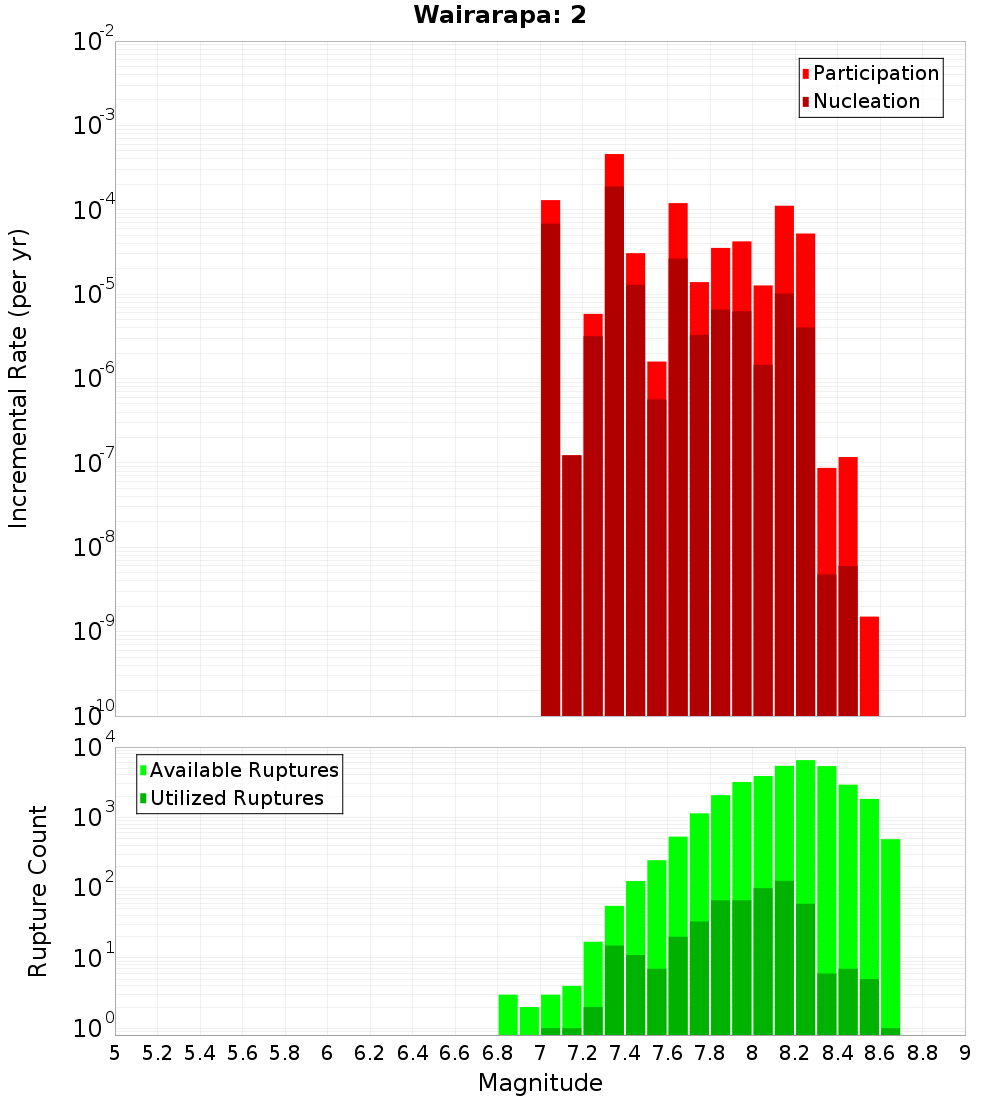

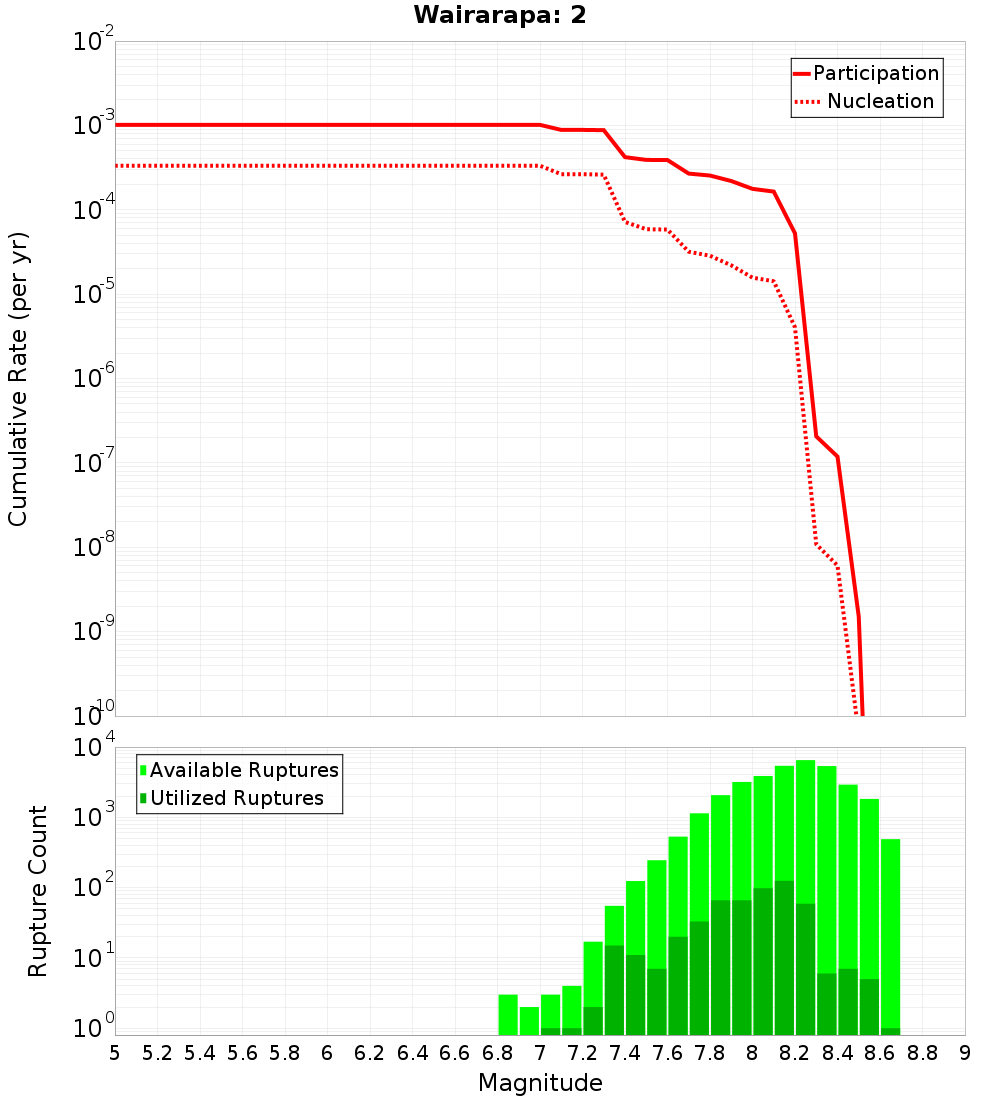

Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

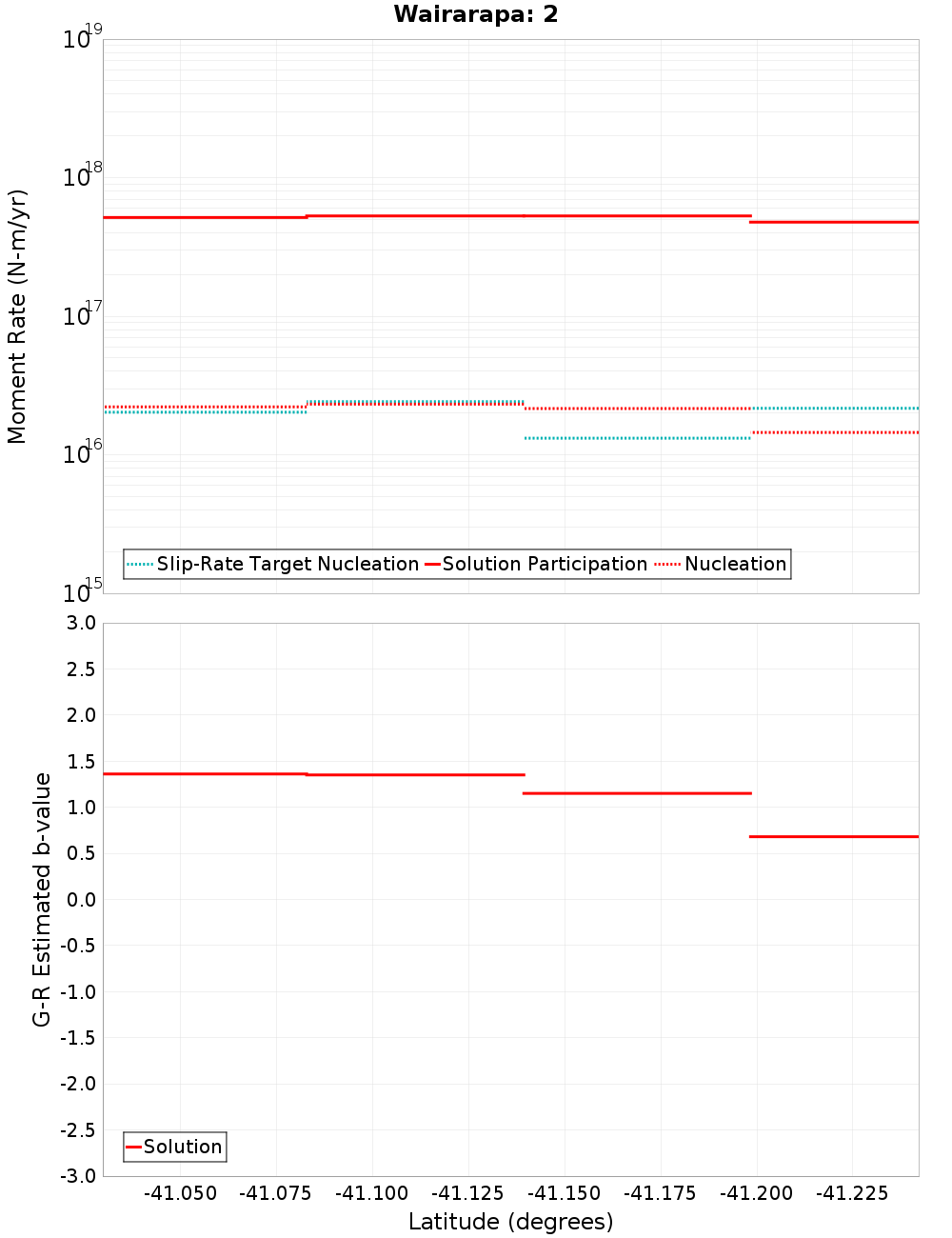

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wairarapa: 1, 0 km awayBidwill, 7.72 km away
Wairarapa: 3, 0.03 km awayMartinborough, 9.65 km away
Carterton, 0.05 km awayWhitemans Valley, 10.22 km away
Wellington Hutt Valley: 5, 0.33 km awayMokonui Southwest, 12.05 km away
Wharekauhau, 1.34 km awayAkatarawa, 12.82 km away
Wellington Hutt Valley: 4, 3.98 km awayMoonshine, 13.37 km away
Masterton, 5.7 km awayOtaraia, 13.88 km away
Wellington: Tararua 2, 6.35 km awayGibbs, 13.94 km away
Wellington: Tararua 1, 6.52 km awayWellington: Tararua 3, 14.31 km away

Wairarapa: 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?true
Co-rupture Count26,023
Co-rupture Rate4.4903485E-4

Wairarapa: 3, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?true
Co-rupture Count16,526
Co-rupture Rate6.34195E-4

Carterton, 0.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?true
Co-rupture Count3,360
Co-rupture Rate7.4912256E-5

Wellington Hutt Valley: 5, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?true
Co-rupture Count2,905
Co-rupture Rate1.745854E-4

Wharekauhau, 1.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?true
Co-rupture Count7,518
Co-rupture Rate1.931735E-6

Wellington Hutt Valley: 4, 3.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?false
Co-rupture Count267
Co-rupture Rate2.3139906E-5

Masterton, 5.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?false
Co-rupture Count90
Co-rupture Rate5.1981962E-5

Wellington: Tararua 2, 6.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?true
Co-rupture Count10,896
Co-rupture Rate7.624466E-9

Wellington: Tararua 1, 6.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate7.624436E-9

Bidwill, 7.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?false
Co-rupture Count235
Co-rupture Rate4.917117E-15

Martinborough, 9.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?false
Co-rupture Count77
Co-rupture Rate3.2271716E-6

Whitemans Valley, 10.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?false
Co-rupture Count74
Co-rupture Rate0.0

Mokonui Southwest, 12.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?false
Co-rupture Count326
Co-rupture Rate0.0

Akatarawa, 12.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Moonshine, 13.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaraia, 13.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?false
Co-rupture Count197
Co-rupture Rate3.225861E-6

Gibbs, 13.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate7.624436E-9

Wellington: Tararua 3, 14.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?false
Co-rupture Count11,240
Co-rupture Rate2.7735279E-14
