Te Arawa 3 Details

PropertyValue
Rupture Count1,240
Ruptures Above Sect Min Mag1,239
Ruptures w/ Nonzero Rates164
Magnitude Range[6.69, 8.21]
Length Range[13, 559] km
Total Rate3.5491103E-5 /yr
Multi-Fault Rate3.5491103E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults69

Table Of Contents

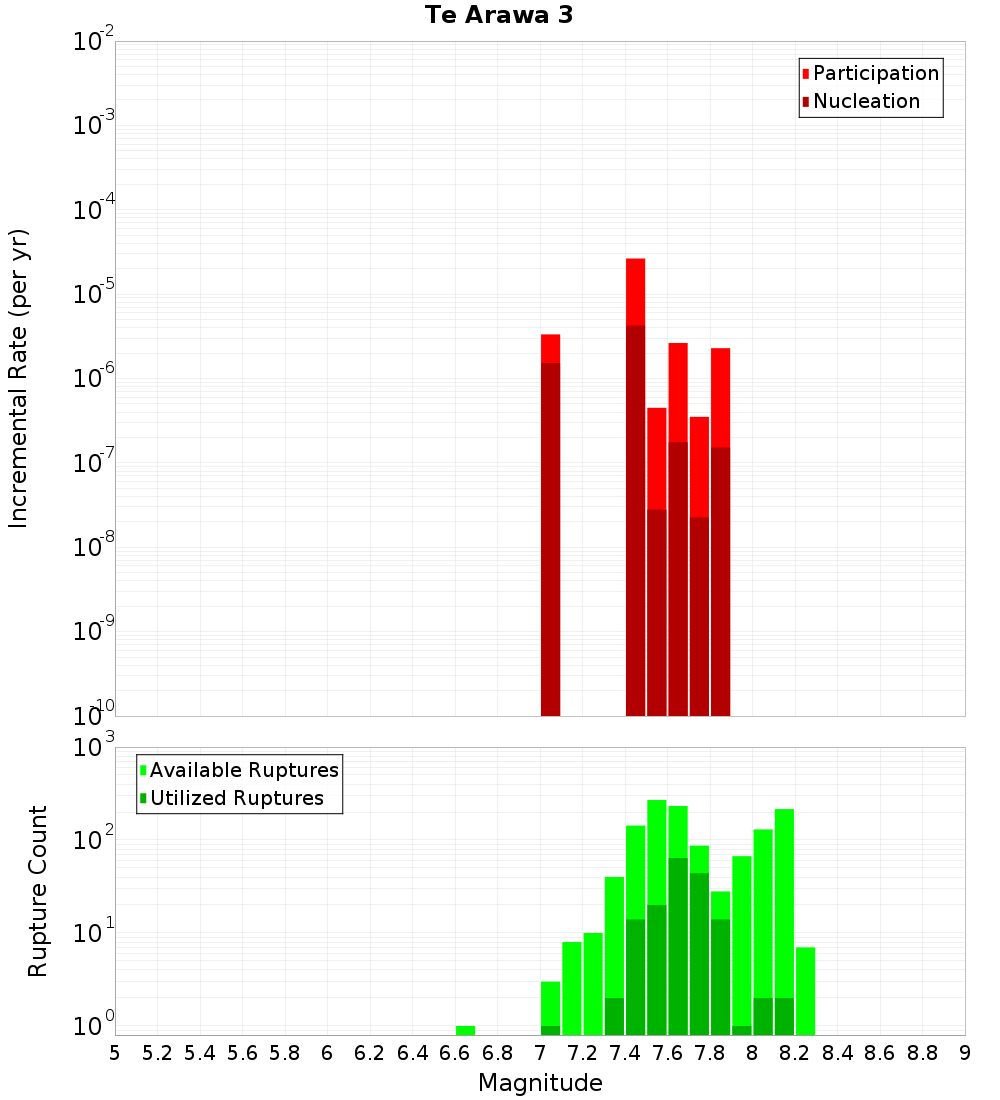

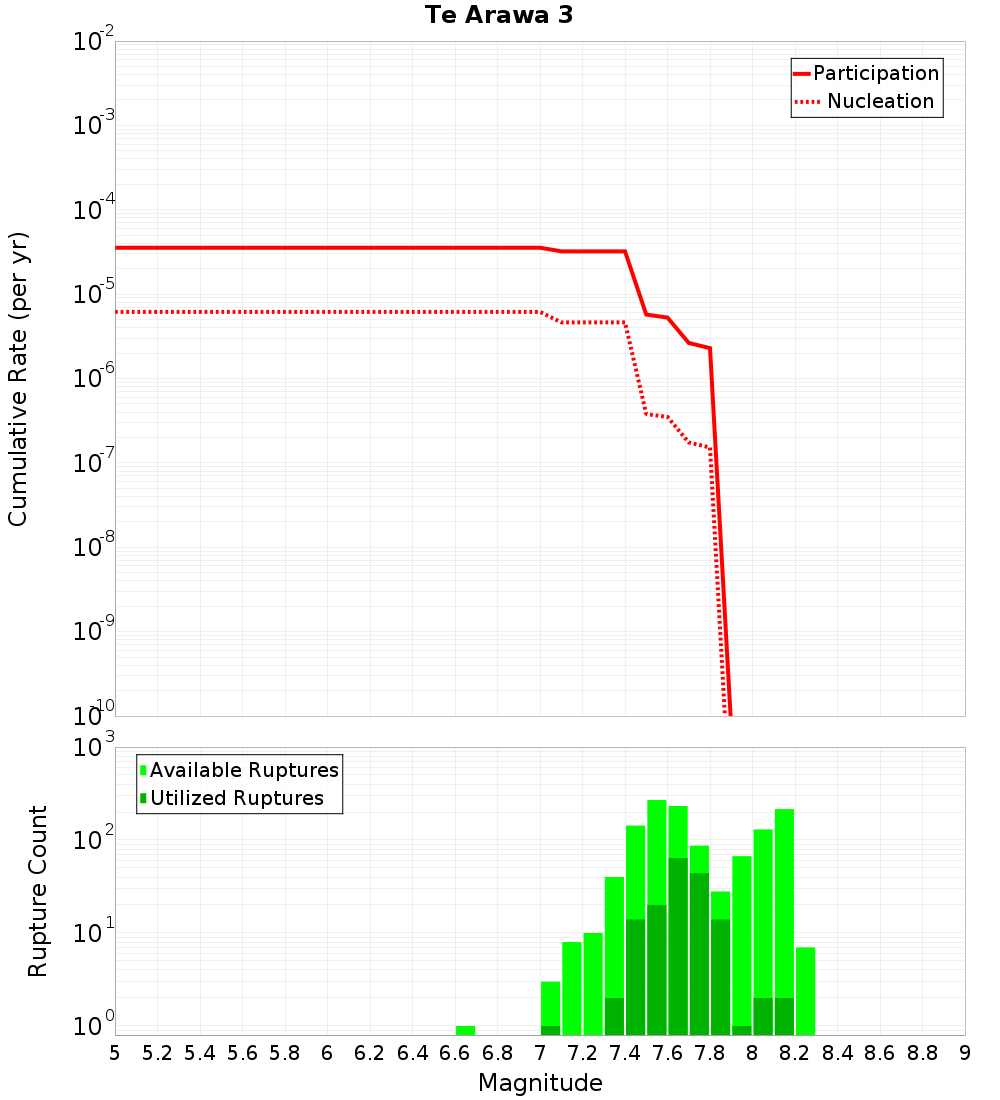

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

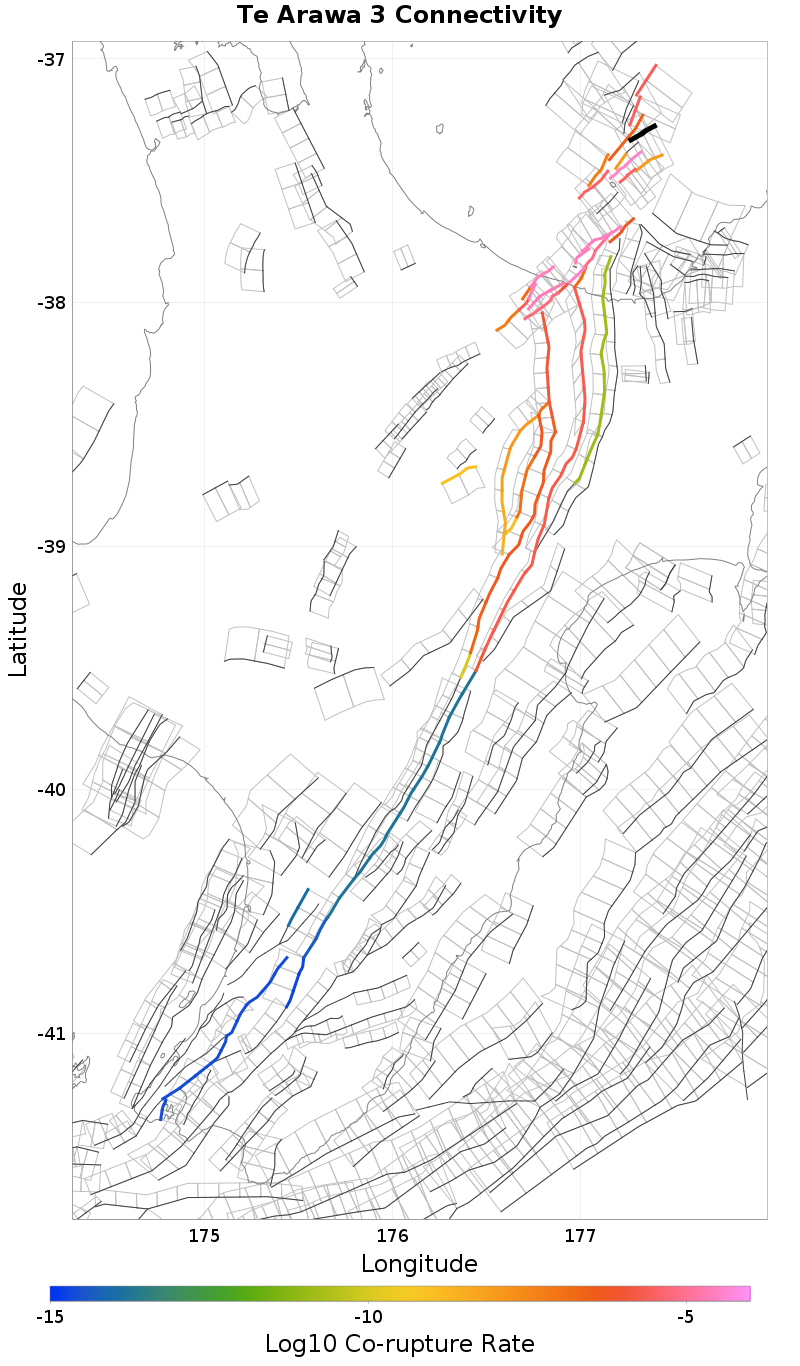

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Tuatoru 2, 0.11 km away
Te Arawa 2, 1.68 km away
Volkner 4, 1.79 km away
Hariki, 3.21 km away
Otara West 1, 4.41 km away
Otara East 1, 5.22 km away
Te Arawa 1, 5.29 km away
Otara West 2, 8.79 km away
Tuatoru 1, 9.82 km away
Volkner 3, 12.62 km away
Otara East 2, 13.29 km away
Whakaari 4, 14.7 km away

Tuatoru 2, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDguMFlmeFU1
Connected?true
Directly Connected?false
Co-rupture Count39
Co-rupture Rate1.0337046E-8

Te Arawa 2, 1.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDguMFlmeFU1
Connected?true
Directly Connected?false
Co-rupture Count36
Co-rupture Rate1.0337046E-8

Volkner 4, 1.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDguMFlmeFU1
Connected?true
Directly Connected?false
Co-rupture Count32
Co-rupture Rate3.1903323E-7

Hariki, 3.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDguMFlmeFU1
Connected?true
Directly Connected?true
Co-rupture Count29
Co-rupture Rate0.0

Otara West 1, 4.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDguMFlmeFU1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara East 1, 5.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDguMFlmeFU1
Connected?true
Directly Connected?true
Co-rupture Count241
Co-rupture Rate2.9655848E-6

Te Arawa 1, 5.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDguMFlmeFU1
Connected?true
Directly Connected?true
Co-rupture Count1,174
Co-rupture Rate3.5480767E-5

Otara West 2, 8.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDguMFlmeFU1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuatoru 1, 9.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDguMFlmeFU1
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate3.3335975E-6

Volkner 3, 12.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDguMFlmeFU1
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate6.027092E-8

Otara East 2, 13.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDguMFlmeFU1
Connected?true
Directly Connected?false
Co-rupture Count67
Co-rupture Rate2.4642159E-6

Whakaari 4, 14.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDguMFlmeFU1
Connected?true
Directly Connected?false
Co-rupture Count629
Co-rupture Rate3.384701E-6
