Edgecumbe 1987 Details

Property	Value
Rupture Count	11,865
Ruptures Above Sect Min Mag	11,864
Ruptures w/ Nonzero Rates	175
Magnitude Range	[6.89, 8.47]
Length Range	[20, 675] km
Total Rate	2.15171E-4 /yr
Multi-Fault Rate	2.15171E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	83

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

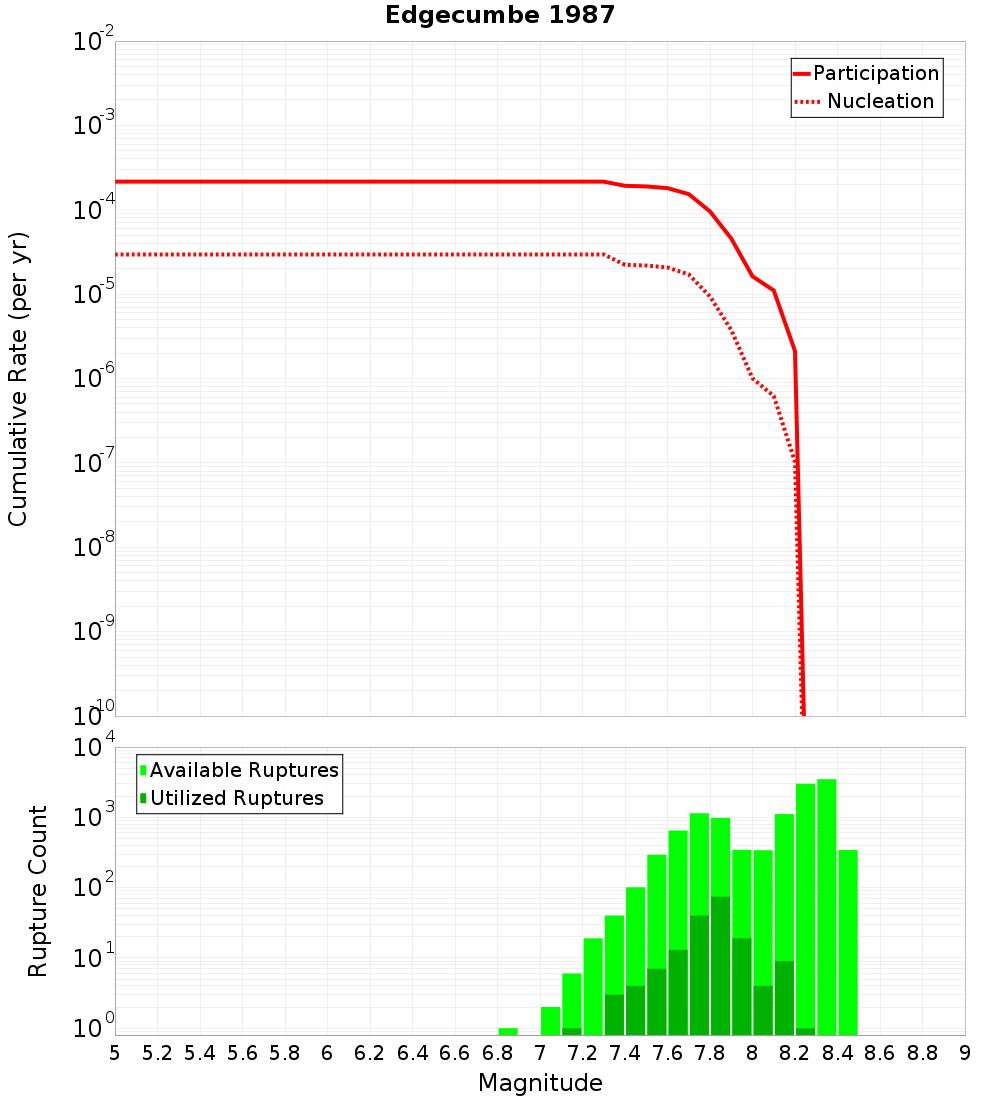

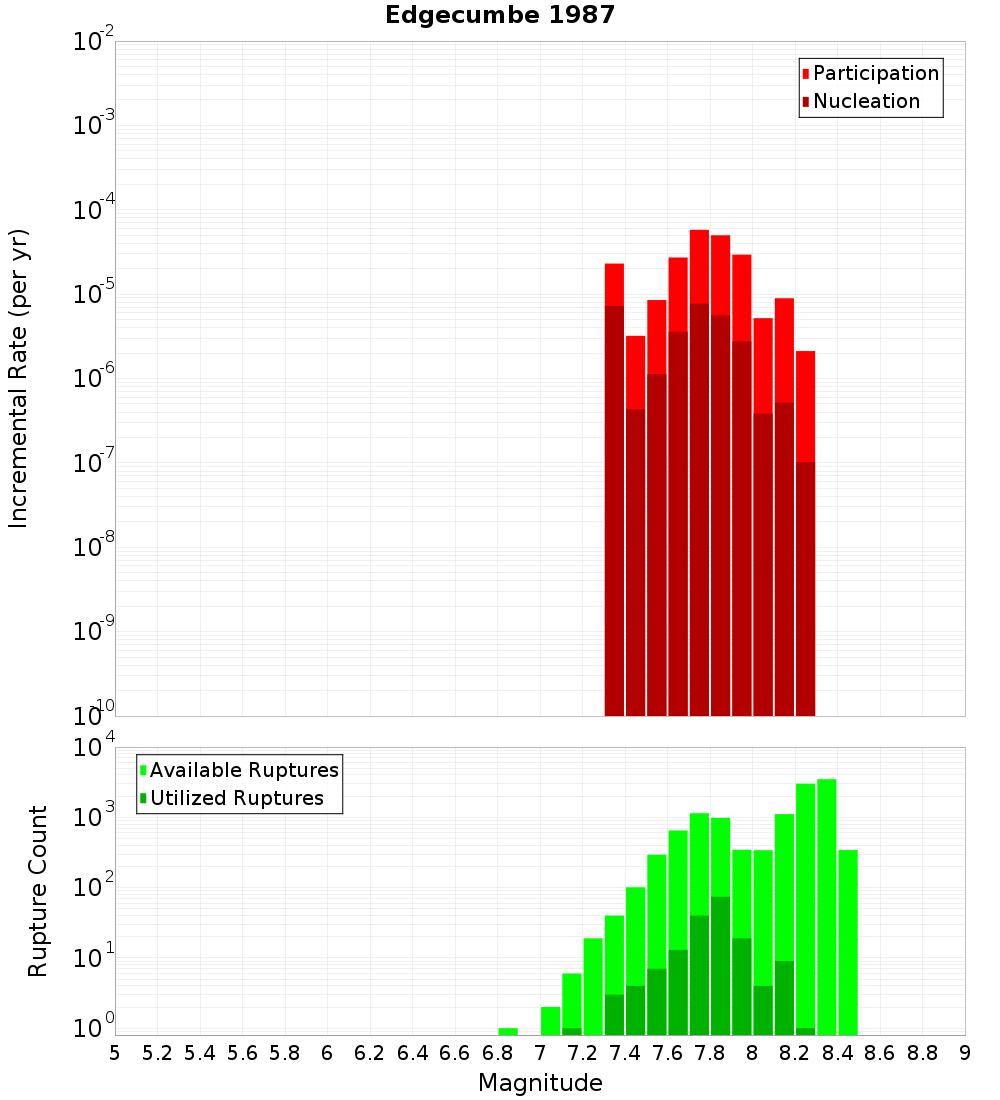

Magnitude-Frequency Distribution

Incremental	Cumulative

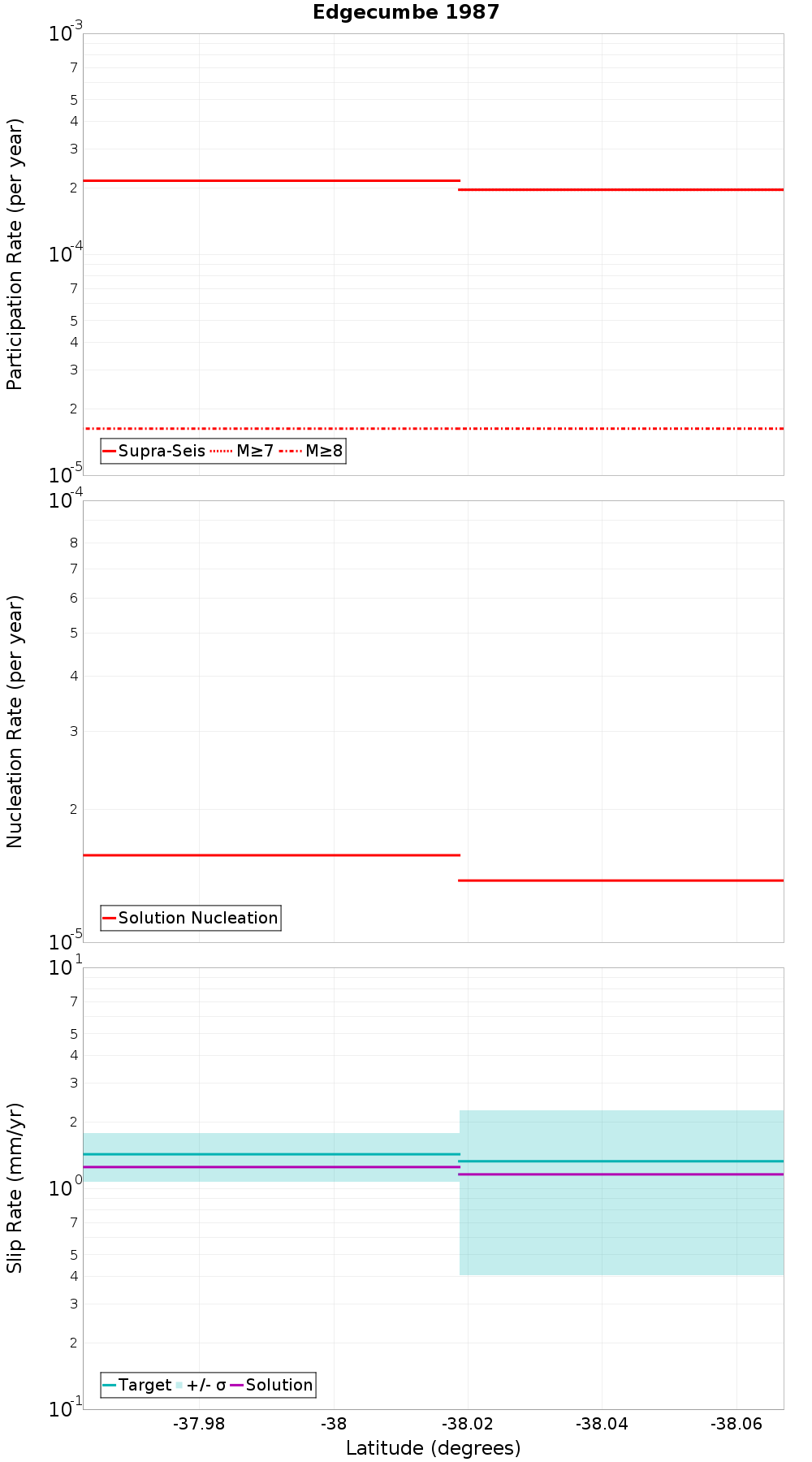

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Edgecumbe Coastal, 0 km away
Otakiri, 0.19 km away
Matata, 0.29 km away
Braemar, 0.35 km away
Waiohau: North, 2.19 km away
White Island 1, 4.56 km away
Whakatane: North, 7.79 km away
Keepa, 8.1 km away

Edgecumbe Coastal, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDkuMDRGSGdS
Connected?	true
Directly Connected?	true
Co-rupture Count	8,274
Co-rupture Rate	1.7134586E-4

Otakiri, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDkuMDRGSGdS
Connected?	true
Directly Connected?	true
Co-rupture Count	2,783
Co-rupture Rate	5.6081928E-5

Matata, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDkuMDRGSGdS
Connected?	true
Directly Connected?	false
Co-rupture Count	829
Co-rupture Rate	1.5255094E-11

Braemar, 0.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDkuMDRGSGdS
Connected?	true
Directly Connected?	true
Co-rupture Count	378
Co-rupture Rate	4.2476622E-5

Waiohau: North, 2.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDkuMDRGSGdS
Connected?	true
Directly Connected?	true
Co-rupture Count	9,218
Co-rupture Rate	1.0501497E-4

White Island 1, 4.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDkuMDRGSGdS
Connected?	true
Directly Connected?	true
Co-rupture Count	9,669
Co-rupture Rate	2.2276927E-4

Whakatane: North, 7.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDkuMDRGSGdS
Connected?	true
Directly Connected?	false
Co-rupture Count	1,405
Co-rupture Rate	4.9984694E-5

Keepa, 8.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDkuMDRGSGdS
Connected?	true
Directly Connected?	false
Co-rupture Count	809
Co-rupture Rate	0.0
