Paddys Ridge Details

PropertyValue
Rupture Count8,710
Ruptures Above Sect Min Mag8,710
Ruptures w/ Nonzero Rates70
Magnitude Range[7.05, 8.63]
Length Range[21, 797] km
Total Rate7.279796E-5 /yr
Multi-Fault Rate7.279796E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults86

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

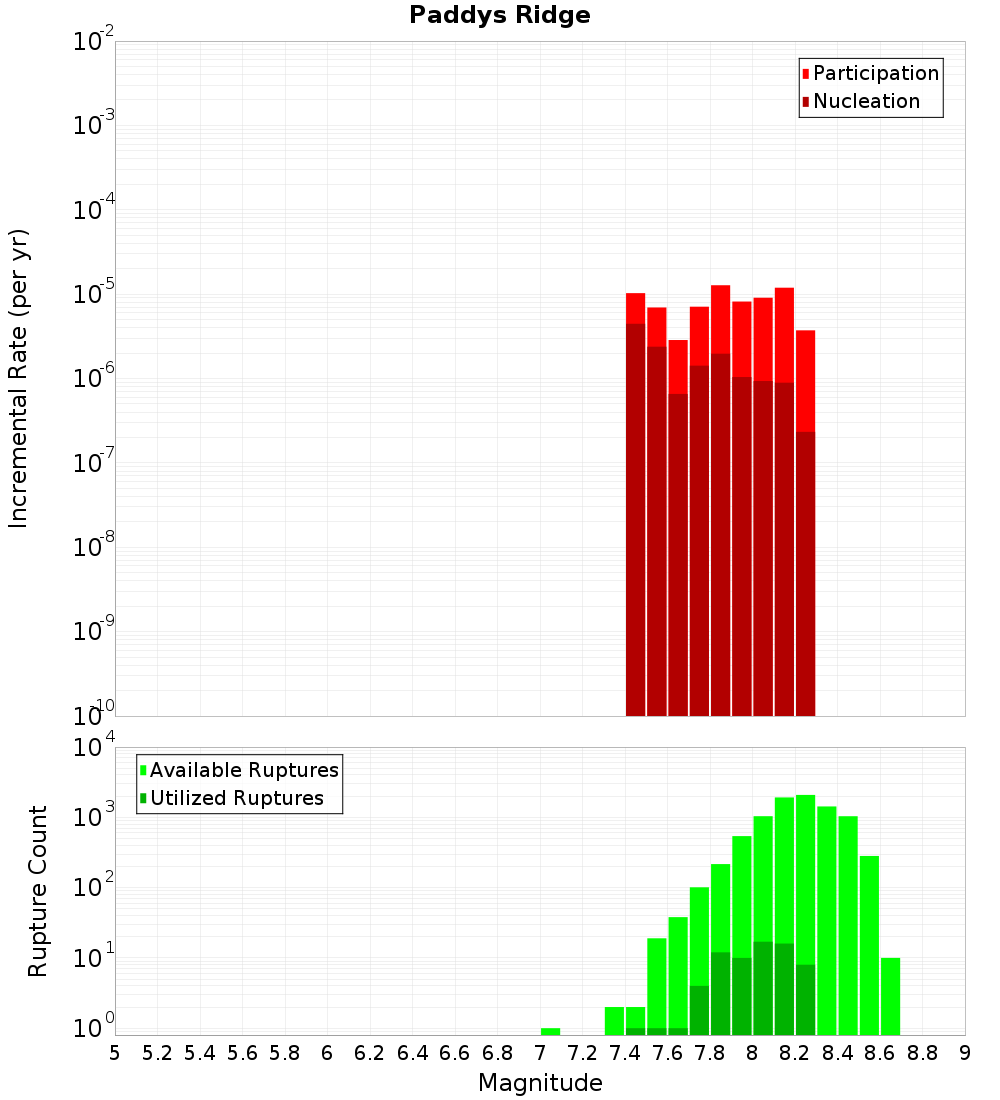

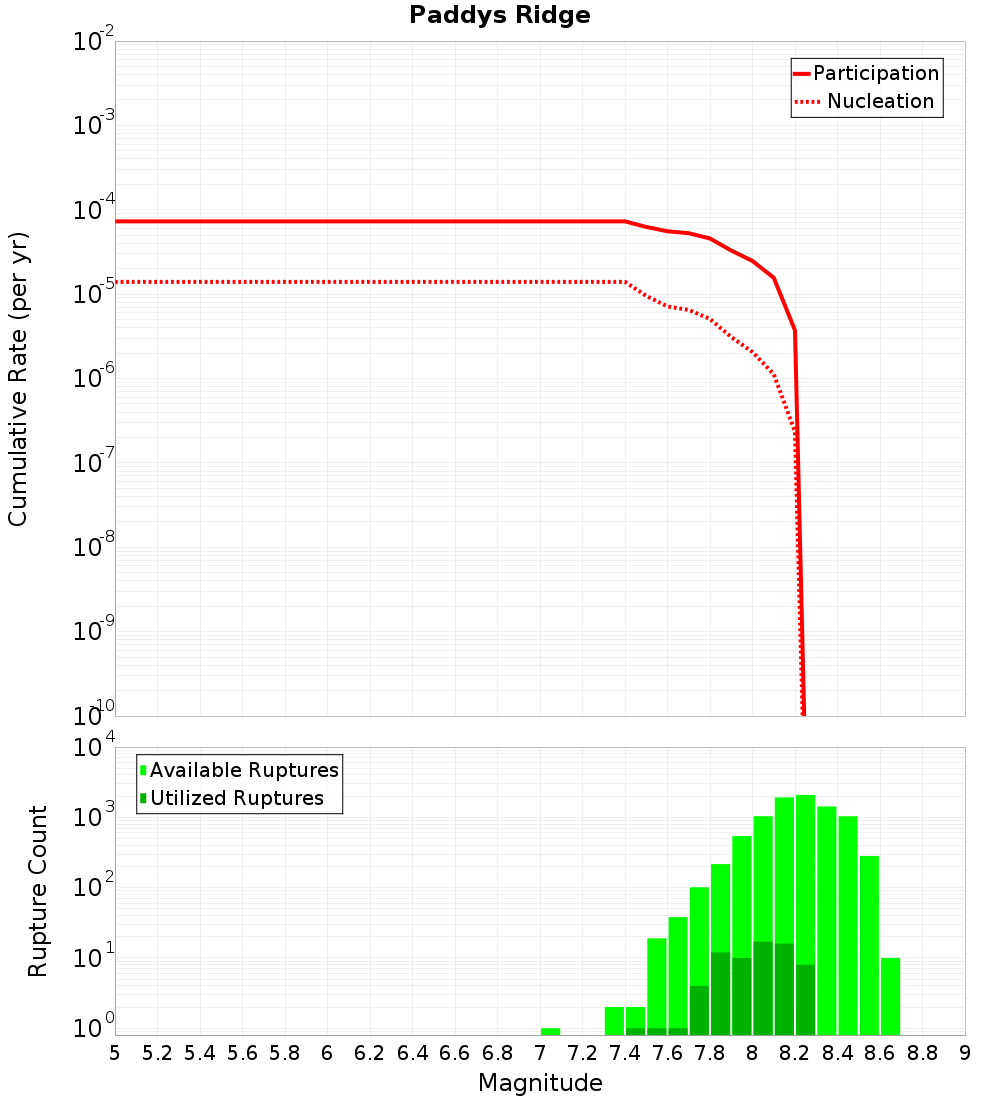

Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Pisa, 0.16 km away
Roaring Meg, 0.24 km away
NW Cardrona South, 1.01 km away
Cardrona - Hawea, 1.23 km away
NW Cardrona North, 1.63 km away
Dunstan, 5.46 km away
Cluden, 6.25 km away
Motatapu, 10.99 km away
Goodger, 11.59 km away
Grandview, 12.38 km away
Lindis River, 13.41 km away

Pisa, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDkuMDRGSGdS
Connected?true
Directly Connected?true
Co-rupture Count5,859
Co-rupture Rate2.7444123E-9

Roaring Meg, 0.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDkuMDRGSGdS
Connected?true
Directly Connected?true
Co-rupture Count2,116
Co-rupture Rate1.37044235E-5

NW Cardrona South, 1.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDkuMDRGSGdS
Connected?true
Directly Connected?false
Co-rupture Count19
Co-rupture Rate2.9259516E-7

Cardrona - Hawea, 1.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDkuMDRGSGdS
Connected?true
Directly Connected?true
Co-rupture Count8,515
Co-rupture Rate4.9372946E-5

NW Cardrona North, 1.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDkuMDRGSGdS
Connected?true
Directly Connected?false
Co-rupture Count190
Co-rupture Rate6.7947894E-6

Dunstan, 5.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDkuMDRGSGdS
Connected?true
Directly Connected?true
Co-rupture Count290
Co-rupture Rate4.8888338E-5

Cluden, 6.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDkuMDRGSGdS
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Motatapu, 10.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDkuMDRGSGdS
Connected?true
Directly Connected?false
Co-rupture Count62
Co-rupture Rate1.1129098E-5

Goodger, 11.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDkuMDRGSGdS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Grandview, 12.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDkuMDRGSGdS
Connected?true
Directly Connected?false
Co-rupture Count39
Co-rupture Rate0.0

Lindis River, 13.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDkuMDRGSGdS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
