Stonewall Details

PropertyValue
Rupture Count1,381
Ruptures Above Sect Min Mag1,377
Ruptures w/ Nonzero Rates62
Magnitude Range[6.87, 8.19]
Length Range[19, 328] km
Total Rate8.4632244E-5 /yr
Multi-Fault Rate8.4632244E-5 /yr (100.00%)
Directly-Connected Faults9
All Co-Rupturing Faults43

Table Of Contents

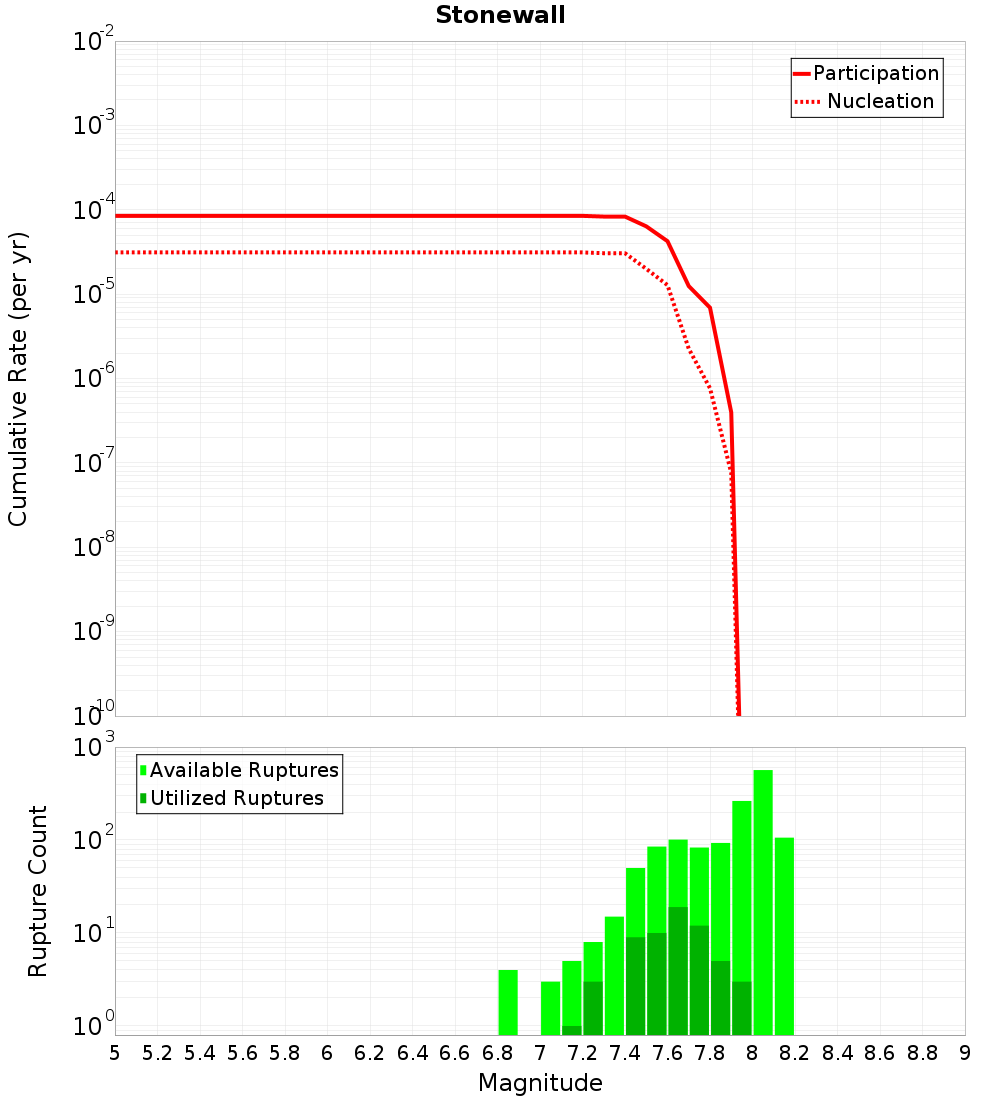

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

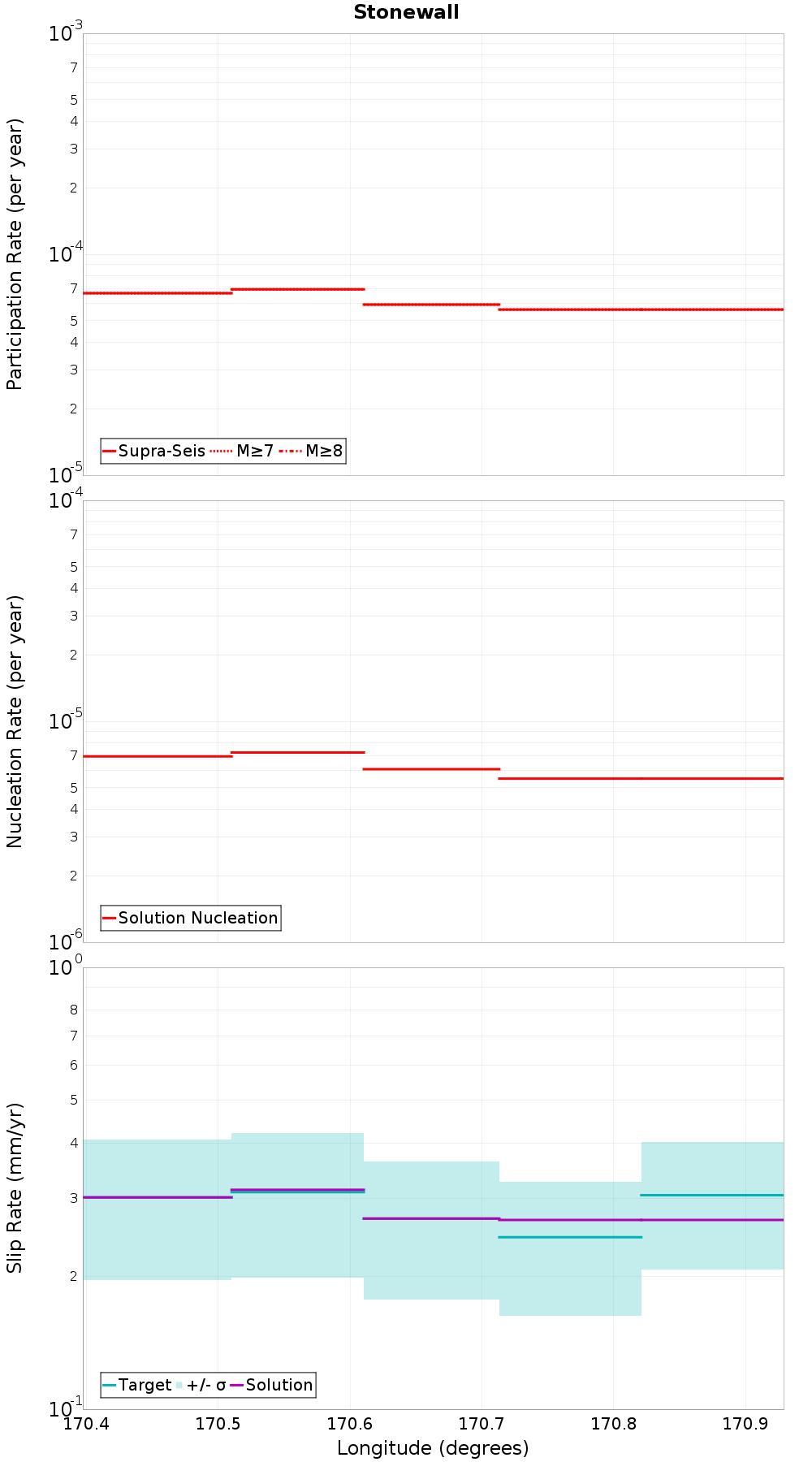

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

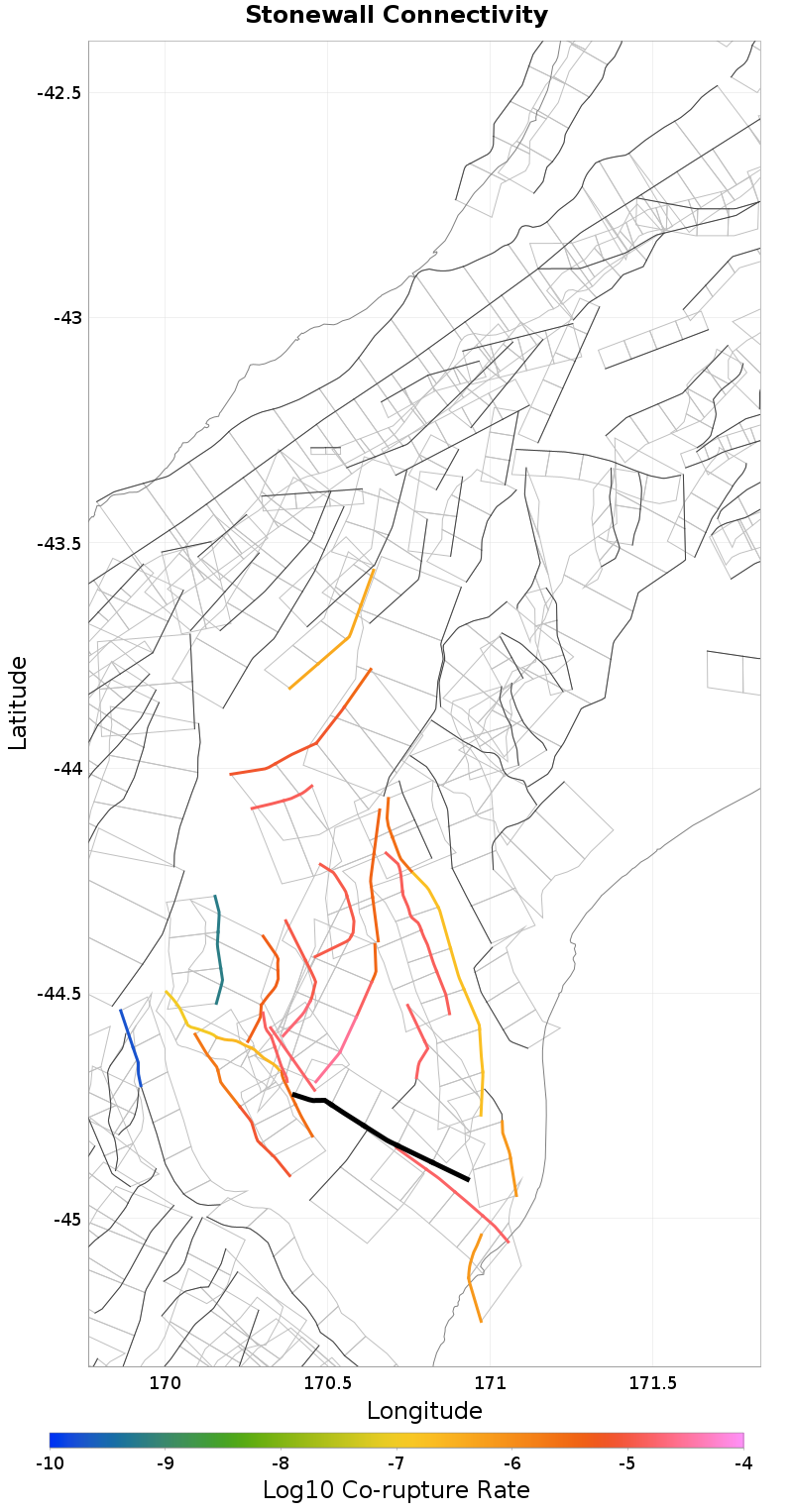

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Campbell Hills, 0.11 km away
Hunters, 0.28 km away
Dryburgh, 0.28 km away
Waimate, 0.45 km away
Waitaki, 0.64 km away
Black Hill, 0.69 km away
Awahokomo, 0.84 km away
Kirkliston, 2.02 km away
Waitangi, 3.51 km away
Mt Sutton, 4.67 km away
Fern Gully, 6.14 km away
Middle Range, 9.97 km away
Grampian, 10.47 km away
Awamoa, 12.19 km away

Campbell Hills, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDkuMDRGSGdS
Connected?true
Directly Connected?true
Co-rupture Count39
Co-rupture Rate1.5104094E-5

Hunters, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDkuMDRGSGdS
Connected?true
Directly Connected?true
Co-rupture Count19
Co-rupture Rate1.8254259E-7

Dryburgh, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDkuMDRGSGdS
Connected?true
Directly Connected?true
Co-rupture Count384
Co-rupture Rate1.6272537E-5

Waimate, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDkuMDRGSGdS
Connected?true
Directly Connected?true
Co-rupture Count65
Co-rupture Rate7.1348677E-7

Waitaki, 0.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDkuMDRGSGdS
Connected?true
Directly Connected?true
Co-rupture Count68
Co-rupture Rate1.5698939E-5

Black Hill, 0.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDkuMDRGSGdS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awahokomo, 0.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDkuMDRGSGdS
Connected?true
Directly Connected?true
Co-rupture Count210
Co-rupture Rate2.747344E-6

Kirkliston, 2.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDkuMDRGSGdS
Connected?true
Directly Connected?true
Co-rupture Count1,042
Co-rupture Rate2.8861314E-5

Waitangi, 3.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDkuMDRGSGdS
Connected?true
Directly Connected?true
Co-rupture Count20
Co-rupture Rate1.4601147E-5

Mt Sutton, 4.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDkuMDRGSGdS
Connected?true
Directly Connected?true
Co-rupture Count53
Co-rupture Rate1.8806244E-5

Fern Gully, 6.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDkuMDRGSGdS
Connected?true
Directly Connected?false
Co-rupture Count81
Co-rupture Rate2.4029944E-7

Middle Range, 9.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDkuMDRGSGdS
Connected?true
Directly Connected?false
Co-rupture Count49
Co-rupture Rate9.824273E-6

Grampian, 10.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDkuMDRGSGdS
Connected?true
Directly Connected?false
Co-rupture Count111
Co-rupture Rate1.1207023E-5

Awamoa, 12.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDkuMDRGSGdS
Connected?true
Directly Connected?false
Co-rupture Count26
Co-rupture Rate7.132466E-7
