Awanui Details

Property	Value
Rupture Count	760
Ruptures Above Sect Min Mag	758
Ruptures w/ Nonzero Rates	9
Magnitude Range	[6.99, 8.00]
Length Range	[26, 354] km
Total Rate	8.321757E-5 /yr
Multi-Fault Rate	8.321757E-5 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	33

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

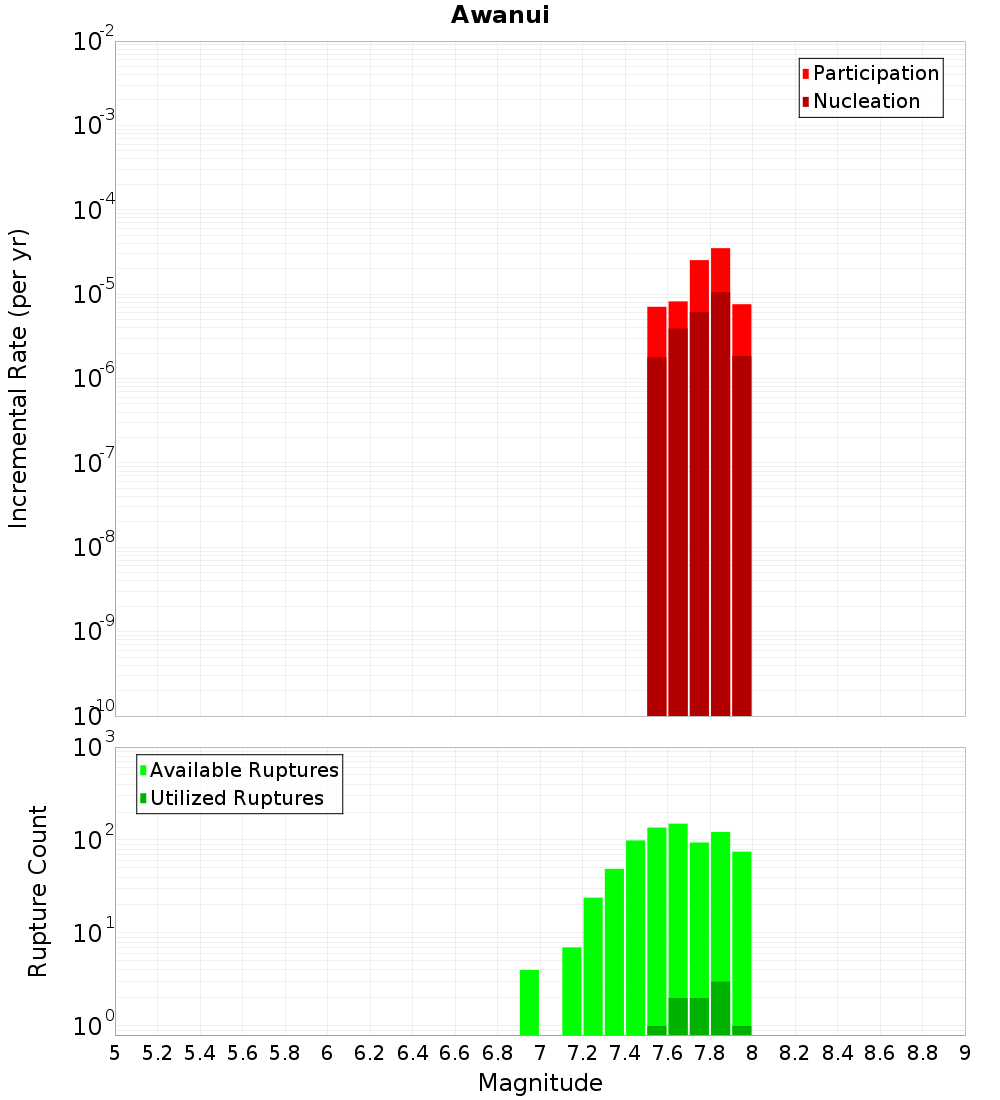

Magnitude-Frequency Distribution

Incremental	Cumulative

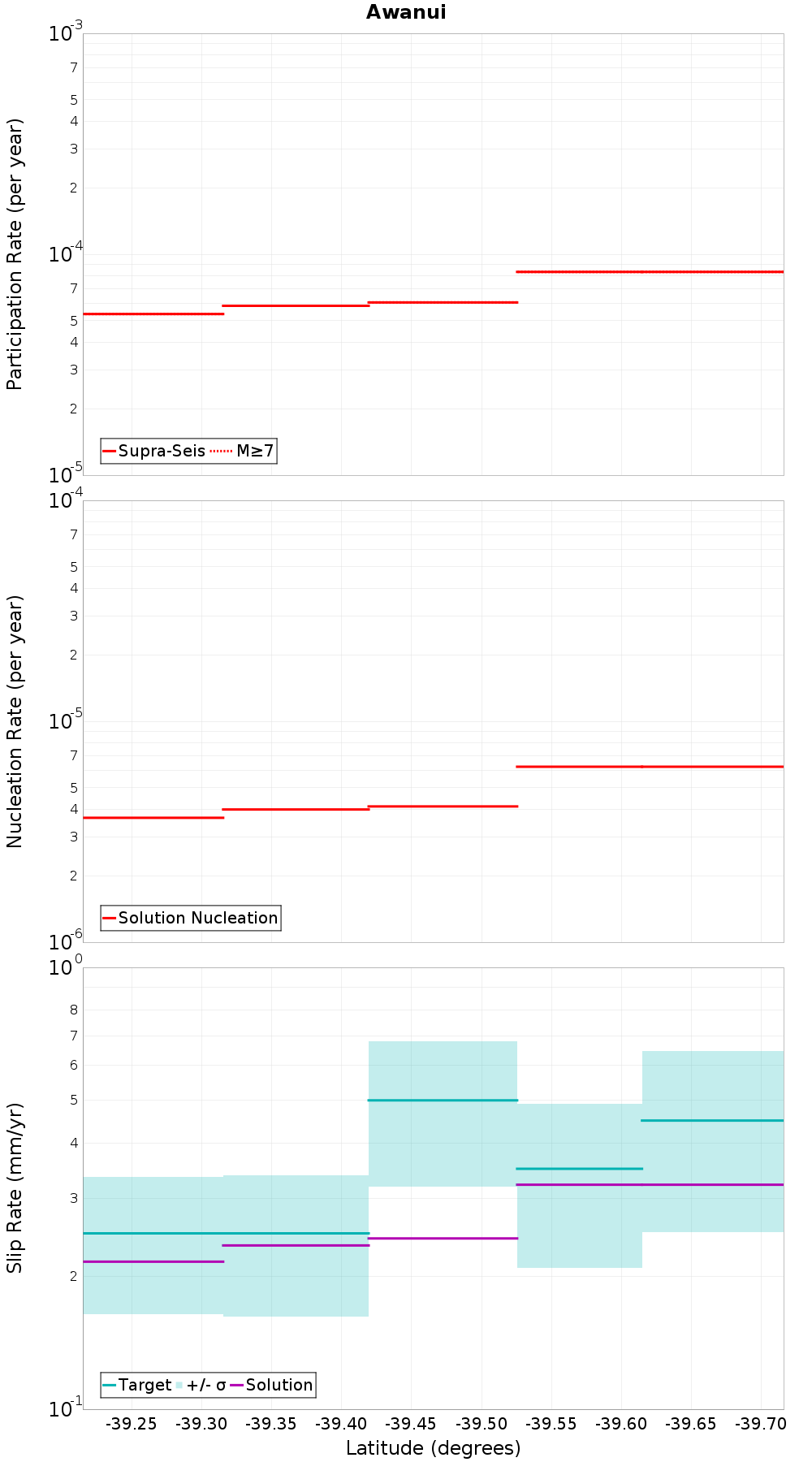

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Waipukurau - Poukawa, 0 km away
Te Heka, 0.14 km away
Patoka - Rangiora, 3.5 km away
Tukituki Thrust, 3.57 km away
Hawke Bay 1, 4.66 km away
Hawke Bay 2, 5.26 km away
Hawke Bay 8, 6.81 km away
Mohaka: North, 11.21 km away
Mohaka: South, 12.72 km away

Waipukurau - Poukawa, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?	true
Directly Connected?	true
Co-rupture Count	347
Co-rupture Rate	6.5990556E-5

Te Heka, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?	true
Directly Connected?	true
Co-rupture Count	213
Co-rupture Rate	1.7227021E-5

Patoka - Rangiora, 3.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?	true
Directly Connected?	true
Co-rupture Count	213
Co-rupture Rate	0.0

Tukituki Thrust, 3.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?	true
Directly Connected?	true
Co-rupture Count	116
Co-rupture Rate	0.0

Hawke Bay 1, 4.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?	true
Directly Connected?	true
Co-rupture Count	141
Co-rupture Rate	9.633927E-6

Hawke Bay 2, 5.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?	true
Directly Connected?	true
Co-rupture Count	85
Co-rupture Rate	0.0

Hawke Bay 8, 6.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?	true
Directly Connected?	false
Co-rupture Count	15
Co-rupture Rate	0.0

Mohaka: North, 11.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?	true
Directly Connected?	false
Co-rupture Count	17
Co-rupture Rate	0.0

Mohaka: South, 12.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?	true
Directly Connected?	false
Co-rupture Count	129
Co-rupture Rate	0.0
