Lyell Details
| Property | Value |
|---|---|
| Rupture Count | 6,543 |
| Ruptures Above Sect Min Mag | 6,540 |
| Ruptures w/ Nonzero Rates | 4 |
| Magnitude Range | [6.78, 8.37] |
| Length Range | [20, 817] km |
| Total Rate | 1.10014786E-4 /yr |
| Multi-Fault Rate | 1.10014786E-4 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 82 |
Table Of Contents

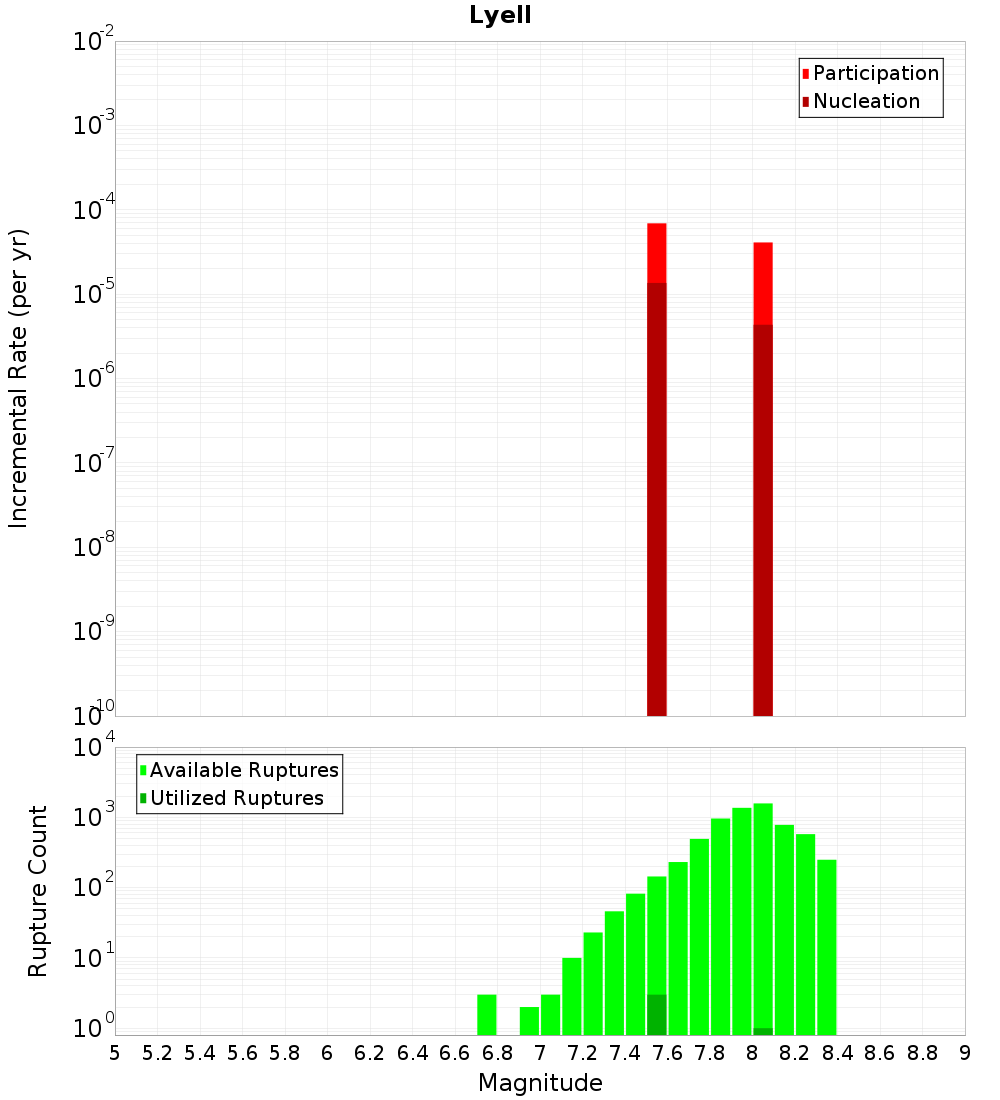

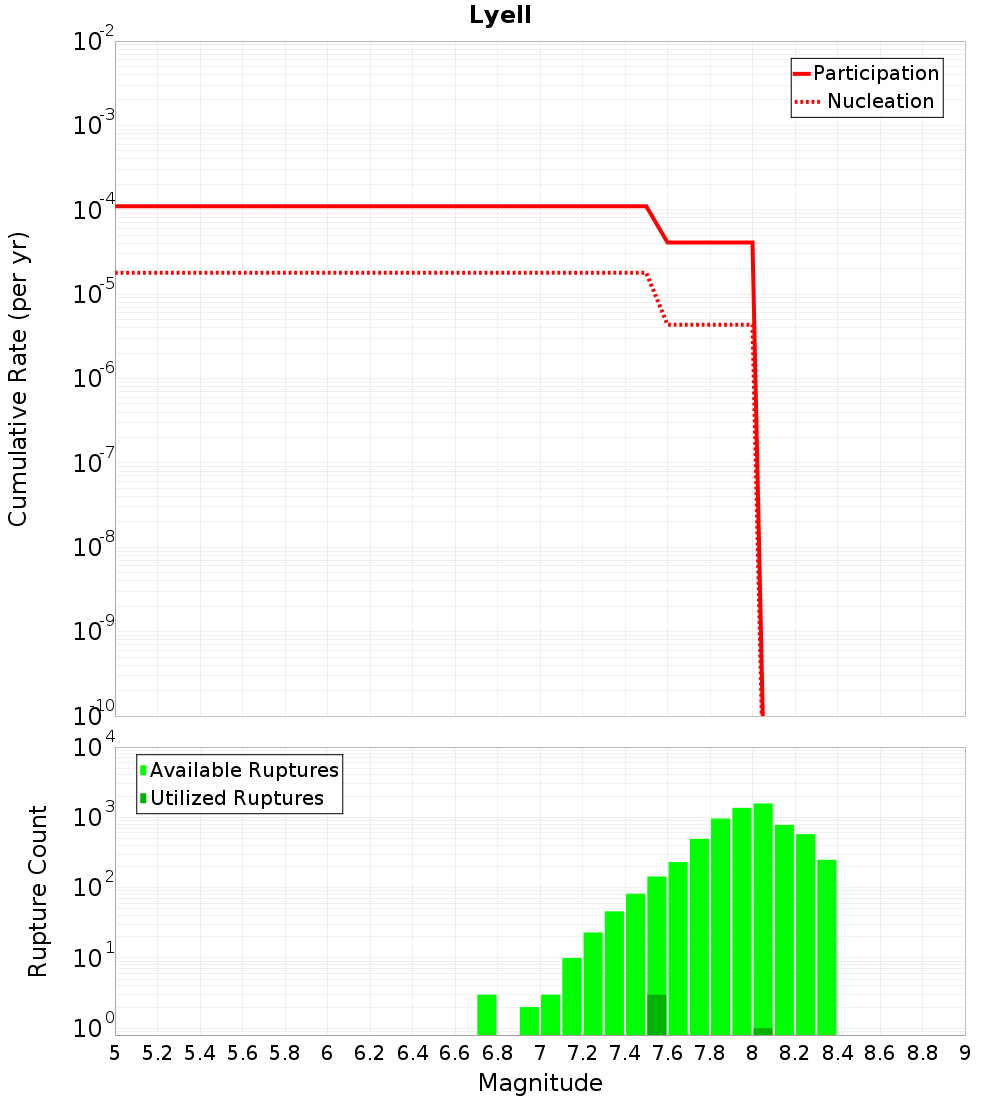

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

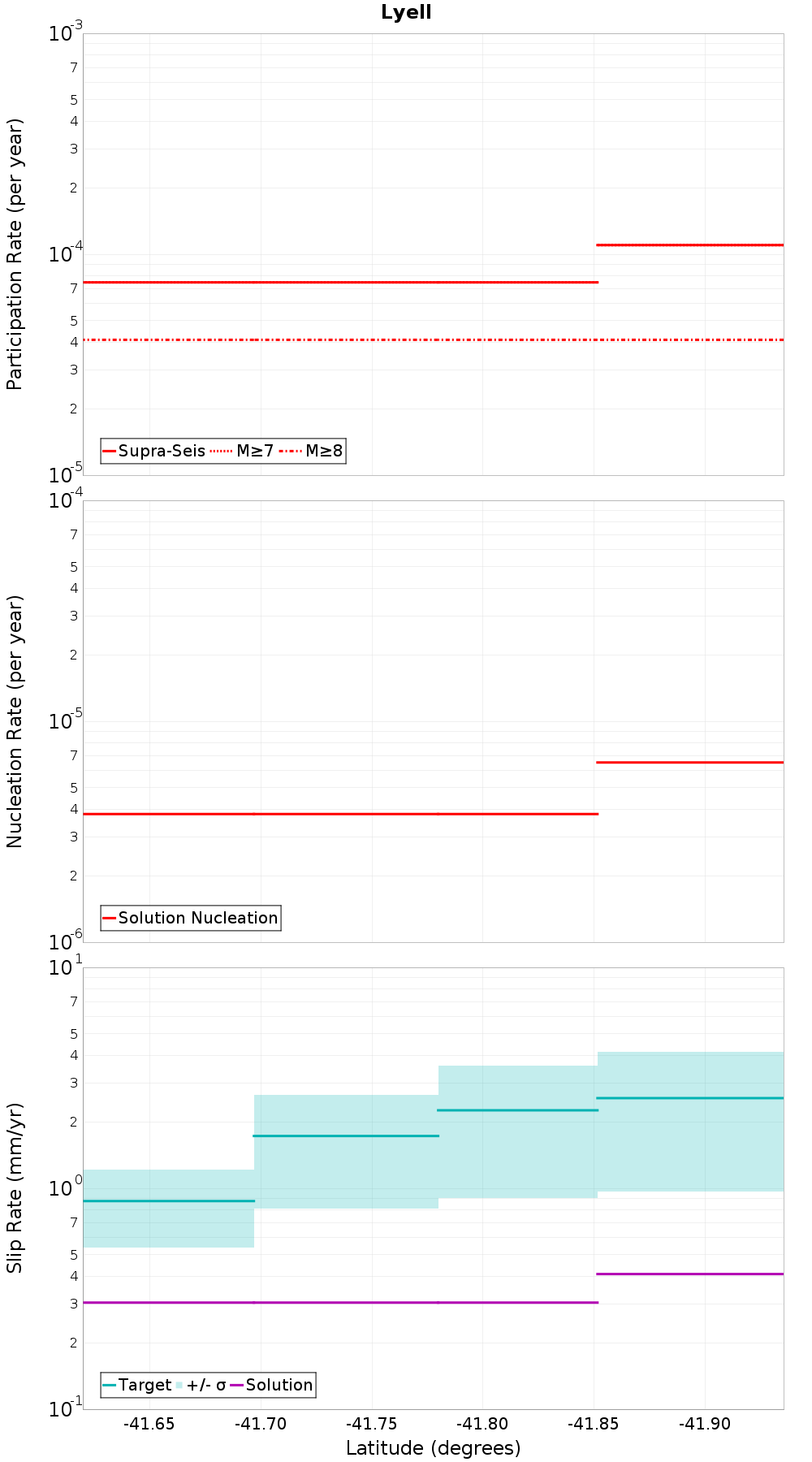

Along-Strike Values
Moment-Rates and b-Values

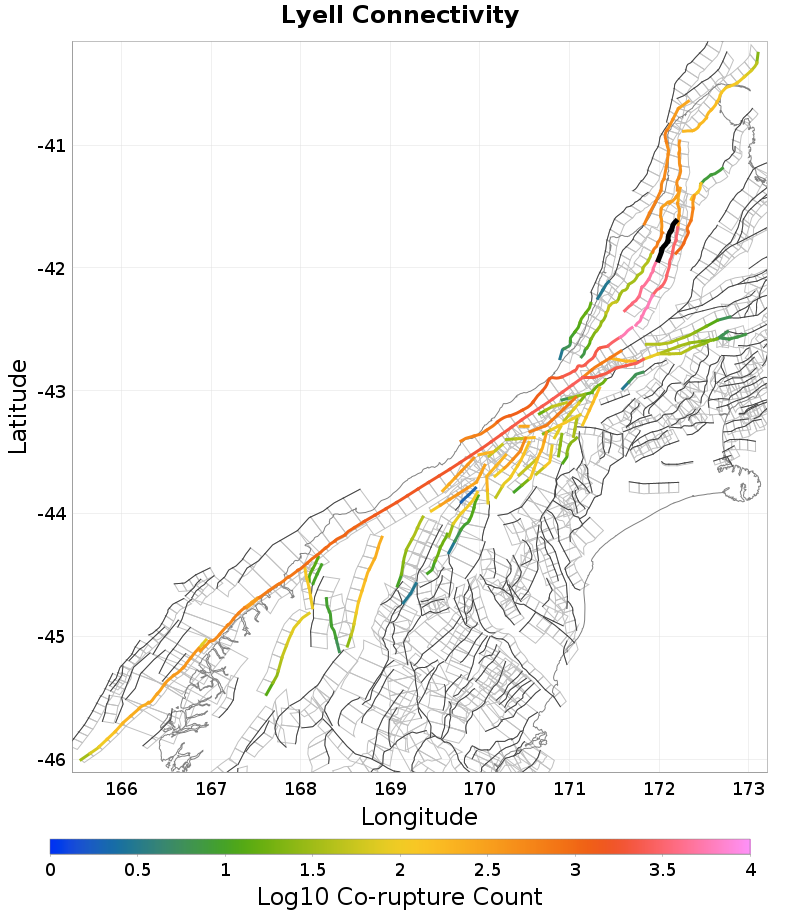

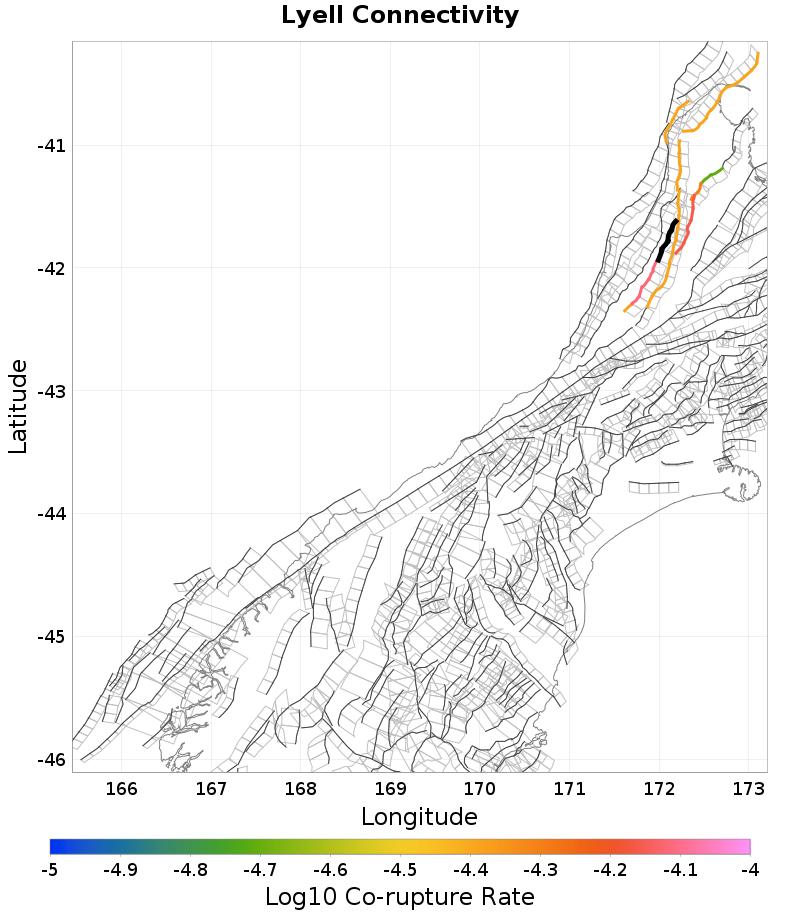

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| White Creek, 0.08 km away |
| Matiri West, 0.19 km away |
| Lyell South, 1.51 km away |
| Inangahua, 5.51 km away |
| Glasgow, 6.15 km away |
| Maimai: North, 7.56 km away |
White Creek, 0.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6,142 |
| Co-rupture Rate | 4.097765E-5 |
Matiri West, 0.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,026 |
| Co-rupture Rate | 6.903714E-5 |
Lyell South, 1.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4,887 |
| Co-rupture Rate | 7.6431694E-5 |
Inangahua, 5.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 669 |
| Co-rupture Rate | 0.0 |
Glasgow, 6.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 405 |
| Co-rupture Rate | 0.0 |
Maimai: North, 7.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 40 |
| Co-rupture Rate | 0.0 |
