Timaru Creek Details

Property	Value
Rupture Count	15,725
Ruptures Above Sect Min Mag	15,723
Ruptures w/ Nonzero Rates	9
Magnitude Range	[6.79, 8.40]
Length Range	[19, 763] km
Total Rate	9.921824E-5 /yr
Multi-Fault Rate	9.921824E-5 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	112

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

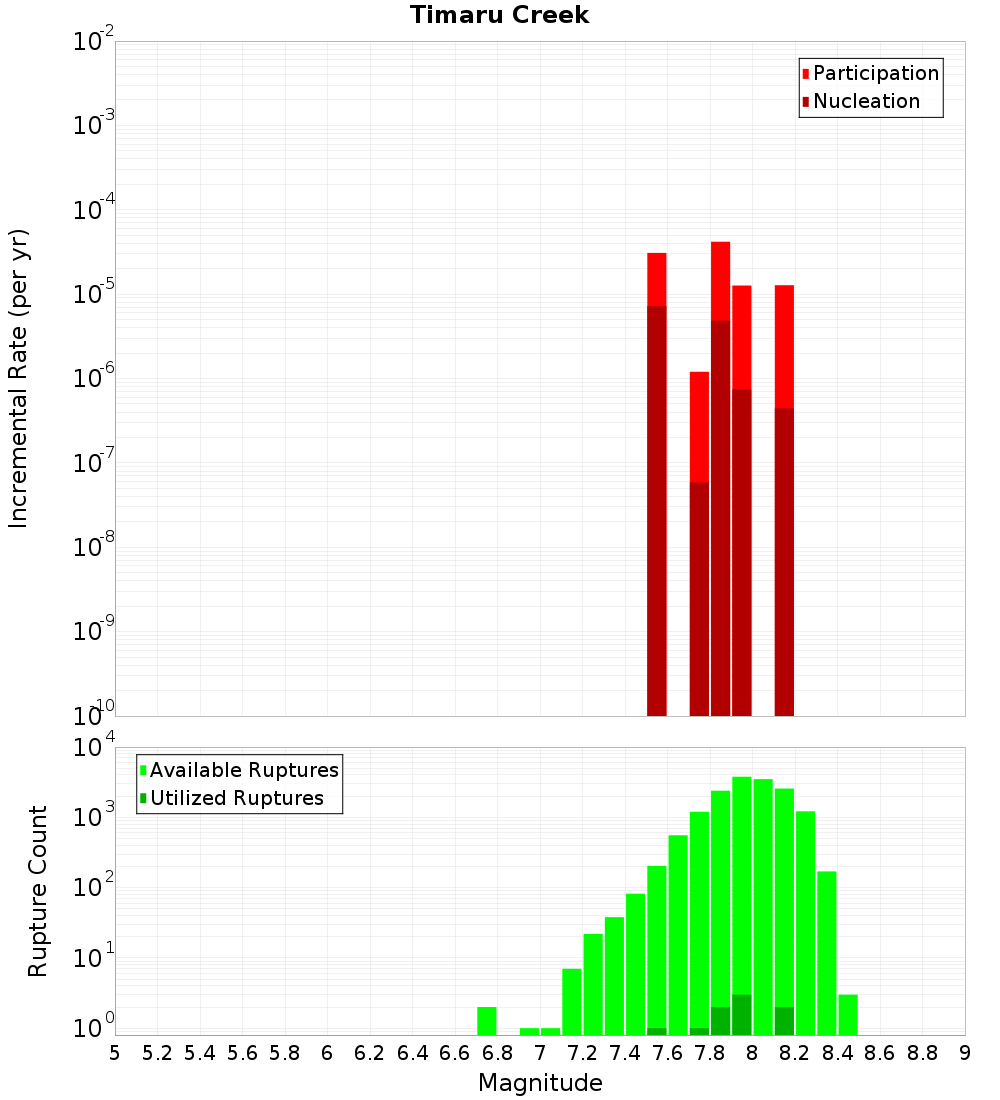

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

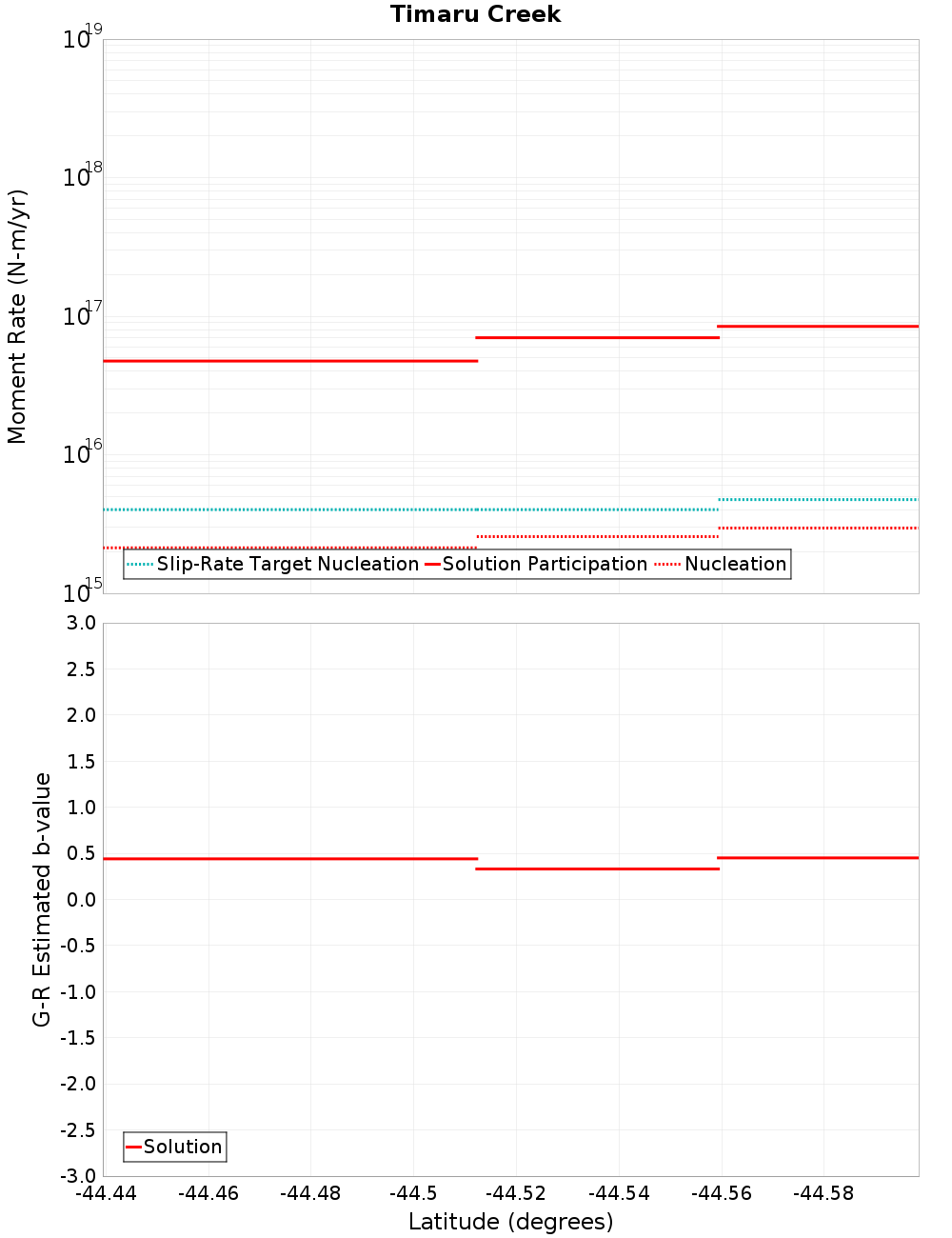

Moment-Rates and b-Values

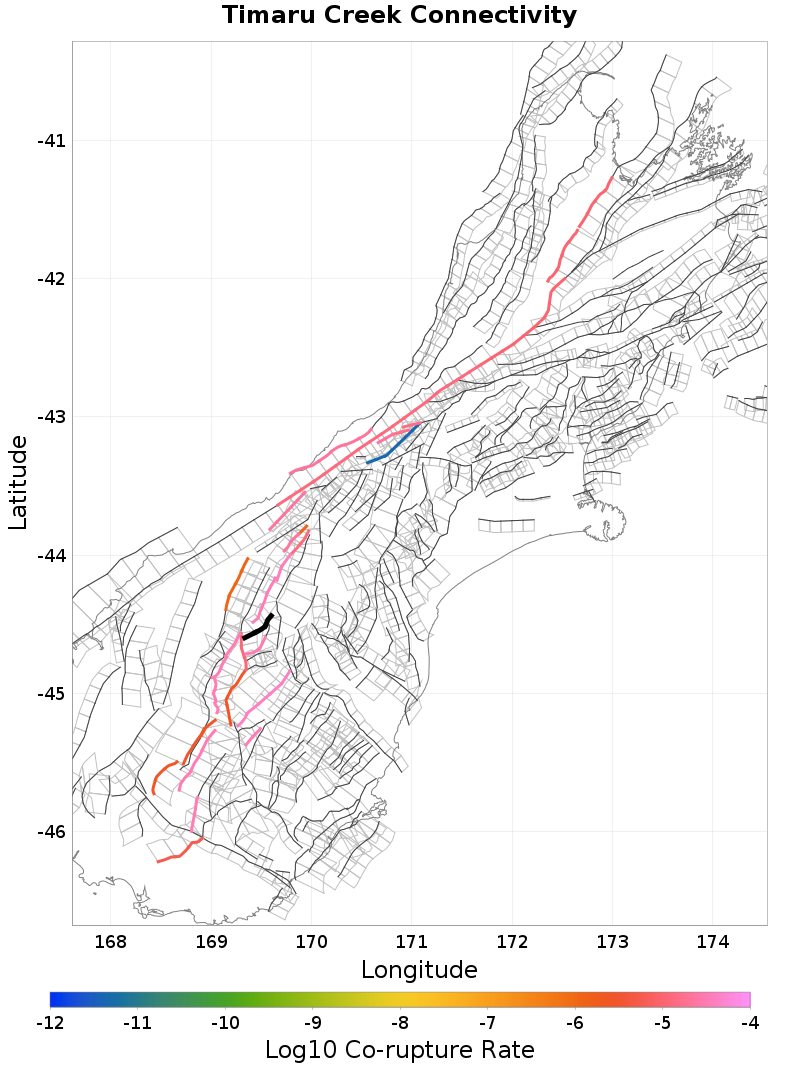

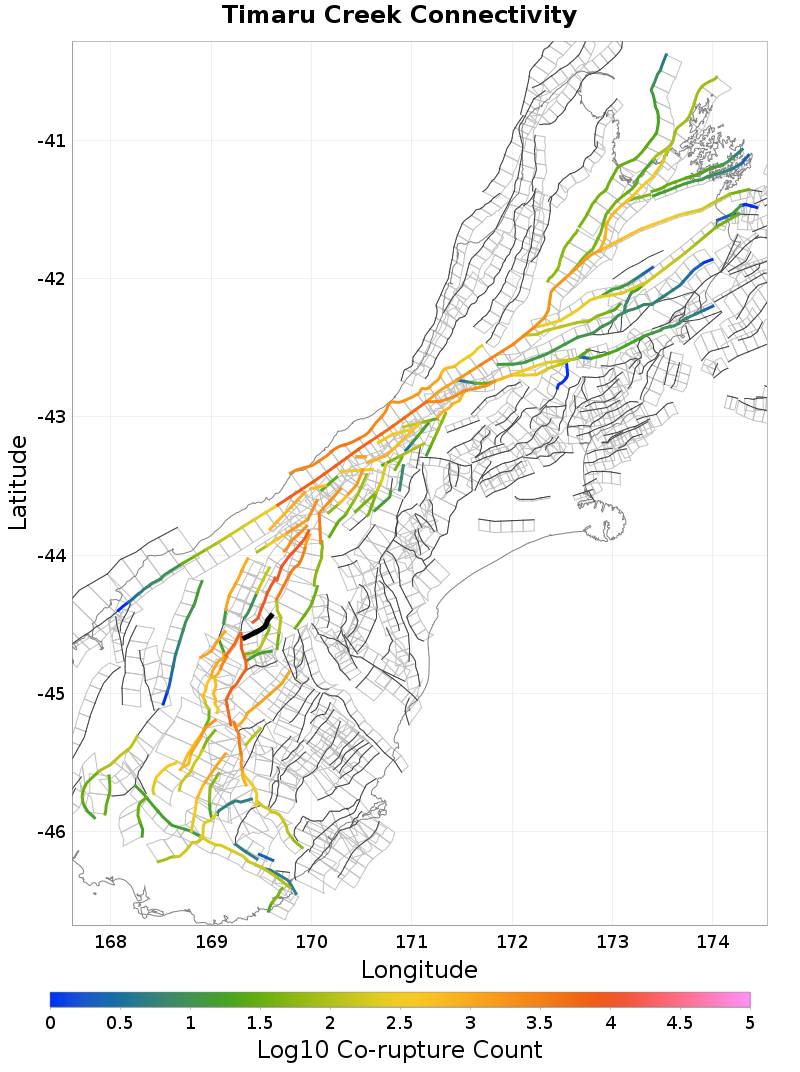

Connectivity

Nearby Sections

Fault Section
Dromedary, 0.13 km away
Grandview, 0.3 km away
Wanaka, 0.48 km away
Lindis River, 2.49 km away
Cardrona - Hawea, 4.34 km away
Hunter Valley, 4.93 km away
Dingle, 4.97 km away
Motatapu, 7.21 km away
Barrier Range, 9.34 km away
Ostler South, 9.73 km away

Dromedary, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?	true
Directly Connected?	true
Co-rupture Count	106
Co-rupture Rate	0.0

Grandview, 0.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?	true
Directly Connected?	true
Co-rupture Count	7,259
Co-rupture Rate	1.1019332E-5

Wanaka, 0.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?	true
Directly Connected?	true
Co-rupture Count	1,101
Co-rupture Rate	1.202138E-6

Lindis River, 2.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?	true
Directly Connected?	true
Co-rupture Count	114
Co-rupture Rate	3.0819545E-5

Cardrona - Hawea, 4.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?	true
Directly Connected?	true
Co-rupture Count	5,529
Co-rupture Rate	3.251814E-5

Hunter Valley, 4.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?	true
Directly Connected?	true
Co-rupture Count	144
Co-rupture Rate	0.0

Dingle, 4.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?	true
Directly Connected?	true
Co-rupture Count	10,431
Co-rupture Rate	3.4678418E-5

Motatapu, 7.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?	true
Directly Connected?	false
Co-rupture Count	1,538
Co-rupture Rate	0.0

Barrier Range, 9.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?	true
Directly Connected?	true
Co-rupture Count	3,516
Co-rupture Rate	0.0

Ostler South, 9.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?	true
Directly Connected?	false
Co-rupture Count	36
Co-rupture Rate	0.0
