Wairarapa: 1 Details

Property	Value
Rupture Count	46,169
Ruptures Above Sect Min Mag	46,161
Ruptures w/ Nonzero Rates	37
Magnitude Range	[6.71, 8.47]
Length Range	[20, 1,083] km
Total Rate	4.3694474E-4 /yr
Multi-Fault Rate	4.3694474E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	215

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

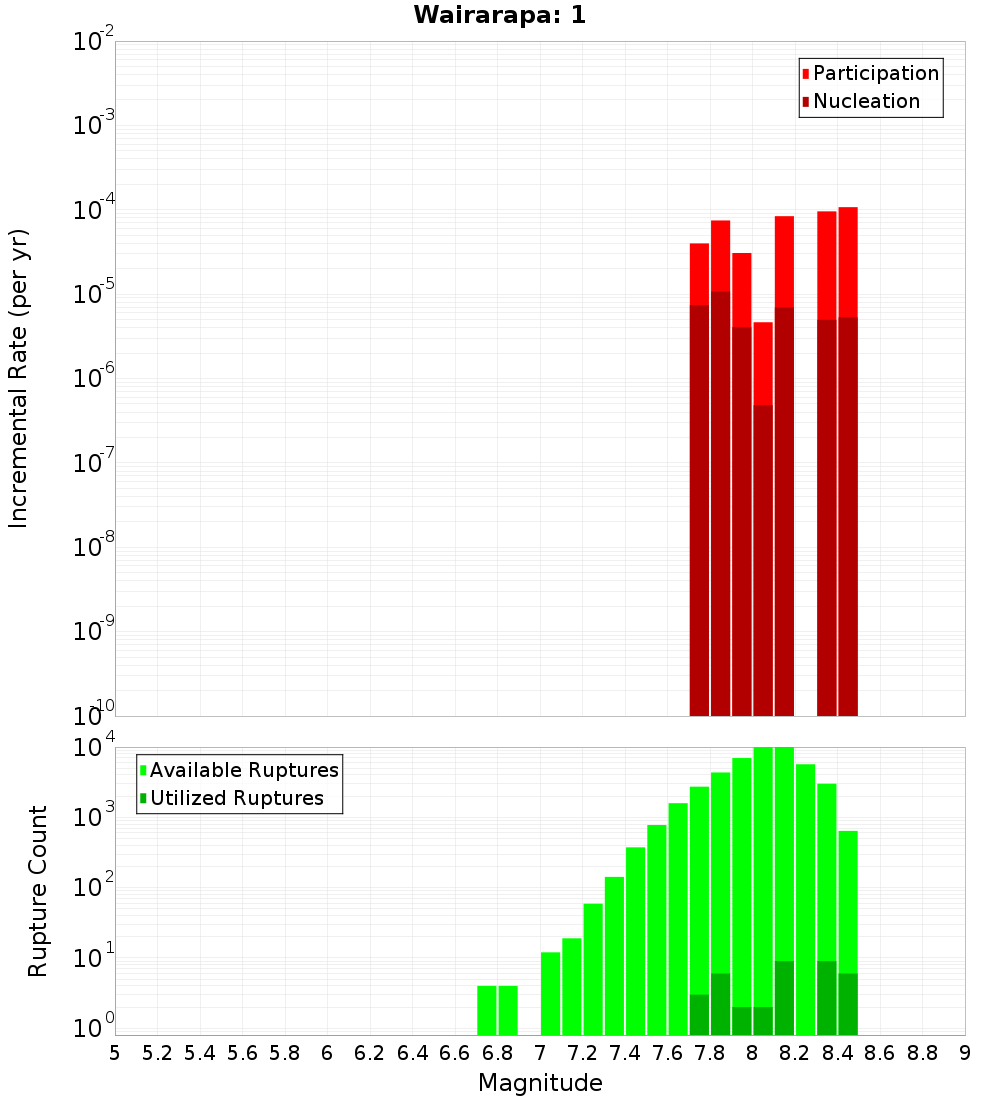

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Wairarapa: 2, 0 km away
Wairarapa: Needles, 0 km away
Wharekauhau, 0.2 km away
Wellington Hutt Valley: 5, 0.92 km away
Aotea - Evans Bay, 1.2 km away
Wellington Hutt Valley: 4, 2.73 km away
Whitemans Valley, 5.26 km away
Akatarawa, 12.67 km away
Wellington Hutt Valley: 2, 12.7 km away
Wellington Hutt Valley: 3, 12.73 km away
Moonshine, 13.22 km away
Ohariu, 14.45 km away
BooBoo, 14.77 km away

Wairarapa: 2, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?	true
Directly Connected?	true
Co-rupture Count	26,038
Co-rupture Rate	4.2241946E-4

Wairarapa: Needles, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?	true
Directly Connected?	true
Co-rupture Count	36,768
Co-rupture Rate	3.8271444E-4

Wharekauhau, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?	true
Directly Connected?	true
Co-rupture Count	4,396
Co-rupture Rate	4.8159207E-5

Wellington Hutt Valley: 5, 0.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?	true
Directly Connected?	true
Co-rupture Count	15,398
Co-rupture Rate	0.0

Aotea - Evans Bay, 1.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?	true
Directly Connected?	true
Co-rupture Count	597
Co-rupture Rate	6.573609E-6

Wellington Hutt Valley: 4, 2.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?	true
Directly Connected?	false
Co-rupture Count	283
Co-rupture Rate	0.0

Whitemans Valley, 5.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?	true
Directly Connected?	true
Co-rupture Count	810
Co-rupture Rate	7.9516685E-6

Akatarawa, 12.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?	true
Directly Connected?	false
Co-rupture Count	141
Co-rupture Rate	0.0

Wellington Hutt Valley: 2, 12.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?	true
Directly Connected?	true
Co-rupture Count	724
Co-rupture Rate	8.842809E-6

Wellington Hutt Valley: 3, 12.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?	true
Directly Connected?	false
Co-rupture Count	184
Co-rupture Rate	0.0

Moonshine, 13.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?	true
Directly Connected?	false
Co-rupture Count	243
Co-rupture Rate	0.0

Ohariu, 14.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?	true
Directly Connected?	false
Co-rupture Count	561
Co-rupture Rate	1.5416417E-5

BooBoo, 14.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?	true
Directly Connected?	false
Co-rupture Count	696
Co-rupture Rate	0.0
