White Creek Details

PropertyValue
Rupture Count36,130
Ruptures Above Sect Min Mag36,121
Ruptures w/ Nonzero Rates8
Magnitude Range[6.81, 8.47]
Length Range[23, 1,039] km
Total Rate9.167575E-5 /yr
Multi-Fault Rate9.167575E-5 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults94

Table Of Contents

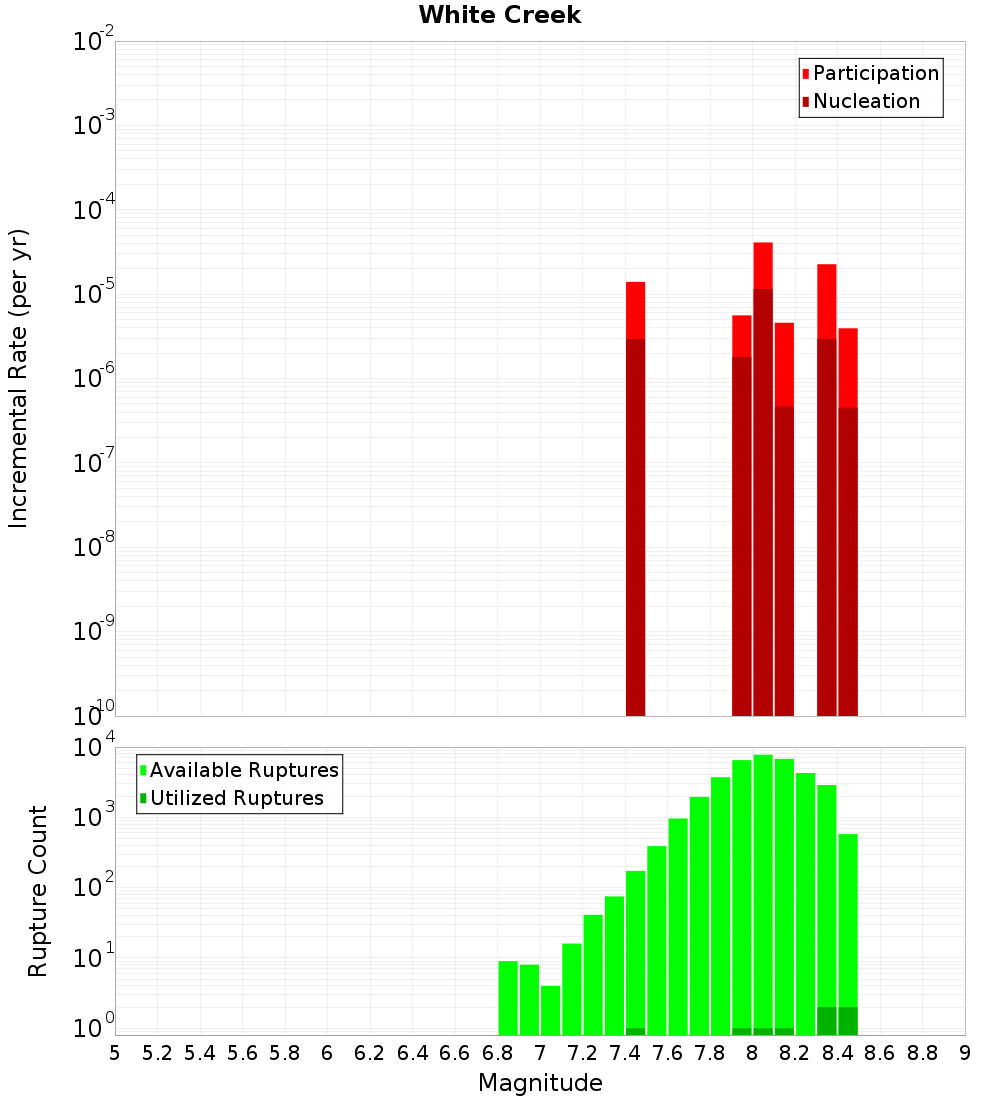

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Lyell, 0.08 km away
Matiri West, 0.2 km away
Kohaihai South, 0.56 km away
White Creek - buried, 0.99 km away
Kohaihai, 2.19 km away
Glasgow, 2.98 km away
Lyell South, 6.37 km away
Karamea South, 10.55 km away
Kongahau, 11.77 km away
Inangahua, 13.07 km away

Lyell, 0.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?true
Directly Connected?true
Co-rupture Count6,142
Co-rupture Rate4.097765E-5

Matiri West, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?true
Directly Connected?true
Co-rupture Count4,314
Co-rupture Rate1.8548813E-5

Kohaihai South, 0.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?true
Directly Connected?true
Co-rupture Count1,839
Co-rupture Rate0.0

White Creek - buried, 0.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?true
Directly Connected?true
Co-rupture Count33,293
Co-rupture Rate3.112696E-5

Kohaihai, 2.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?true
Directly Connected?true
Co-rupture Count17,737
Co-rupture Rate7.312694E-5

Glasgow, 2.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?true
Directly Connected?true
Co-rupture Count349
Co-rupture Rate0.0

Lyell South, 6.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?true
Directly Connected?true
Co-rupture Count6,521
Co-rupture Rate4.6578087E-5

Karamea South, 10.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?true
Directly Connected?false
Co-rupture Count693
Co-rupture Rate1.8548813E-5

Kongahau, 11.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?true
Directly Connected?false
Co-rupture Count15,724
Co-rupture Rate7.312694E-5

Inangahua, 13.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjAuMFFaaEpq
Connected?true
Directly Connected?true
Co-rupture Count4,099
Co-rupture Rate0.0
