Awahokomo Details

Property	Value
Rupture Count	411
Ruptures Above Sect Min Mag	410
Ruptures w/ Nonzero Rates	45
Magnitude Range	[6.79, 8.16]
Length Range	[18, 347] km
Total Rate	6.966777E-5 /yr
Multi-Fault Rate	6.966777E-5 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	39

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

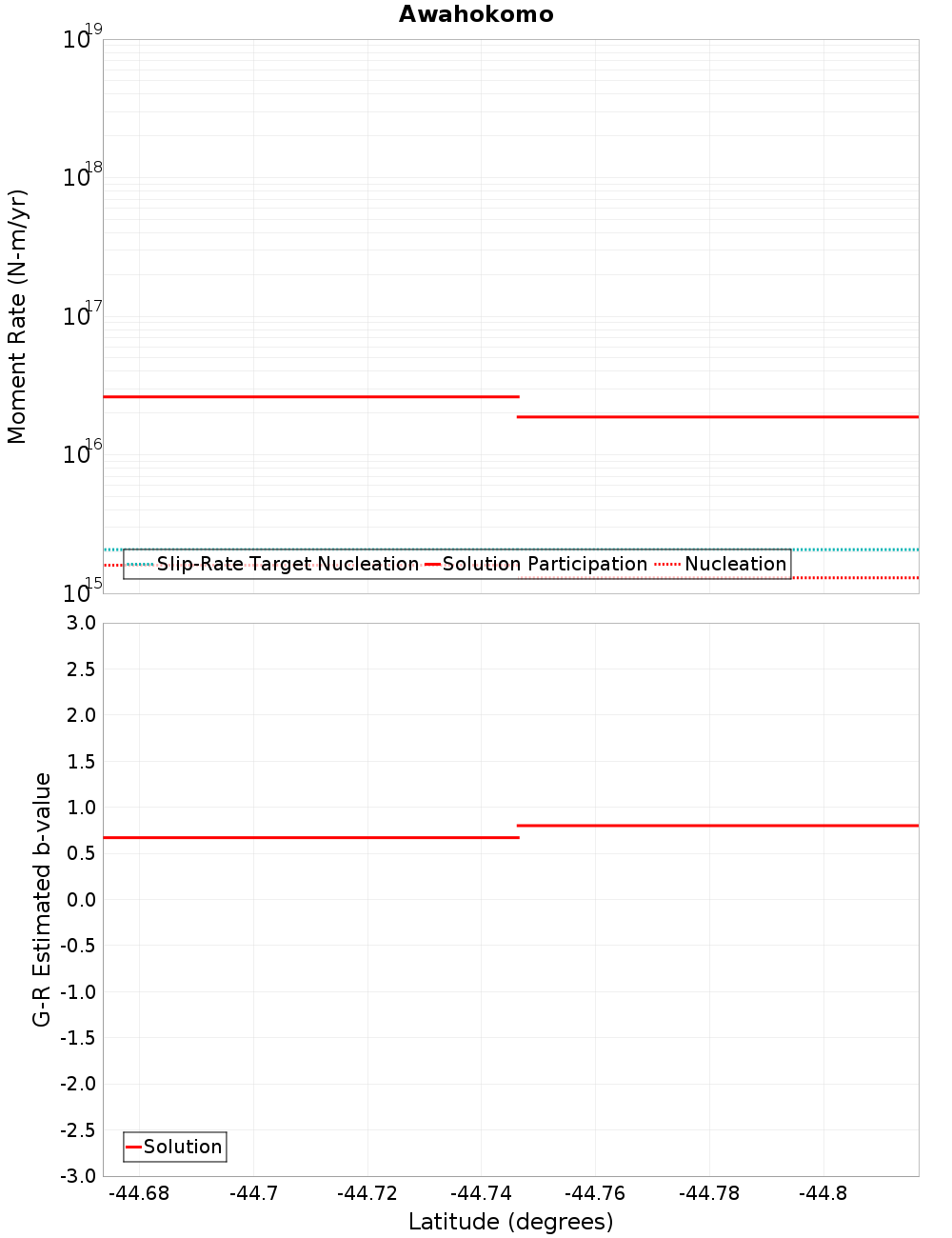

Moment-Rates and b-Values

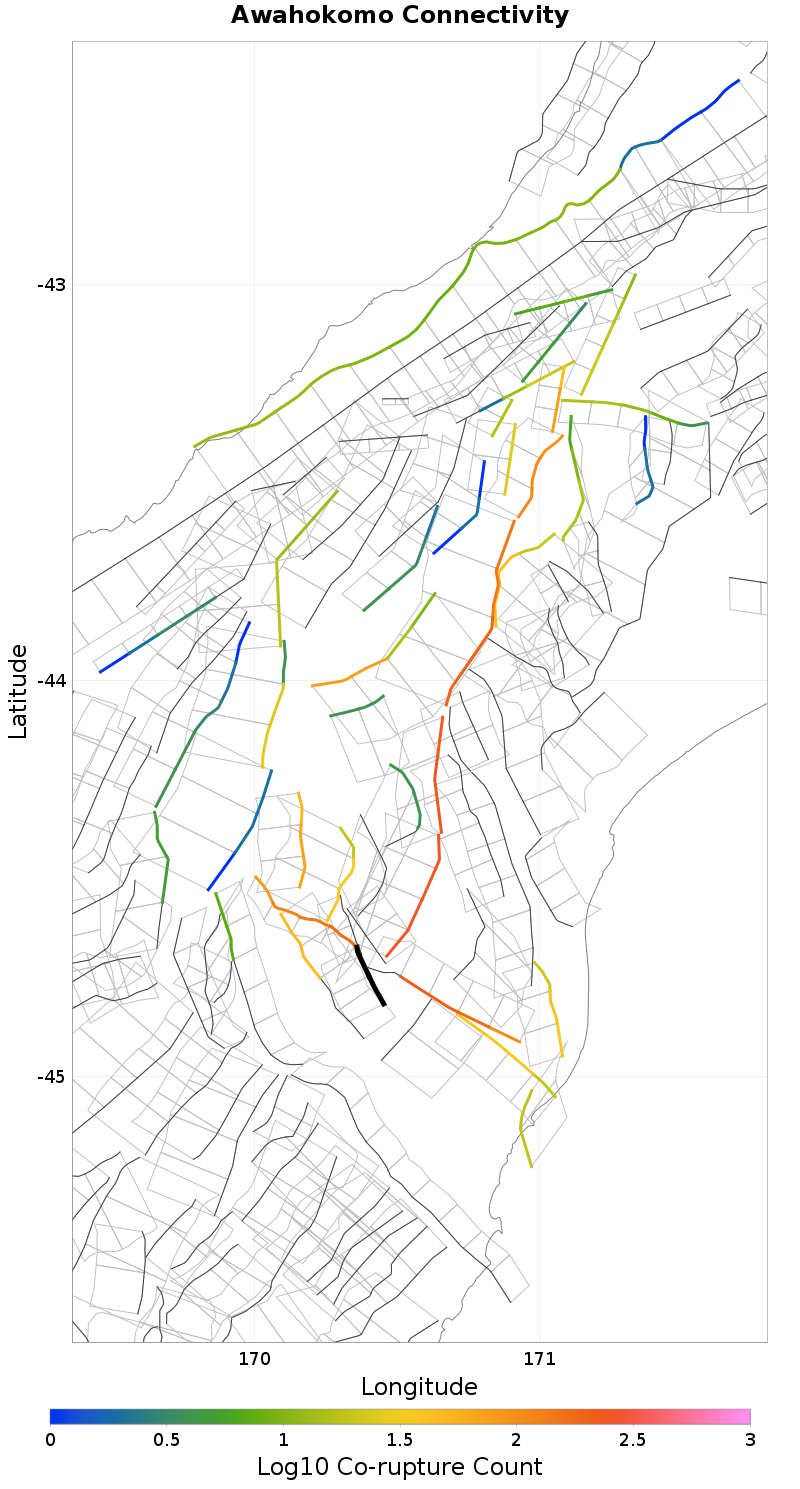

Connectivity

Nearby Sections

Fault Section
Middle Range, 0.05 km away
Waitangi, 0.42 km away
Fern Gully, 0.47 km away
Stonewall, 0.84 km away
Mt Sutton, 2.07 km away
Dryburgh, 3.91 km away
Kirkliston, 5.7 km away
Black Hill, 10.17 km away
Hawkdun, 10.38 km away
Gibson, 10.93 km away
Waihemo, 12.79 km away

Middle Range, 0.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	46
Co-rupture Rate	1.0613785E-5

Waitangi, 0.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Fern Gully, 0.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	174
Co-rupture Rate	2.8184655E-5

Stonewall, 0.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	210
Co-rupture Rate	3.680597E-5

Mt Sutton, 2.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dryburgh, 3.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kirkliston, 5.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	261
Co-rupture Rate	4.2255713E-5

Black Hill, 10.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hawkdun, 10.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	false
Co-rupture Count	7
Co-rupture Rate	1.3093365E-11

Gibson, 10.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	false
Co-rupture Count	34
Co-rupture Rate	9.054521E-6

Waihemo, 12.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
