Gimmerburn Details

Property	Value
Rupture Count	6,904
Ruptures Above Sect Min Mag	6,902
Ruptures w/ Nonzero Rates	86
Magnitude Range	[6.99, 8.37]
Length Range	[22, 534] km
Total Rate	8.521838E-5 /yr
Multi-Fault Rate	8.521838E-5 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	63

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

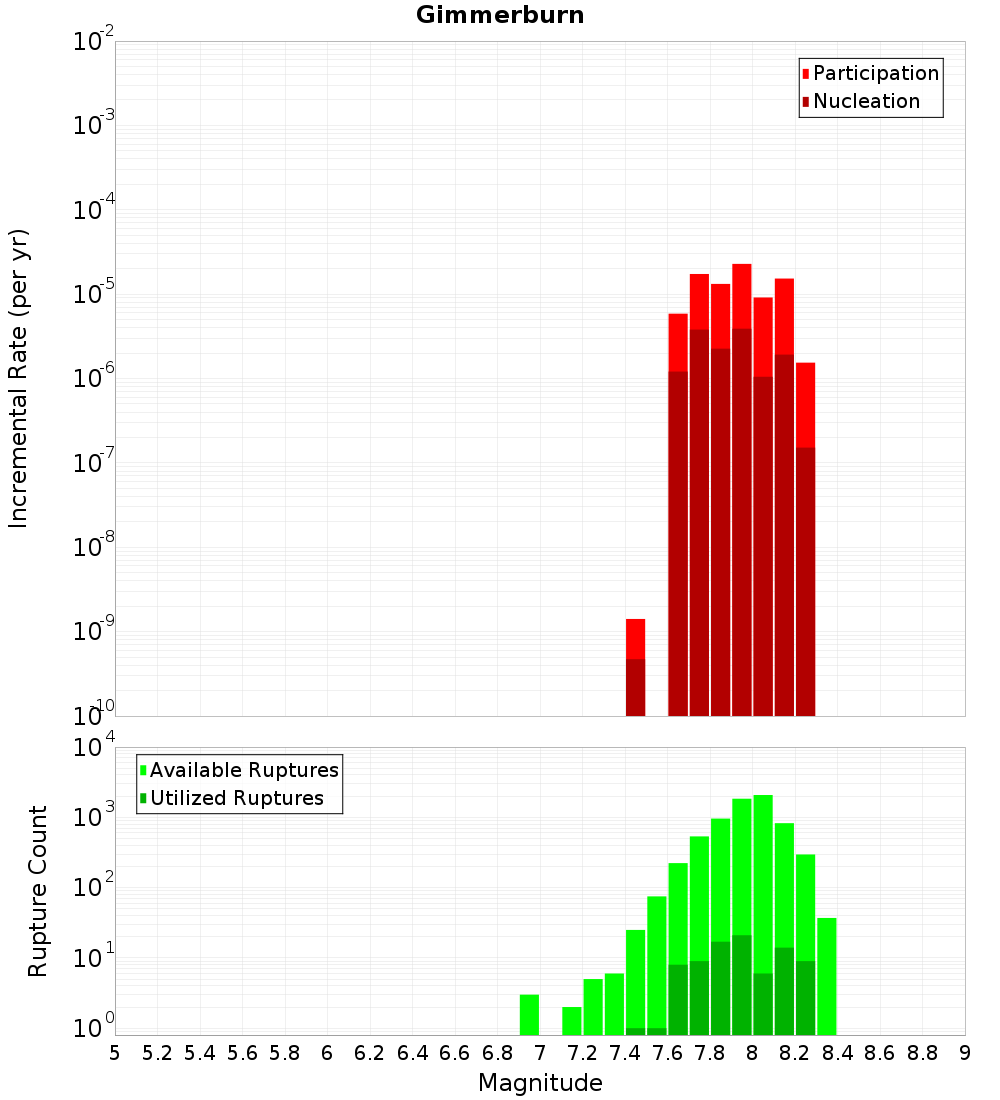

Magnitude-Frequency Distribution

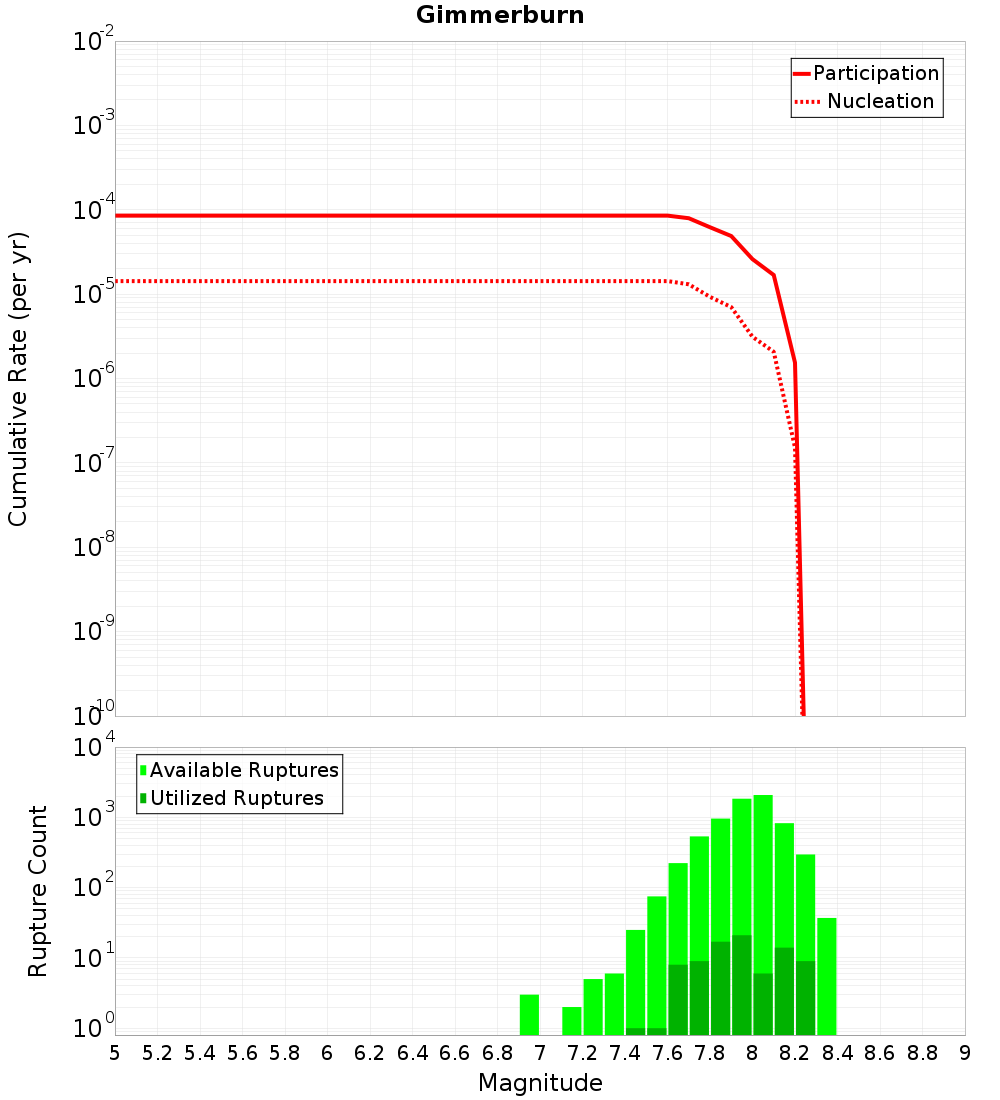

Incremental	Cumulative

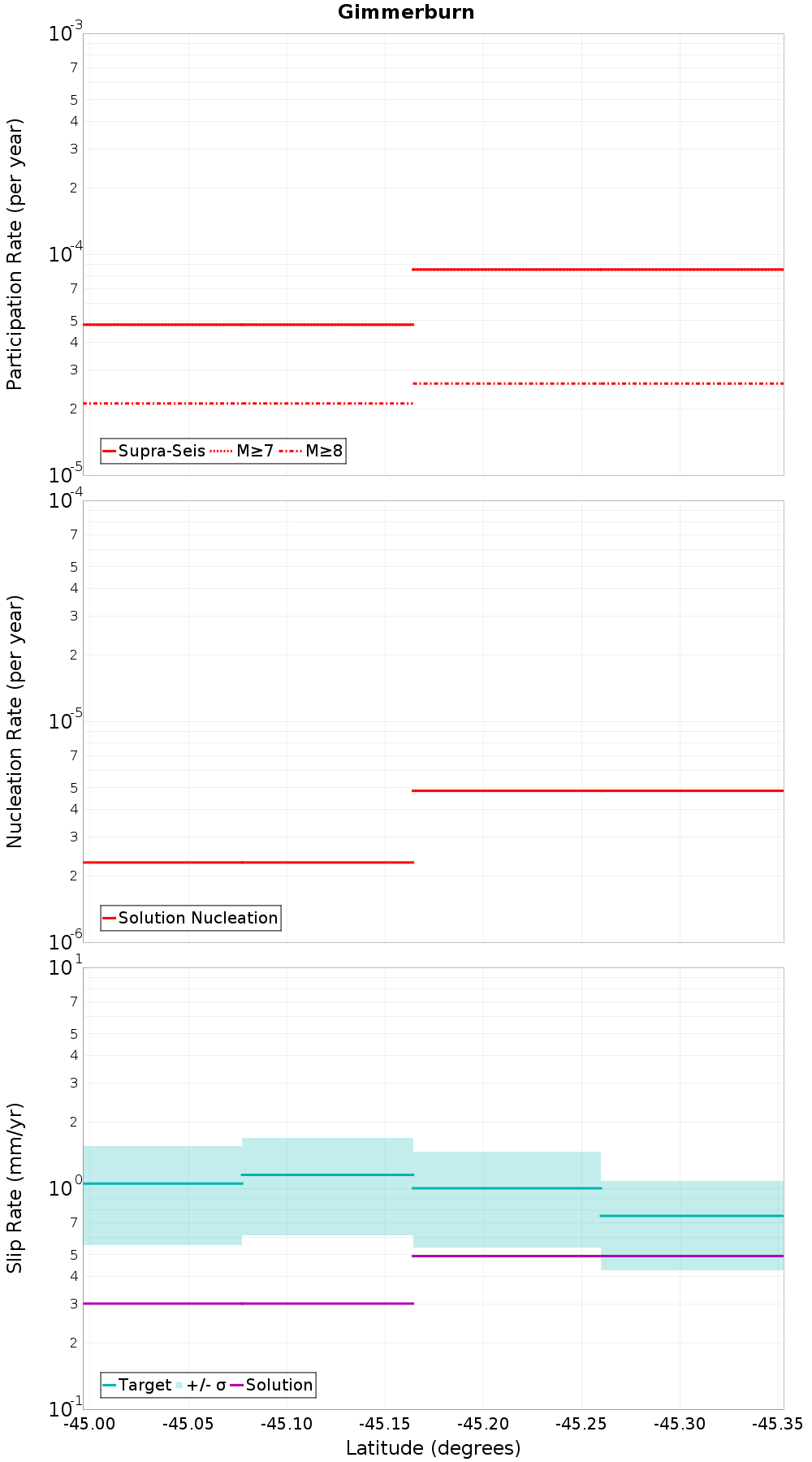

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Little Valley, 0.27 km away
Long Valley, 0.38 km away
Pylap, 2.27 km away
Cross Eden, 2.3 km away
Waihemo, 3.59 km away
Hawkdun, 3.64 km away
Garibaldi, 3.78 km away
Galloway, 4.34 km away
Blue Lake, 4.59 km away
Ranfurly, 4.96 km away
Waipiata, 7.59 km away
Raggedy - Blackstone, 10.17 km away
Logan Burn, 10.21 km away
Omarama Saddle, 11.84 km away

Little Valley, 0.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	2,869
Co-rupture Rate	2.7187012E-5

Long Valley, 0.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	2,525
Co-rupture Rate	6.02022E-5

Pylap, 2.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	2,068
Co-rupture Rate	2.0767793E-5

Cross Eden, 2.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	172
Co-rupture Rate	1.4159791E-10

Waihemo, 3.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	false
Co-rupture Count	49
Co-rupture Rate	3.3547562E-6

Hawkdun, 3.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	2,559
Co-rupture Rate	1.7131233E-5

Garibaldi, 3.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	1,496
Co-rupture Rate	4.4963996E-5

Galloway, 4.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	285
Co-rupture Rate	1.2866992E-5

Blue Lake, 4.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	2,921
Co-rupture Rate	5.134322E-5

Ranfurly, 4.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waipiata, 7.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	false
Co-rupture Count	36
Co-rupture Rate	6.065367E-6

Raggedy - Blackstone, 10.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	false
Co-rupture Count	441
Co-rupture Rate	1.3615832E-5

Logan Burn, 10.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	false
Co-rupture Count	645
Co-rupture Rate	3.7502416E-6

Omarama Saddle, 11.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	false
Co-rupture Count	677
Co-rupture Rate	1.5111537E-5
