Kaikoura 2 Details

PropertyValue
Rupture Count2,392
Ruptures Above Sect Min Mag2,387
Ruptures w/ Nonzero Rates28
Magnitude Range[6.49, 8.45]
Length Range[11, 803] km
Total Rate9.495766E-5 /yr
Multi-Fault Rate9.495766E-5 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults169

Table Of Contents

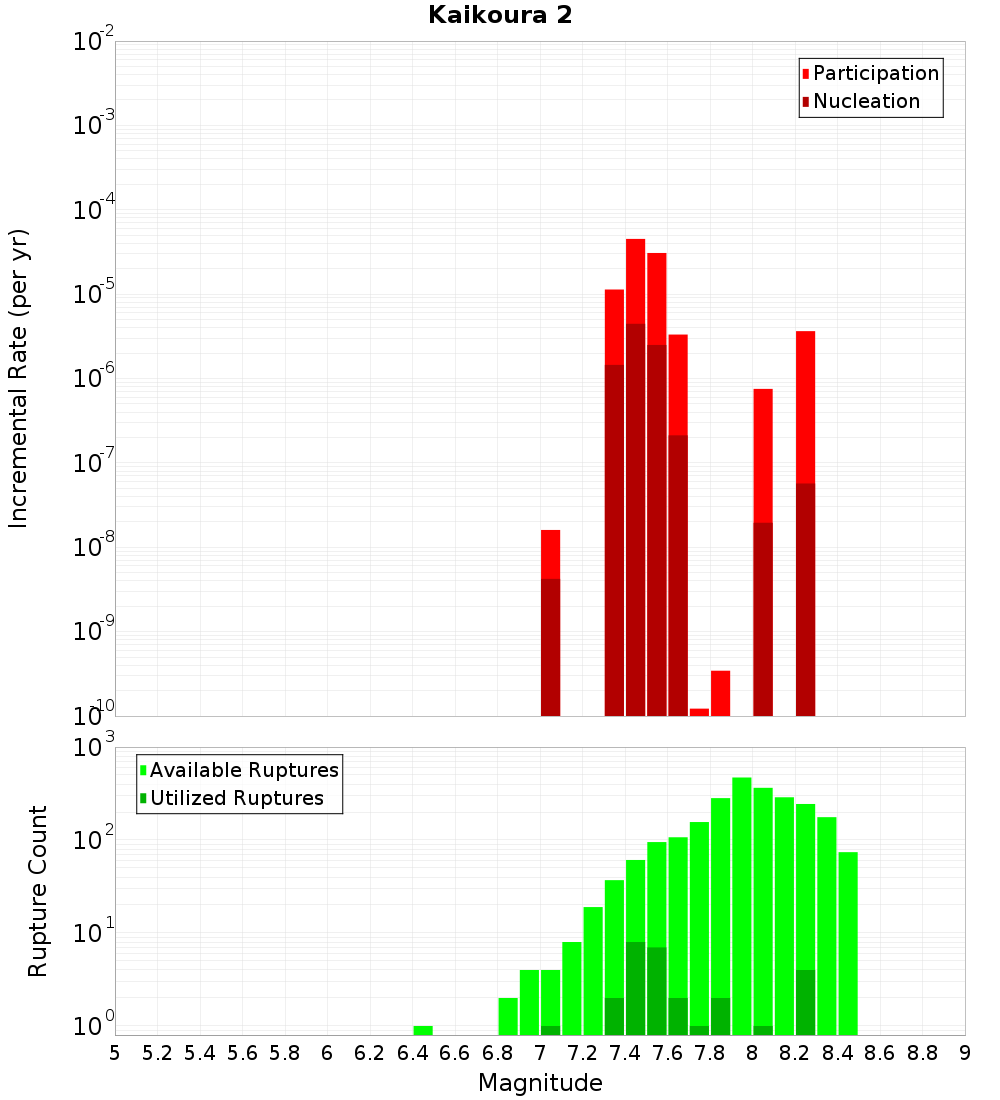

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

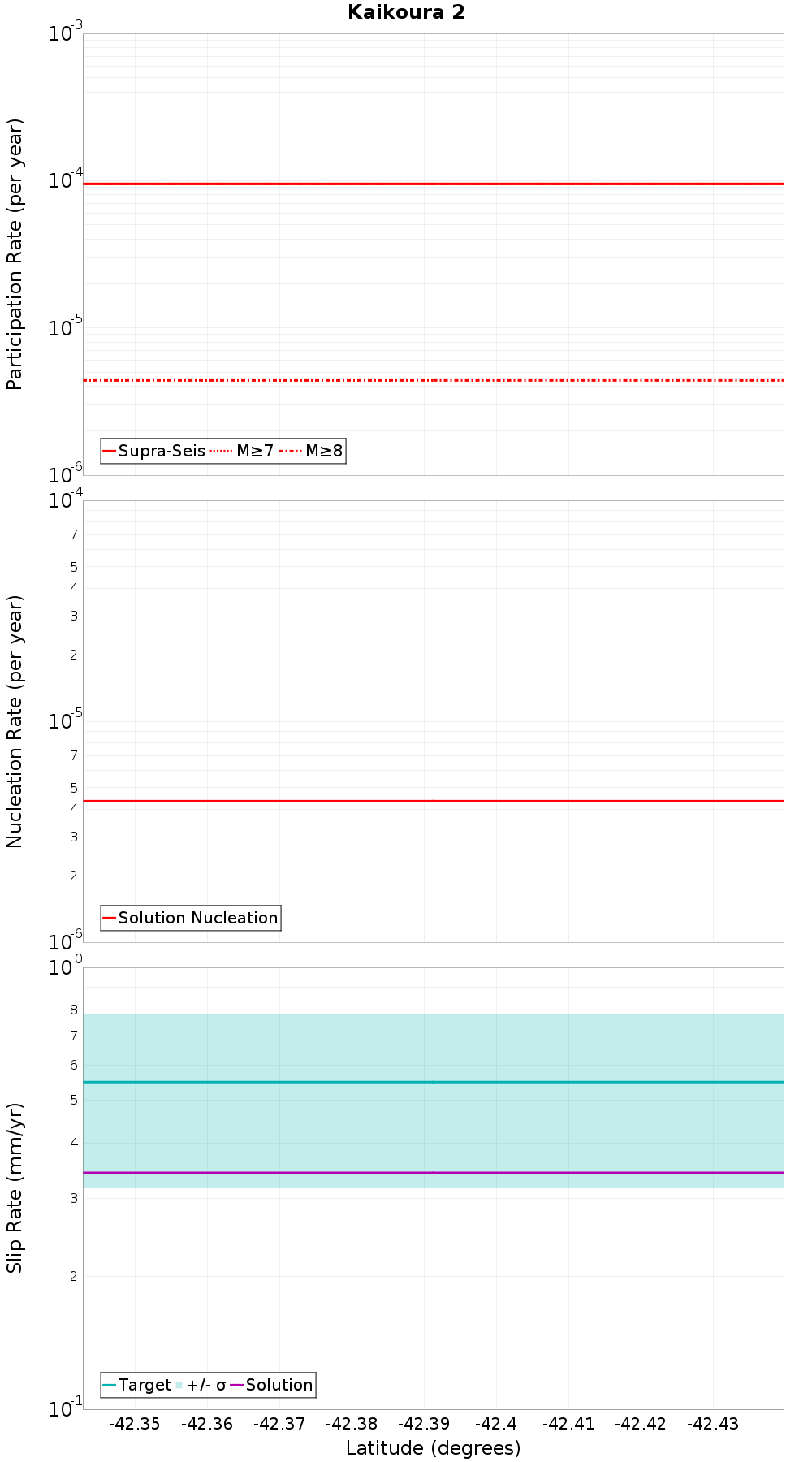

Along-Strike Values

(top)

Along-strike plot

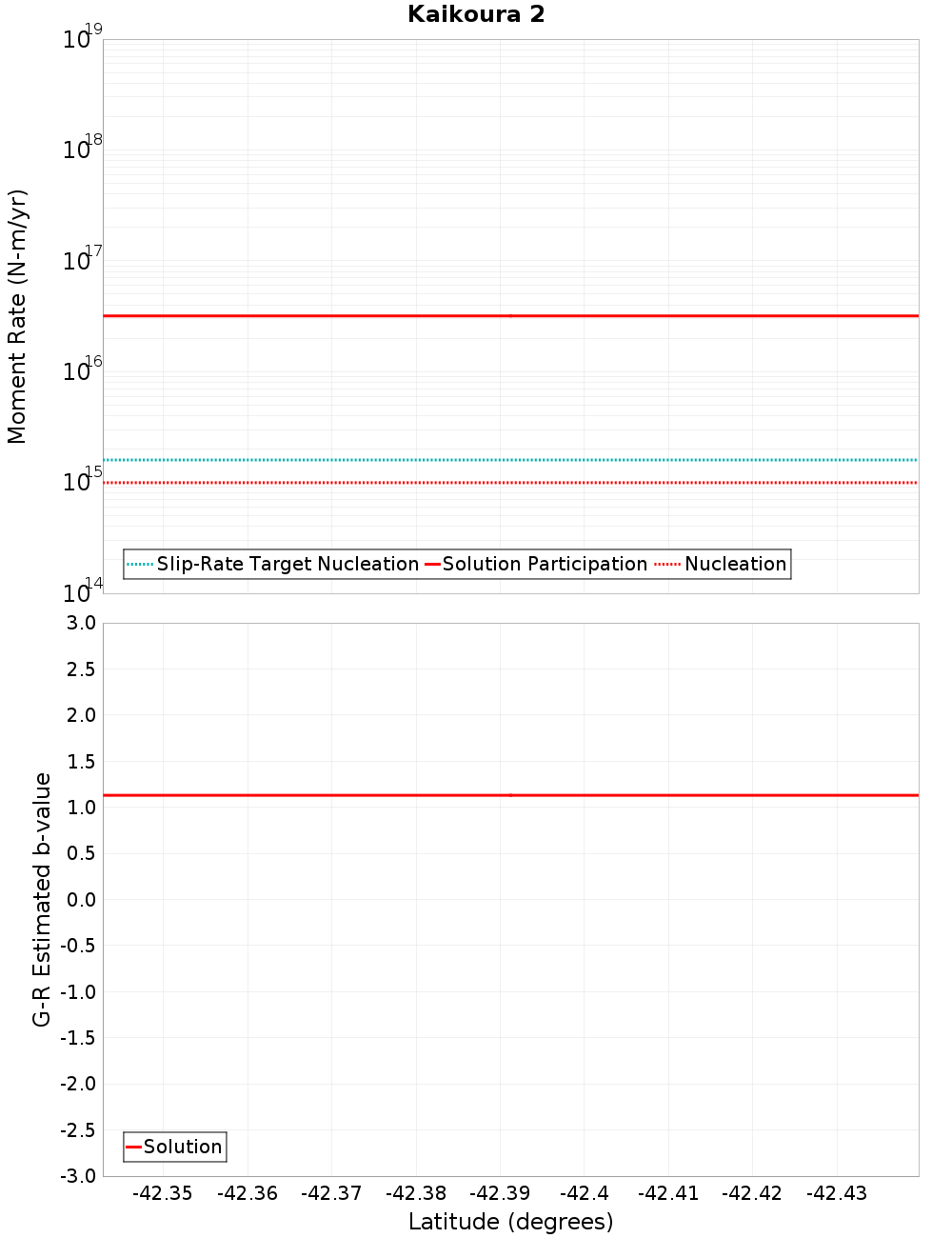

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Offshore Splay Thrust, 0.24 km away
Upper Kowhai - Manakau, 2.18 km away
Kaikoura - Mangamaunu, 3.59 km away
Hope: Conway, 4.74 km away
Hope: Seaward, 4.74 km away
Jordan, 5.37 km away
Kowhai, 7.44 km away
Hundalee, 9.44 km away
Conway Trough West, 10 km away
Marlborough Slope 2, 10.44 km away
Papatea, 14.68 km away

Offshore Splay Thrust, 0.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?true
Co-rupture Count211
Co-rupture Rate2.0768E-10

Upper Kowhai - Manakau, 2.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaikoura - Mangamaunu, 3.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?true
Co-rupture Count150
Co-rupture Rate1.0362861E-6

Hope: Conway, 4.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?false
Co-rupture Count720
Co-rupture Rate4.3954765E-6

Hope: Seaward, 4.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?true
Co-rupture Count965
Co-rupture Rate1.4616348E-5

Jordan, 5.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?true
Co-rupture Count1,072
Co-rupture Rate7.9272104E-5

Kowhai, 7.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Hundalee, 9.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Conway Trough West, 10 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?true
Co-rupture Count498
Co-rupture Rate6.9822905E-5

Marlborough Slope 2, 10.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Papatea, 14.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?false
Co-rupture Count303
Co-rupture Rate1.1240589E-5
