Kaiwara South Details
| Property | Value |
|---|---|
| Rupture Count | 1,633 |
| Ruptures Above Sect Min Mag | 1,628 |
| Ruptures w/ Nonzero Rates | 71 |
| Magnitude Range | [6.74, 8.12] |
| Length Range | [17, 400] km |
| Total Rate | 7.0334434E-5 /yr |
| Multi-Fault Rate | 7.0334434E-5 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 45 |
Table Of Contents

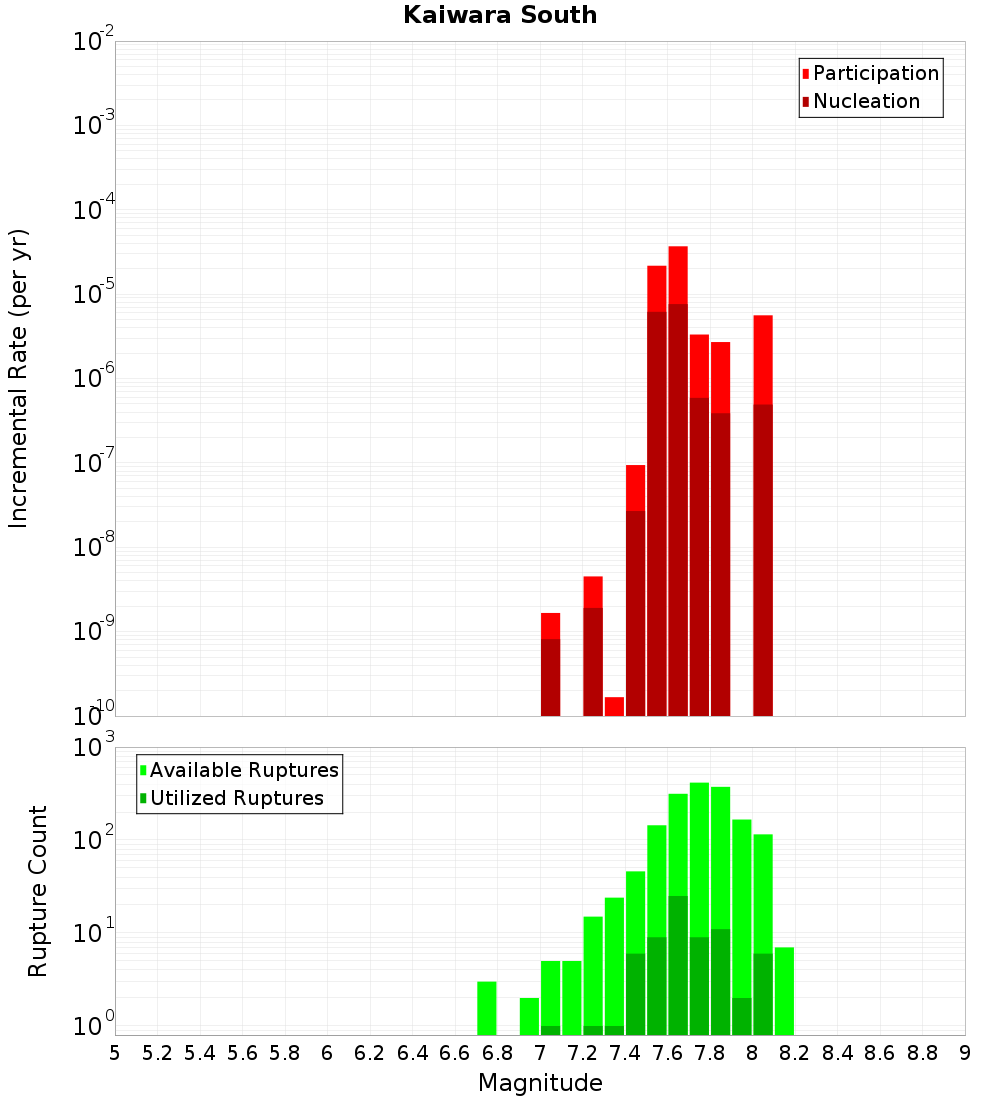

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

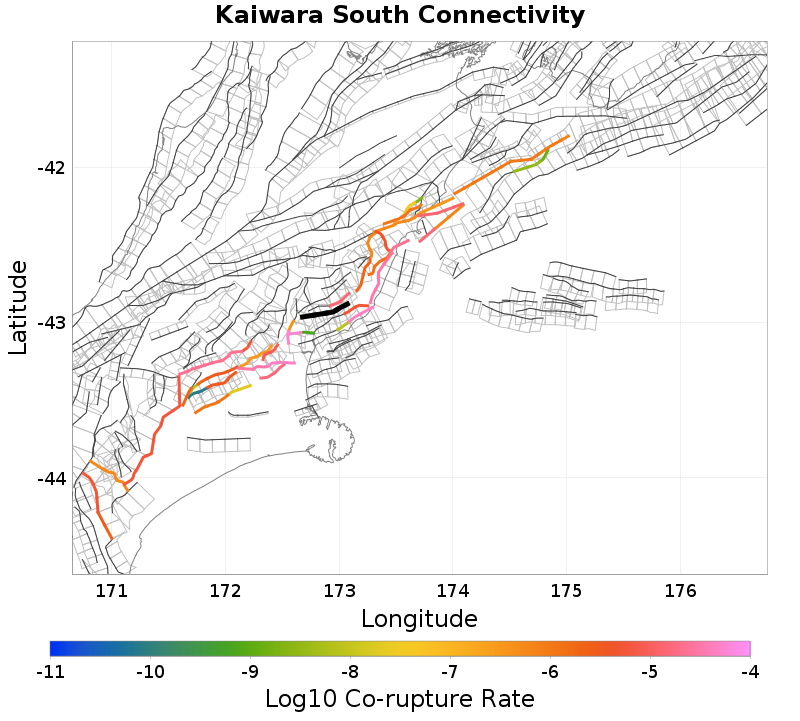

Connectivity
 |  |
|---|
Nearby Sections
Doctors, 1.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,290 |
| Co-rupture Rate | 5.580558E-5 |
Alexander, 2.77 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 347 |
| Co-rupture Rate | 1.4199813E-5 |
OmihiLwrHuru, 3.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 495 |
| Co-rupture Rate | 5.355924E-6 |
Lowry, 3.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Boby Stream, 6.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,147 |
| Co-rupture Rate | 5.5431454E-5 |
Balmoral, 7.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
AmberBlyth, 8.44 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 454 |
| Co-rupture Rate | 4.6758425E-5 |
Kaiwara North, 11.69 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 285 |
| Co-rupture Rate | 1.914074E-6 |
Mt Arden, 12.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Leonard Mound, 12.53 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hurunui Peak, 12.73 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Virginia, 12.76 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
