Matiri West Details

Property	Value
Rupture Count	5,811
Ruptures Above Sect Min Mag	5,809
Ruptures w/ Nonzero Rates	46
Magnitude Range	[6.96, 8.47]
Length Range	[23, 813] km
Total Rate	6.246348E-5 /yr
Multi-Fault Rate	6.246348E-5 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	88

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

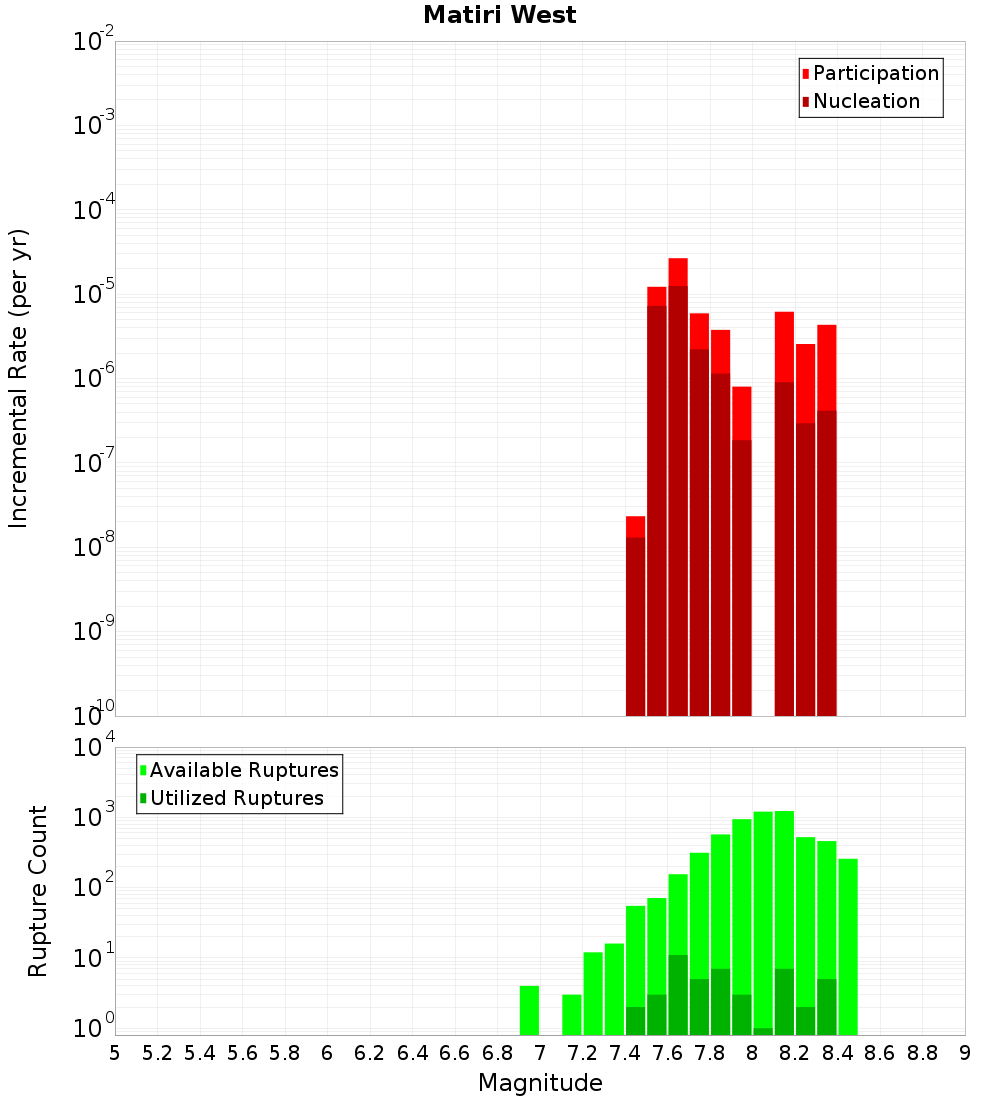

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

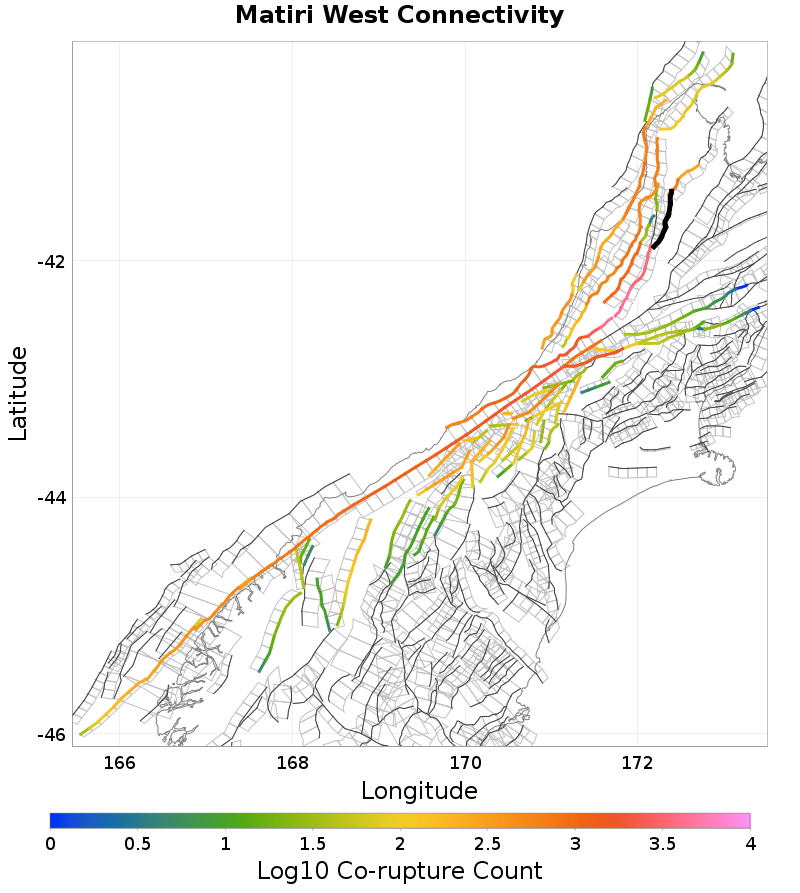

Connectivity

Nearby Sections

Fault Section
Kohaihai South, 0.15 km away
Lyell, 0.19 km away
White Creek, 0.2 km away
Karamea South, 0.33 km away
Glasgow, 1.09 km away
Kohaihai, 1.42 km away
Kongahau, 10.55 km away
Karamea, 12.45 km away
Lyell South, 13.9 km away

Kohaihai South, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	440
Co-rupture Rate	9.113986E-6

Lyell, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	1,026
Co-rupture Rate	1.9947343E-5

White Creek, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	4,314
Co-rupture Rate	2.8510121E-5

Karamea South, 0.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	720
Co-rupture Rate	4.1646985E-5

Glasgow, 1.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	602
Co-rupture Rate	1.283989E-5

Kohaihai, 1.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	640
Co-rupture Rate	2.4832468E-6

Kongahau, 10.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	933
Co-rupture Rate	2.4800163E-6

Karamea, 12.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	282
Co-rupture Rate	8.3110945E-6

Lyell South, 13.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	false
Co-rupture Count	1,069
Co-rupture Rate	8.414825E-6
