McKerrow - Douglas Duplex Details

Property	Value
Rupture Count	31,968
Ruptures Above Sect Min Mag	31,967
Ruptures w/ Nonzero Rates	81
Magnitude Range	[6.87, 8.46]
Length Range	[17, 773] km
Total Rate	7.462833E-5 /yr
Multi-Fault Rate	7.462833E-5 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	228

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

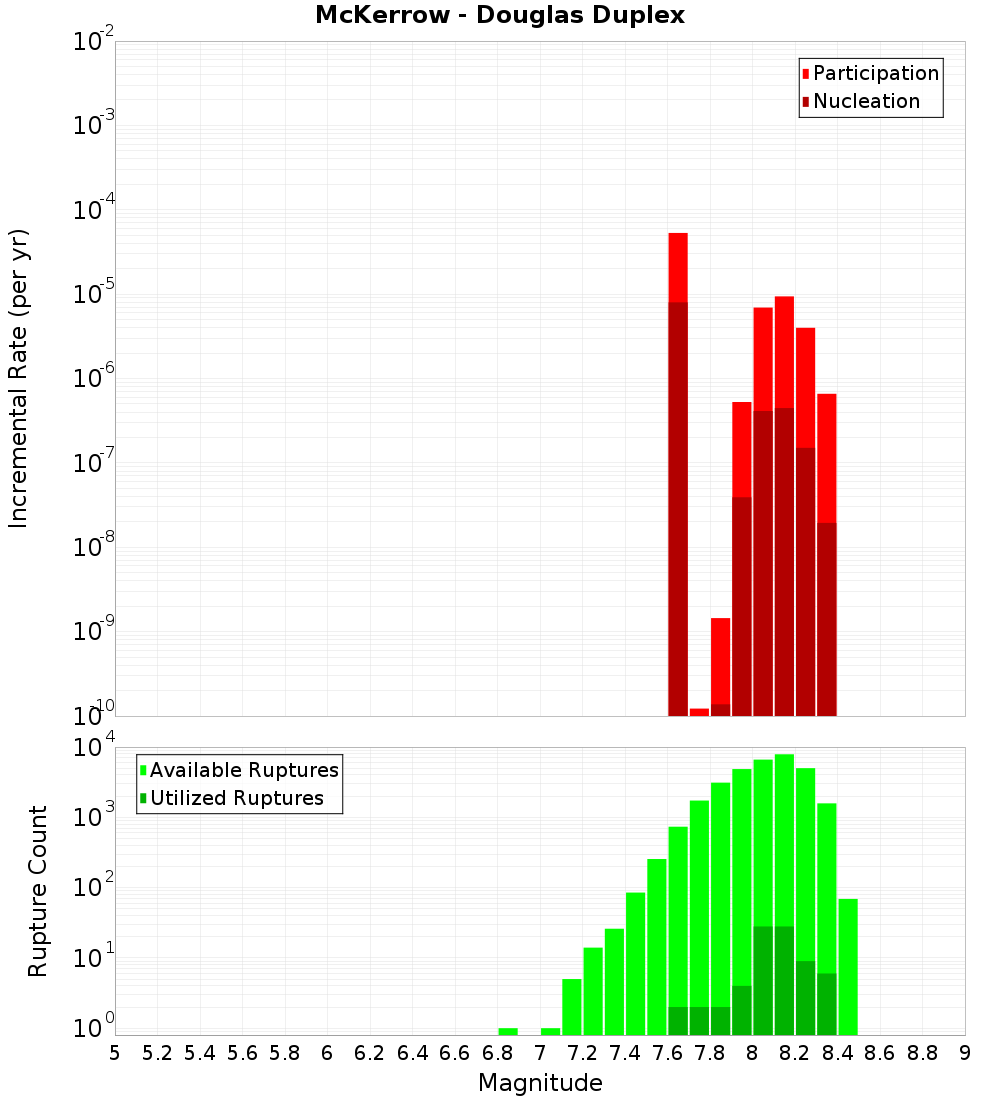

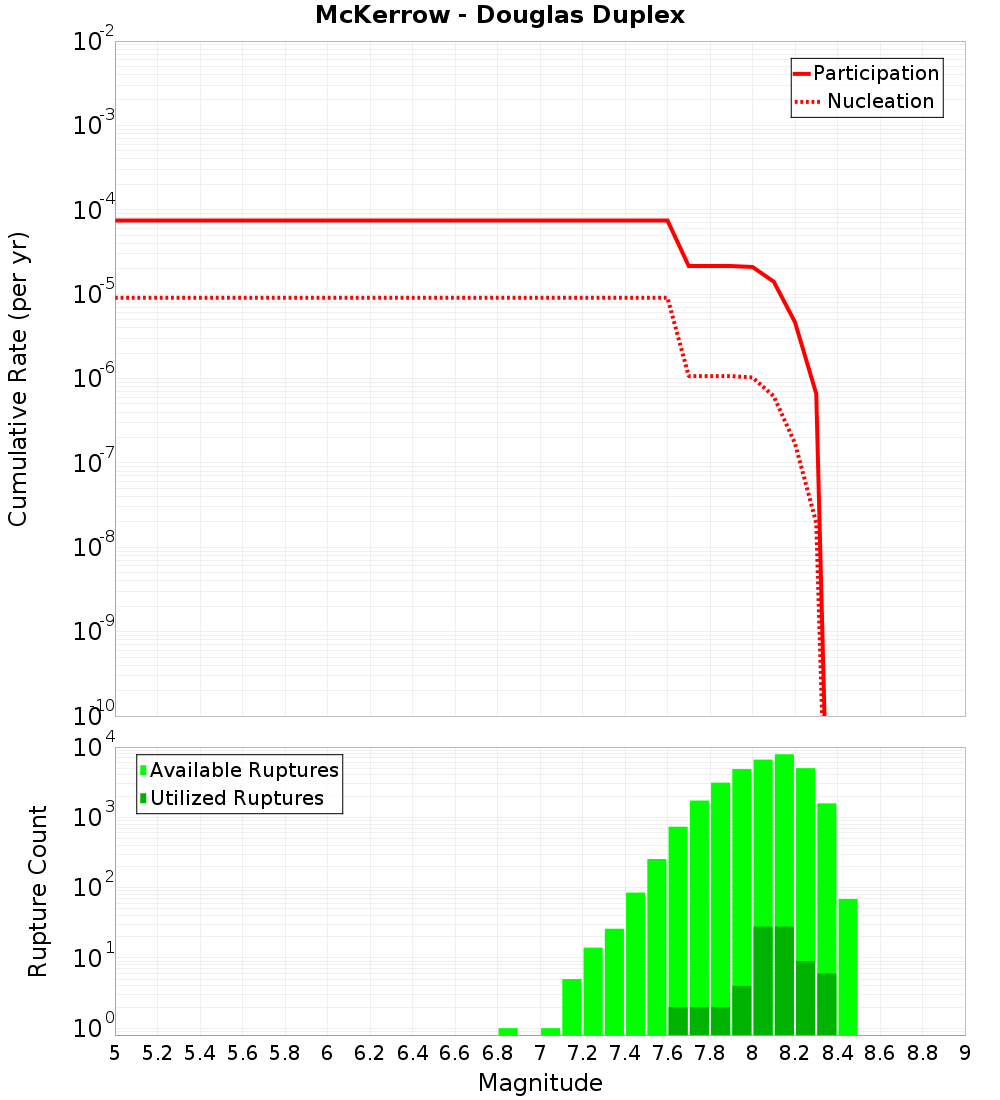

Incremental	Cumulative

Along-Strike Values

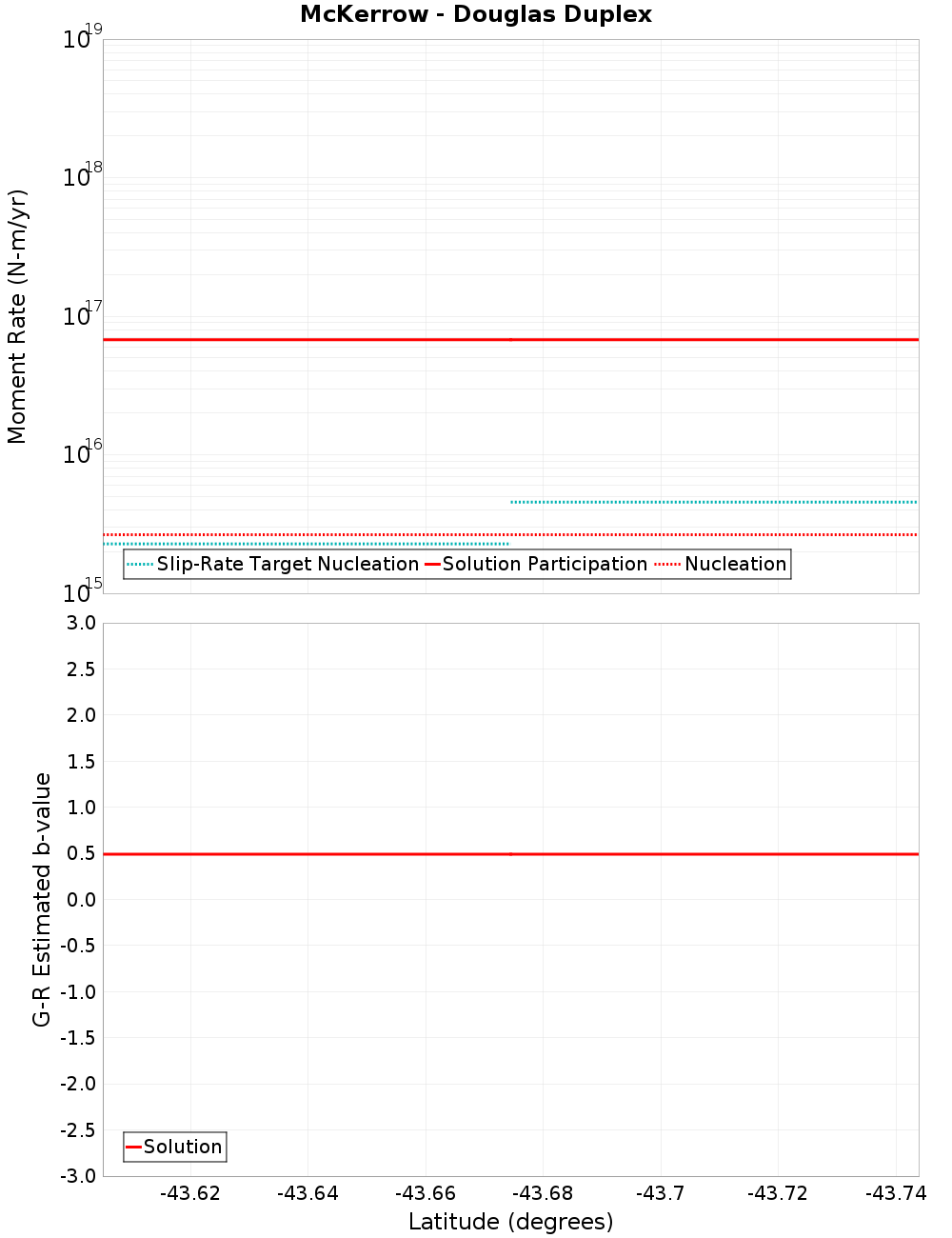

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Landsborough 2, 0 km away
Alpine: Jacksons to Kaniere, 0.1 km away
Karangarua, 0.24 km away
Straight Creek, 1.75 km away
Hohonu South, 2.56 km away
Great Groove, 4.77 km away
Black Blob - Haast Ridge, 4.95 km away
Huxley, 5.04 km away
Hopkins, 8.79 km away
Mt Roon, 8.92 km away
Murchison 1 - Ice Lake, 9.71 km away
Barrier Range, 11.94 km away

Landsborough 2, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	9,759
Co-rupture Rate	8.008216E-6

Alpine: Jacksons to Kaniere, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	9,304
Co-rupture Rate	1.33688045E-5

Karangarua, 0.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	1,419
Co-rupture Rate	6.357799E-11

Straight Creek, 1.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	9,334
Co-rupture Rate	1.37820425E-5

Hohonu South, 2.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	25,535
Co-rupture Rate	7.736815E-6

Great Groove, 4.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	8,531
Co-rupture Rate	1.1035337E-8

Black Blob - Haast Ridge, 4.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	1,869
Co-rupture Rate	5.311566E-5

Huxley, 5.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	6,676
Co-rupture Rate	5.6598205E-5

Hopkins, 8.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	false
Co-rupture Count	6,371
Co-rupture Rate	3.4834873E-6

Mt Roon, 8.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	false
Co-rupture Count	7
Co-rupture Rate	8.611617E-11

Murchison 1 - Ice Lake, 9.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	false
Co-rupture Count	10,052
Co-rupture Rate	6.6897665E-5

Barrier Range, 11.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?	true
Directly Connected?	false
Co-rupture Count	6,035
Co-rupture Rate	1.1035337E-8
