Ohariu Details

PropertyValue
Rupture Count14,622
Ruptures Above Sect Min Mag14,616
Ruptures w/ Nonzero Rates207
Magnitude Range[6.86, 8.61]
Length Range[21, 1,132] km
Total Rate4.3405948E-4 /yr
Multi-Fault Rate3.849991E-4 /yr (88.70%)
Directly-Connected Faults17
All Co-Rupturing Faults166

Table Of Contents

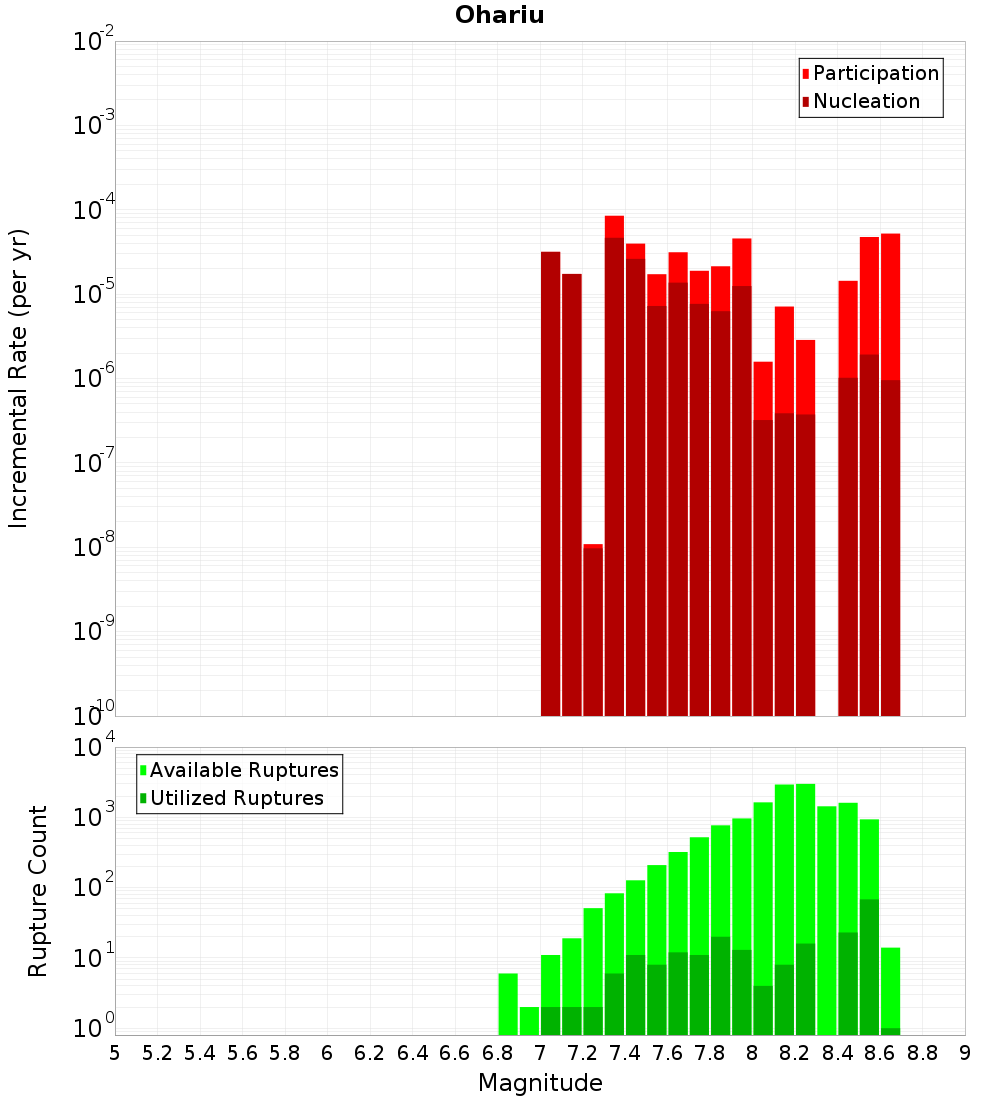

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

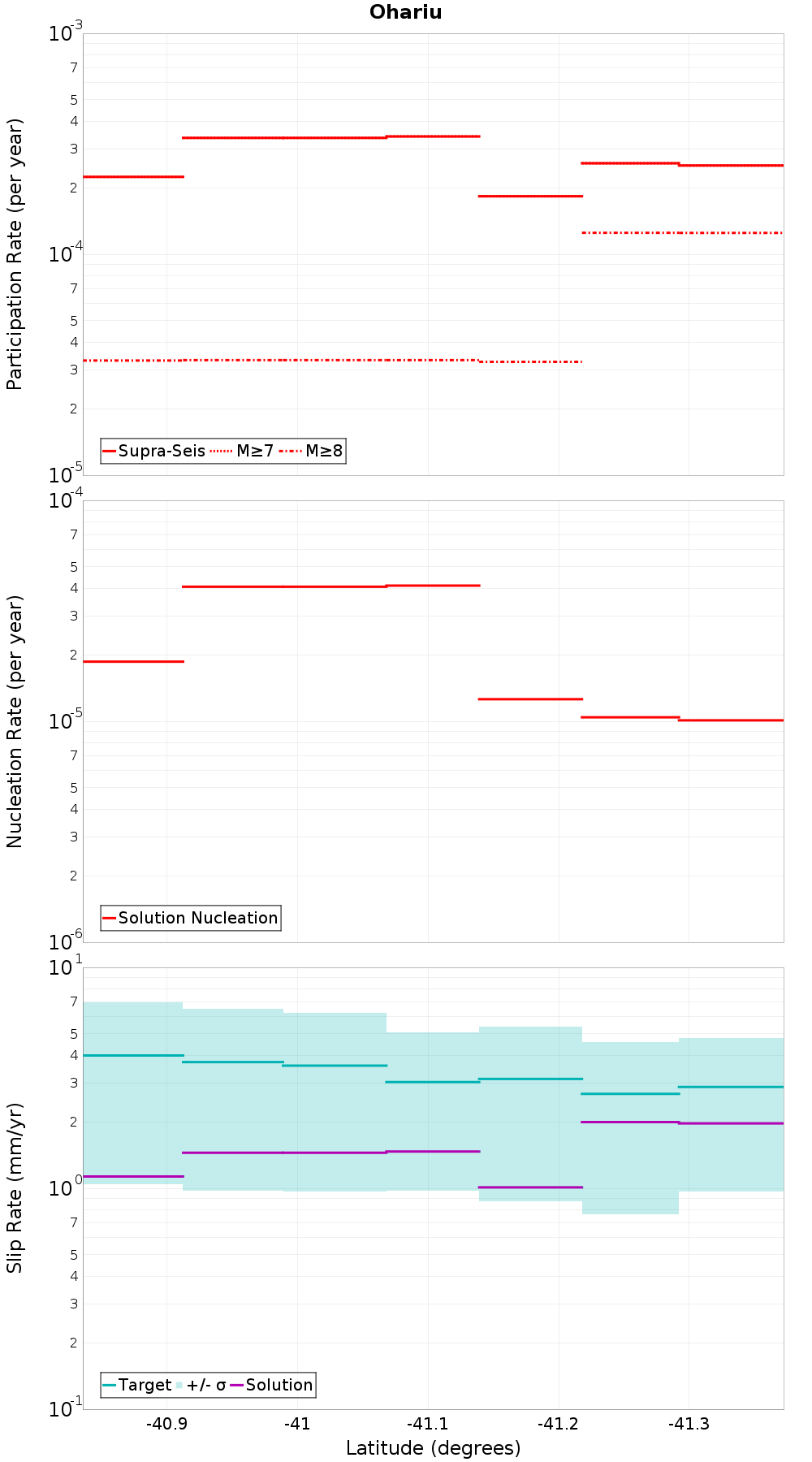

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

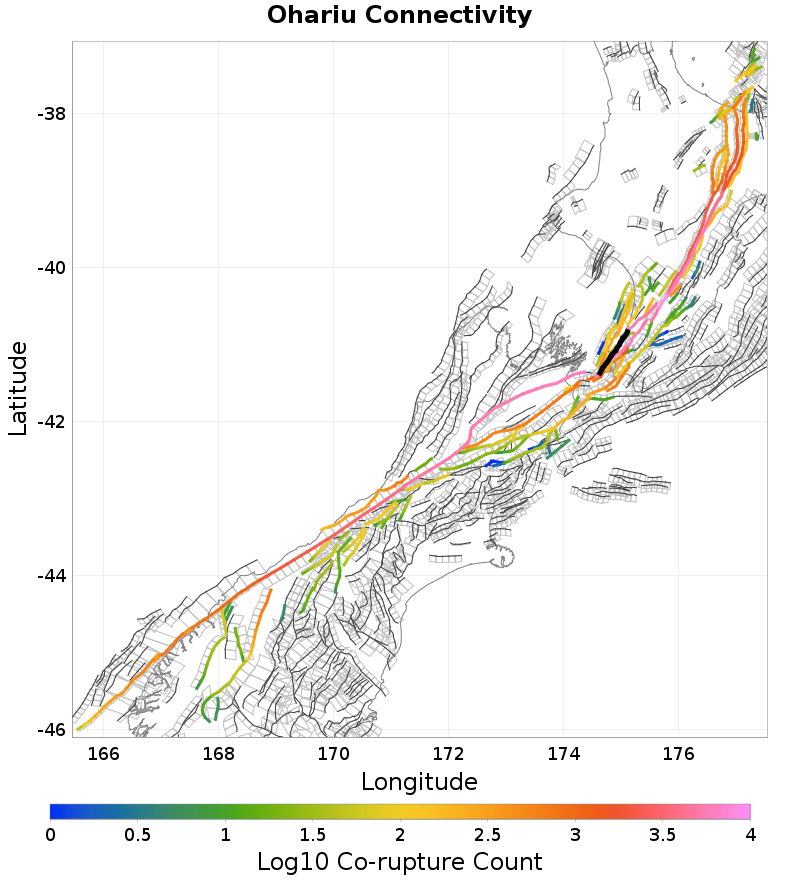

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Ohariu South 2, 0 km awayAotea - Evans Bay, 6 km away
Gibbs, 0.17 km awayAkatarawa, 6.23 km away
Wellington Hutt Valley: 2, 0.3 km awayOhariu South 1, 6.96 km away
Wellington Hutt Valley: 1, 1.65 km awayOtaheke South, 8.6 km away
Moonshine, 2.04 km awayOkupe 1, 9.22 km away
Whitemans Valley, 2.44 km awayWharekauhau, 10 km away
Pukerua - Shepherds Gully: 1, 2.91 km awayPoroutawhao, 11.17 km away
Pukerua - Shepherds Gully: 2, 2.91 km awayWairau 3, 11.37 km away
Pukerua - Shepherds Gully: 3, 3.18 km awayOtaki Forks: 2, 11.39 km away
Shepherds Gully - Mana, 3.79 km awayOtaheke North, 11.65 km away
Wellington Hutt Valley: 3, 3.96 km awayWellington Hutt Valley: 5, 12.34 km away
Northern Ohariu, 4.32 km awayWairarapa: 1, 14.45 km away
Wellington Hutt Valley: 4, 4.6 km awayOnepoto, 14.67 km away
Otaki Forks: 1, 5.13 km awayWairarapa: Needles, 14.92 km away

Ohariu South 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?true
Co-rupture Count6,608
Co-rupture Rate1.14158065E-4

Gibbs, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?true
Co-rupture Count59
Co-rupture Rate3.0596802E-5

Wellington Hutt Valley: 2, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?true
Co-rupture Count1,337
Co-rupture Rate1.0432067E-4

Wellington Hutt Valley: 1, 1.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?true
Co-rupture Count822
Co-rupture Rate2.5204436E-6

Moonshine, 2.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?true
Co-rupture Count6,438
Co-rupture Rate9.2577E-5

Whitemans Valley, 2.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?true
Co-rupture Count219
Co-rupture Rate3.1550614E-6

Pukerua - Shepherds Gully: 1, 2.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?true
Co-rupture Count79
Co-rupture Rate9.775764E-10

Pukerua - Shepherds Gully: 2, 2.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?true
Co-rupture Count58
Co-rupture Rate3.4541868E-6

Pukerua - Shepherds Gully: 3, 3.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?true
Co-rupture Count147
Co-rupture Rate0.0

Shepherds Gully - Mana, 3.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?true
Co-rupture Count474
Co-rupture Rate1.3184327E-5

Wellington Hutt Valley: 3, 3.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?true
Co-rupture Count171
Co-rupture Rate1.2858023E-4

Northern Ohariu, 4.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?true
Co-rupture Count5,796
Co-rupture Rate9.213546E-5

Wellington Hutt Valley: 4, 4.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?true
Co-rupture Count654
Co-rupture Rate1.0482336E-4

Otaki Forks: 1, 5.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?true
Co-rupture Count6,239
Co-rupture Rate9.257459E-5

Aotea - Evans Bay, 6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?true
Co-rupture Count290
Co-rupture Rate6.0357015E-6

Akatarawa, 6.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?false
Co-rupture Count1,368
Co-rupture Rate2.3038362E-9

Ohariu South 1, 6.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?true
Co-rupture Count1,038
Co-rupture Rate5.3550844E-5

Otaheke South, 8.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?true
Co-rupture Count323
Co-rupture Rate1.940825E-5

Okupe 1, 9.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?false
Co-rupture Count114
Co-rupture Rate0.0

Wharekauhau, 10 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?false
Co-rupture Count840
Co-rupture Rate5.603778E-6

Poroutawhao, 11.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?false
Co-rupture Count139
Co-rupture Rate2.8457916E-5

Wairau 3, 11.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaki Forks: 2, 11.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?false
Co-rupture Count5,432
Co-rupture Rate9.257459E-5

Otaheke North, 11.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?false
Co-rupture Count174
Co-rupture Rate1.1637991E-5

Wellington Hutt Valley: 5, 12.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate0.0

Wairarapa: 1, 14.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?false
Co-rupture Count561
Co-rupture Rate3.5132648E-6

Onepoto, 14.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?false
Co-rupture Count213
Co-rupture Rate1.3005697E-5

Wairarapa: Needles, 14.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?false
Co-rupture Count328
Co-rupture Rate0.0
