Paparoa West: North Details
| Property | Value |
|---|---|
| Rupture Count | 5,039 |
| Ruptures Above Sect Min Mag | 5,038 |
| Ruptures w/ Nonzero Rates | 61 |
| Magnitude Range | [6.68, 8.55] |
| Length Range | [16, 988] km |
| Total Rate | 4.4106706E-5 /yr |
| Multi-Fault Rate | 4.4106706E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 65 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

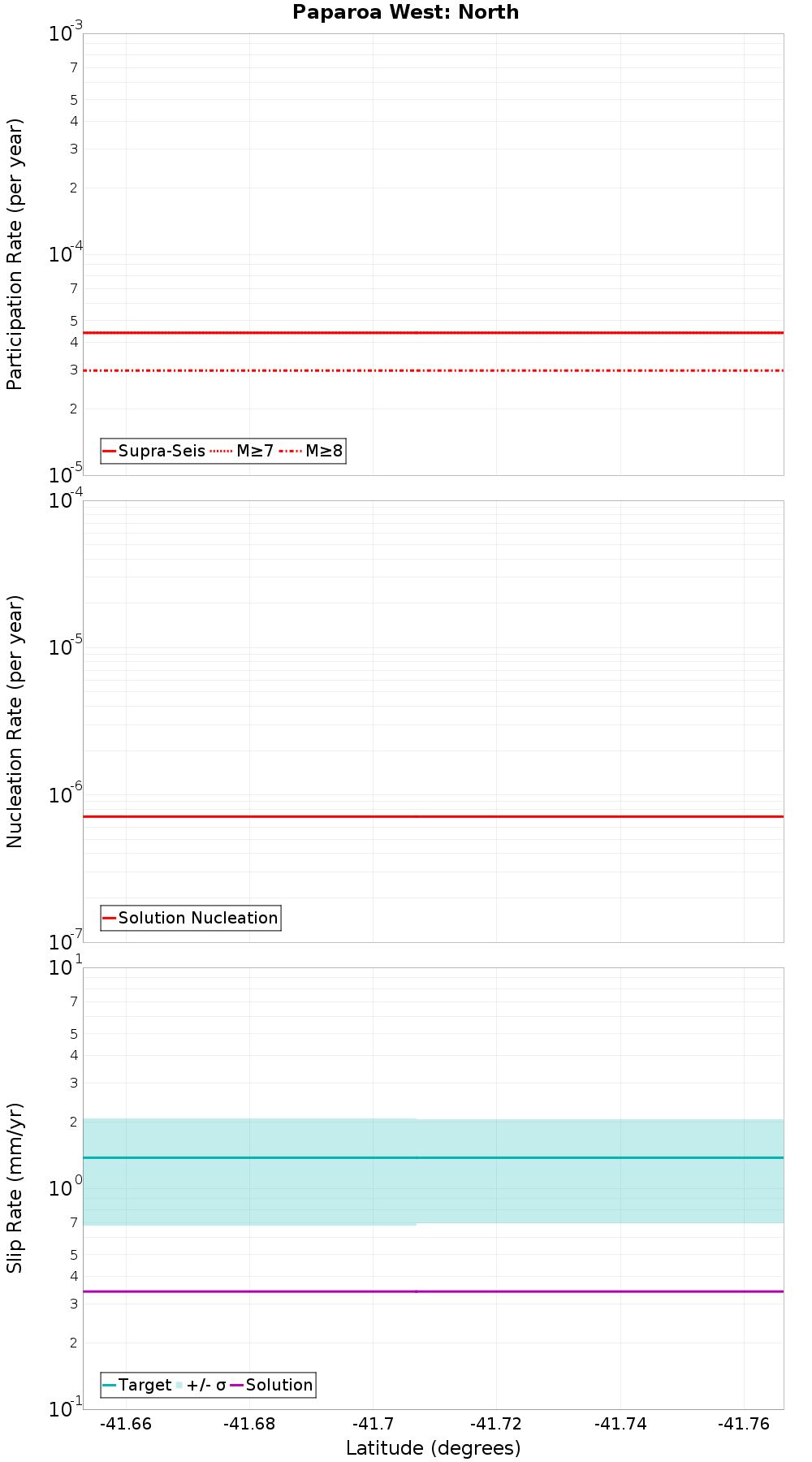

Along-Strike Values

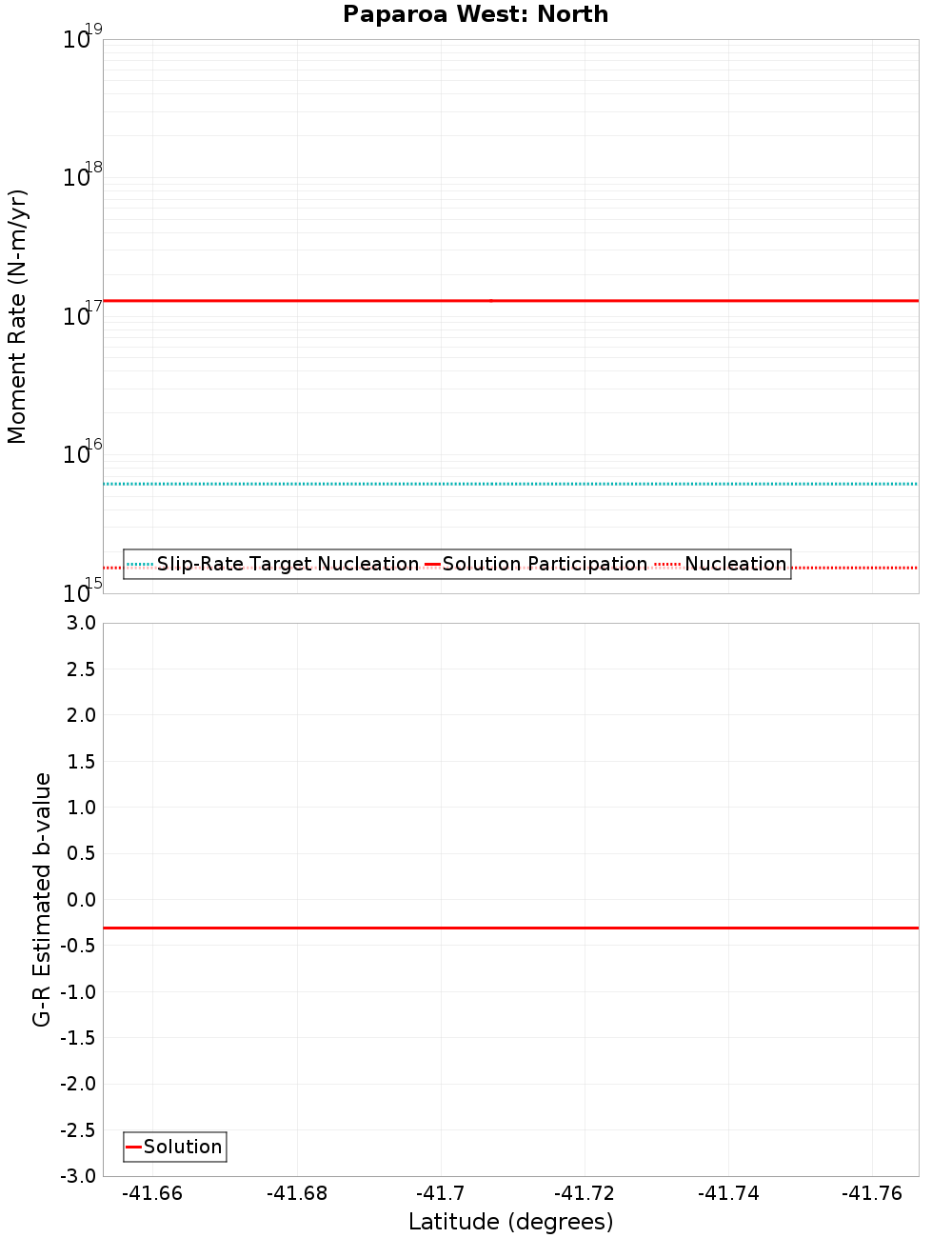

Moment-Rates and b-Values

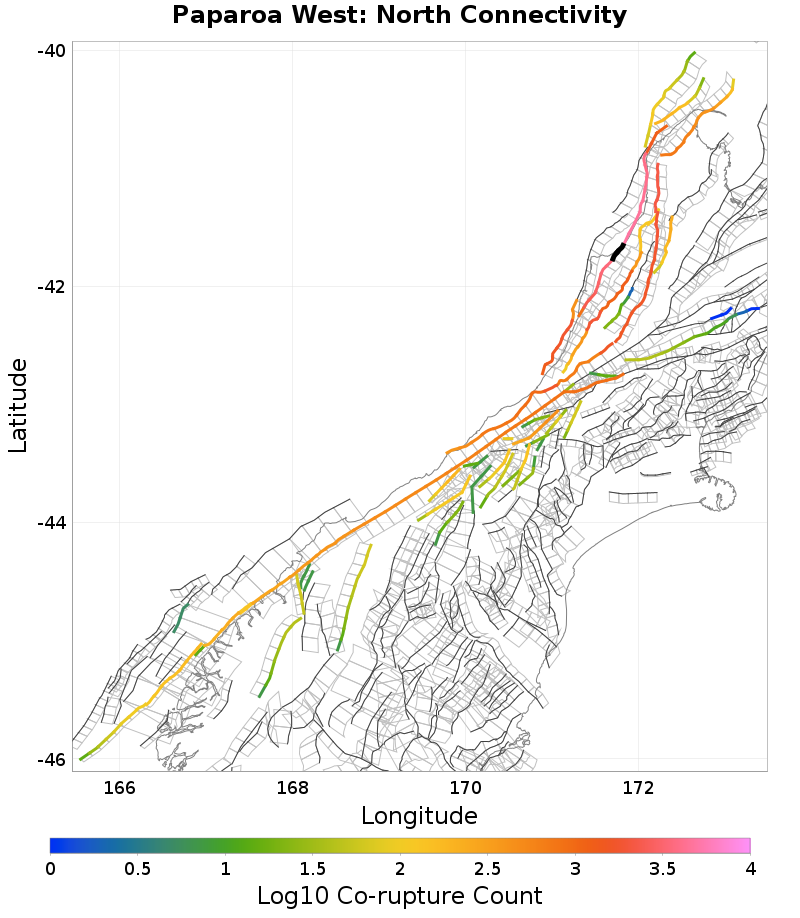

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Paparoa West, 0 km away |
| Inangahua, 0.89 km away |
| Kongahau, 1.54 km away |
| Maimai: North, 2.89 km away |
Paparoa West, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,907 |
| Co-rupture Rate | 4.4106713E-5 |
Inangahua, 0.89 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 367 |
| Co-rupture Rate | 1.773924E-10 |
Kongahau, 1.54 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4,910 |
| Co-rupture Rate | 4.4106706E-5 |
Maimai: North, 2.89 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,296 |
| Co-rupture Rate | 4.0022794E-8 |
