Tuatoru 1 Details

PropertyValue
Rupture Count2,512
Ruptures Above Sect Min Mag2,511
Ruptures w/ Nonzero Rates65
Magnitude Range[6.56, 8.37]
Length Range[9, 661] km
Total Rate2.2356356E-4 /yr
Multi-Fault Rate2.2356356E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults67

Table Of Contents

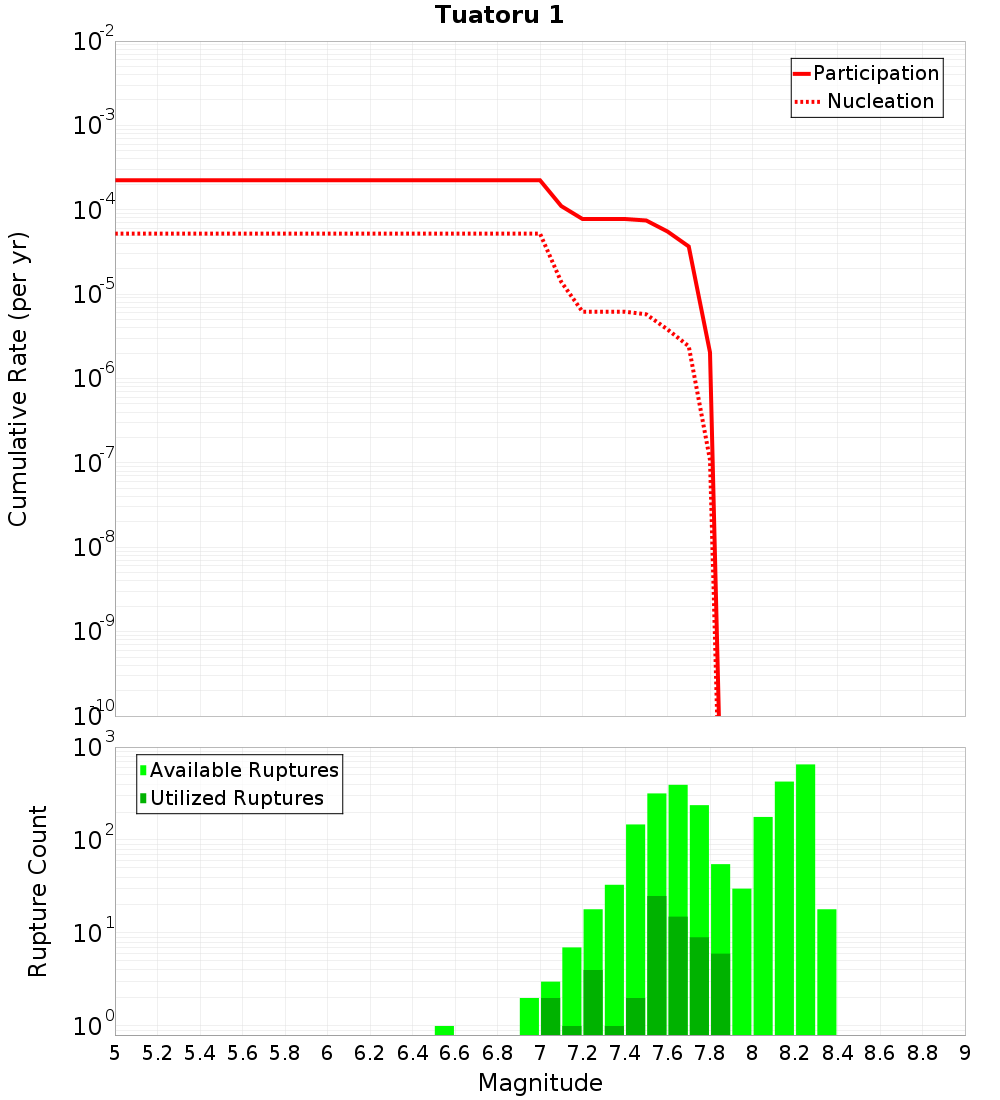

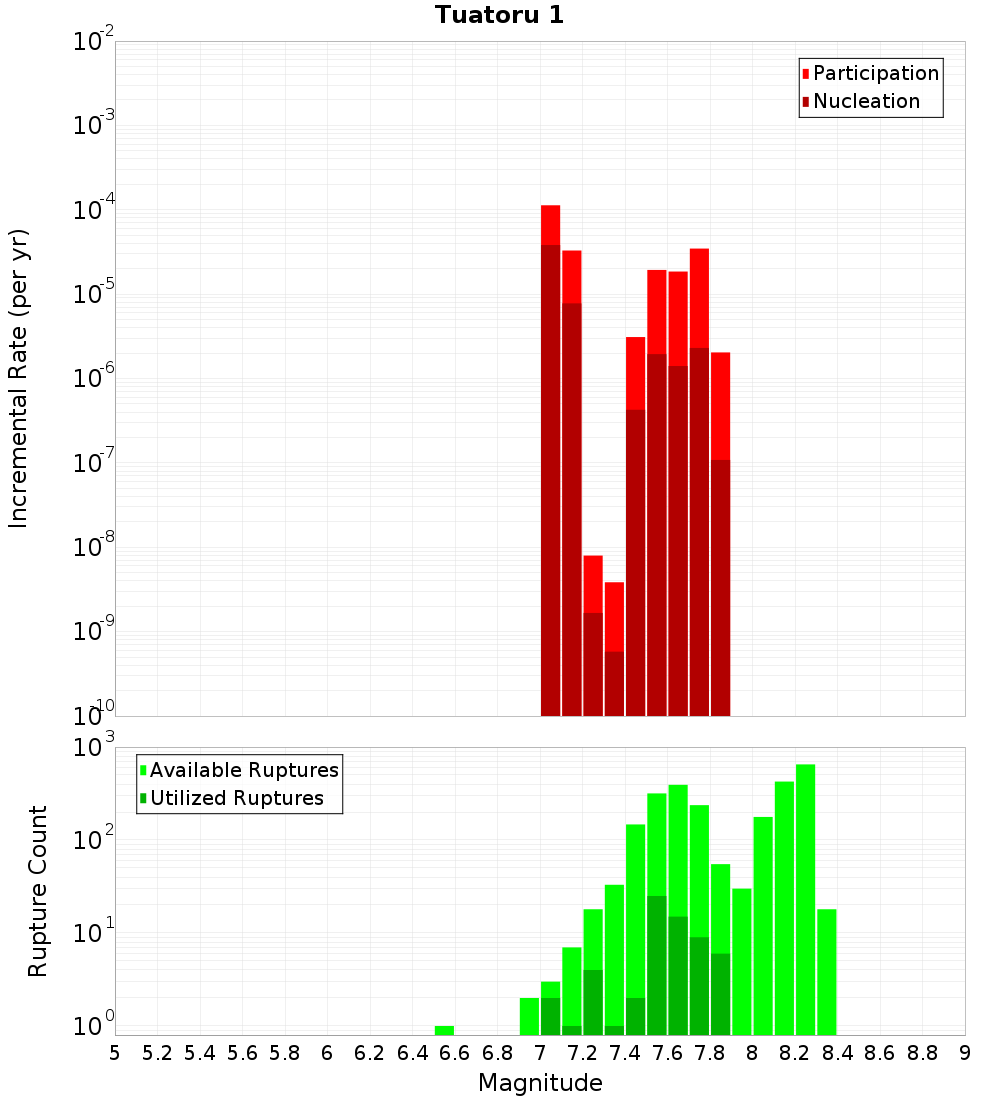

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

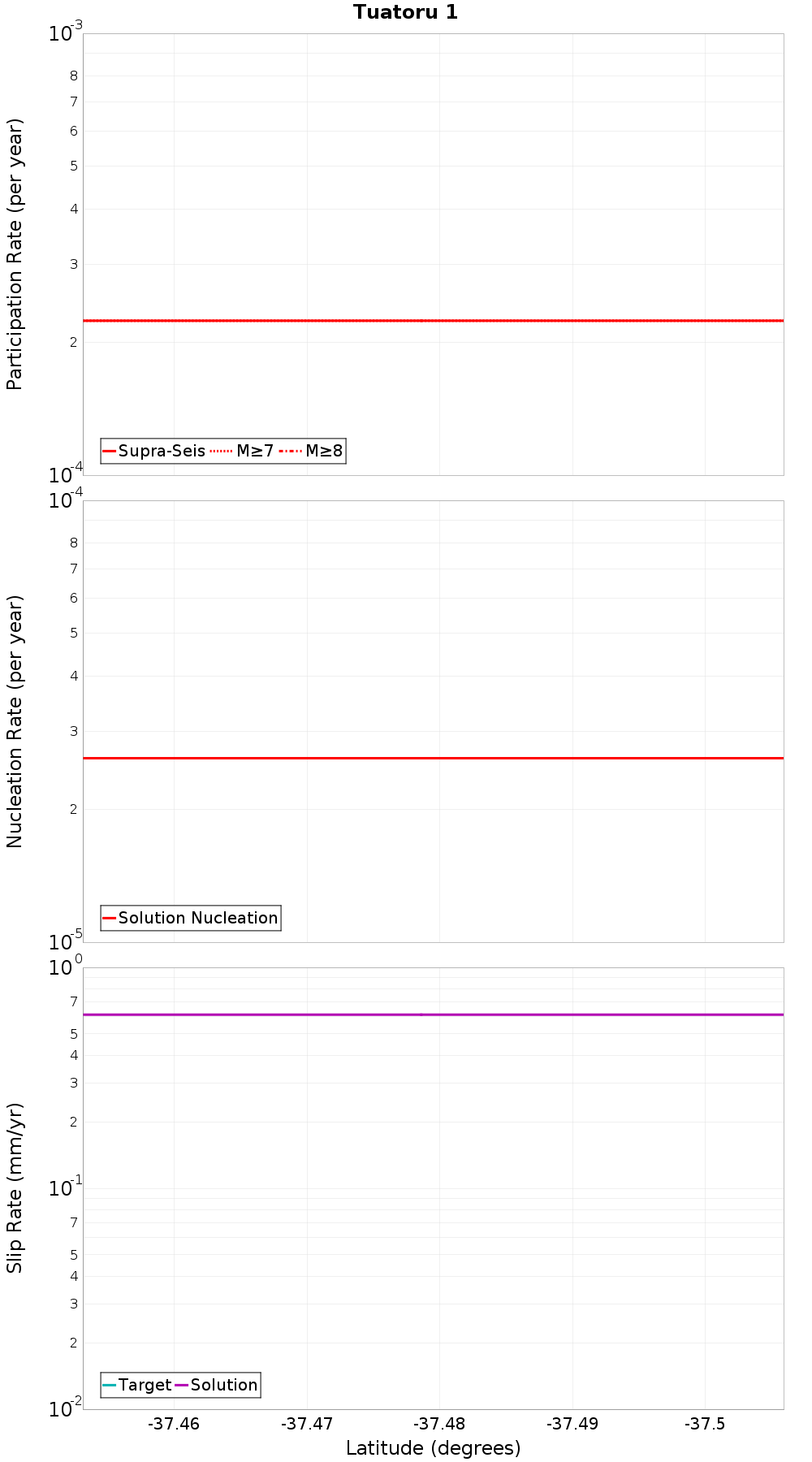

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

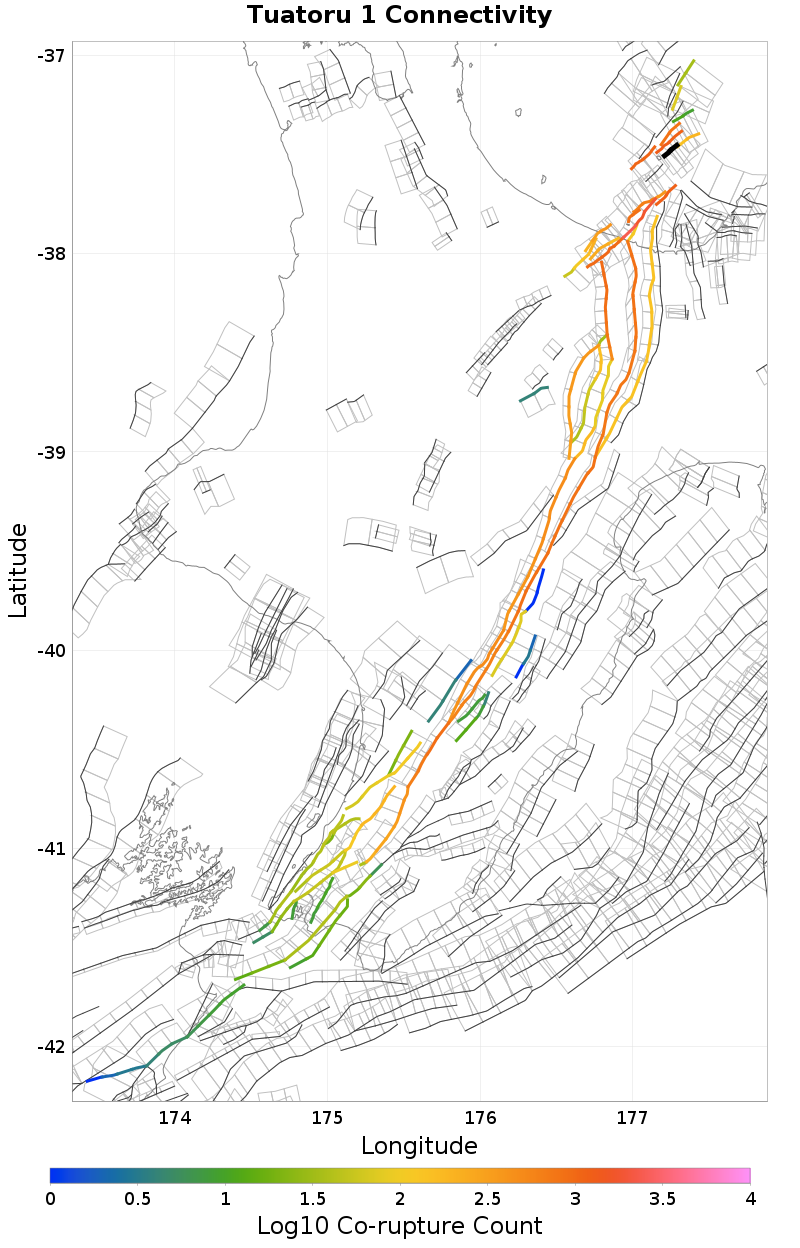

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Tuatoru 2, 0.43 km away
Te Arawa 1, 3.09 km away
Calypso 2, 3.86 km away
Te Arawa 2, 4.63 km away
Hariki, 5.5 km away
Whakaari 4, 5.84 km away
White Island 2, 5.84 km away
Opotiki 3, 8.38 km away
Te Arawa 3, 9.82 km away
Volkner 3, 10.46 km away
Volkner 4, 11.02 km away
Ohiwa 1, 11.29 km away

Tuatoru 2, 0.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?false
Co-rupture Count193
Co-rupture Rate2.6905778E-5

Te Arawa 1, 3.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?true
Co-rupture Count1,282
Co-rupture Rate1.7043797E-4

Calypso 2, 3.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 2, 4.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?true
Co-rupture Count822
Co-rupture Rate3.088316E-5

Hariki, 5.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whakaari 4, 5.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?true
Co-rupture Count1,081
Co-rupture Rate2.3705581E-5

White Island 2, 5.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?true
Co-rupture Count1,177
Co-rupture Rate3.696091E-5

Opotiki 3, 8.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 3, 9.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate7.948954E-9

Volkner 3, 10.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Volkner 4, 11.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohiwa 1, 11.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjEuMEc3UVhn
Connected?true
Directly Connected?false
Co-rupture Count381
Co-rupture Rate1.654076E-4
