Acheron Details

Property	Value
Rupture Count	946
Ruptures Above Sect Min Mag	945
Ruptures w/ Nonzero Rates	5
Magnitude Range	[6.65, 8.48]
Length Range	[12, 775] km
Total Rate	9.702951E-5 /yr
Multi-Fault Rate	9.702951E-5 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	94

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

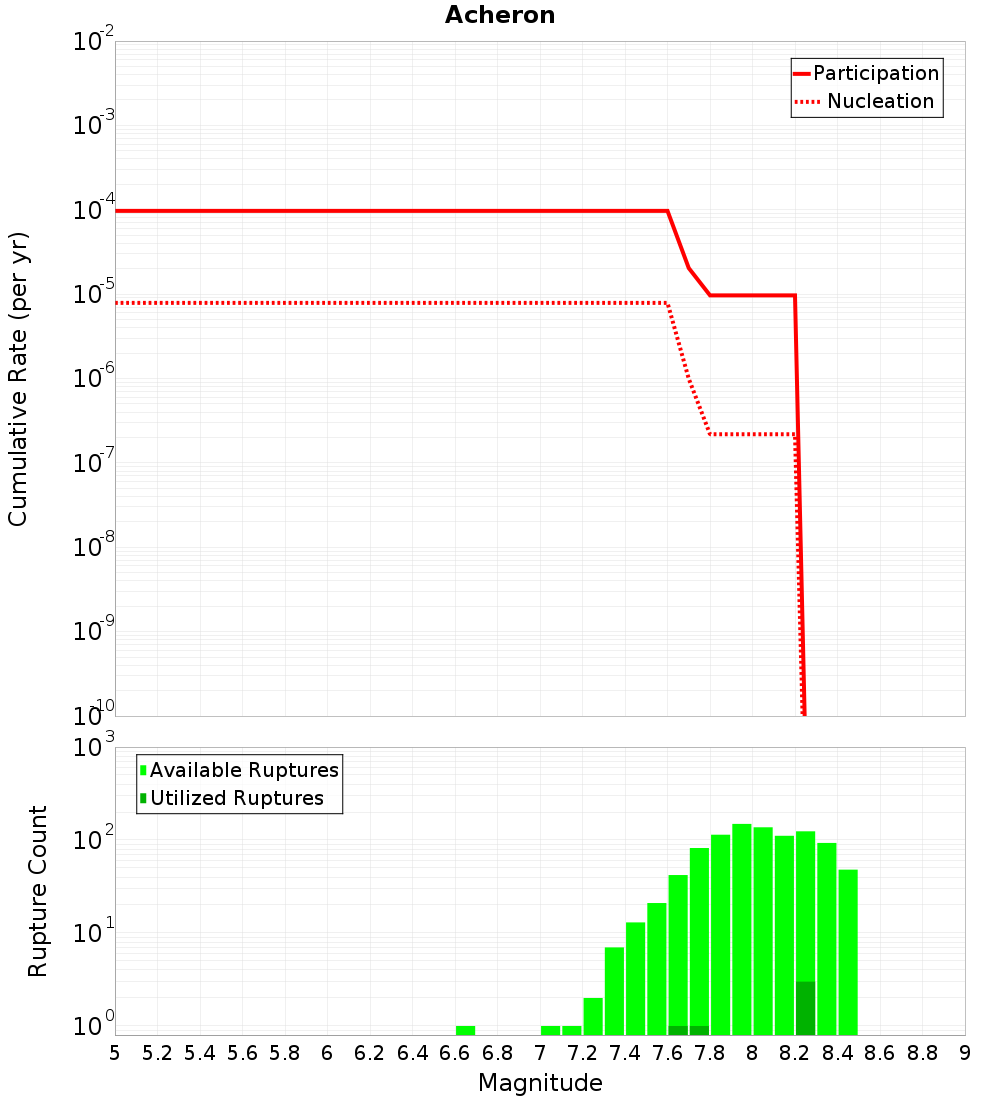

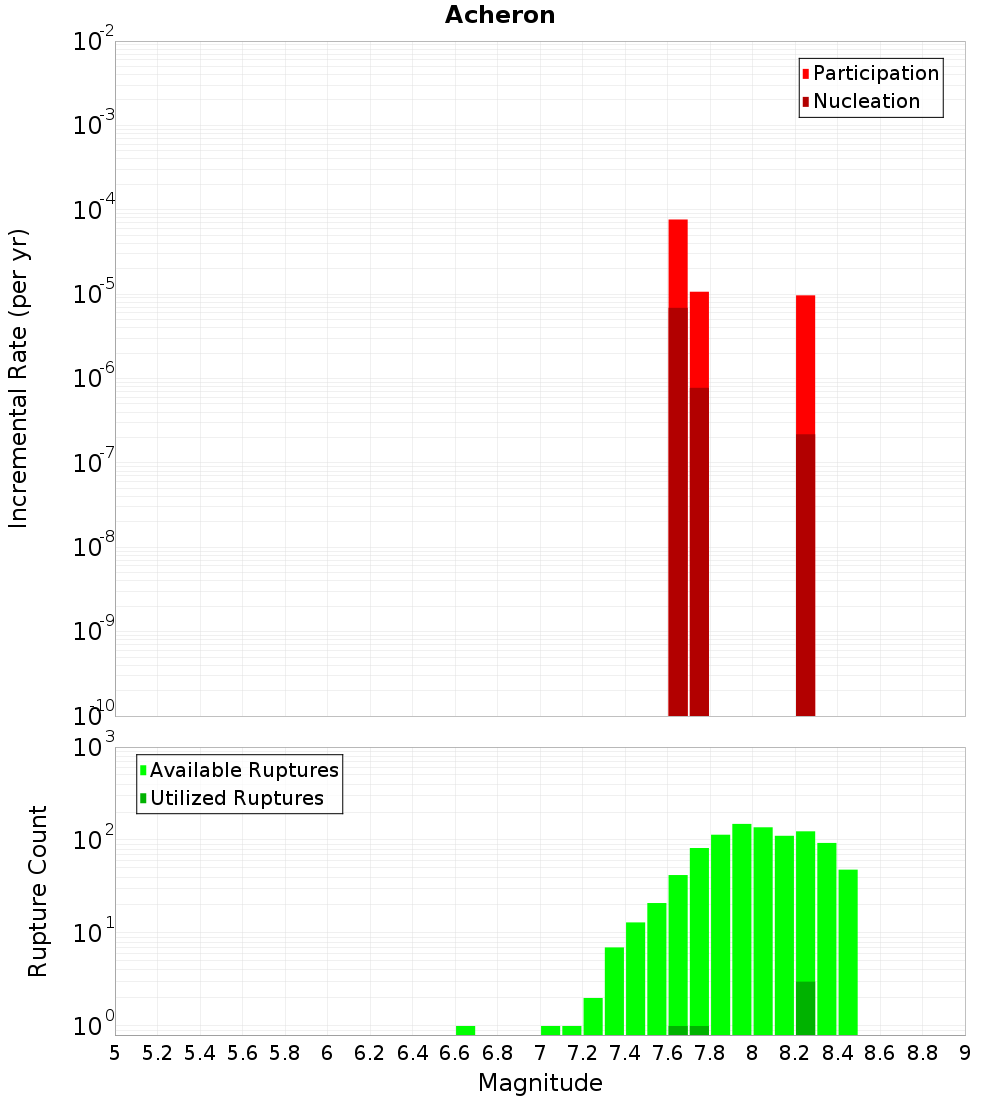

Magnitude-Frequency Distribution

Incremental	Cumulative

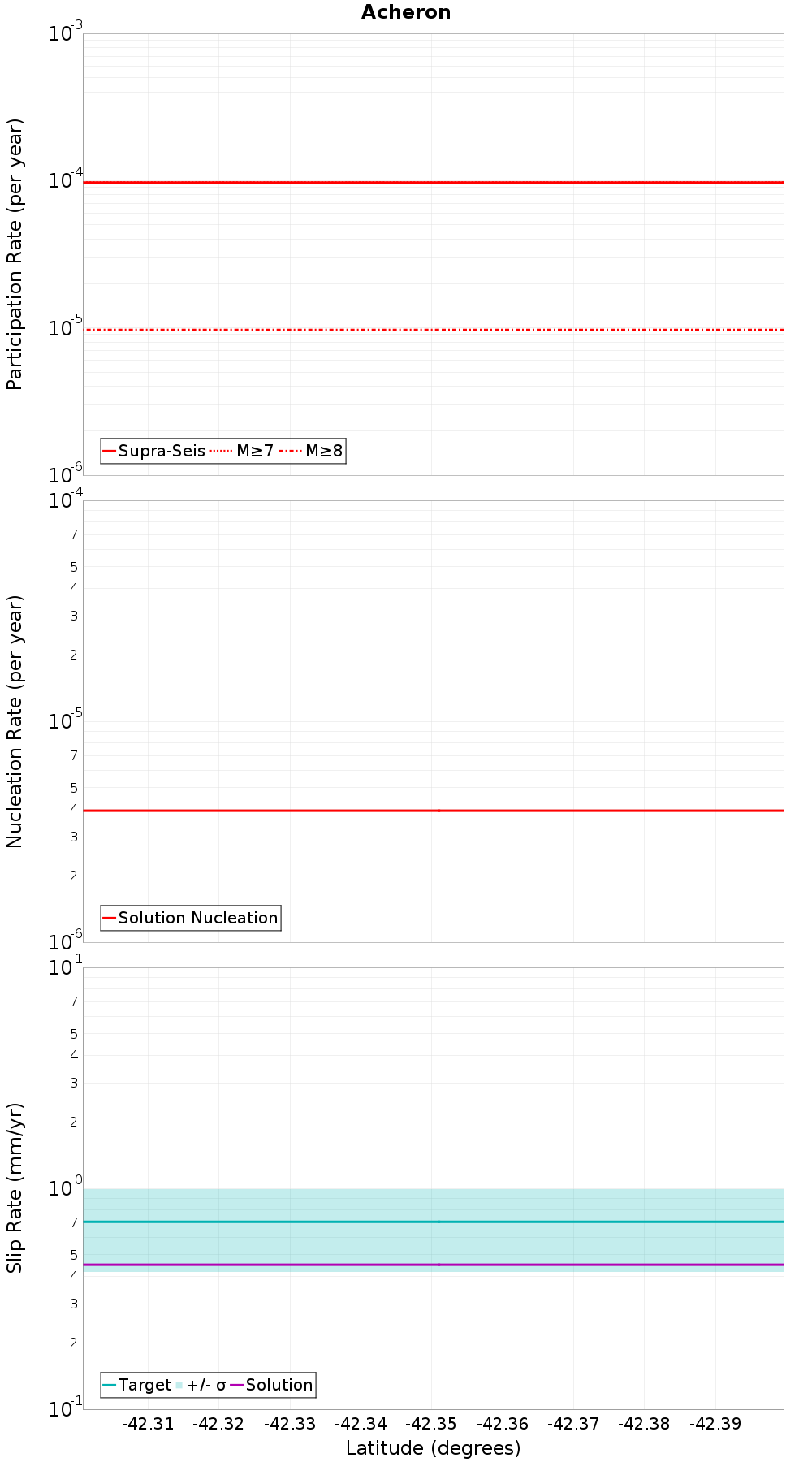

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Elliott, 0.06 km away
Clarence: Central, 0.27 km away
Dillon, 6.46 km away
Fowlers, 7.42 km away
Hope: Hamner SE, 7.87 km away
Barefell, 9.05 km away
Hope: Conway, 11.85 km away
Clarence: Southwest, 13.66 km away
Hanmer, 14.82 km away

Elliott, 0.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq
Connected?	true
Directly Connected?	true
Co-rupture Count	885
Co-rupture Rate	9.702951E-5

Clarence: Central, 0.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq
Connected?	true
Directly Connected?	false
Co-rupture Count	92
Co-rupture Rate	0.0

Dillon, 6.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq
Connected?	true
Directly Connected?	true
Co-rupture Count	380
Co-rupture Rate	8.630848E-5

Fowlers, 7.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq
Connected?	true
Directly Connected?	false
Co-rupture Count	8
Co-rupture Rate	0.0

Hope: Hamner SE, 7.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Barefell, 9.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Conway, 11.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq
Connected?	true
Directly Connected?	false
Co-rupture Count	98
Co-rupture Rate	0.0

Clarence: Southwest, 13.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq
Connected?	true
Directly Connected?	false
Co-rupture Count	817
Co-rupture Rate	9.677445E-6

Hanmer, 14.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq
Connected?	true
Directly Connected?	false
Co-rupture Count	39
Co-rupture Rate	0.0
