Kaiwara South Details

PropertyValue
Rupture Count1,633
Ruptures Above Sect Min Mag1,628
Ruptures w/ Nonzero Rates11
Magnitude Range[6.74, 8.12]
Length Range[17, 400] km
Total Rate8.902841E-5 /yr
Multi-Fault Rate8.902841E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults45

Table Of Contents

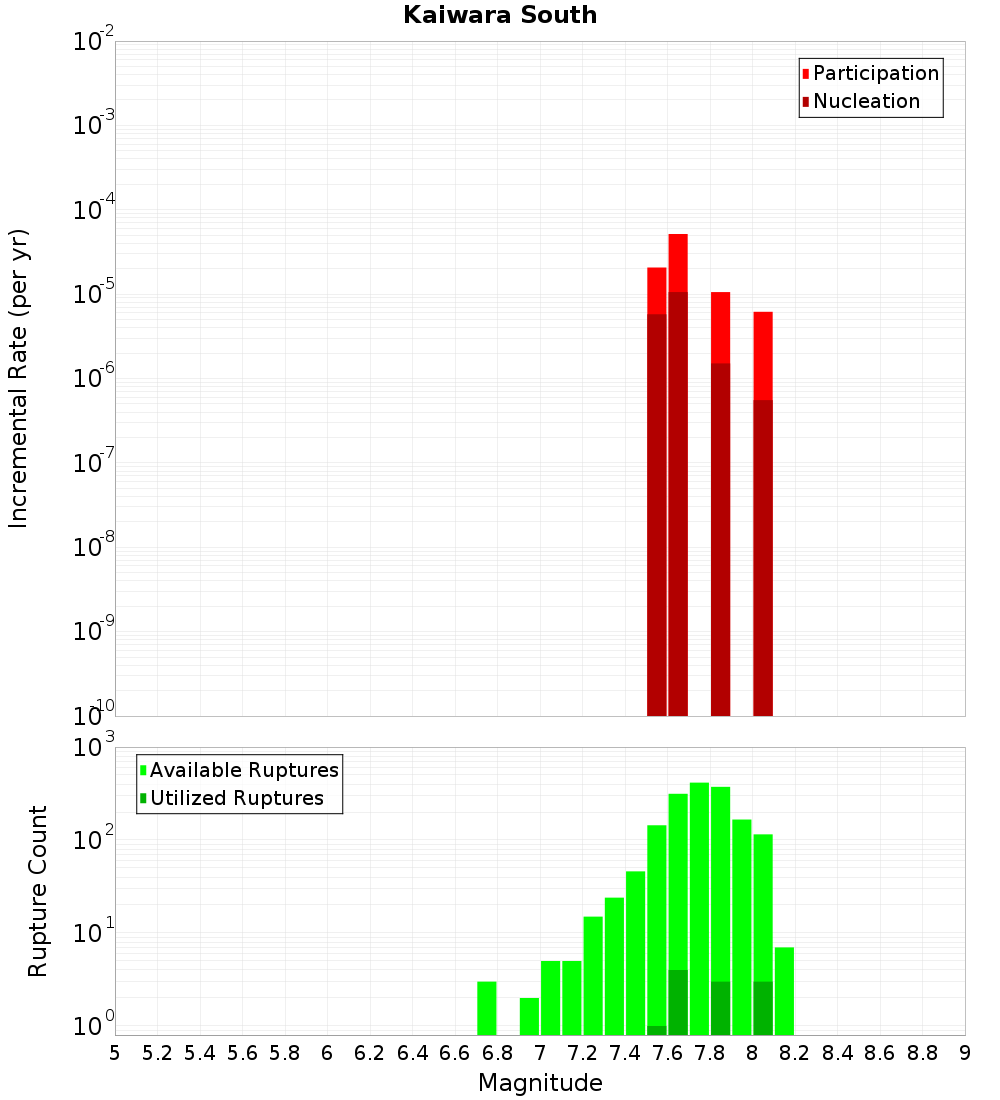

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

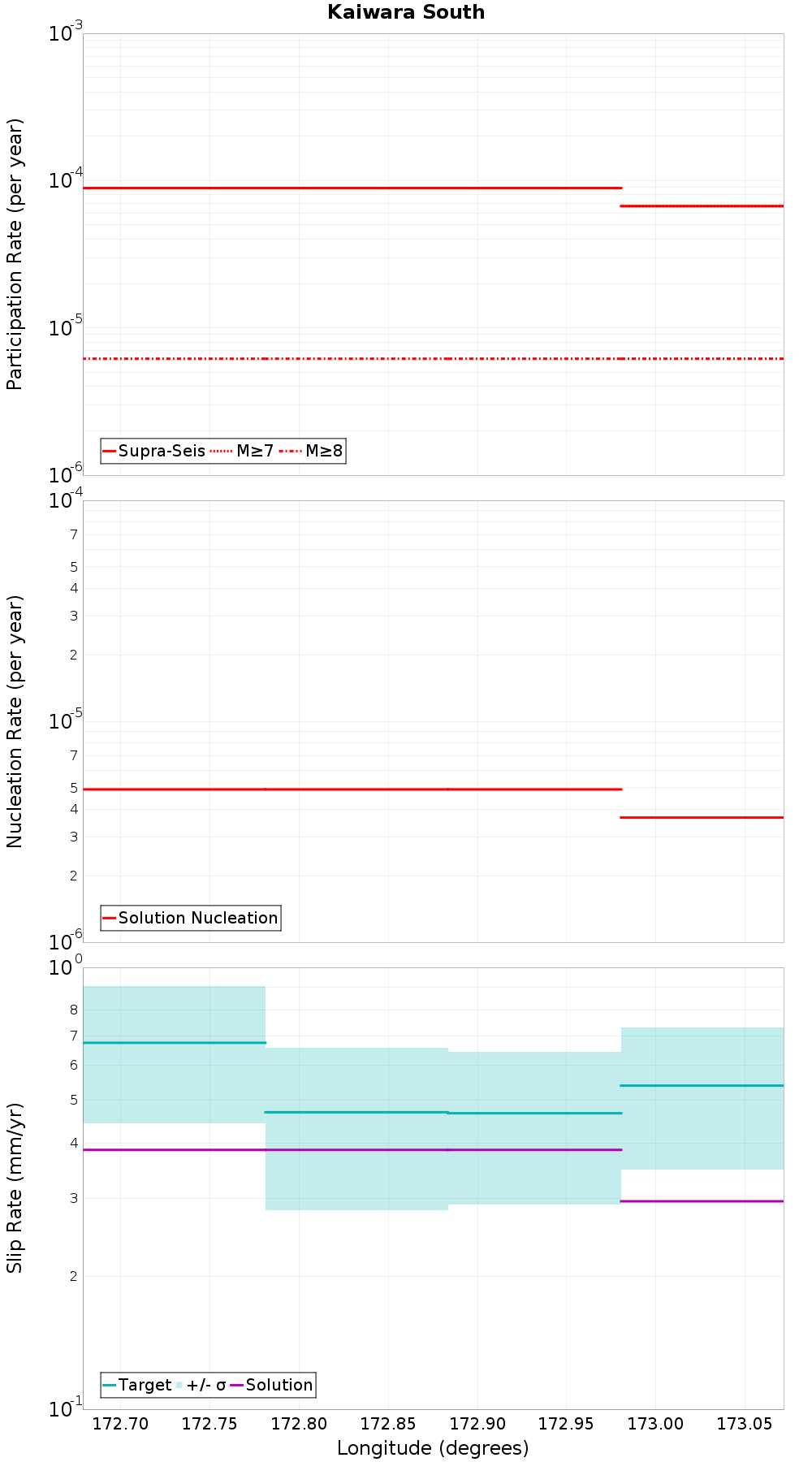

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Doctors, 1.9 km away
Alexander, 2.77 km away
OmihiLwrHuru, 3.01 km away
Lowry, 3.01 km away
Boby Stream, 6.33 km away
Balmoral, 7.55 km away
AmberBlyth, 8.44 km away
Kaiwara North, 11.69 km away
Mt Arden, 12.38 km away
Leonard Mound, 12.53 km away
Hurunui Peak, 12.73 km away
Virginia, 12.76 km away

Doctors, 1.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq
Connected?true
Directly Connected?true
Co-rupture Count1,290
Co-rupture Rate7.1177376E-5

Alexander, 2.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq
Connected?true
Directly Connected?true
Co-rupture Count347
Co-rupture Rate2.1948475E-5

OmihiLwrHuru, 3.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq
Connected?true
Directly Connected?true
Co-rupture Count495
Co-rupture Rate3.5913712E-5

Lowry, 3.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Boby Stream, 6.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq
Connected?true
Directly Connected?false
Co-rupture Count1,147
Co-rupture Rate2.8123874E-5

Balmoral, 7.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

AmberBlyth, 8.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq
Connected?true
Directly Connected?true
Co-rupture Count454
Co-rupture Rate3.1166215E-5

Kaiwara North, 11.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq
Connected?true
Directly Connected?false
Co-rupture Count285
Co-rupture Rate6.225188E-6

Mt Arden, 12.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leonard Mound, 12.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hurunui Peak, 12.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Virginia, 12.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
