Lake Onslow Details
| Property | Value |
|---|---|
| Rupture Count | 241 |
| Ruptures Above Sect Min Mag | 241 |
| Ruptures w/ Nonzero Rates | 6 |
| Magnitude Range | [7.00, 8.17] |
| Length Range | [23, 319] km |
| Total Rate | 3.310229E-5 /yr |
| Multi-Fault Rate | 3.310229E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 22 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

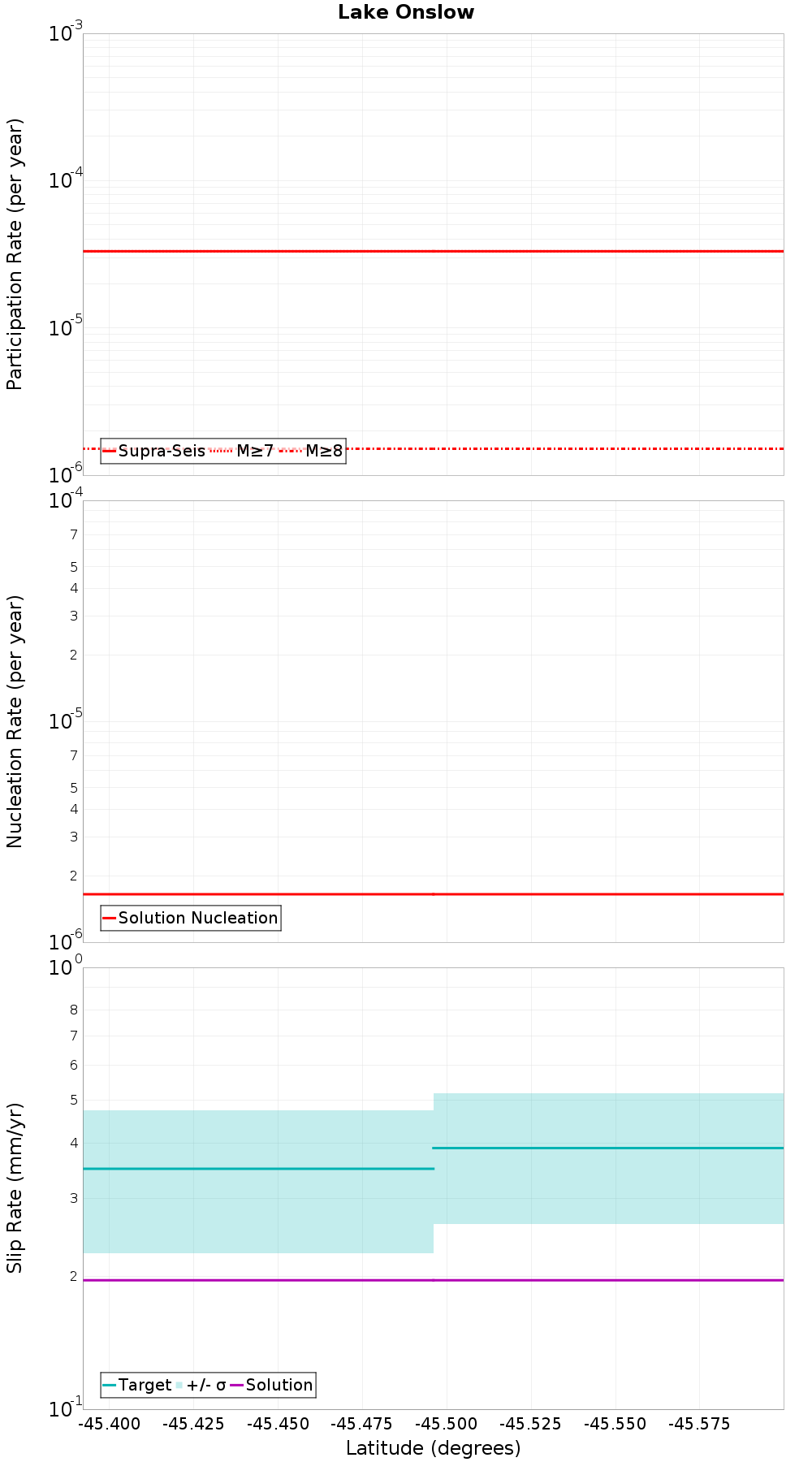

Along-Strike Values

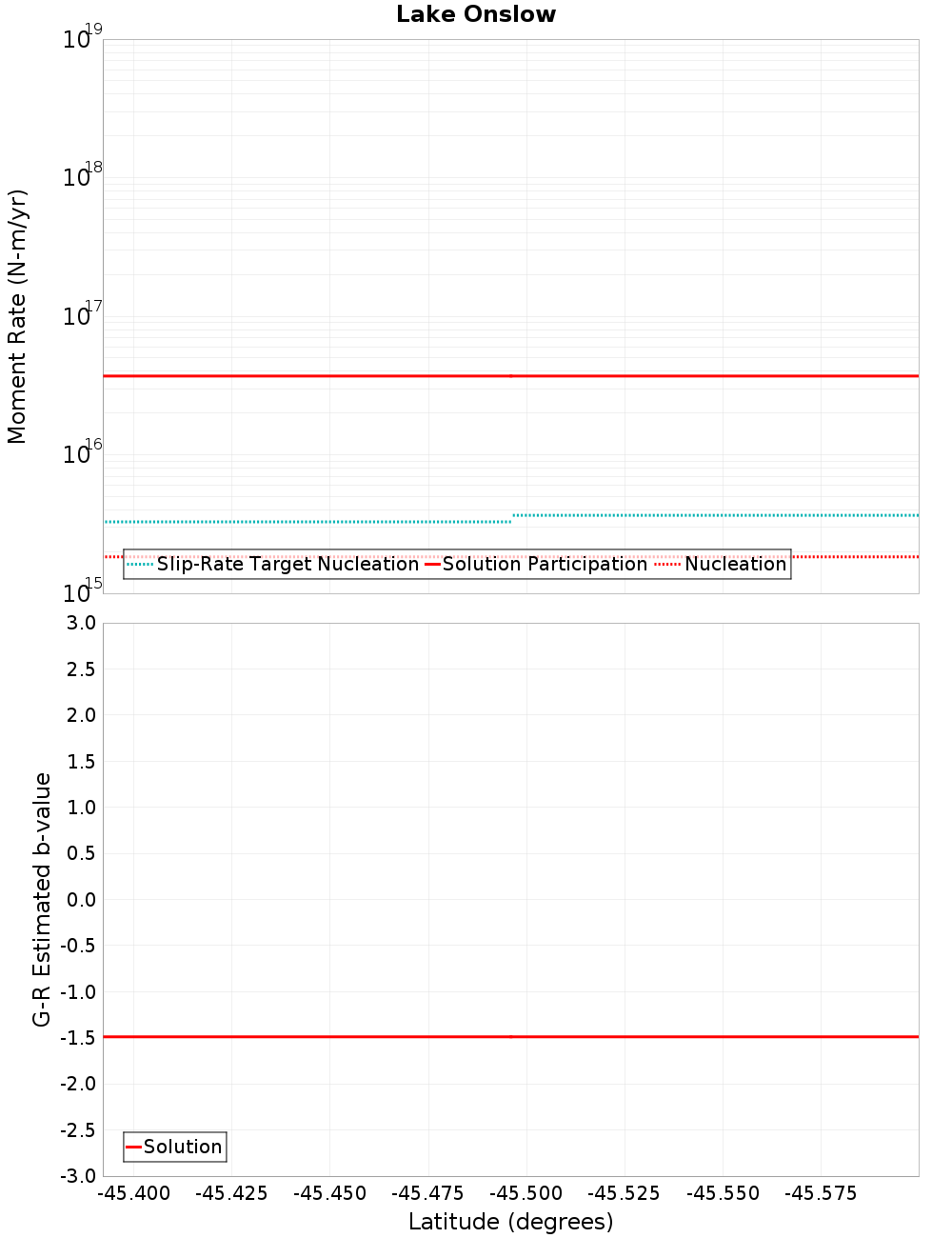

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Little Valley, 0.26 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 221 |
| Co-rupture Rate | 3.310229E-5 |
Galloway, 0.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Long Valley, 0.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Beaumont River, 3.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Backbone, 4.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 230 |
| Co-rupture Rate | 3.310229E-5 |
Pylap, 7.26 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Logan Burn, 7.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Garvie, 8.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waikaia, 9.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Roaring Lion, 10.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hyde South - The Twins, 11.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wendon Valley, 13.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Teviot, 14.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2 |
| Co-rupture Rate | 0.0 |
