Raukumara 20 Details

Property	Value
Rupture Count	10
Ruptures Above Sect Min Mag	9
Ruptures w/ Nonzero Rates	1
Magnitude Range	[6.27, 7.63]
Length Range	[4, 86] km
Total Rate	8.2341394E-5 /yr
Multi-Fault Rate	8.2341394E-5 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	9

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

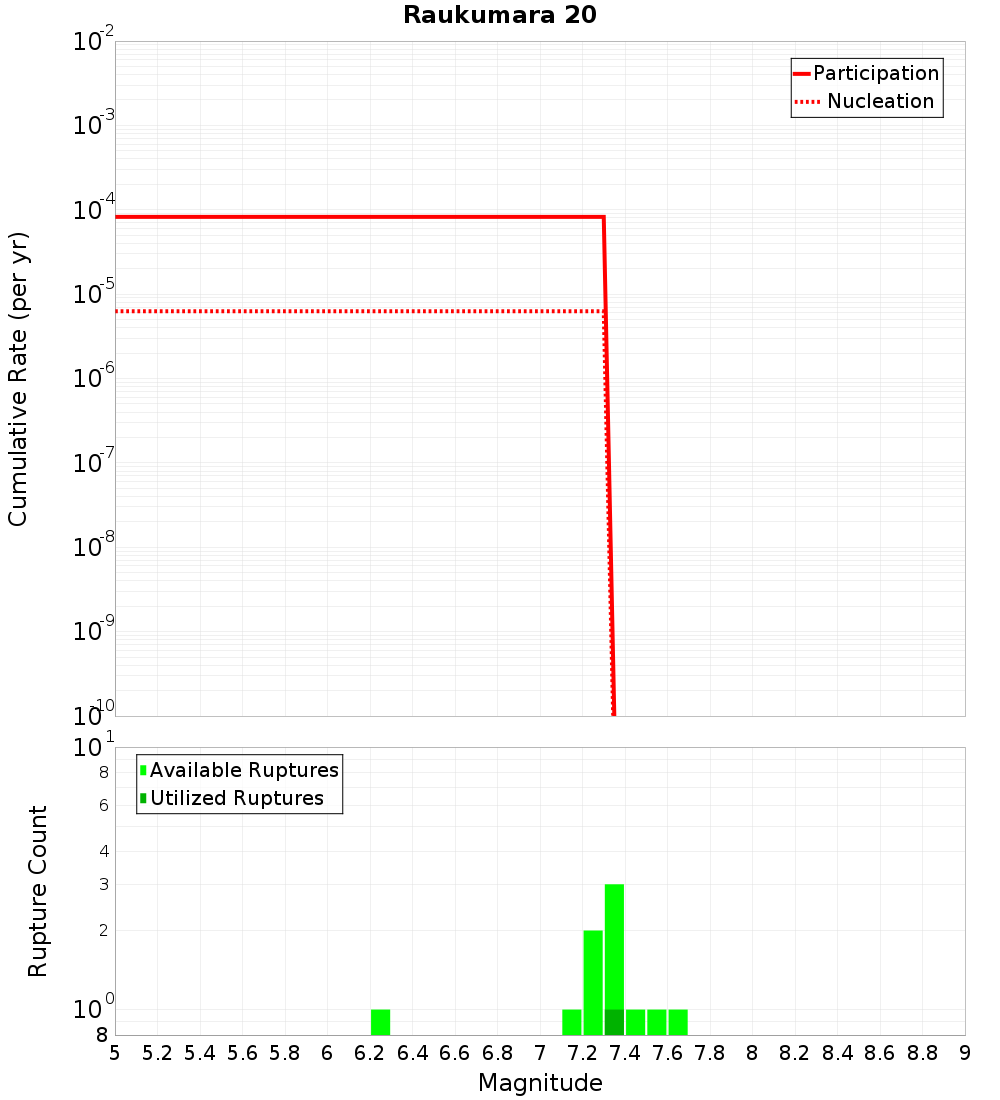

Magnitude-Frequency Distribution

Incremental	Cumulative

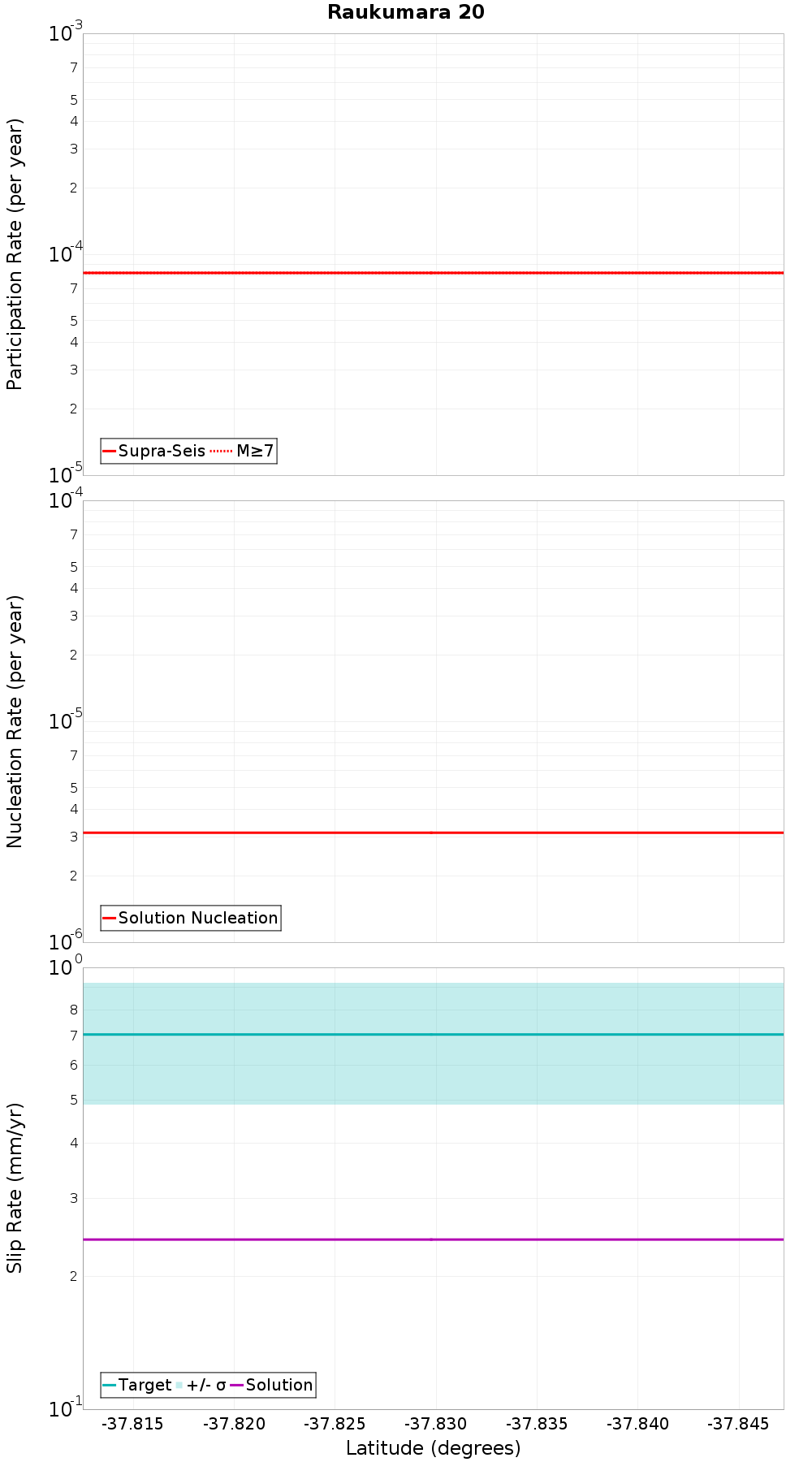

Along-Strike Values

Moment-Rates and b-Values

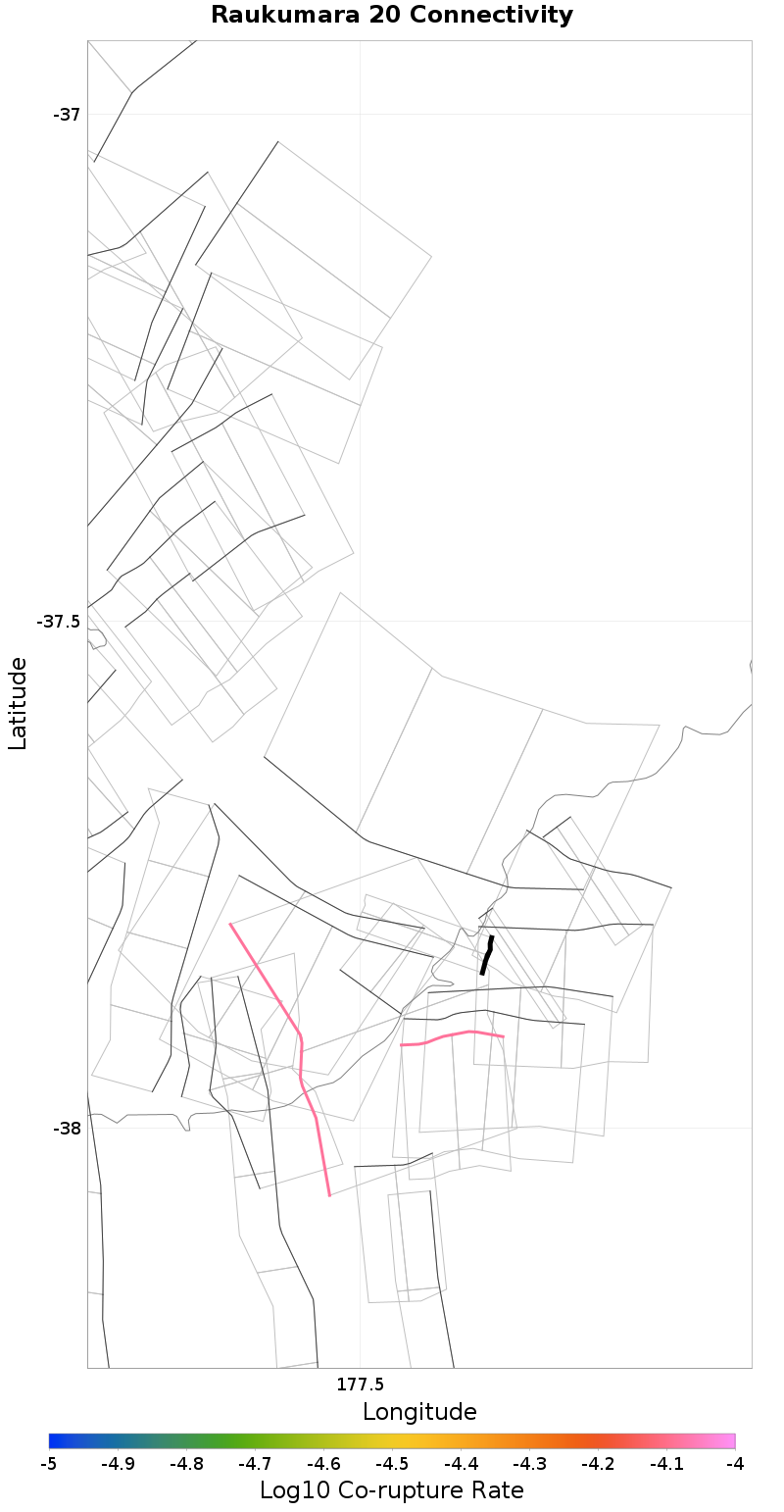

Connectivity

Nearby Sections

Fault Section
Raukumara 21, 0.1 km away
Ohae 3, 0.17 km away
Opape 1, 0.27 km away
Raukumara 25, 0.91 km away
Motu River, 1.89 km away
Raukumara 18, 4.11 km away
Ohae 2, 4.42 km away
Ohae 1, 5.17 km away
Hariki, 5.83 km away
Raukumara 17, 6.52 km away
Tirohanga, 7.35 km away
Kereu, 7.61 km away
Opotiki 2, 11.31 km away
Raukumara 24, 12.39 km away

Raukumara 21, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohae 3, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Opape 1, 0.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq
Connected?	true
Directly Connected?	true
Co-rupture Count	4
Co-rupture Rate	8.2341394E-5

Raukumara 25, 0.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Motu River, 1.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Raukumara 18, 4.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohae 2, 4.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohae 1, 5.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hariki, 5.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq
Connected?	true
Directly Connected?	true
Co-rupture Count	5
Co-rupture Rate	0.0

Raukumara 17, 6.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	8.2341394E-5

Tirohanga, 7.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kereu, 7.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Opotiki 2, 11.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Raukumara 24, 12.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMDh5amRq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
