Hedgehope Details
| Property | Value |
|---|---|
| Rupture Count | 3,228 |
| Ruptures Above Sect Min Mag | 3,227 |
| Ruptures w/ Nonzero Rates | 5 |
| Magnitude Range | [7.05, 8.46] |
| Length Range | [27, 856] km |
| Total Rate | 4.1165255E-5 /yr |
| Multi-Fault Rate | 4.1165255E-5 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 70 |
Table Of Contents

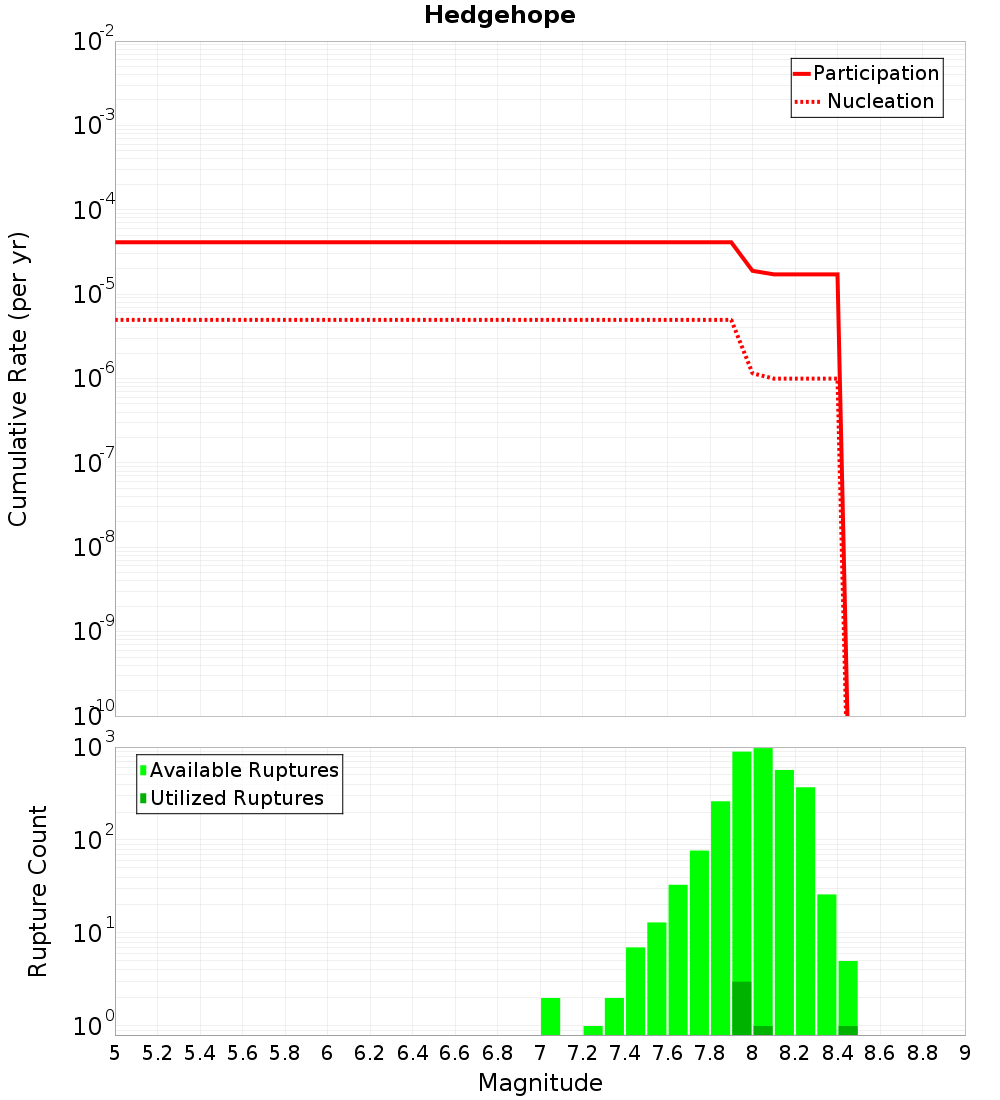

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

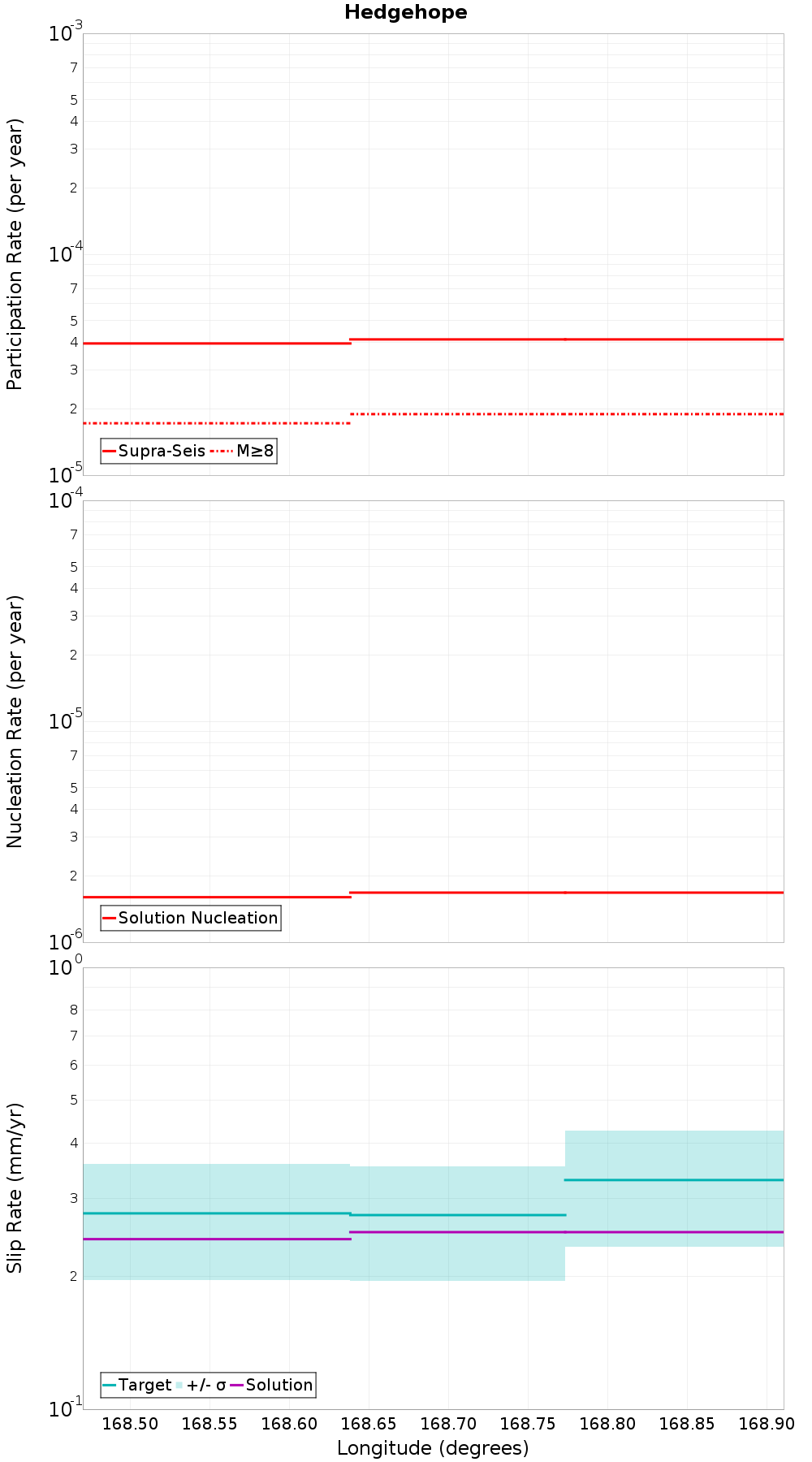

Along-Strike Values

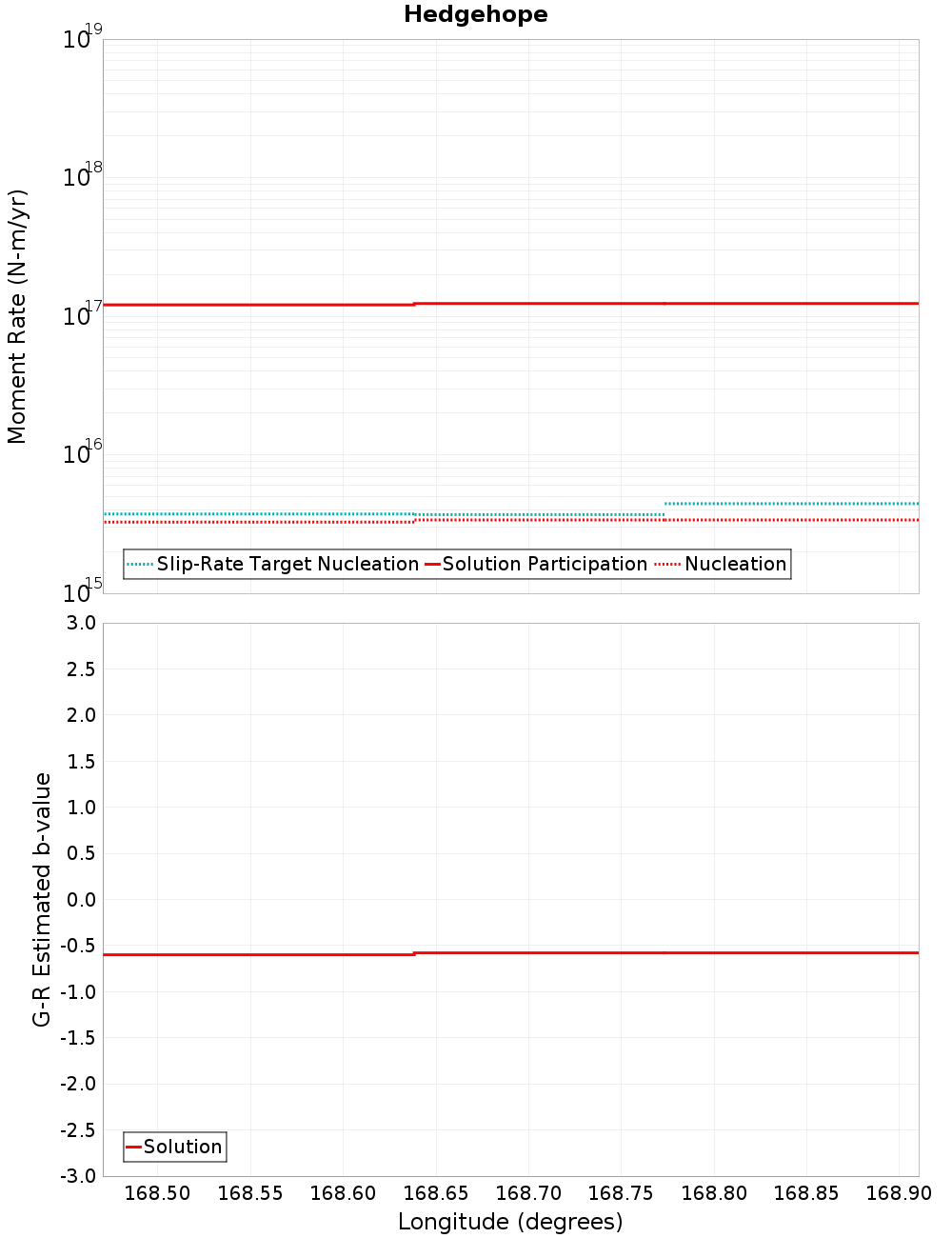

Moment-Rates and b-Values

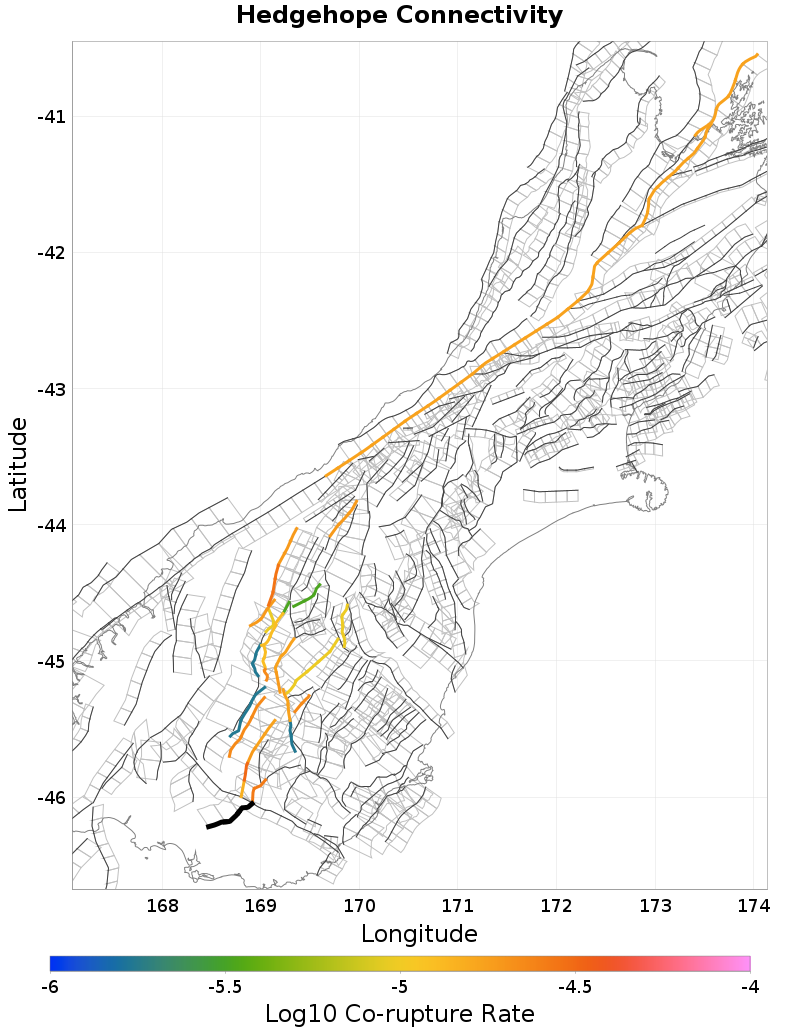

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hokonui, 0.08 km away |
| Hillfoot, 0.31 km away |
| Waikaia, 0.35 km away |
| Waikaka, 0.41 km away |
Hokonui, 0.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMEJ1d0tW | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 26 |
| Co-rupture Rate | 0.0 |
Hillfoot, 0.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMEJ1d0tW | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 565 |
| Co-rupture Rate | 0.0 |
Waikaia, 0.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMEJ1d0tW | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,570 |
| Co-rupture Rate | 3.1802174E-5 |
Waikaka, 0.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMEJ1d0tW | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,609 |
| Co-rupture Rate | 2.652989E-5 |
