AmberBlyth Details

PropertyValue
Rupture Count5,586
Ruptures Above Sect Min Mag5,575
Ruptures w/ Nonzero Rates143
Magnitude Range[6.71, 8.14]
Length Range[20, 530] km
Total Rate1.7593683E-4 /yr
Multi-Fault Rate1.2425665E-4 /yr (70.63%)
Directly-Connected Faults9
All Co-Rupturing Faults69

Table Of Contents

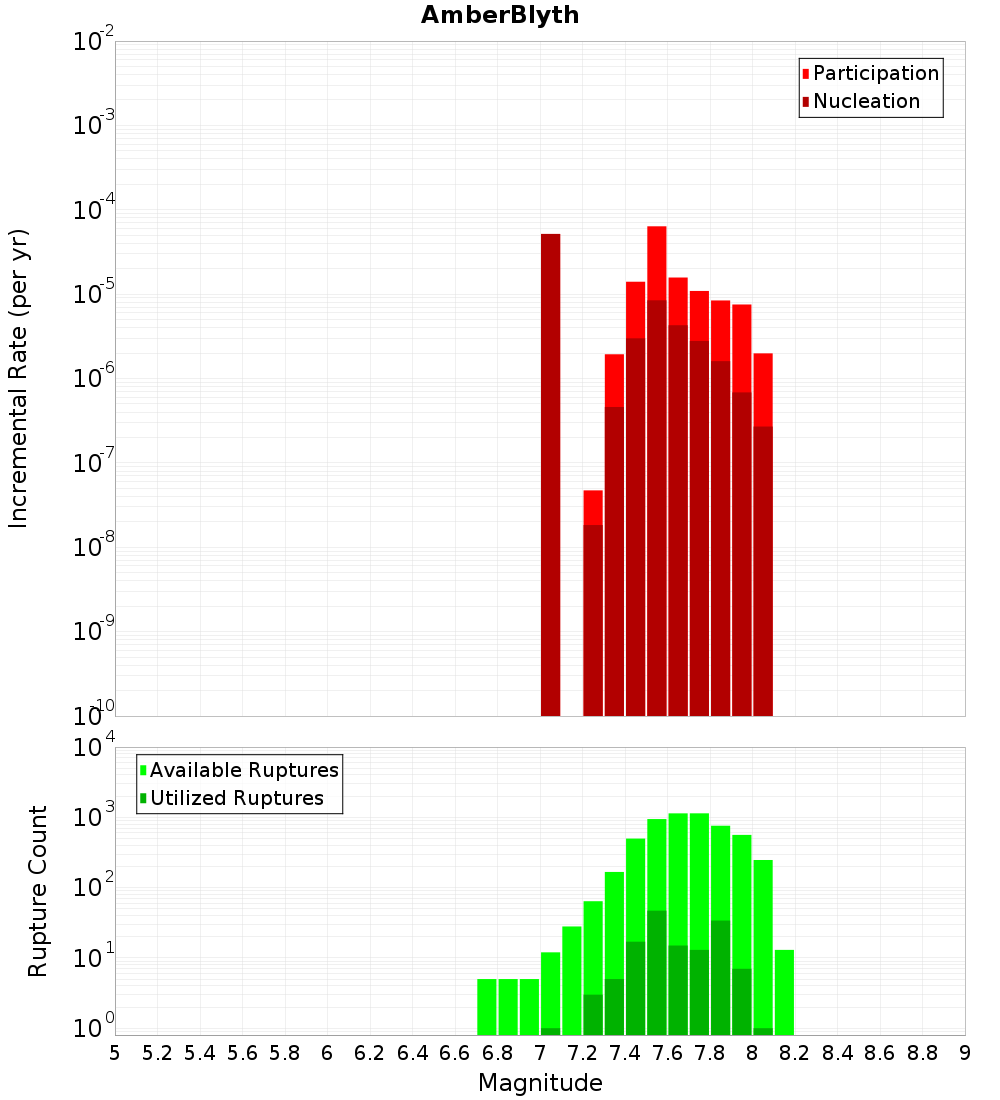

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

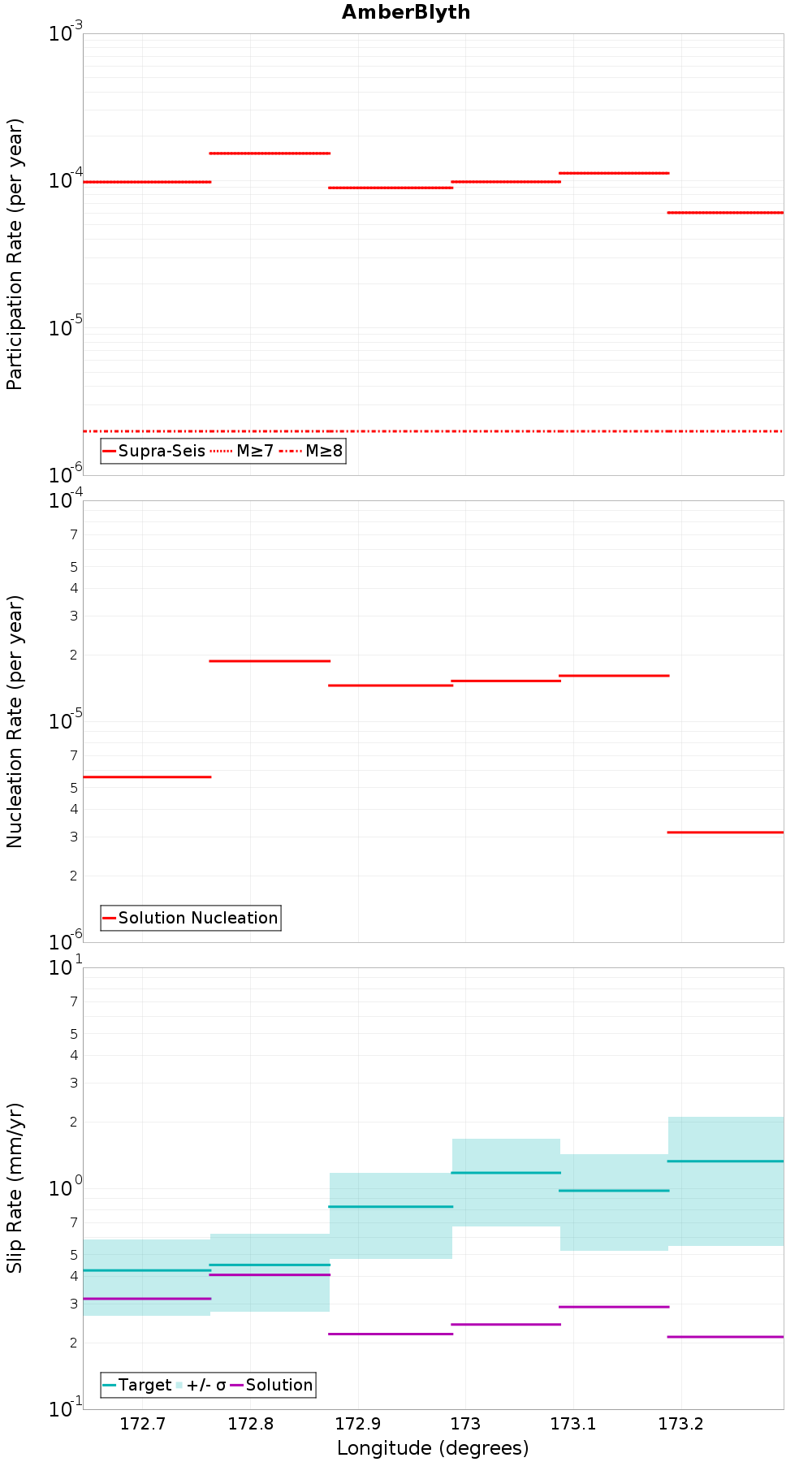

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

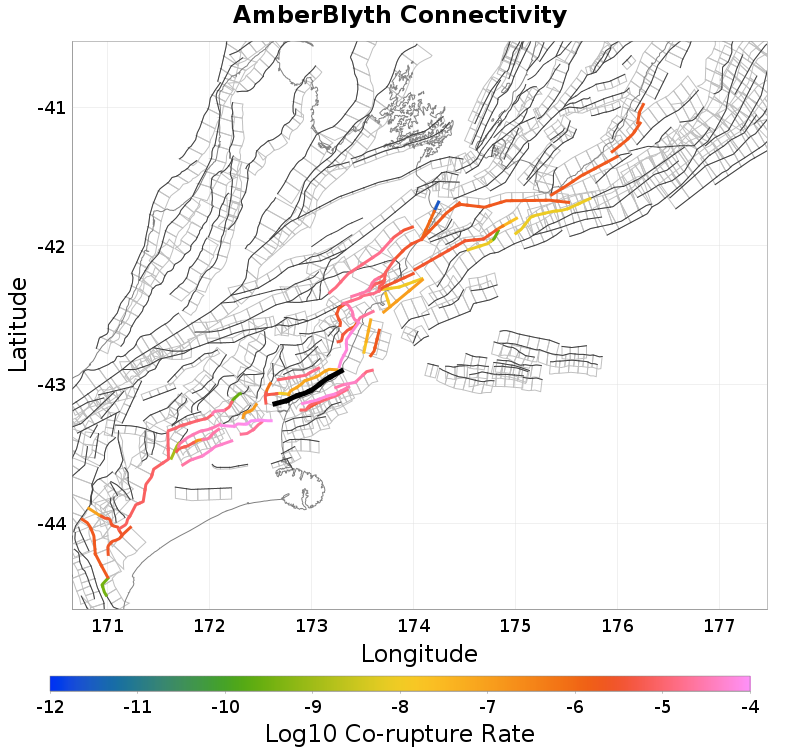

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
OmihiLwrHuru, 1.98 km awayNorth Canterbury Shelf 11, 7.7 km away
Motunau, 2.59 km awayStarvation - Ashley, 7.86 km away
Hawkswood, 3.12 km awayKaiwara South, 8.44 km away
Boby Stream, 3.76 km awayWaikuku, 9.2 km away
Point Gibson, 4.29 km awayAlexander, 11.84 km away
North Canterbury Shelf 2, 4.87 km awayNorth Canterbury Shelf 4, 12.25 km away
Leithfield - NCVI - NCVII, 5.71 km awayMt Lawry, 14.29 km away
Doctors, 5.78 km awayPegasus Bay, 14.66 km away

OmihiLwrHuru, 1.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?true
Directly Connected?true
Co-rupture Count360
Co-rupture Rate7.0310485E-8

Motunau, 2.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?true
Directly Connected?true
Co-rupture Count706
Co-rupture Rate6.361407E-5

Hawkswood, 3.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?true
Directly Connected?true
Co-rupture Count4,028
Co-rupture Rate6.0376708E-5

Boby Stream, 3.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?true
Directly Connected?true
Co-rupture Count1,556
Co-rupture Rate5.3940216E-6

Point Gibson, 4.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?true
Directly Connected?true
Co-rupture Count450
Co-rupture Rate4.3198444E-5

North Canterbury Shelf 2, 4.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?true
Directly Connected?true
Co-rupture Count76
Co-rupture Rate8.643557E-6

Leithfield - NCVI - NCVII, 5.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?true
Directly Connected?false
Co-rupture Count167
Co-rupture Rate1.5215282E-5

Doctors, 5.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?true
Directly Connected?false
Co-rupture Count296
Co-rupture Rate6.0797192E-6

North Canterbury Shelf 11, 7.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?true
Directly Connected?false
Co-rupture Count200
Co-rupture Rate2.9732084E-5

Starvation - Ashley, 7.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?true
Directly Connected?true
Co-rupture Count3,803
Co-rupture Rate8.882628E-5

Kaiwara South, 8.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?true
Directly Connected?true
Co-rupture Count454
Co-rupture Rate1.4224537E-5

Waikuku, 9.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?true
Directly Connected?true
Co-rupture Count9
Co-rupture Rate0.0

Alexander, 11.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

North Canterbury Shelf 4, 12.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Lawry, 14.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?true
Directly Connected?false
Co-rupture Count60
Co-rupture Rate1.2685517E-7

Pegasus Bay, 14.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
