Chamberlain Details

PropertyValue
Rupture Count1,656
Ruptures Above Sect Min Mag1,653
Ruptures w/ Nonzero Rates35
Magnitude Range[6.80, 8.07]
Length Range[22, 356] km
Total Rate7.0744194E-5 /yr
Multi-Fault Rate7.0744194E-5 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults31

Table Of Contents

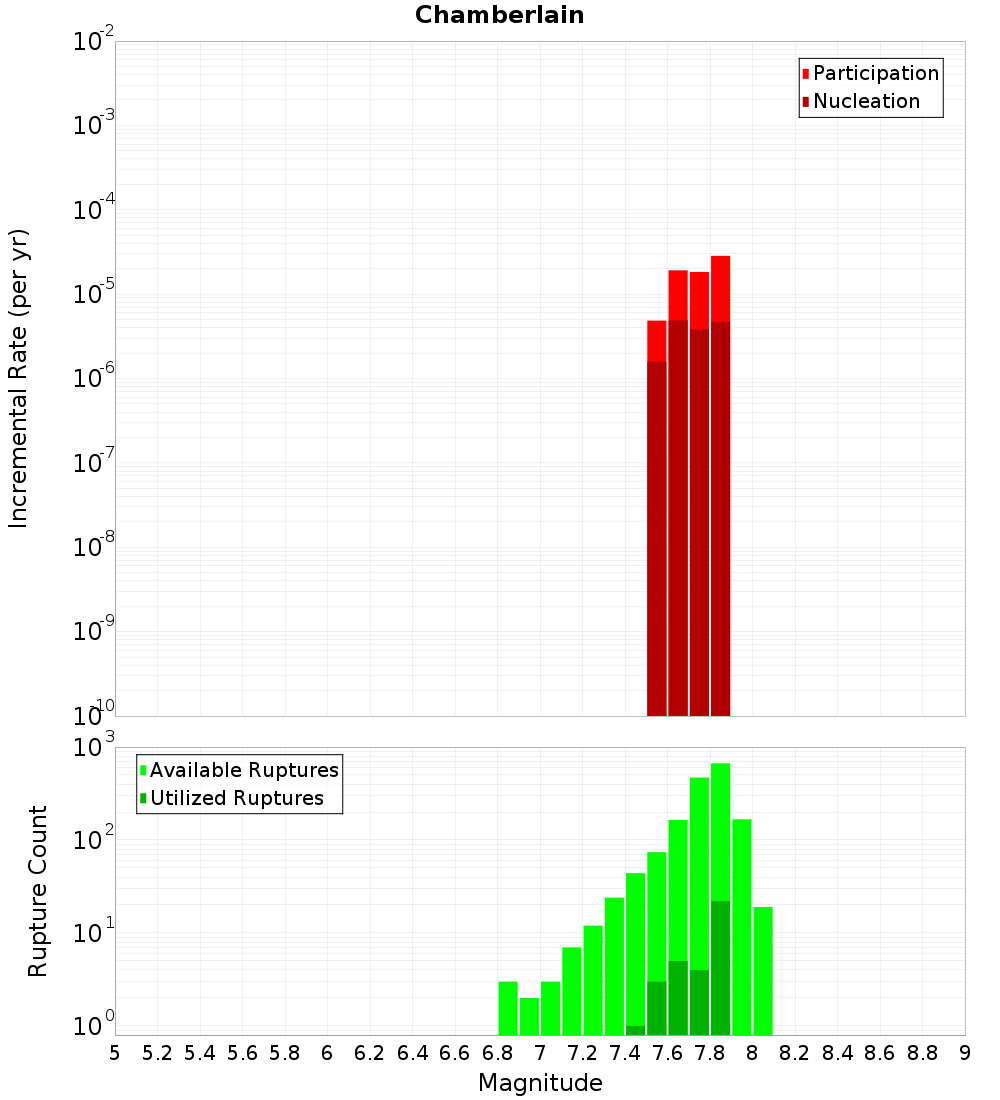

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

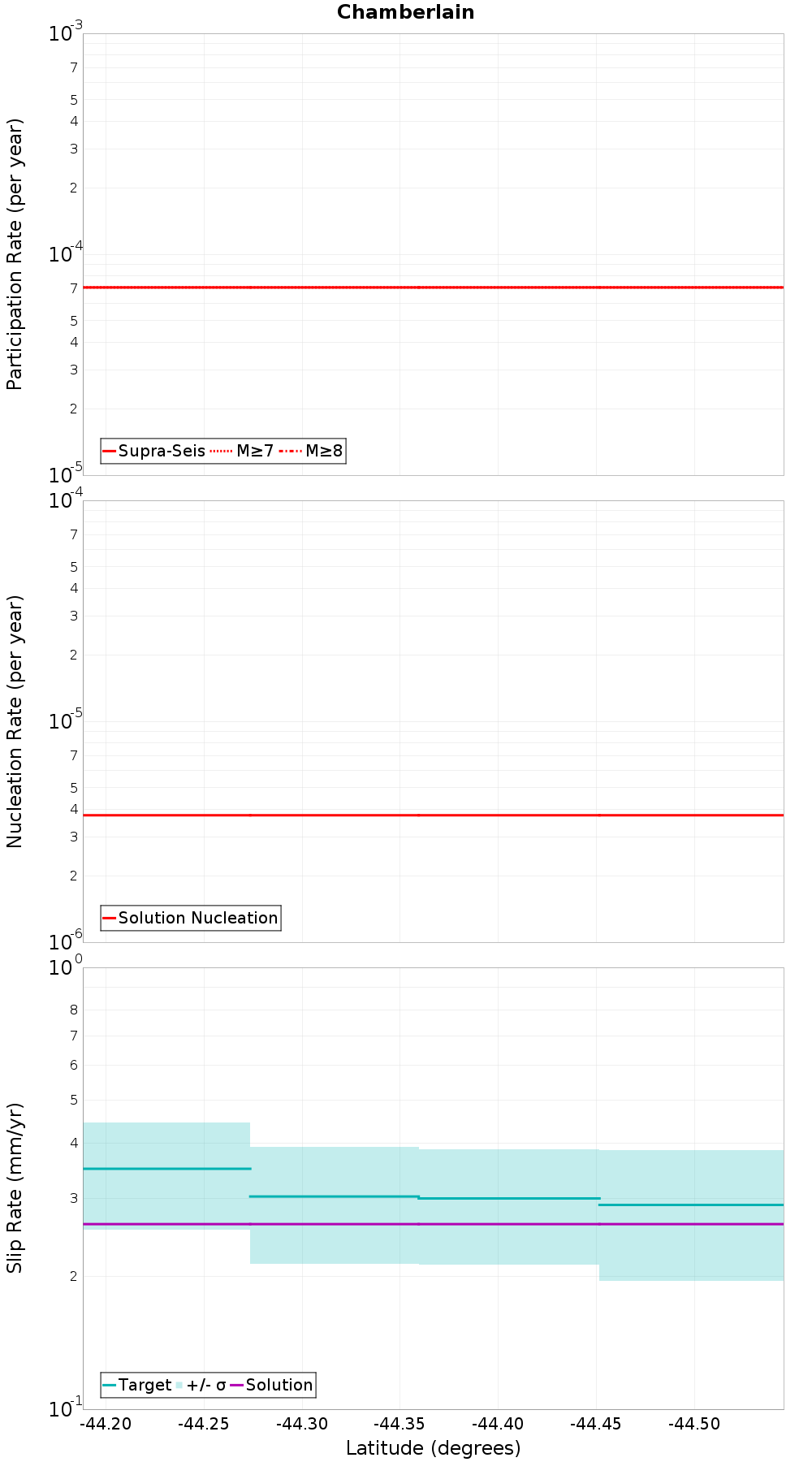

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

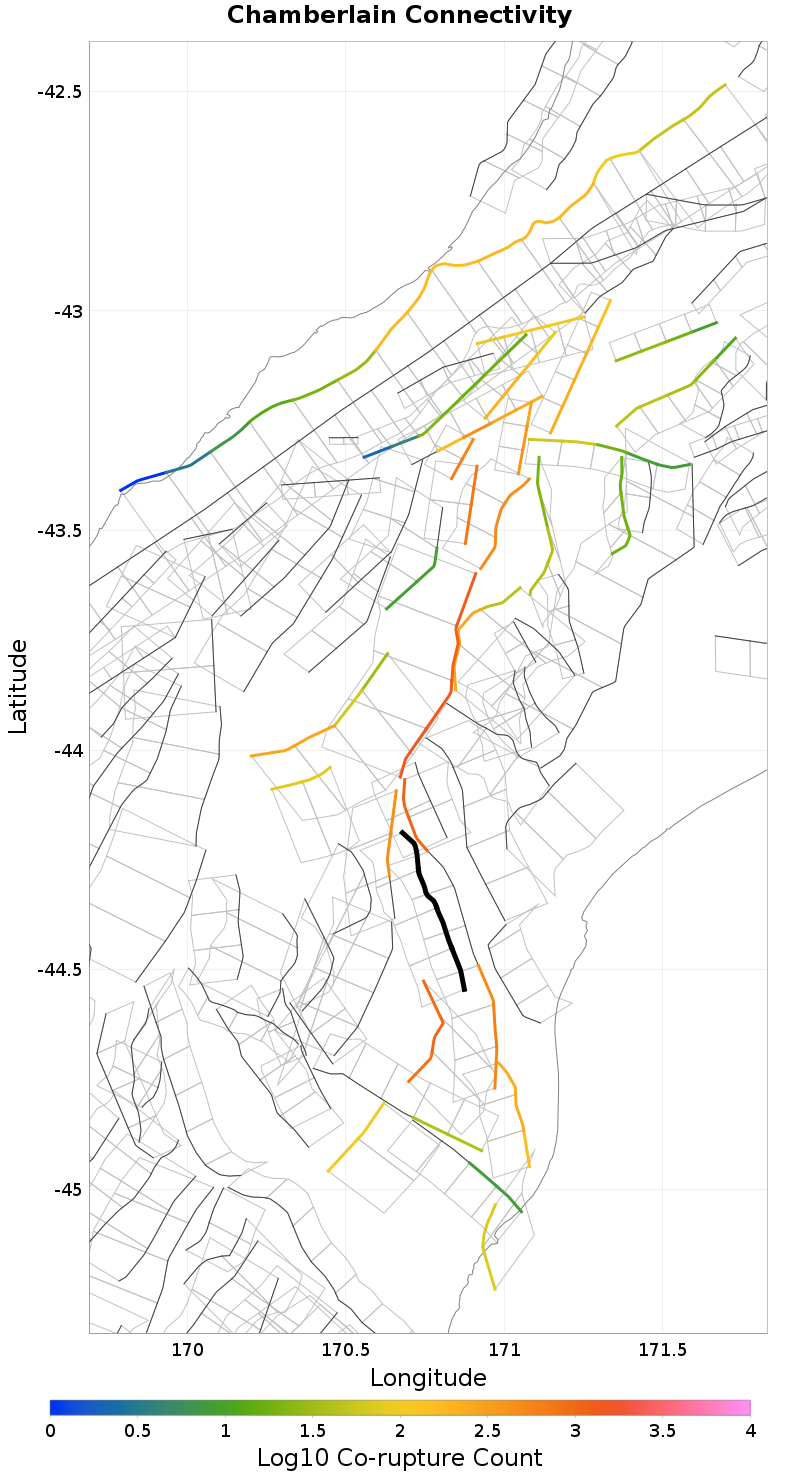

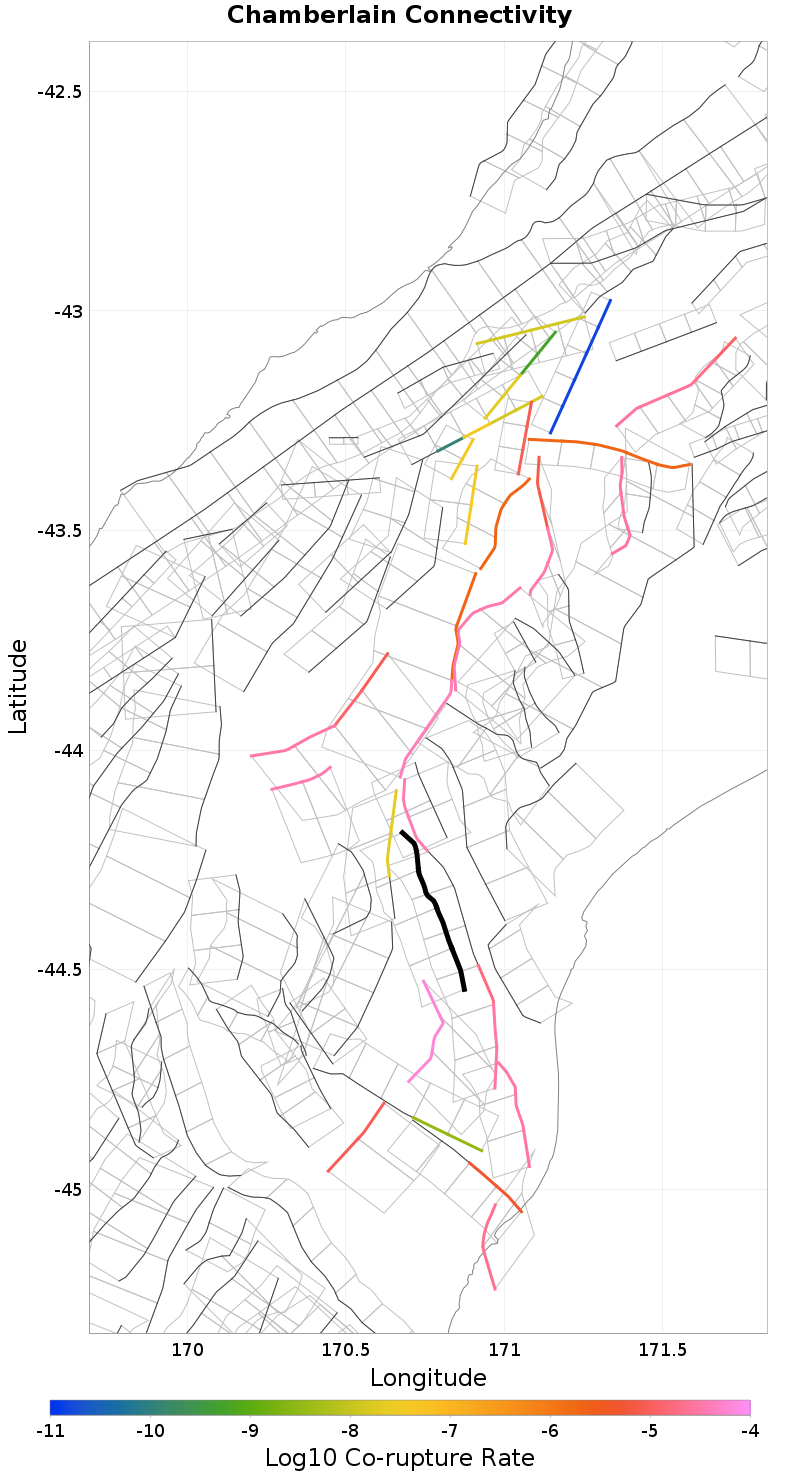

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Opawa, 1.37 km away
Campbell Hills, 1.74 km away
The Wolds, 2.09 km away
Hunters, 2.51 km away
Dalgety, 2.65 km away
Albury, 7.07 km away
Maungati, 8.42 km away
Kirkliston, 9.41 km away
Irishman Creek, 10.73 km away
Grampian, 11.51 km away
Brothers, 12.7 km away
Fox Peak, 14.1 km away

Opawa, 1.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?true
Directly Connected?true
Co-rupture Count1,066
Co-rupture Rate3.5984966E-5

Campbell Hills, 1.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?true
Directly Connected?true
Co-rupture Count1,027
Co-rupture Rate6.493033E-5

The Wolds, 2.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?true
Directly Connected?true
Co-rupture Count76
Co-rupture Rate3.473863E-5

Hunters, 2.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?true
Directly Connected?true
Co-rupture Count669
Co-rupture Rate2.8266837E-5

Dalgety, 2.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?true
Directly Connected?true
Co-rupture Count454
Co-rupture Rate2.0601604E-8

Albury, 7.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maungati, 8.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kirkliston, 9.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Irishman Creek, 10.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?true
Directly Connected?false
Co-rupture Count274
Co-rupture Rate2.9906494E-5

Grampian, 11.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Brothers, 12.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Fox Peak, 14.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?true
Directly Connected?false
Co-rupture Count1,665
Co-rupture Rate4.1567168E-5
