Makuri - Waewaepa Details

Property	Value
Rupture Count	4,478
Ruptures Above Sect Min Mag	4,471
Ruptures w/ Nonzero Rates	125
Magnitude Range	[6.57, 8.47]
Length Range	[16, 1,083] km
Total Rate	1.2833832E-4 /yr
Multi-Fault Rate	1.2833832E-4 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	97

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

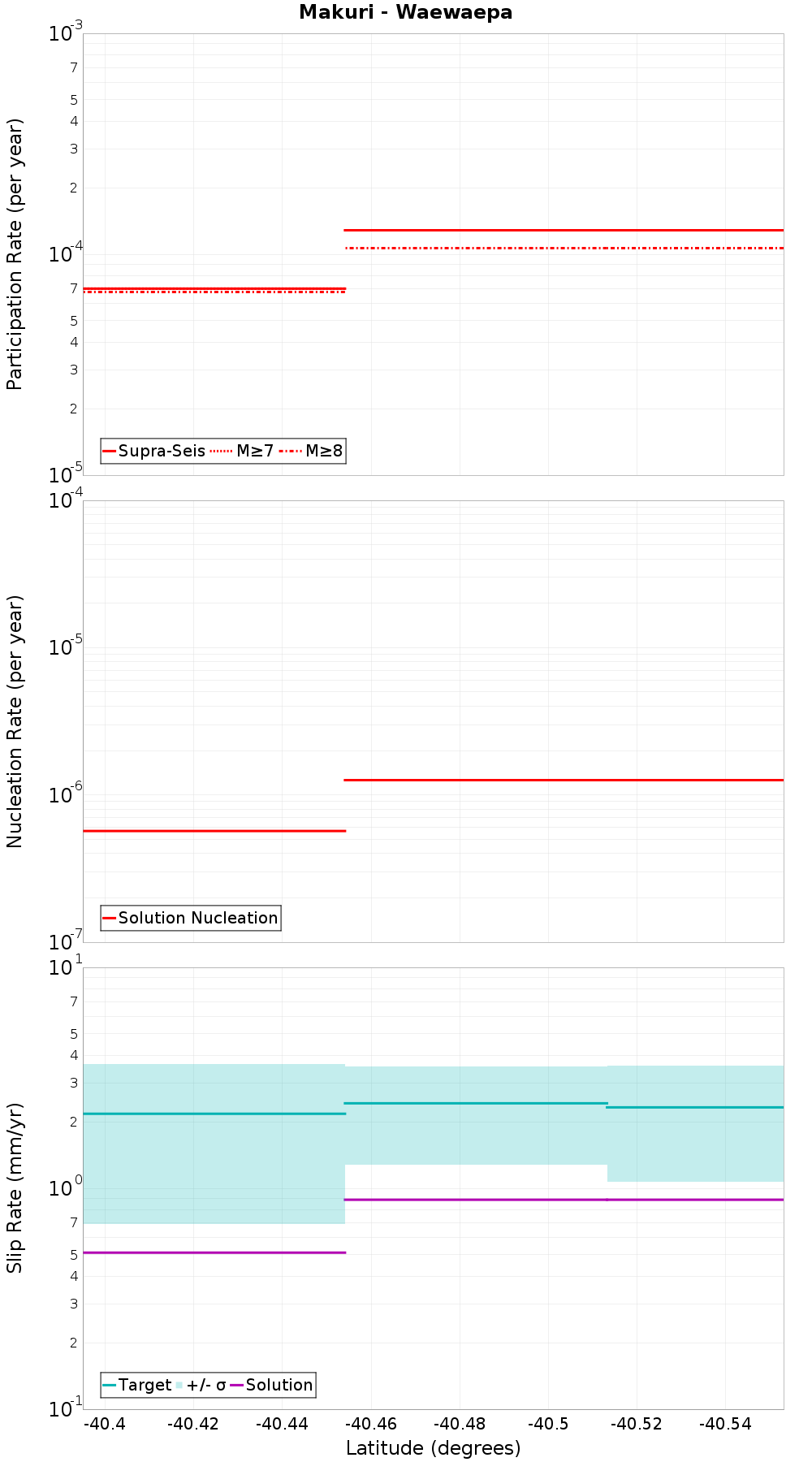

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Waewaepa, 0 km away
Alfredton North, 0.29 km away
Pa Valley, 1.73 km away
Saunders Road, 6 km away
Waipukaka, 8.29 km away
Maunga, 9.19 km away
Pahiatua, 12.66 km away
Pongaroa - Weber, 12.84 km away

Waewaepa, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?	true
Directly Connected?	true
Co-rupture Count	1,594
Co-rupture Rate	1.753113E-5

Alfredton North, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?	true
Directly Connected?	true
Co-rupture Count	2,543
Co-rupture Rate	7.45182E-5

Pa Valley, 1.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?	true
Directly Connected?	true
Co-rupture Count	1,897
Co-rupture Rate	5.3822416E-5

Saunders Road, 6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waipukaka, 8.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Maunga, 9.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pahiatua, 12.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pongaroa - Weber, 12.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
