Ritchie Ridge 1 Details

PropertyValue
Rupture Count3,864
Ruptures Above Sect Min Mag3,863
Ruptures w/ Nonzero Rates1
Magnitude Range[6.87, 8.38]
Length Range[21, 774] km
Total Rate5.151842E-7 /yr
Multi-Fault Rate5.151842E-7 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults83

Table Of Contents

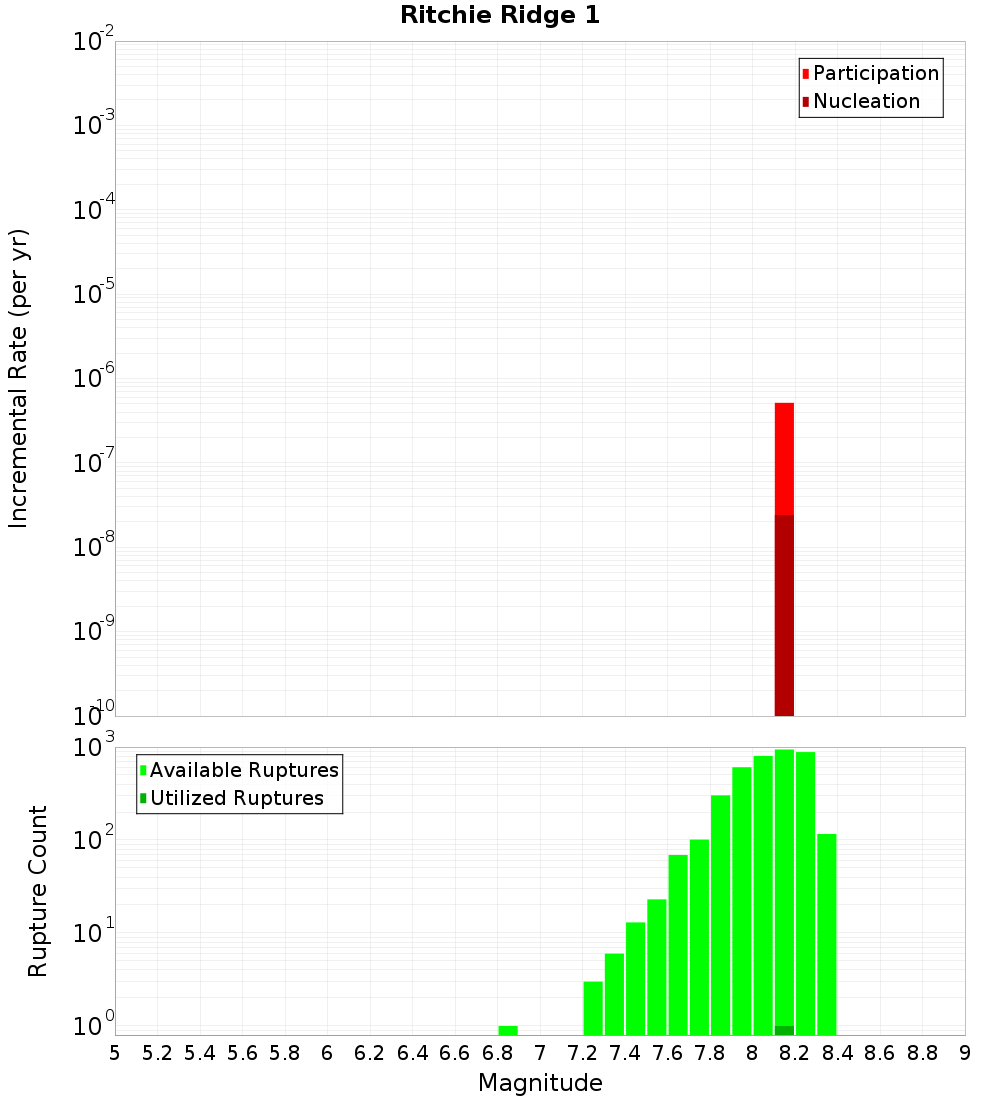

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

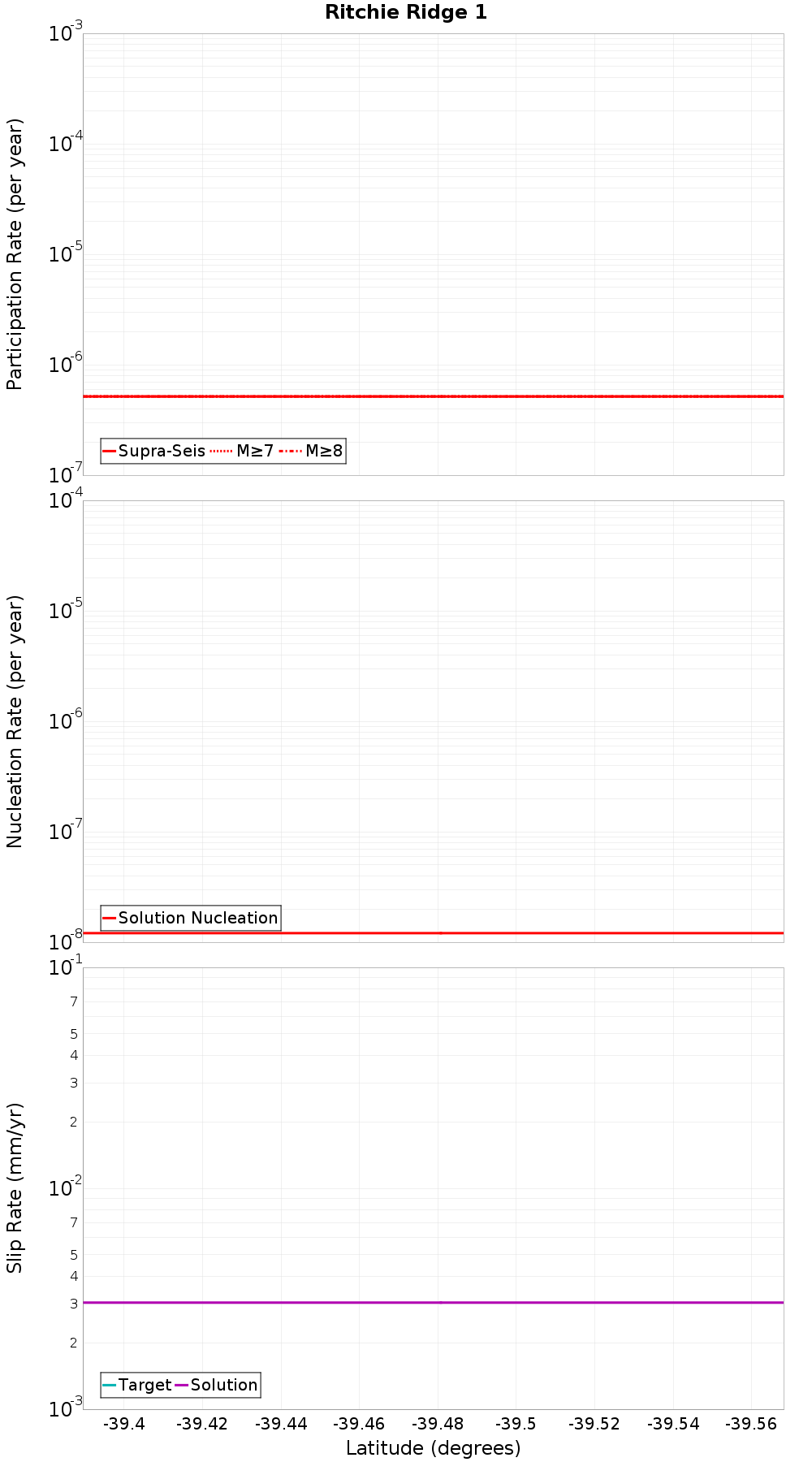

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

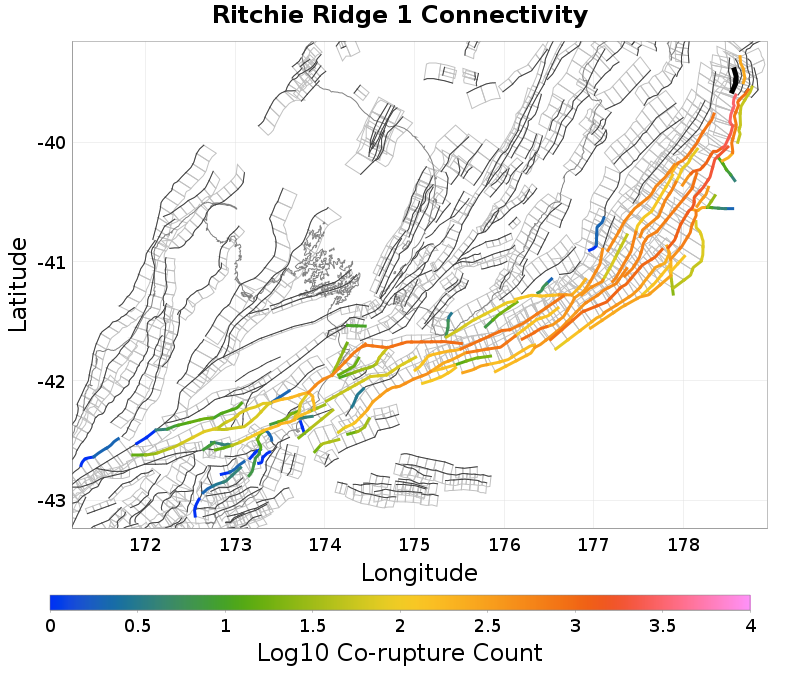

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Ritchie Ridge, 0.13 km away
Rock Garden - Ritchie East, 2.34 km away
Te Kapu Bank, 3.14 km away
Te Kapu Bank East, 3.23 km away
Whaiti Ridge, 5.59 km away
Rock Garden - Ritchie East 1, 5.61 km away
Ritchie West 1, 6.78 km away
Pakupaku Ridge, 7.49 km away
Pakupaku Ridge East, 9.59 km away

Ritchie Ridge, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rock Garden - Ritchie East, 2.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?true
Directly Connected?true
Co-rupture Count3,039
Co-rupture Rate5.151842E-7

Te Kapu Bank, 3.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Kapu Bank East, 3.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?true
Directly Connected?true
Co-rupture Count262
Co-rupture Rate0.0

Whaiti Ridge, 5.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rock Garden - Ritchie East 1, 5.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?true
Directly Connected?true
Co-rupture Count863
Co-rupture Rate0.0

Ritchie West 1, 6.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pakupaku Ridge, 7.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?true
Directly Connected?false
Co-rupture Count52
Co-rupture Rate0.0

Pakupaku Ridge East, 9.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNjQuMFo4TVpL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
