The Humps Details

Property	Value
Rupture Count	9,498
Ruptures Above Sect Min Mag	9,497
Ruptures w/ Nonzero Rates	12
Magnitude Range	[7.04, 8.57]
Length Range	[20, 836] km
Total Rate	8.7953435E-5 /yr
Multi-Fault Rate	8.7953435E-5 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	114

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

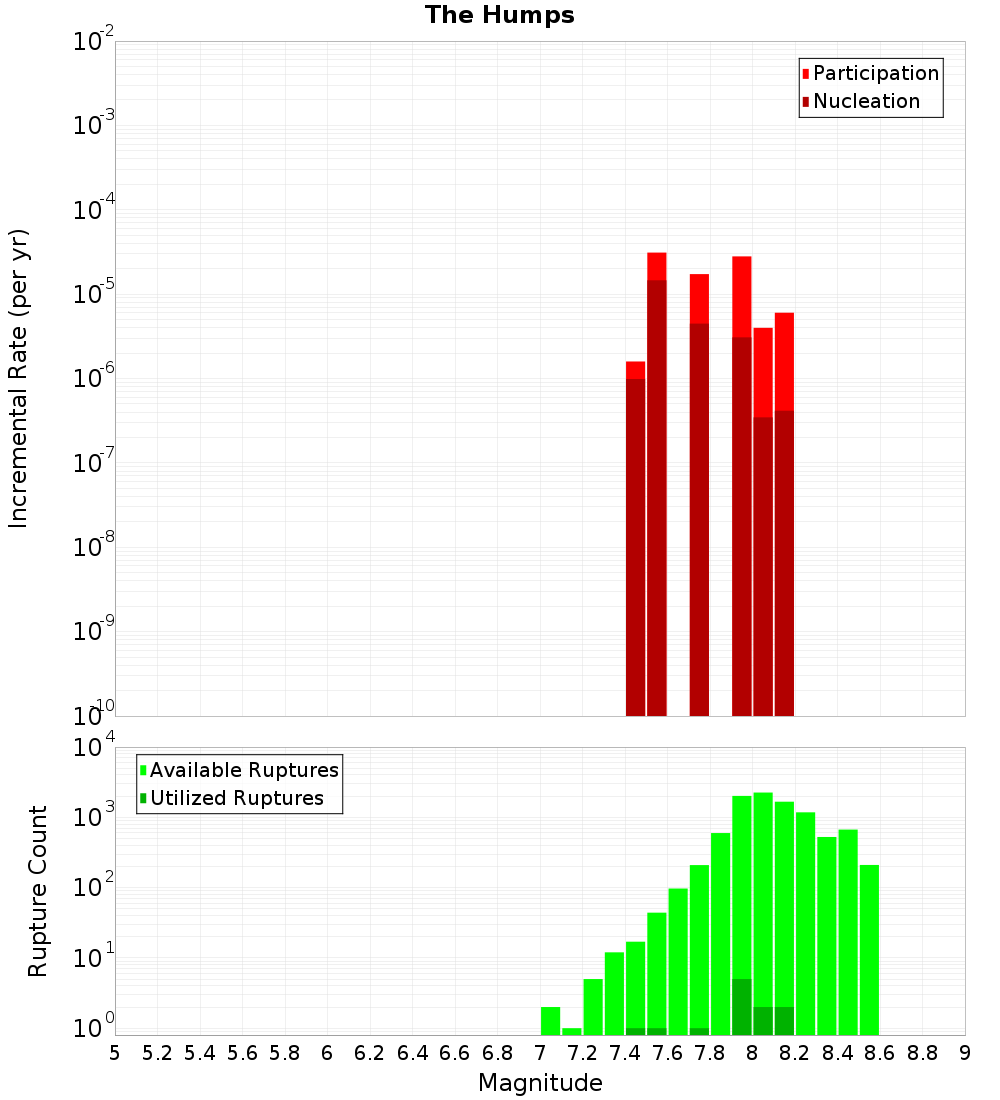

Magnitude-Frequency Distribution

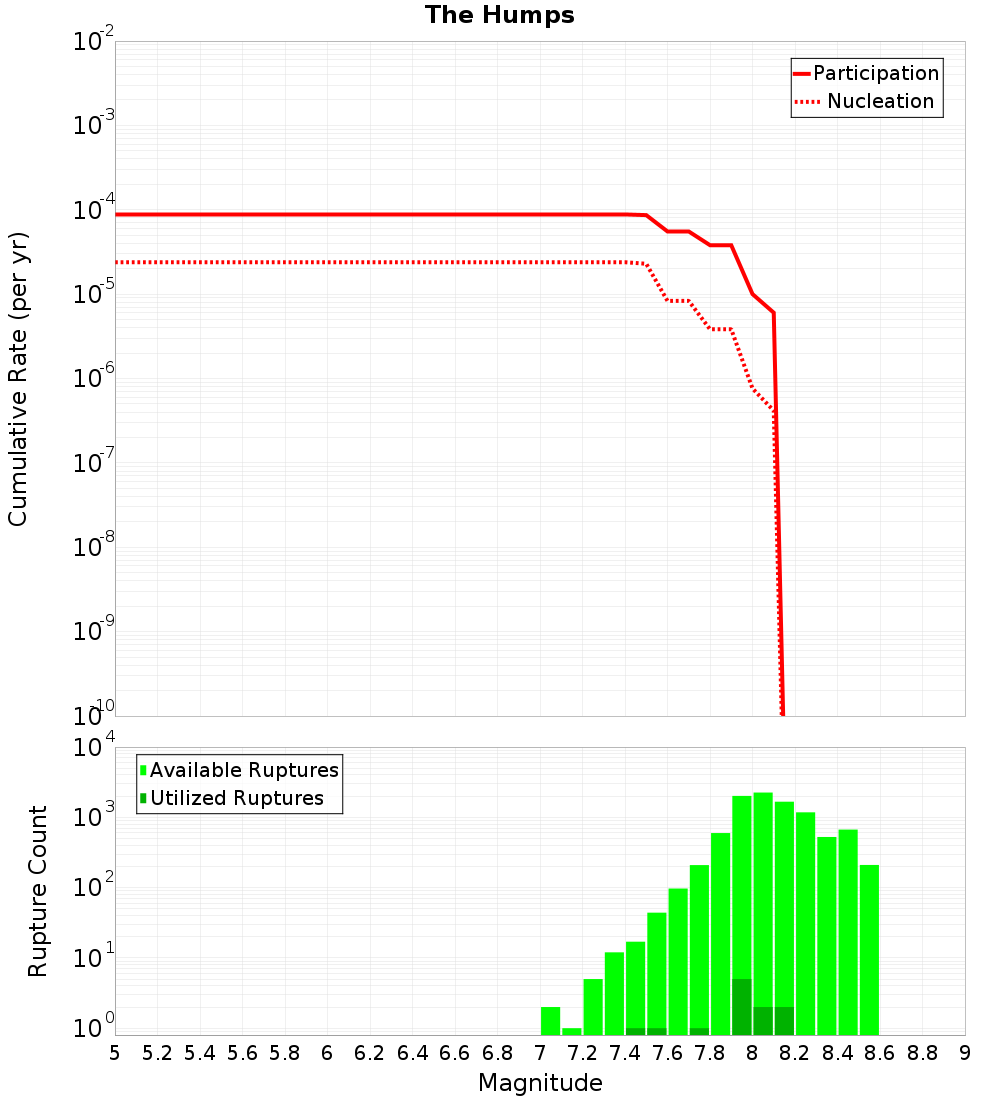

Incremental	Cumulative

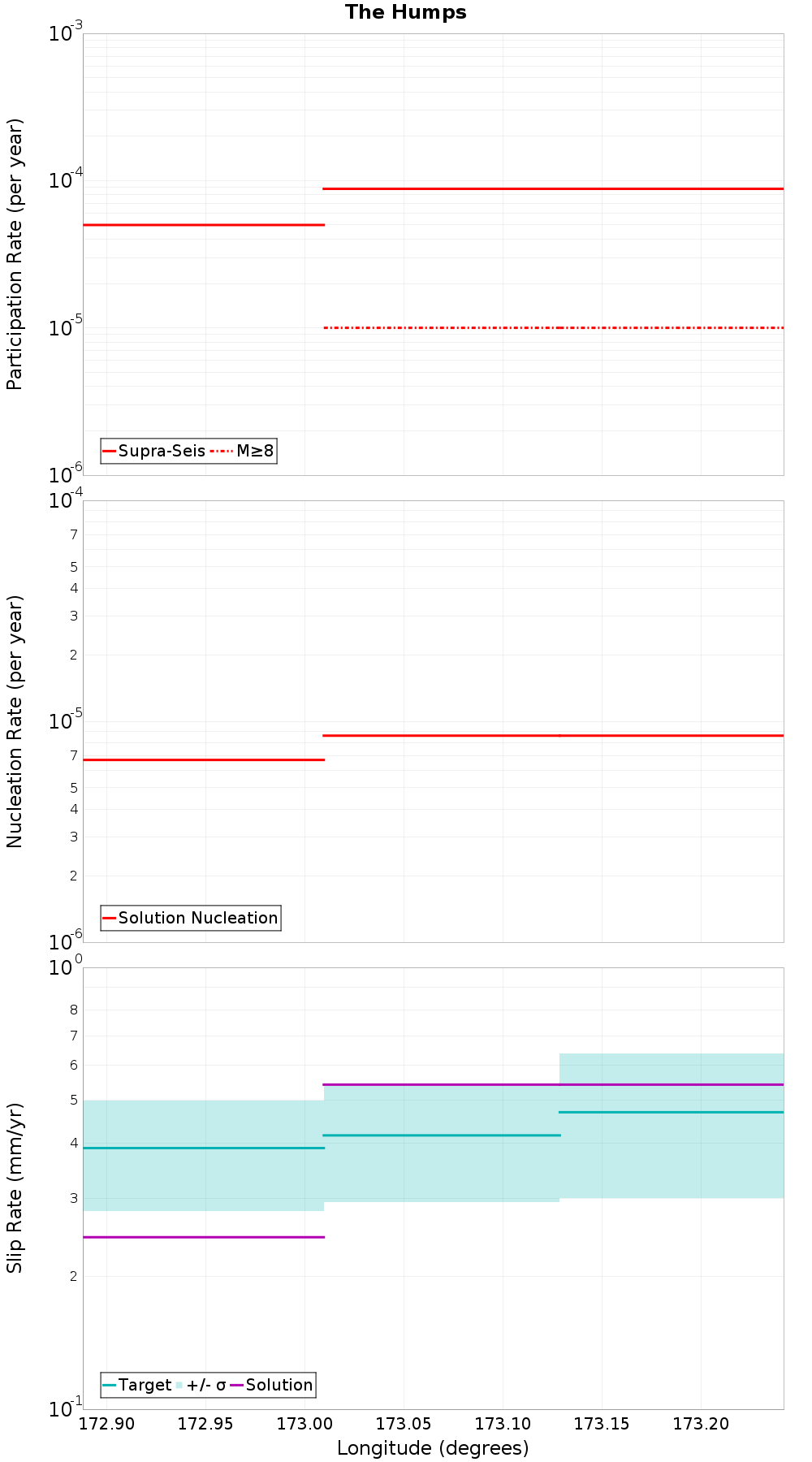

Along-Strike Values

Moment-Rates and b-Values

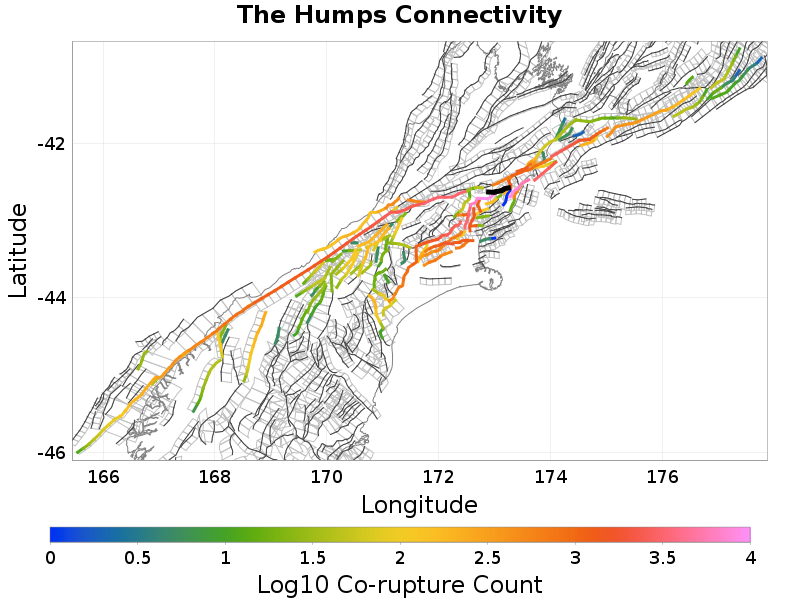

Connectivity

Nearby Sections

Fault Section
Kaiwara North, 0.19 km away
Hundalee, 0.25 km away
Leader: South, 0.28 km away
Mt Culverden, 1.72 km away
Leader: Central, 2.89 km away
Leonard Mound, 4.72 km away
Hope: Hamner SE, 7.7 km away
Lowry, 8.15 km away
Hanmer, 9.06 km away
Leader: North, 9.77 km away
Hope: Conway, 10.44 km away
Hope: Hamner SW, 10.45 km away
Hawkswood, 11.31 km away
StoneJug, 14.18 km away

Kaiwara North, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNzEuMFBldXZR
Connected?	true
Directly Connected?	true
Co-rupture Count	1
Co-rupture Rate	0.0

Hundalee, 0.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNzEuMFBldXZR
Connected?	true
Directly Connected?	true
Co-rupture Count	9,142
Co-rupture Rate	8.591885E-5

Leader: South, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNzEuMFBldXZR
Connected?	true
Directly Connected?	true
Co-rupture Count	204
Co-rupture Rate	3.3108867E-5

Mt Culverden, 1.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNzEuMFBldXZR
Connected?	true
Directly Connected?	true
Co-rupture Count	8,980
Co-rupture Rate	3.8017402E-5

Leader: Central, 2.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNzEuMFBldXZR
Connected?	true
Directly Connected?	false
Co-rupture Count	1,343
Co-rupture Rate	0.0

Leonard Mound, 4.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNzEuMFBldXZR
Connected?	true
Directly Connected?	true
Co-rupture Count	163
Co-rupture Rate	1.7270491E-5

Hope: Hamner SE, 7.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNzEuMFBldXZR
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Lowry, 8.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNzEuMFBldXZR
Connected?	true
Directly Connected?	false
Co-rupture Count	119
Co-rupture Rate	1.7270491E-5

Hanmer, 9.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNzEuMFBldXZR
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Leader: North, 9.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNzEuMFBldXZR
Connected?	true
Directly Connected?	false
Co-rupture Count	608
Co-rupture Rate	0.0

Hope: Conway, 10.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNzEuMFBldXZR
Connected?	true
Directly Connected?	false
Co-rupture Count	1,239
Co-rupture Rate	0.0

Hope: Hamner SW, 10.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNzEuMFBldXZR
Connected?	true
Directly Connected?	true
Co-rupture Count	43
Co-rupture Rate	3.266554E-5

Hawkswood, 11.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNzEuMFBldXZR
Connected?	true
Directly Connected?	false
Co-rupture Count	554
Co-rupture Rate	0.0

StoneJug, 14.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNzEuMFBldXZR
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
