Palliser - Kaiwhata Details

PropertyValue
Rupture Count21,209
Ruptures Above Sect Min Mag21,194
Ruptures w/ Nonzero Rates182
Magnitude Range[6.74, 8.45]
Length Range[21, 1,041] km
Total Rate1.5125115E-4 /yr
Multi-Fault Rate1.5125115E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults146

Table Of Contents

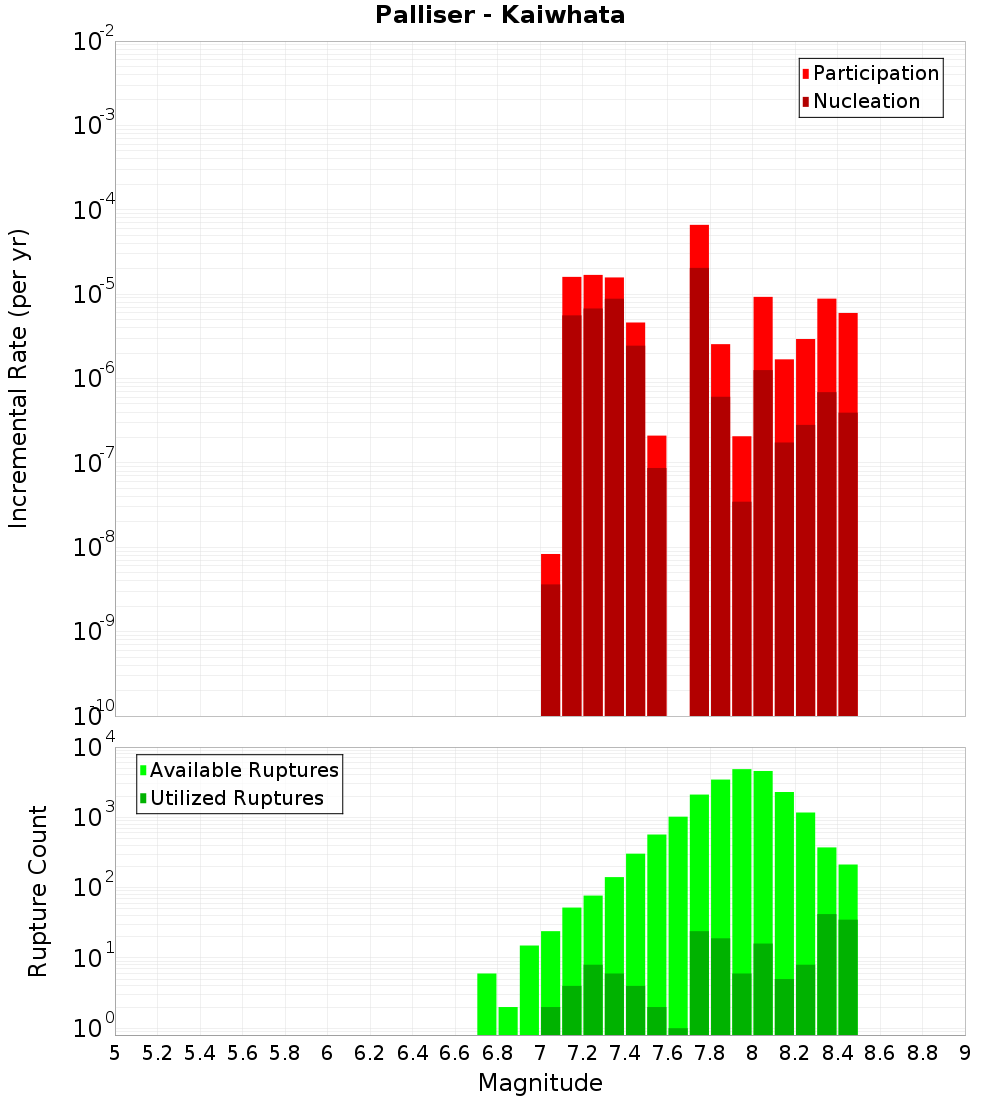

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

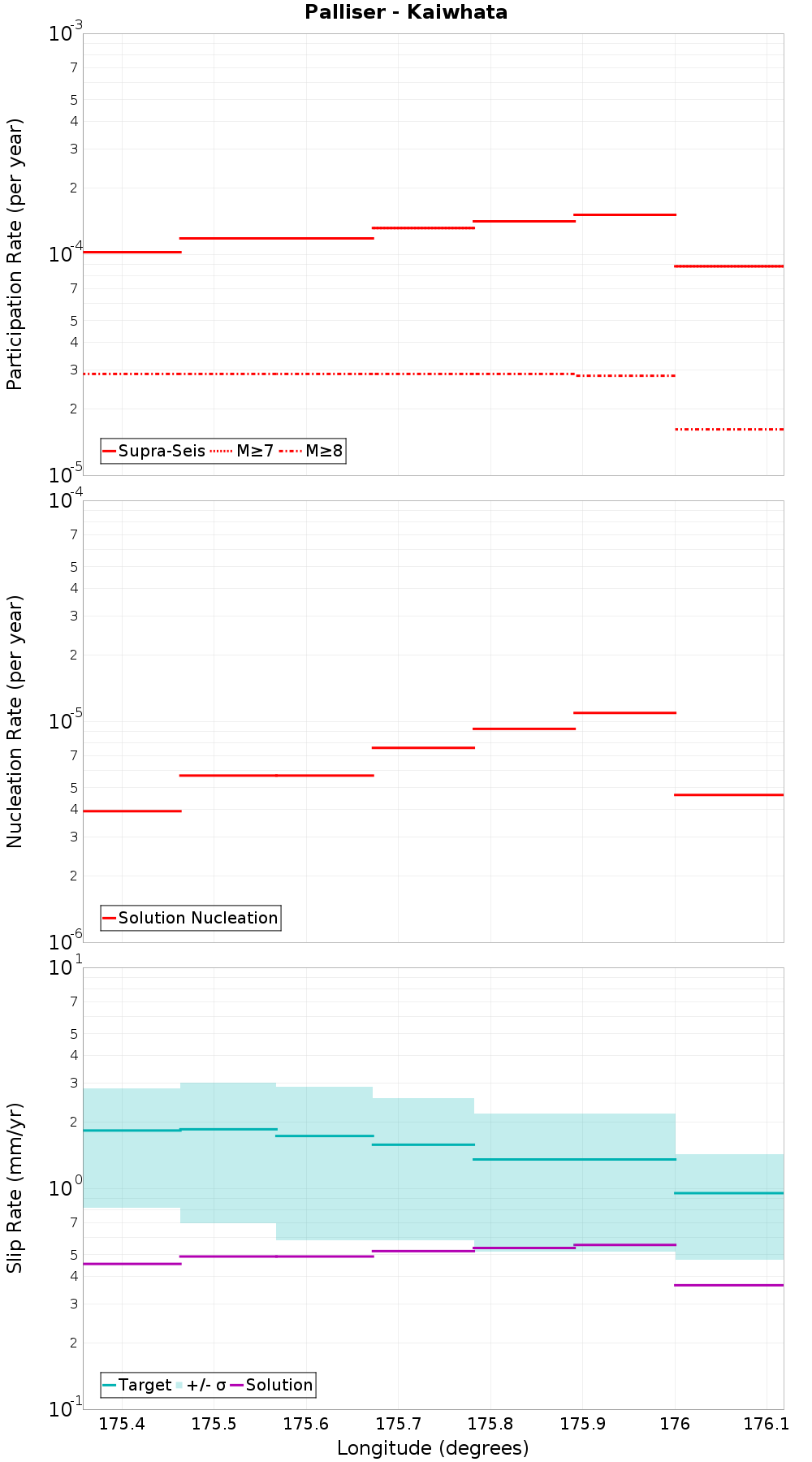

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

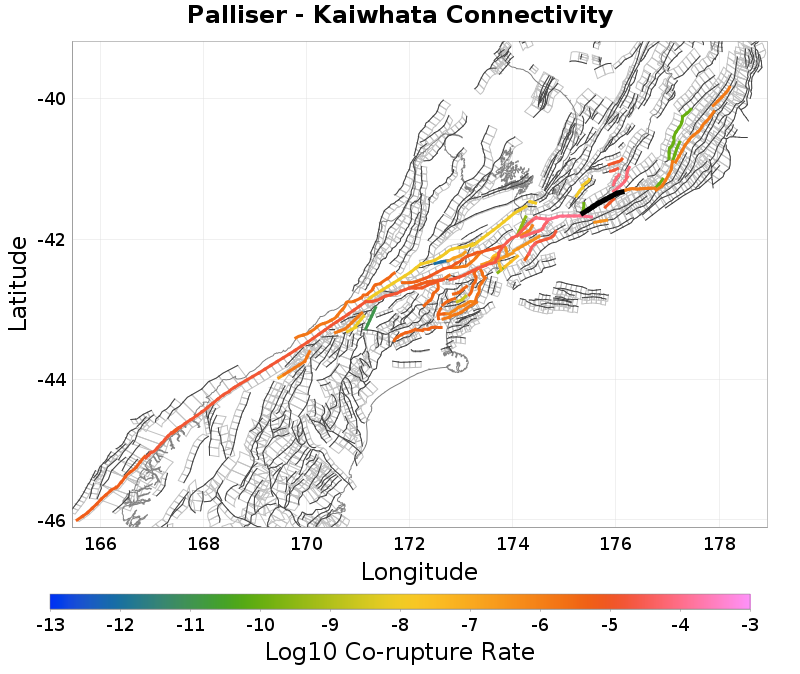

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Ngapotiki, 0.63 km away
Honeycomb, 1.22 km away
Uruti Basin, 1.36 km away
Otaraia, 1.71 km away
Riversdale, 3.25 km away
Uruti Point, 3.65 km away
BooBoo, 4.24 km away
Whareama Bank, 6.44 km away
Opouawe - Uruti, 8.58 km away
Dry River - Huangarua: 1, 11.83 km away
Pahaua SE1, 13.31 km away
Pahaua, 13.63 km away
Riversdale North, 14.73 km away

Ngapotiki, 0.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNzYuMHJSc1px
Connected?true
Directly Connected?true
Co-rupture Count49
Co-rupture Rate1.15850815E-10

Honeycomb, 1.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNzYuMHJSc1px
Connected?true
Directly Connected?true
Co-rupture Count336
Co-rupture Rate1.0393807E-5

Uruti Basin, 1.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNzYuMHJSc1px
Connected?true
Directly Connected?true
Co-rupture Count14,437
Co-rupture Rate1.3134432E-6

Otaraia, 1.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNzYuMHJSc1px
Connected?true
Directly Connected?true
Co-rupture Count104
Co-rupture Rate1.2925368E-8

Riversdale, 3.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNzYuMHJSc1px
Connected?true
Directly Connected?true
Co-rupture Count1,576
Co-rupture Rate8.279969E-5

Uruti Point, 3.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNzYuMHJSc1px
Connected?true
Directly Connected?true
Co-rupture Count671
Co-rupture Rate6.7949775E-5

BooBoo, 4.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNzYuMHJSc1px
Connected?true
Directly Connected?true
Co-rupture Count18,170
Co-rupture Rate1.0254223E-4

Whareama Bank, 6.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNzYuMHJSc1px
Connected?true
Directly Connected?false
Co-rupture Count50
Co-rupture Rate0.0

Opouawe - Uruti, 8.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNzYuMHJSc1px
Connected?true
Directly Connected?false
Co-rupture Count443
Co-rupture Rate0.0

Dry River - Huangarua: 1, 11.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNzYuMHJSc1px
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pahaua SE1, 13.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNzYuMHJSc1px
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pahaua, 13.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNzYuMHJSc1px
Connected?true
Directly Connected?false
Co-rupture Count245
Co-rupture Rate3.9680774E-7

Riversdale North, 14.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNzYuMHJSc1px
Connected?true
Directly Connected?false
Co-rupture Count307
Co-rupture Rate6.163988E-5
