Redcliffe Details
| Property | Value |
|---|---|
| Rupture Count | 304 |
| Ruptures Above Sect Min Mag | 303 |
| Ruptures w/ Nonzero Rates | 14 |
| Magnitude Range | [6.63, 7.83] |
| Length Range | [18, 239] km |
| Total Rate | 3.6036403E-5 /yr |
| Multi-Fault Rate | 3.6036403E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 16 |
Table Of Contents

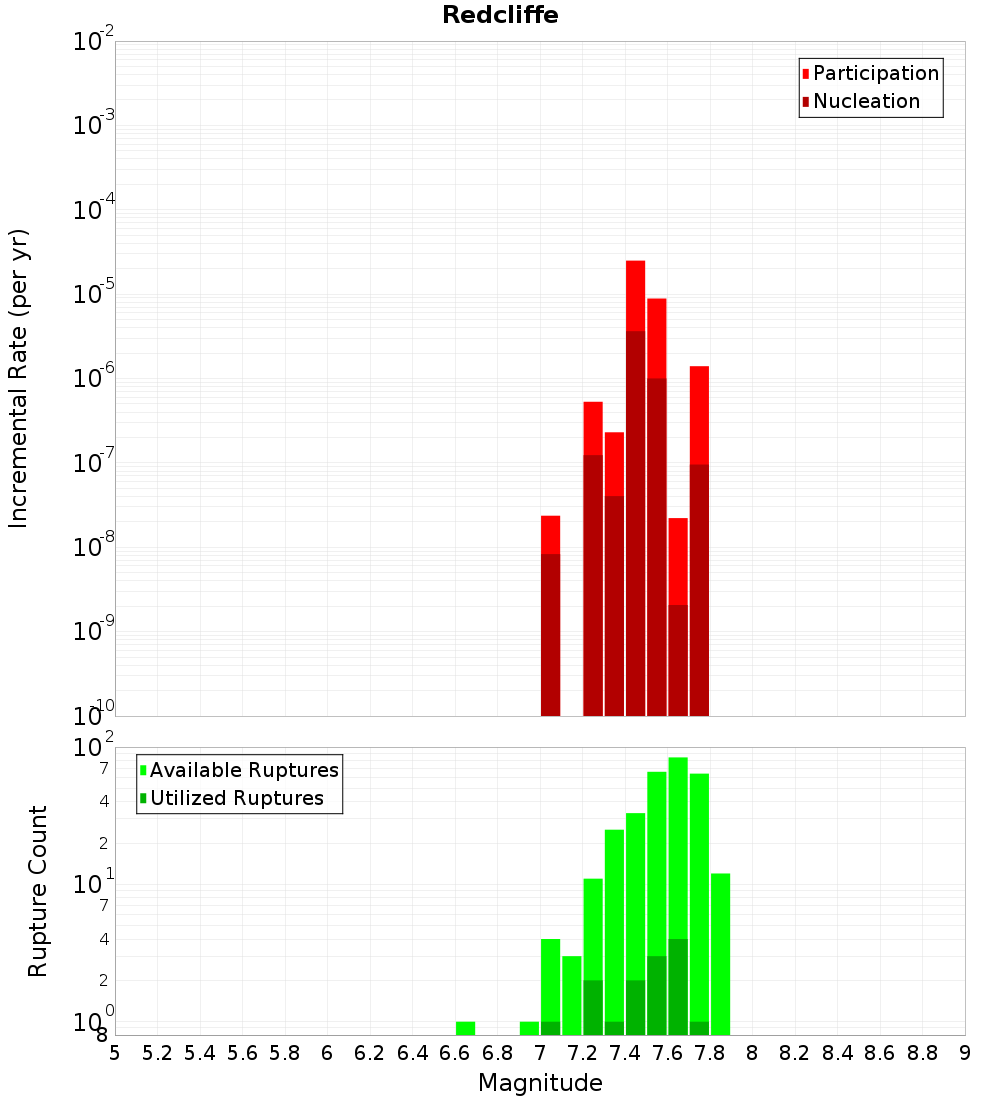

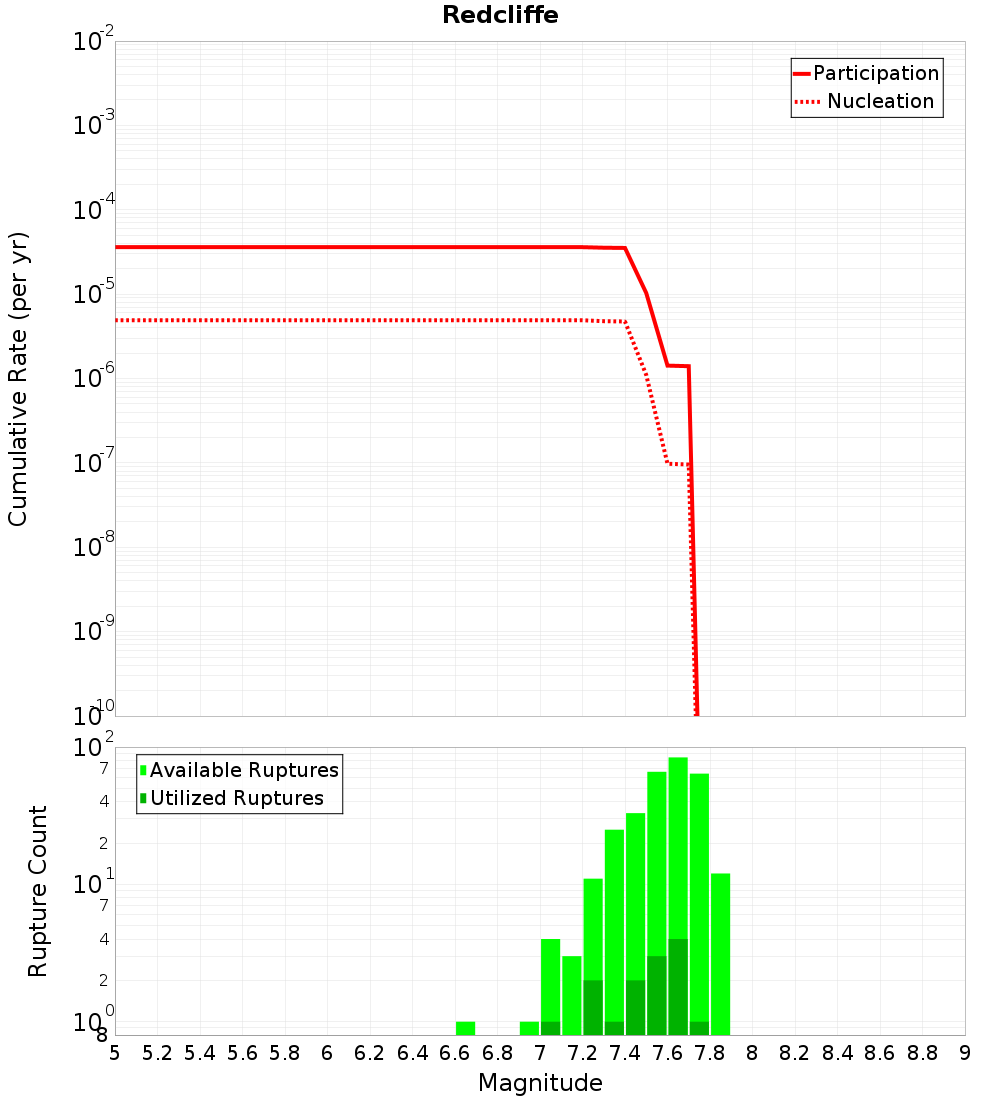

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

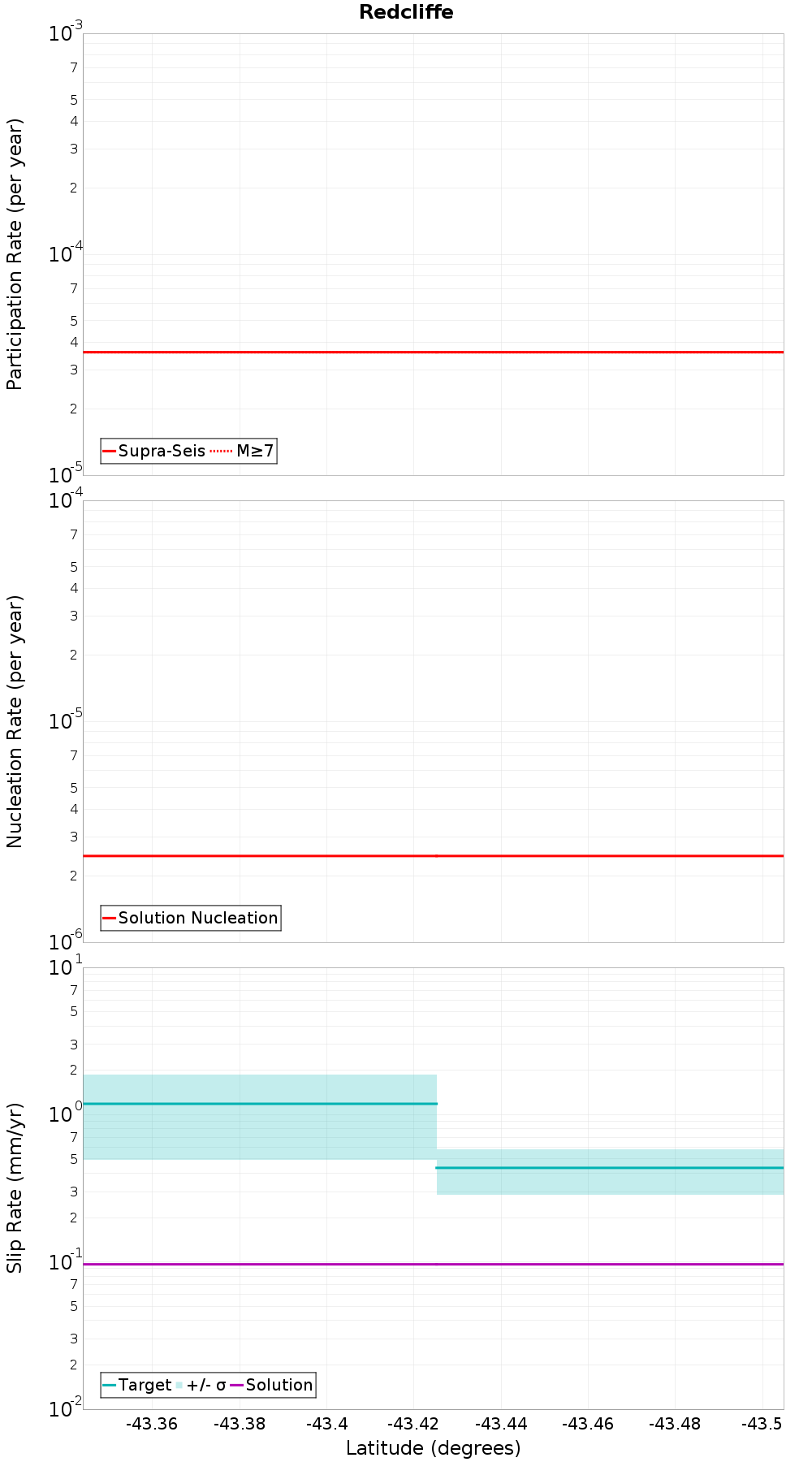

Along-Strike Values

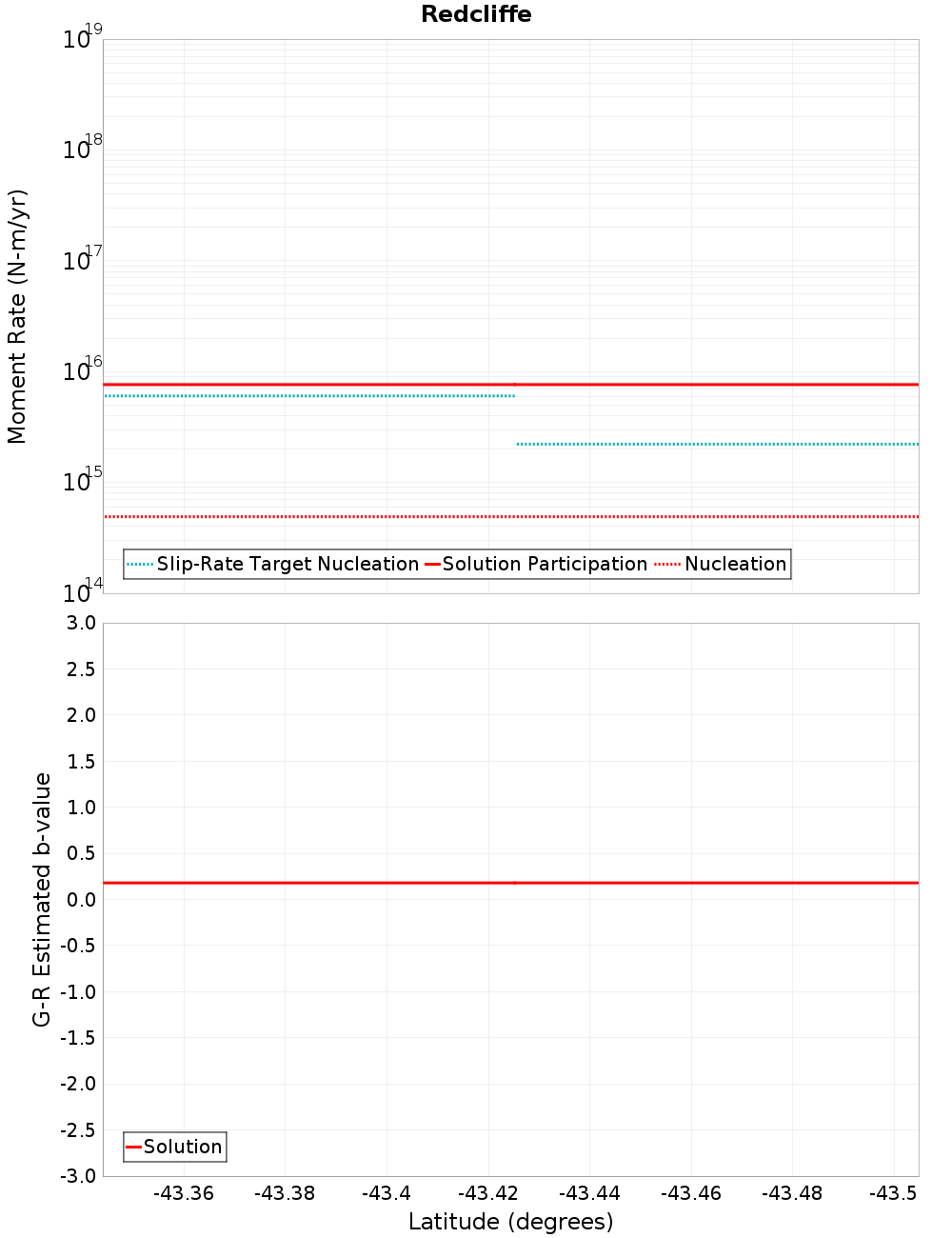

Moment-Rates and b-Values

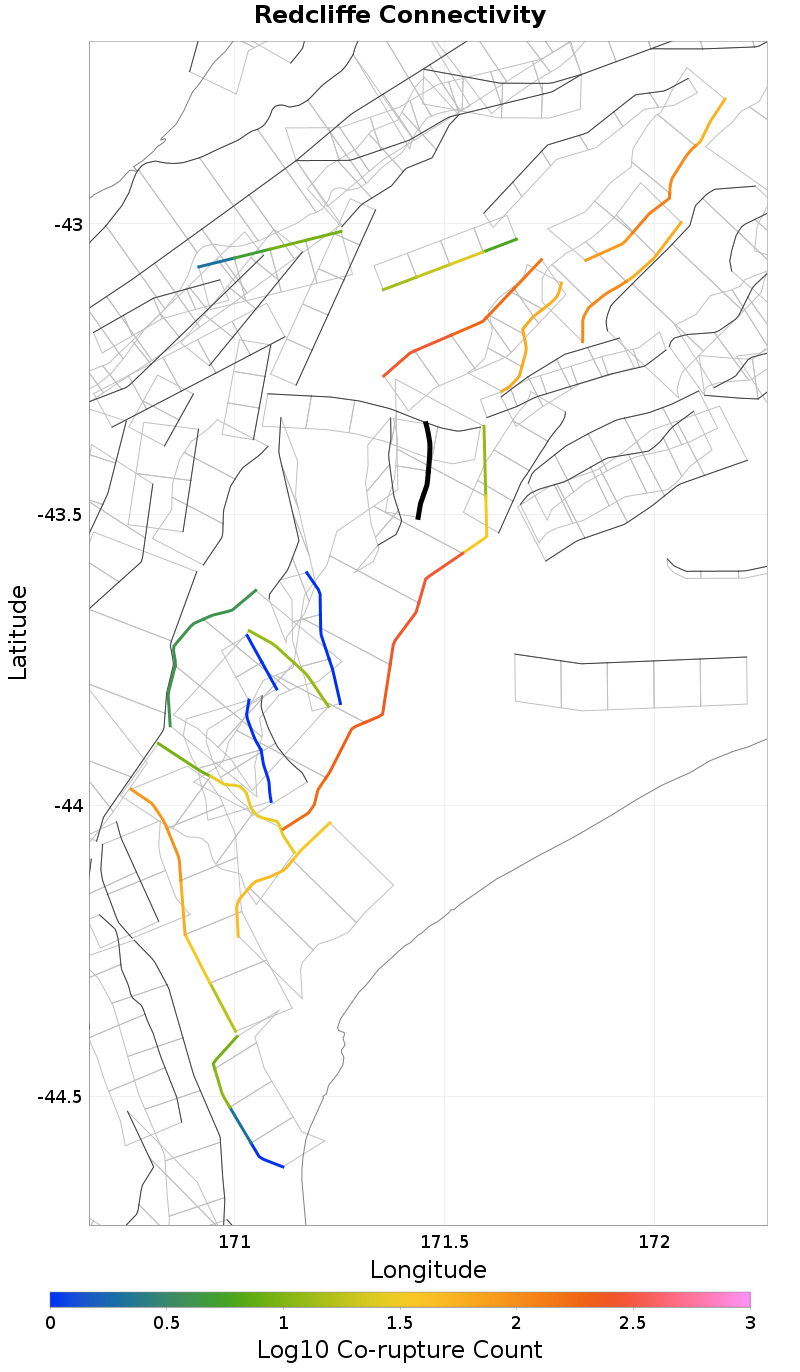

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Double Hill, 0.11 km away |
| Hutt Peel, 0.2 km away |
| Harper, 2.34 km away |
| North Branch, 2.63 km away |
| Porters Pass, 11.68 km away |
| Big Ben, 12.41 km away |
Double Hill, 0.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNzYuMHJSc1px | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hutt Peel, 0.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNzYuMHJSc1px | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 285 |
| Co-rupture Rate | 3.525215E-5 |
Harper, 2.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNzYuMHJSc1px | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 268 |
| Co-rupture Rate | 3.6036403E-5 |
North Branch, 2.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNzYuMHJSc1px | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Porters Pass, 11.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNzYuMHJSc1px | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Big Ben, 12.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNzYuMHJSc1px | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
