Akitio Ridge Details

Property	Value
Rupture Count	75,293
Ruptures Above Sect Min Mag	75,287
Ruptures w/ Nonzero Rates	93
Magnitude Range	[7.14, 8.66]
Length Range	[25, 855] km
Total Rate	1.5583528E-4 /yr
Multi-Fault Rate	1.5583528E-4 /yr (100.00%)
Directly-Connected Faults	13
All Co-Rupturing Faults	104

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

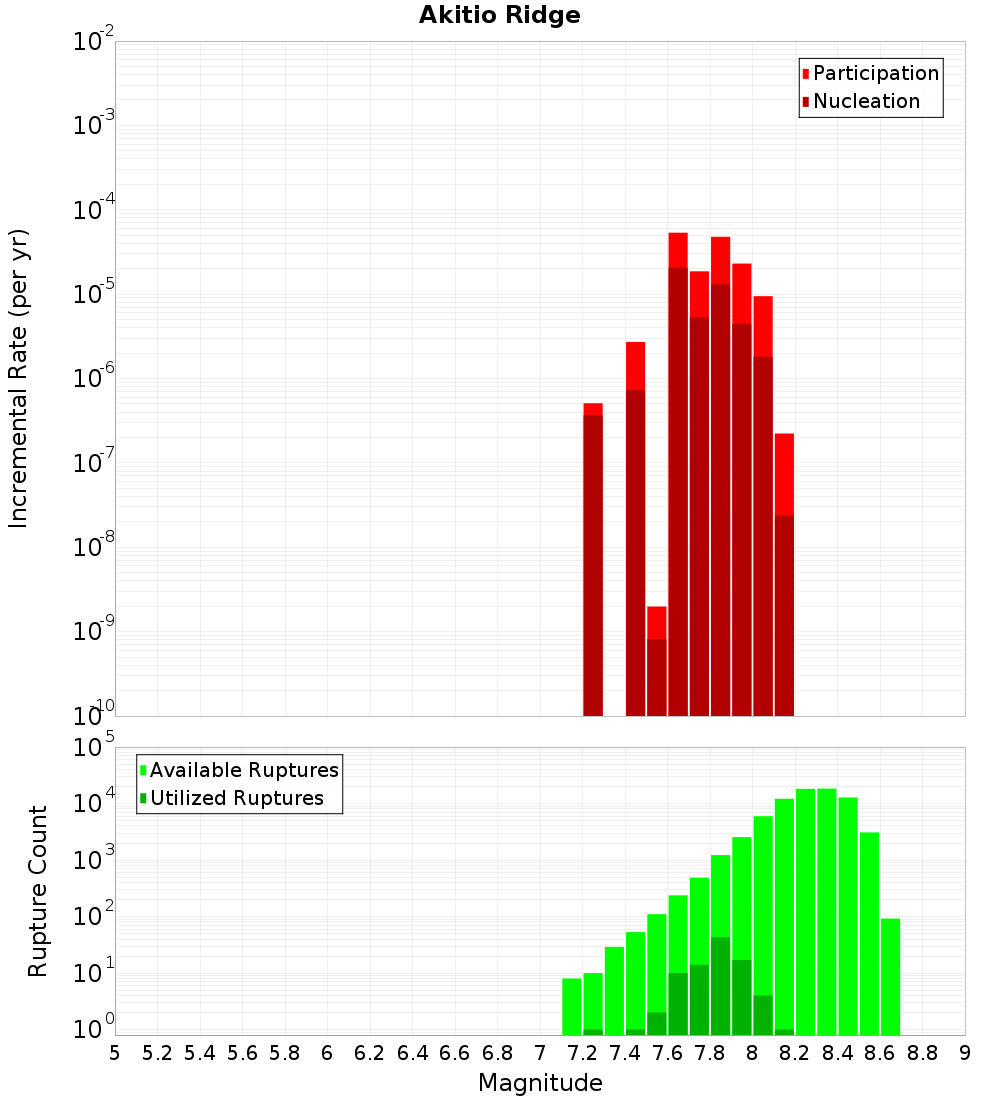

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

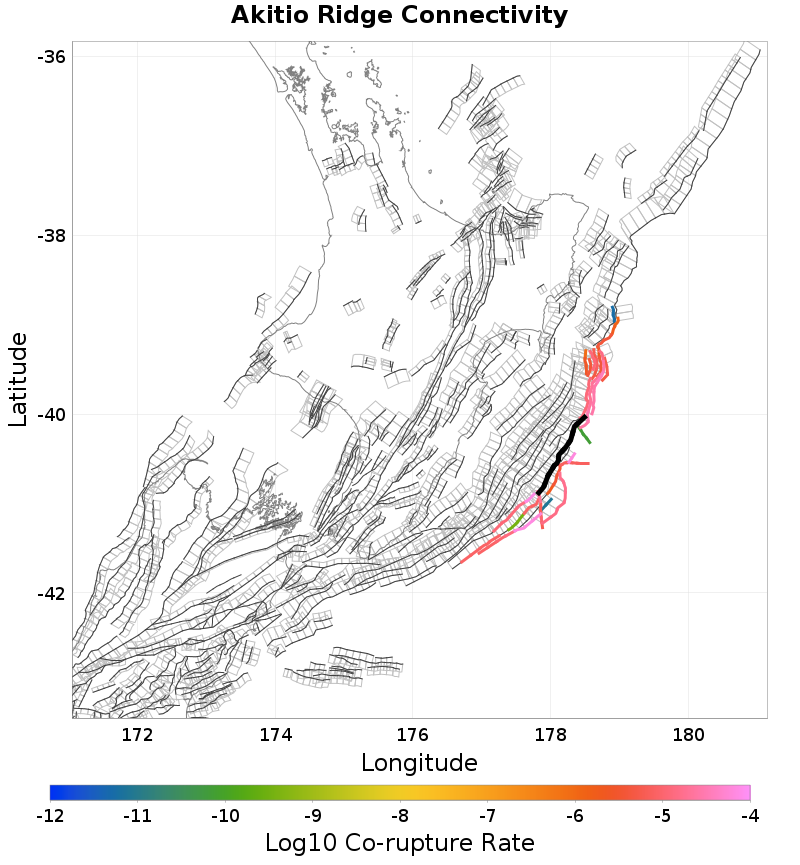

Connectivity

Nearby Sections

Fault Section	Fault Section
BKSmt-North, 0.41 km away	Pakupaku Ridge, 3.69 km away
BKSmt-West, 0.5 km away	Bennett Knoll, 5.44 km away
Rock Garden - Ritchie East 1, 0.75 km away	F17 - Central, 8.31 km away
Rock Garden - Ritchie East, 1.37 km away	F16 - North, 8.72 km away
Aorangi Trough, 1.5 km away	F16 - South, 9.14 km away
Rock Garden South east, 1.72 km away	Porangahau Northeast, 9.59 km away
F16 - Central, 2.28 km away	Paoanui Ridge North, 9.76 km away
F14 - North, 2.39 km away	F17 - South, 13.47 km away
Aorangi Ridge, 2.42 km away	Porangahau Ridge, 13.98 km away
Akitio Trough West, 3.45 km away	Ritchie West 1, 15 km away

BKSmt-North, 0.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?	true
Directly Connected?	true
Co-rupture Count	8,451
Co-rupture Rate	7.4751874E-6

BKSmt-West, 0.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?	true
Directly Connected?	true
Co-rupture Count	12,262
Co-rupture Rate	2.4453482E-5

Rock Garden - Ritchie East 1, 0.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?	true
Directly Connected?	true
Co-rupture Count	34,218
Co-rupture Rate	3.3858476E-5

Rock Garden - Ritchie East, 1.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?	true
Directly Connected?	true
Co-rupture Count	16,353
Co-rupture Rate	1.1941245E-5

Aorangi Trough, 1.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?	true
Directly Connected?	true
Co-rupture Count	36,165
Co-rupture Rate	7.0629794E-5

Rock Garden South east, 1.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?	true
Directly Connected?	true
Co-rupture Count	1,449
Co-rupture Rate	6.896225E-11

F16 - Central, 2.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?	true
Directly Connected?	true
Co-rupture Count	20,476
Co-rupture Rate	3.6593776E-6

F14 - North, 2.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?	true
Directly Connected?	true
Co-rupture Count	10,111
Co-rupture Rate	0.0

Aorangi Ridge, 2.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?	true
Directly Connected?	true
Co-rupture Count	20,473
Co-rupture Rate	1.7095623E-5

Akitio Trough West, 3.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?	true
Directly Connected?	true
Co-rupture Count	1,948
Co-rupture Rate	0.0

Pakupaku Ridge, 3.69 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?	true
Directly Connected?	true
Co-rupture Count	23,591
Co-rupture Rate	3.610109E-5

Bennett Knoll, 5.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?	true
Directly Connected?	true
Co-rupture Count	2,716
Co-rupture Rate	1.6710024E-5

F17 - Central, 8.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?	true
Directly Connected?	false
Co-rupture Count	3,921
Co-rupture Rate	8.0067316E-12

F16 - North, 8.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?	true
Directly Connected?	true
Co-rupture Count	2,230
Co-rupture Rate	6.405199E-5

F16 - South, 9.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?	true
Directly Connected?	false
Co-rupture Count	6,091
Co-rupture Rate	0.0

Porangahau Northeast, 9.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Paoanui Ridge North, 9.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?	true
Directly Connected?	false
Co-rupture Count	47
Co-rupture Rate	0.0

F17 - South, 13.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?	true
Directly Connected?	false
Co-rupture Count	10,464
Co-rupture Rate	6.732974E-5

Porangahau Ridge, 13.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?	true
Directly Connected?	false
Co-rupture Count	61
Co-rupture Rate	0.0

Ritchie West 1, 15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?	true
Directly Connected?	false
Co-rupture Count	126
Co-rupture Rate	0.0
