Alpine: Resolution - Dagg Details

Property	Value
Rupture Count	57,131
Ruptures Above Sect Min Mag	57,126
Ruptures w/ Nonzero Rates	137
Magnitude Range	[7.03, 8.68]
Length Range	[22, 1,083] km
Total Rate	3.5686712E-4 /yr
Multi-Fault Rate	1.8668605E-4 /yr (52.31%)
Directly-Connected Faults	5
All Co-Rupturing Faults	174

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

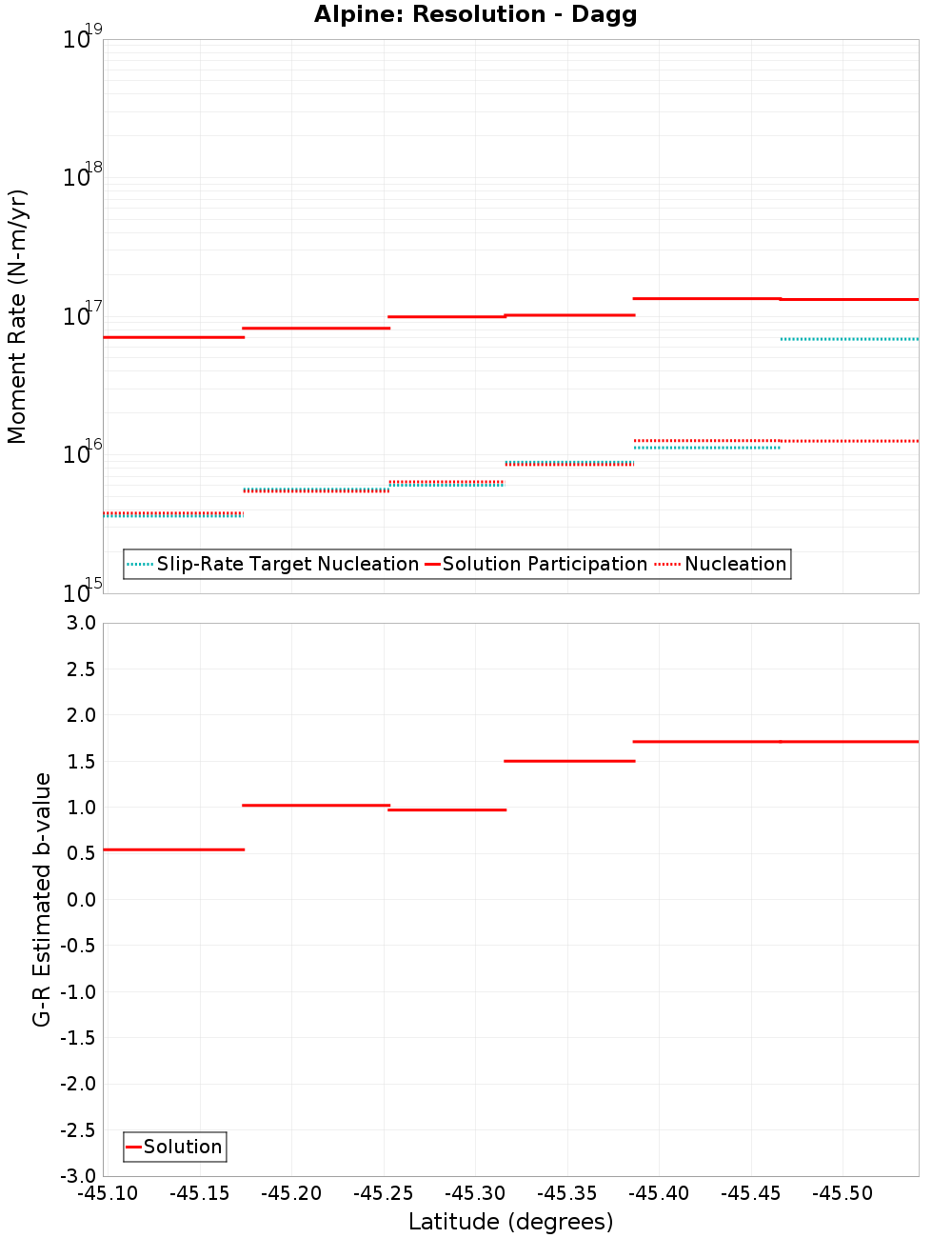

Moment-Rates and b-Values

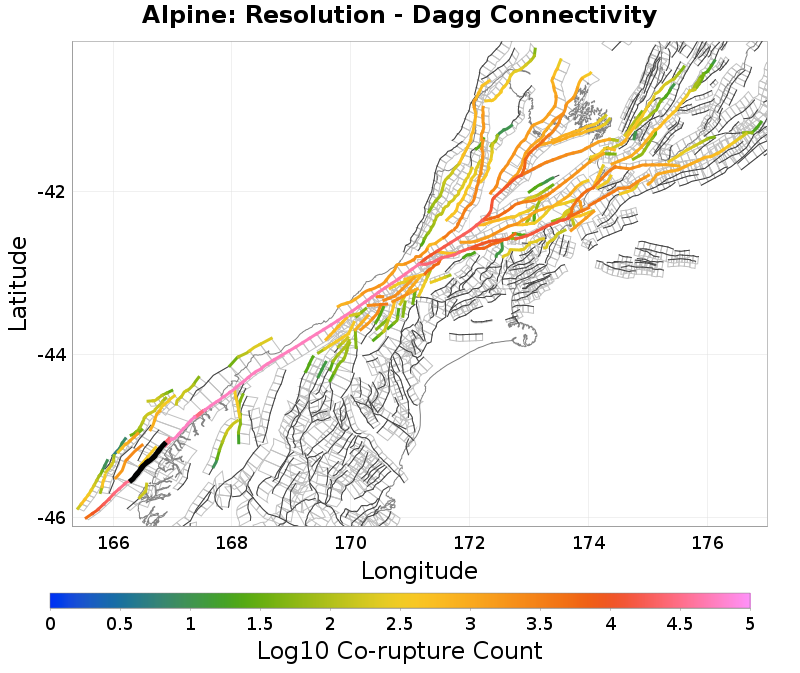

Connectivity

Nearby Sections

Fault Section
Alpine: Resolution - Charles, 0 km away
South Wedge 5, 0.14 km away
South Wedge 1, 0.22 km away
South Wedge 2, 0.22 km away
South Wedge 3-6-10, 0.23 km away
Central Wedge 4 - South Wedge 411, 0.23 km away
Alpine: Resolution - Five Fingers, 0.91 km away
Alpine: Nancy, 2.58 km away
Alpine: Caswell, 11.17 km away
Central Wedge 1 & 2 & 3, 12.35 km away

Alpine: Resolution - Charles, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?	true
Directly Connected?	true
Co-rupture Count	23,987
Co-rupture Rate	1.3825017E-5

South Wedge 5, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

South Wedge 1, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?	true
Directly Connected?	true
Co-rupture Count	358
Co-rupture Rate	5.0409813E-5

South Wedge 2, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

South Wedge 3-6-10, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?	true
Directly Connected?	true
Co-rupture Count	2,463
Co-rupture Rate	4.387645E-5

Central Wedge 4 - South Wedge 411, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alpine: Resolution - Five Fingers, 0.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?	true
Directly Connected?	true
Co-rupture Count	32,045
Co-rupture Rate	4.091331E-5

Alpine: Nancy, 2.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?	true
Directly Connected?	true
Co-rupture Count	33,665
Co-rupture Rate	5.184204E-5

Alpine: Caswell, 11.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?	true
Directly Connected?	false
Co-rupture Count	56,212
Co-rupture Rate	2.794933E-5

Central Wedge 1 & 2 & 3, 12.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?	true
Directly Connected?	false
Co-rupture Count	871
Co-rupture Rate	5.600365E-5
