Mt Sutton Details

PropertyValue
Rupture Count120
Ruptures Above Sect Min Mag119
Ruptures w/ Nonzero Rates23
Magnitude Range[7.08, 8.09]
Length Range[22, 252] km
Total Rate1.09592336E-4 /yr
Multi-Fault Rate3.129277E-5 /yr (28.55%)
Directly-Connected Faults4
All Co-Rupturing Faults11

Table Of Contents

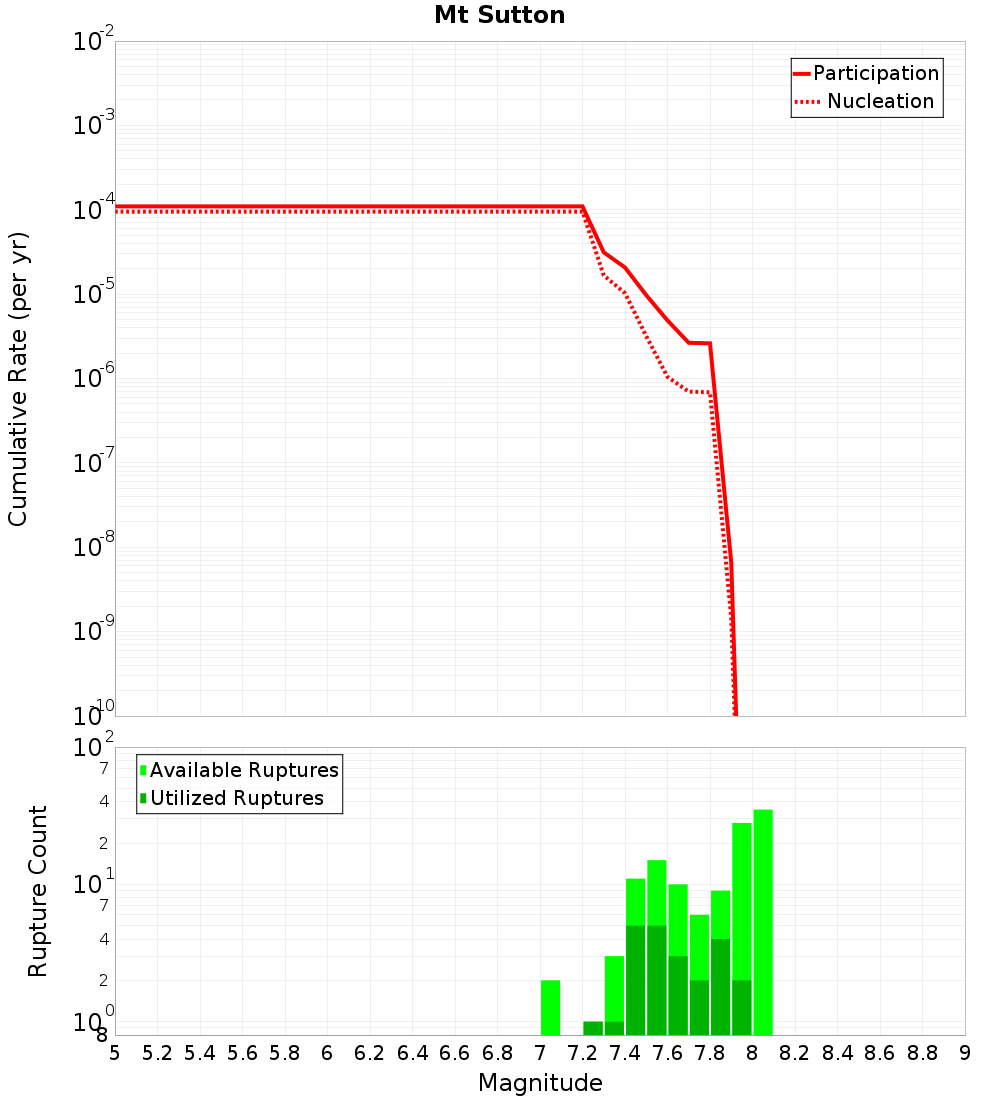

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

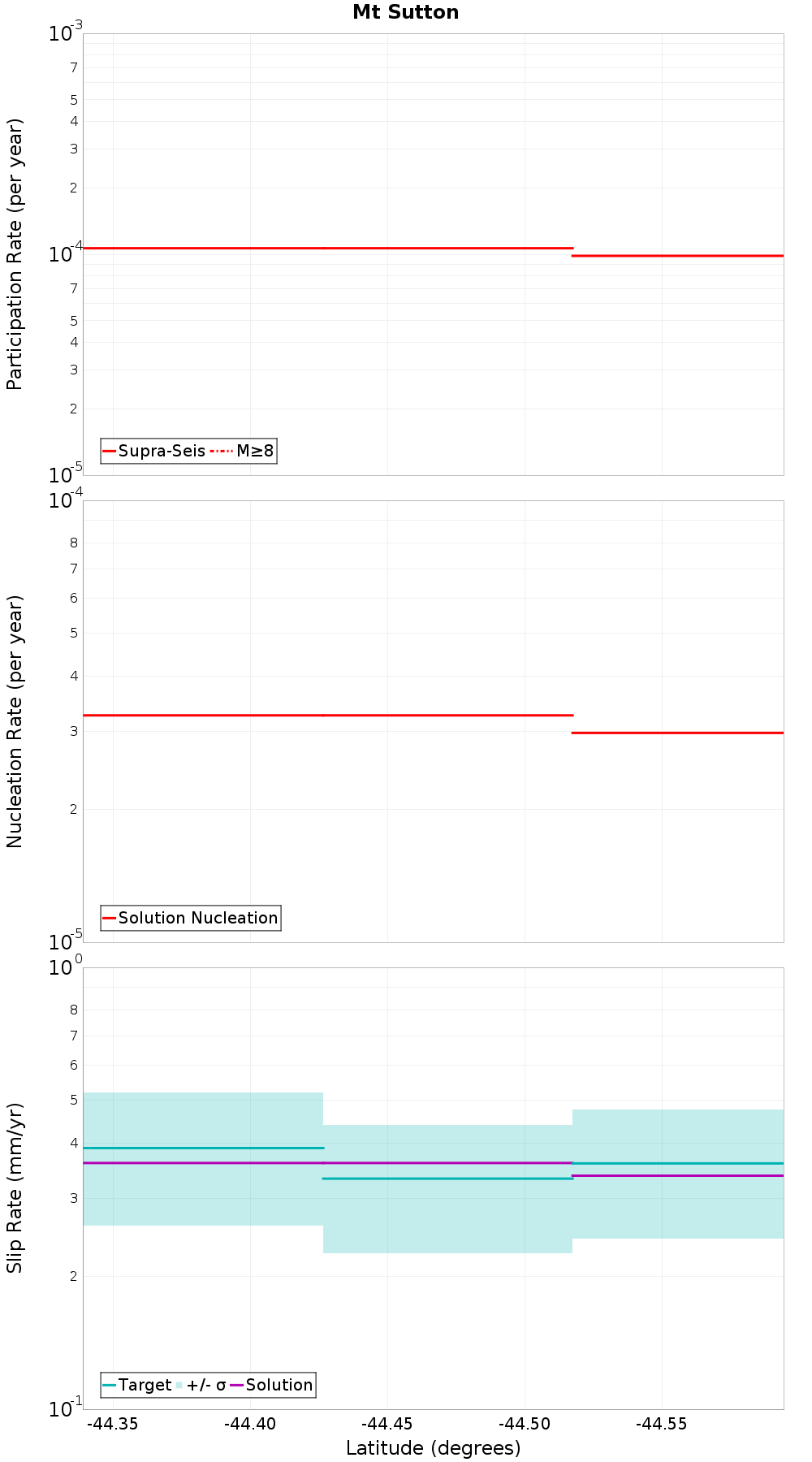

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Kirkliston, 0.16 km away
Middle Range, 0.17 km away
Waitangi, 0.3 km away
Dryburgh, 0.33 km away
Fern Gully, 0.33 km away
Grampian, 0.7 km away
Awahokomo, 2.07 km away
Gibson, 4.51 km away
Stonewall, 4.67 km away

Kirkliston, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?true
Directly Connected?true
Co-rupture Count85
Co-rupture Rate9.387155E-6

Middle Range, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?true
Directly Connected?true
Co-rupture Count56
Co-rupture Rate8.939282E-6

Waitangi, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dryburgh, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?true
Directly Connected?true
Co-rupture Count8
Co-rupture Rate1.1261073E-5

Fern Gully, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Grampian, 0.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate6.464484E-7

Awahokomo, 2.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Gibson, 4.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Stonewall, 4.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODIuMHRiNXlm
Connected?true
Directly Connected?true
Co-rupture Count53
Co-rupture Rate4.964979E-6
