Bruce Details
| Property | Value |
|---|---|
| Rupture Count | 3,696 |
| Ruptures Above Sect Min Mag | 3,689 |
| Ruptures w/ Nonzero Rates | 574 |
| Magnitude Range | [6.59, 8.41] |
| Length Range | [14, 602] km |
| Total Rate | 1.3044632E-4 /yr |
| Multi-Fault Rate | 1.3044632E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 97 |
Table Of Contents

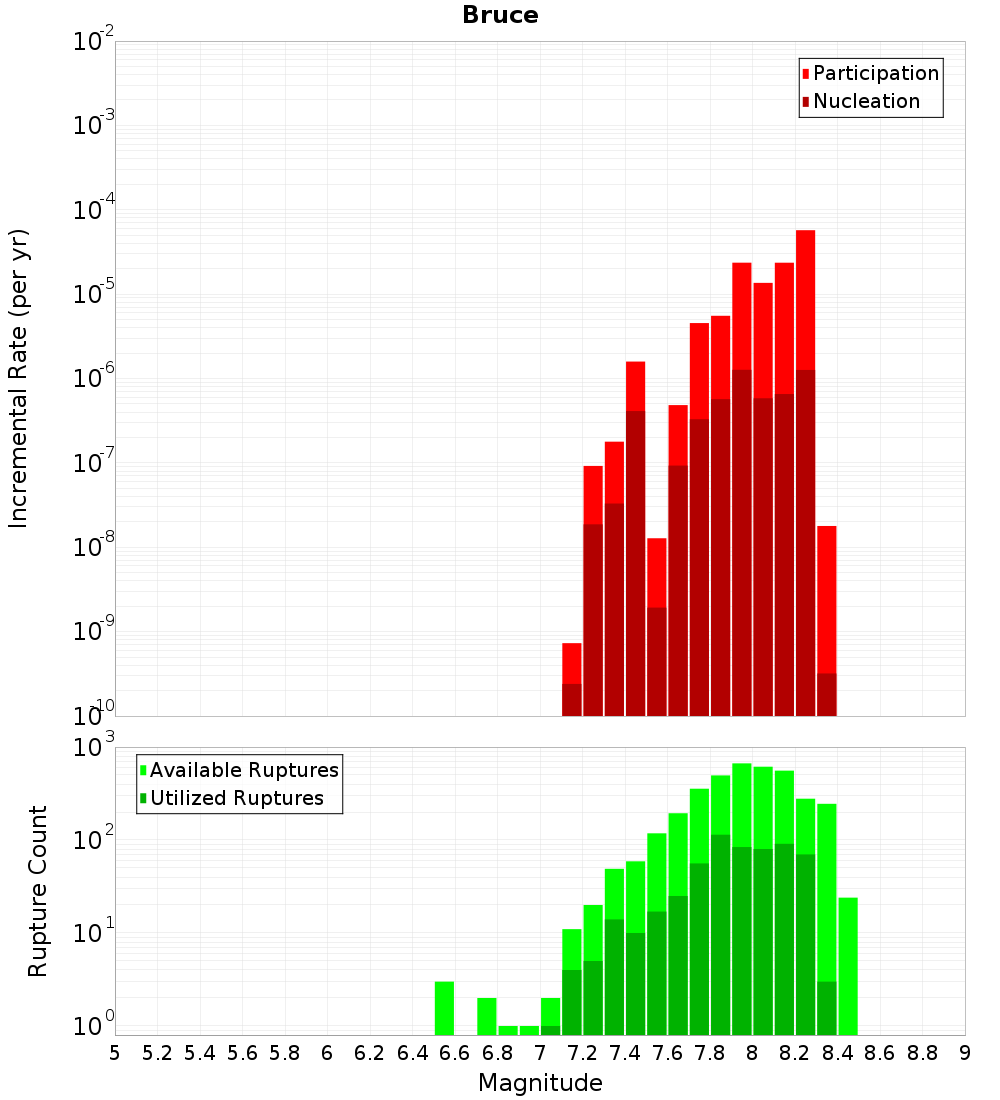

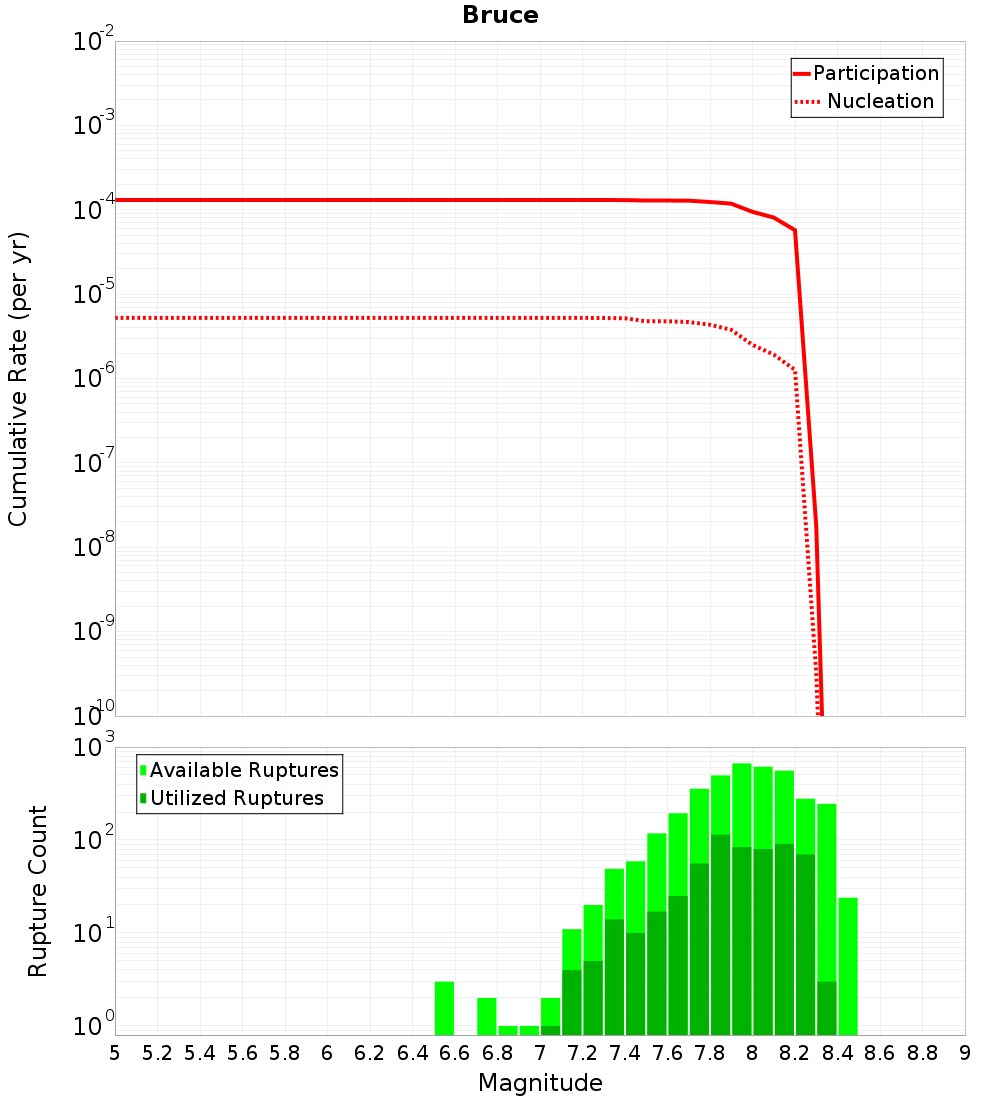

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

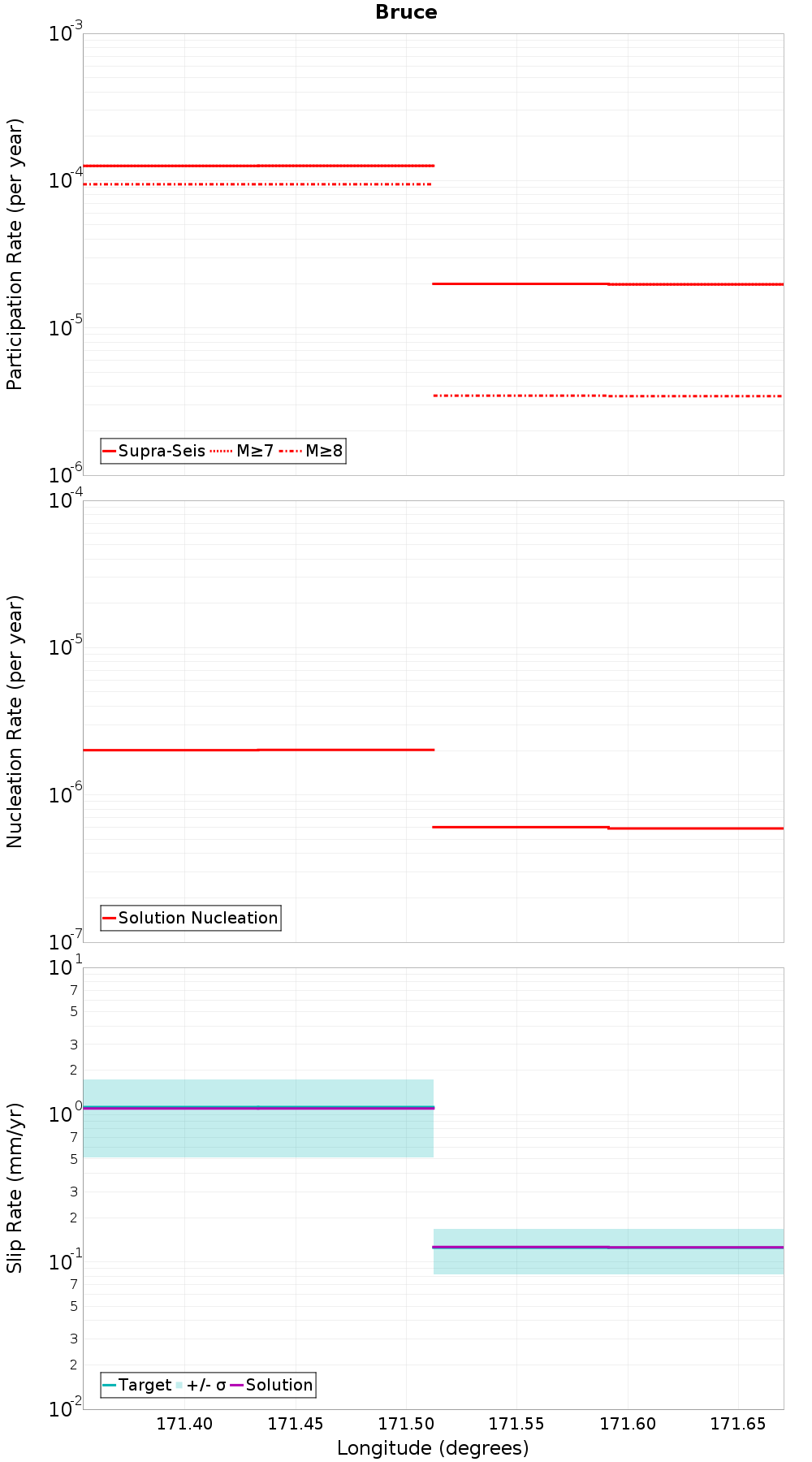

Along-Strike Values
Moment-Rates and b-Values

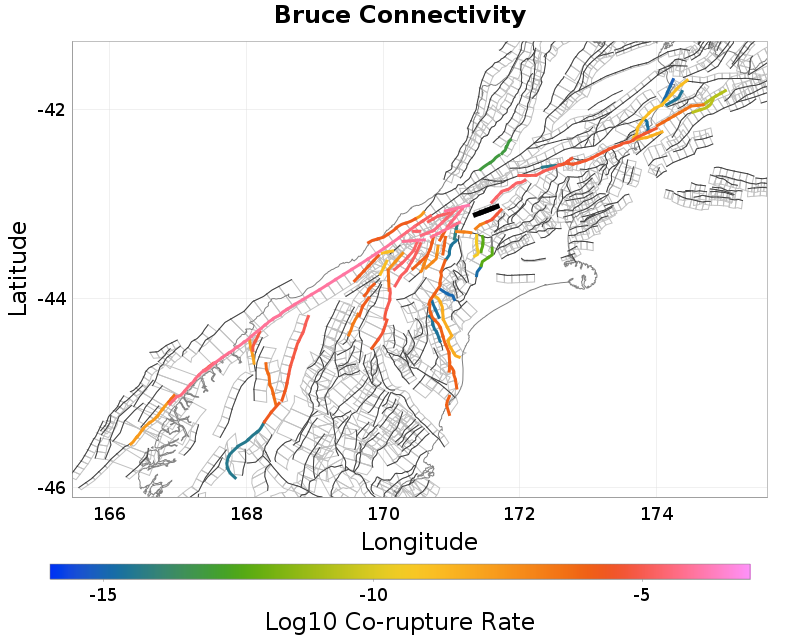

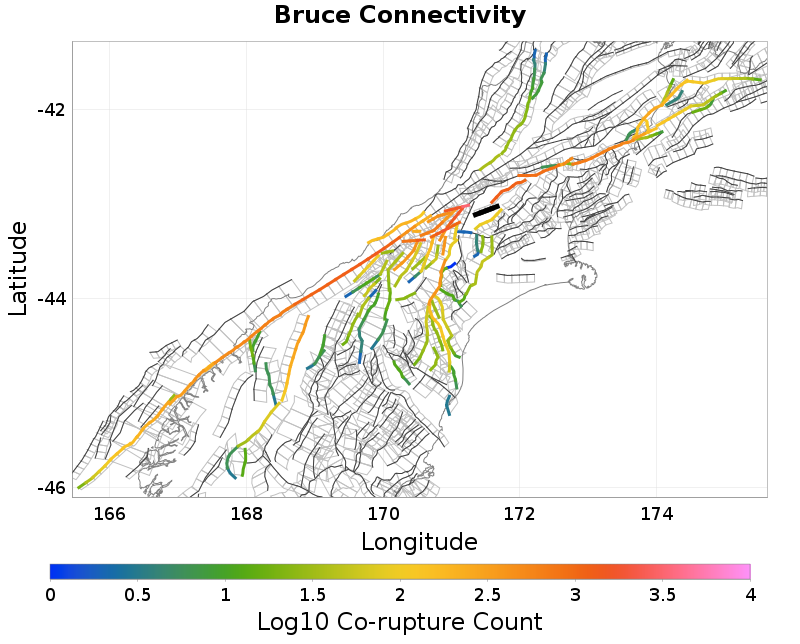

Connectivity
 |  |
|---|
Nearby Sections
Poulter, 0.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMFBna0Yy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,242 |
| Co-rupture Rate | 1.9722365E-5 |
Mungo, 4.45 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMFBna0Yy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,221 |
| Co-rupture Rate | 1.2583088E-4 |
Harper, 6.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMFBna0Yy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 94 |
| Co-rupture Rate | 4.609346E-6 |
Mistake - Rolleston, 7.44 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMFBna0Yy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Cheeseman, 9.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMFBna0Yy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Mt White, 10.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMFBna0Yy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Alpine: Jacksons to Kaniere, 11.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMFBna0Yy | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,428 |
| Co-rupture Rate | 9.689097E-5 |
Sailor, 12.77 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMFBna0Yy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Browning Pass, 13.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMFBna0Yy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
