Mataikona Details

Property	Value
Rupture Count	2,113
Ruptures Above Sect Min Mag	2,106
Ruptures w/ Nonzero Rates	172
Magnitude Range	[6.84, 8.35]
Length Range	[18, 497] km
Total Rate	1.805162E-4 /yr
Multi-Fault Rate	1.8049826E-4 /yr (99.99%)
Directly-Connected Faults	9
All Co-Rupturing Faults	58

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

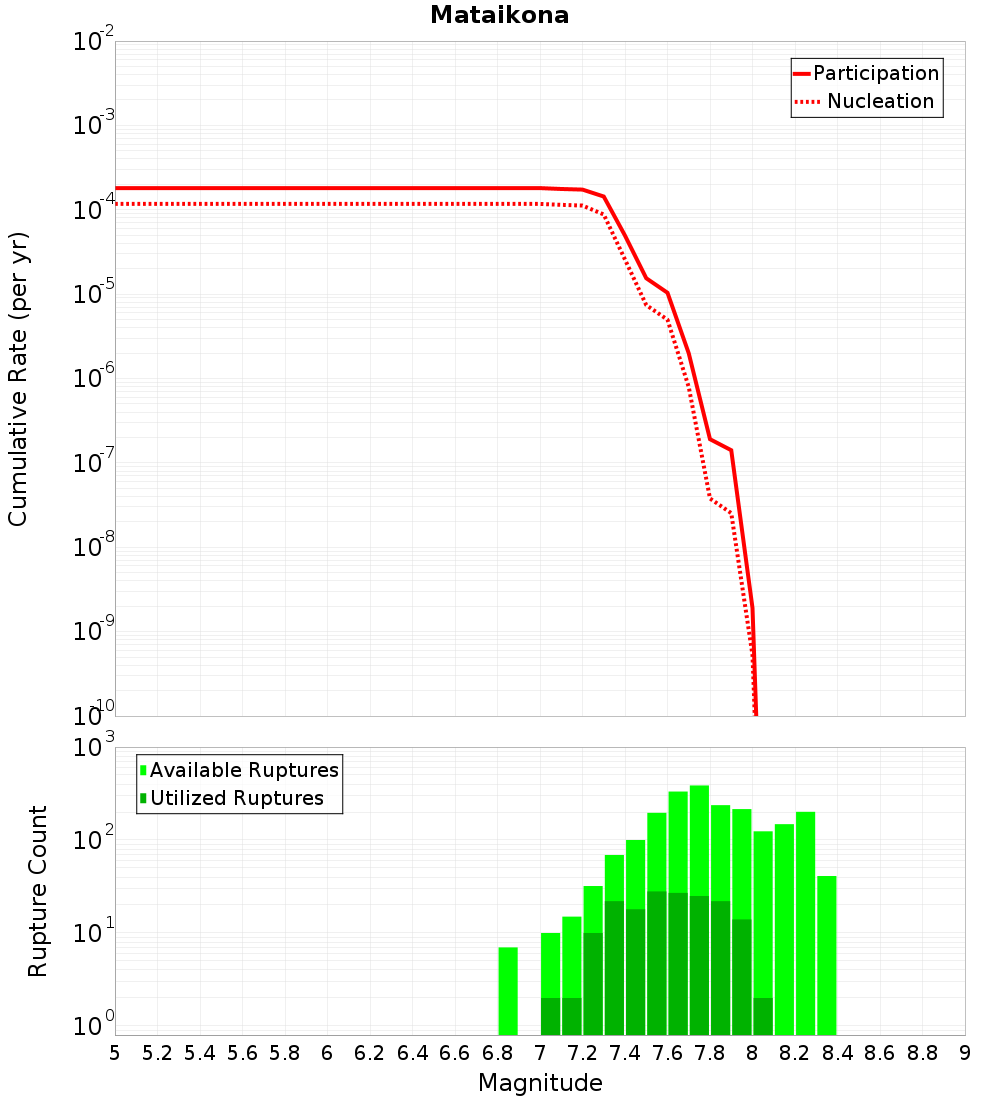

Magnitude-Frequency Distribution

Incremental	Cumulative

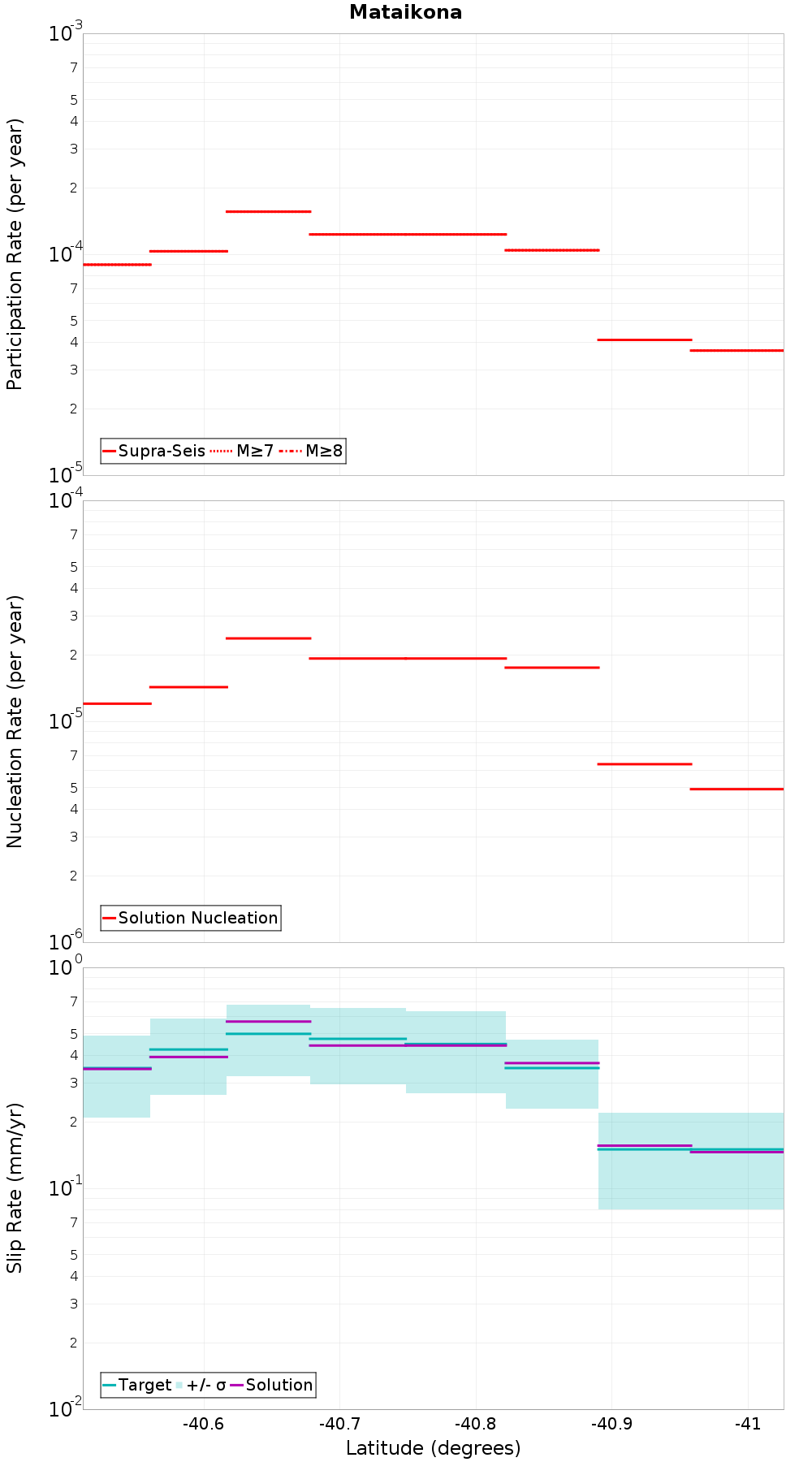

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Carterton, 0.31 km away
Kaumingi, 1.4 km away
Riversdale North, 2.17 km away
Mokonui Northeast, 3.49 km away
Waitawhiti, 4.18 km away
Turnagain, 4.63 km away
Mataikona East, 5.59 km away
Riversdale, 6.57 km away
Uruti Point, 11.39 km away
Whareama Bank, 12.73 km away
Pongaroa - Weber, 12.77 km away

Carterton, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMFBna0Yy
Connected?	true
Directly Connected?	true
Co-rupture Count	1,824
Co-rupture Rate	2.3444767E-5

Kaumingi, 1.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMFBna0Yy
Connected?	true
Directly Connected?	true
Co-rupture Count	409
Co-rupture Rate	1.797718E-5

Riversdale North, 2.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMFBna0Yy
Connected?	true
Directly Connected?	true
Co-rupture Count	39
Co-rupture Rate	2.8894815E-9

Mokonui Northeast, 3.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMFBna0Yy
Connected?	true
Directly Connected?	true
Co-rupture Count	13
Co-rupture Rate	5.32126E-6

Waitawhiti, 4.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMFBna0Yy
Connected?	true
Directly Connected?	true
Co-rupture Count	41
Co-rupture Rate	7.674182E-5

Turnagain, 4.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMFBna0Yy
Connected?	true
Directly Connected?	true
Co-rupture Count	22
Co-rupture Rate	1.45861795E-5

Mataikona East, 5.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMFBna0Yy
Connected?	true
Directly Connected?	true
Co-rupture Count	104
Co-rupture Rate	3.8435643E-5

Riversdale, 6.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMFBna0Yy
Connected?	true
Directly Connected?	false
Co-rupture Count	157
Co-rupture Rate	2.7299234E-7

Uruti Point, 11.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMFBna0Yy
Connected?	true
Directly Connected?	false
Co-rupture Count	103
Co-rupture Rate	3.8602307E-10

Whareama Bank, 12.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMFBna0Yy
Connected?	true
Directly Connected?	true
Co-rupture Count	25
Co-rupture Rate	4.078053E-9

Pongaroa - Weber, 12.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMFBna0Yy
Connected?	true
Directly Connected?	true
Co-rupture Count	115
Co-rupture Rate	6.572207E-5
