Inangahua Details

Property	Value
Rupture Count	12,867
Ruptures Above Sect Min Mag	12,867
Ruptures w/ Nonzero Rates	22
Magnitude Range	[6.97, 8.67]
Length Range	[20, 1,039] km
Total Rate	6.269327E-5 /yr
Multi-Fault Rate	6.269327E-5 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	67

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

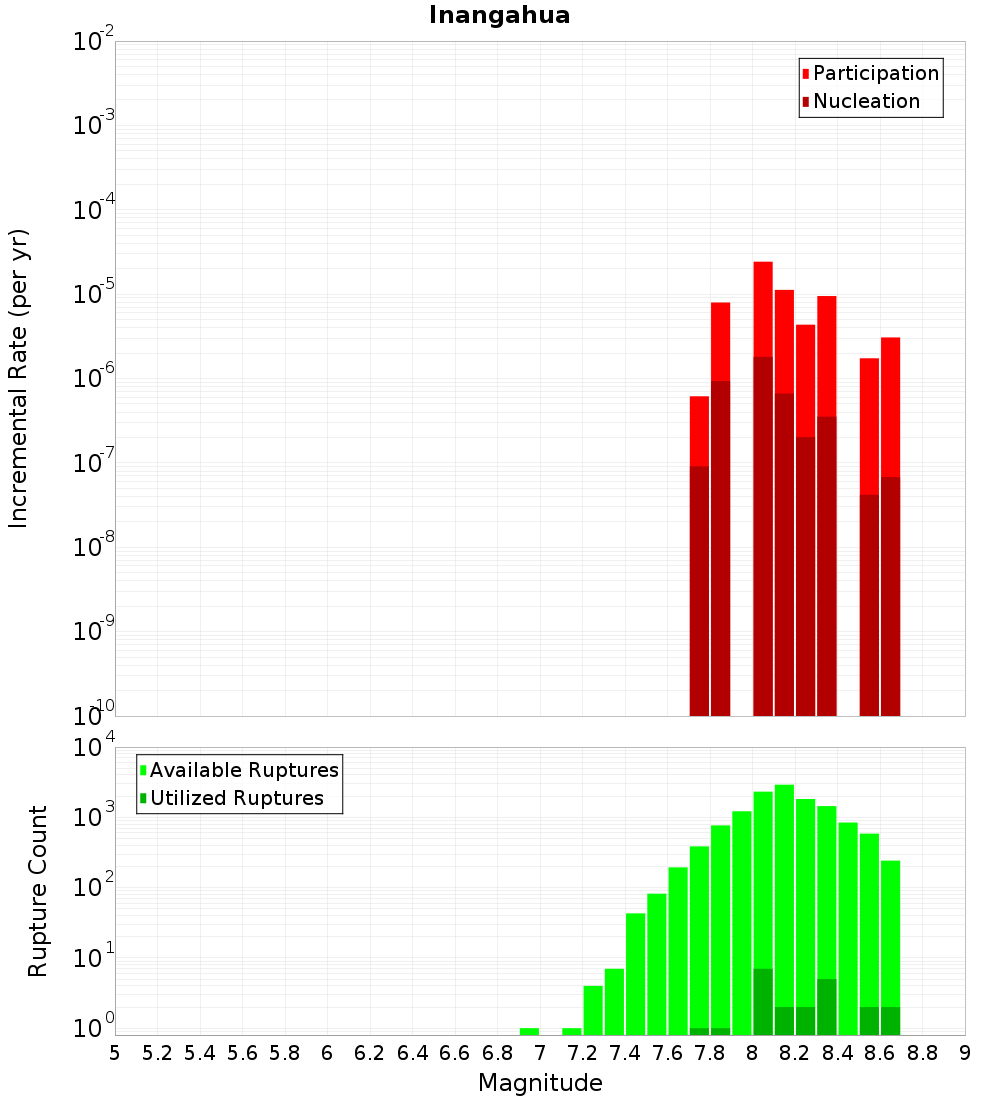

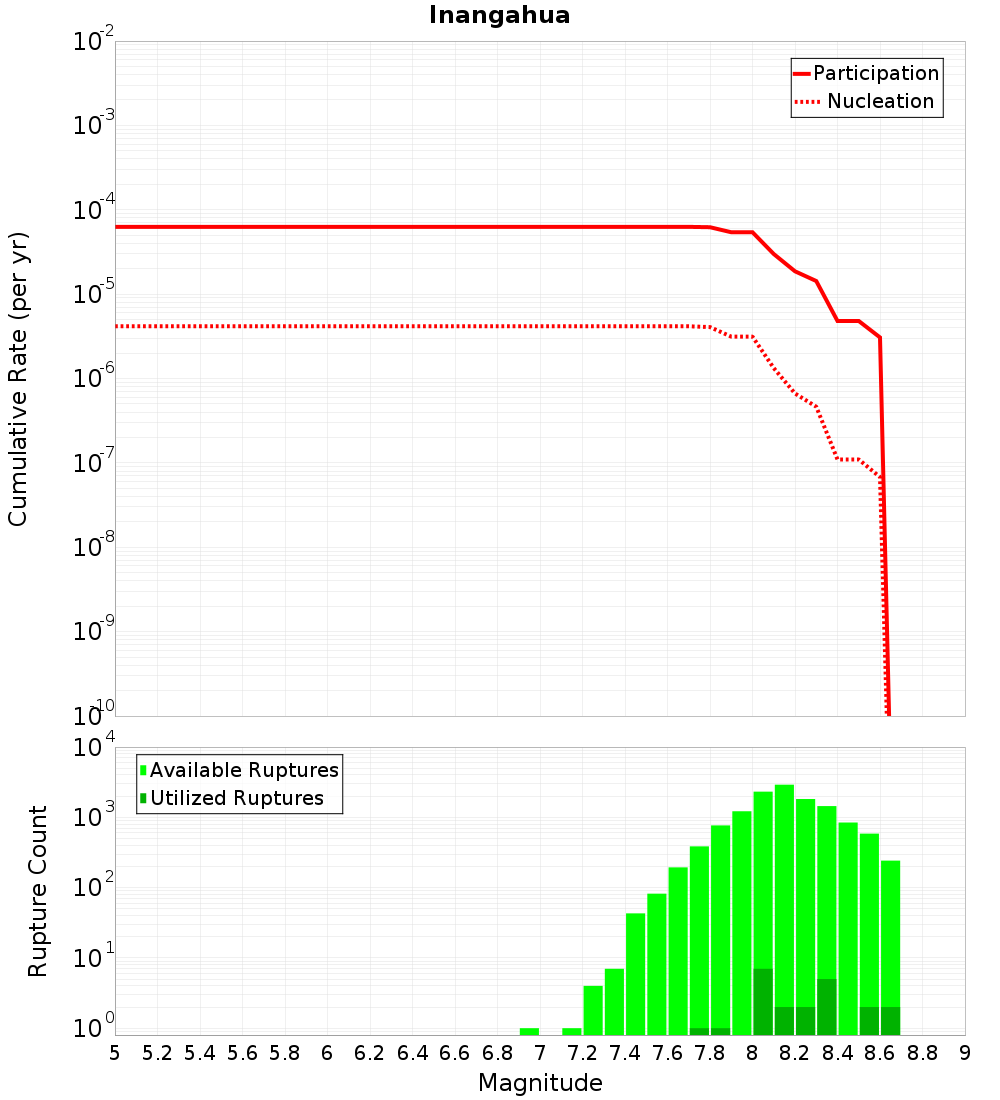

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Maimai: North, 0 km away
Glasgow, 0.13 km away
Kongahau, 0.88 km away
Paparoa West: North, 0.89 km away
Paparoa West, 1.16 km away
Lyell, 5.51 km away
Lyell South, 9 km away
White Creek, 13.07 km away

Maimai: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMFRzVWNi
Connected?	true
Directly Connected?	true
Co-rupture Count	9,621
Co-rupture Rate	3.9802897E-5

Glasgow, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMFRzVWNi
Connected?	true
Directly Connected?	true
Co-rupture Count	3,050
Co-rupture Rate	4.3575823E-5

Kongahau, 0.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMFRzVWNi
Connected?	true
Directly Connected?	true
Co-rupture Count	10,816
Co-rupture Rate	5.454616E-5

Paparoa West: North, 0.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMFRzVWNi
Connected?	true
Directly Connected?	false
Co-rupture Count	367
Co-rupture Rate	7.959676E-6

Paparoa West, 1.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMFRzVWNi
Connected?	true
Directly Connected?	true
Co-rupture Count	4,541
Co-rupture Rate	3.8760565E-5

Lyell, 5.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMFRzVWNi
Connected?	true
Directly Connected?	true
Co-rupture Count	669
Co-rupture Rate	6.156246E-7

Lyell South, 9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMFRzVWNi
Connected?	true
Directly Connected?	false
Co-rupture Count	866
Co-rupture Rate	2.3296145E-6

White Creek, 13.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMFRzVWNi
Connected?	true
Directly Connected?	true
Co-rupture Count	4,099
Co-rupture Rate	5.4193233E-6
