Chamberlain Details
| Property | Value |
|---|---|
| Rupture Count | 1,656 |
| Ruptures Above Sect Min Mag | 1,653 |
| Ruptures w/ Nonzero Rates | 19 |
| Magnitude Range | [6.90, 8.17] |
| Length Range | [22, 356] km |
| Total Rate | 5.442328E-5 /yr |
| Multi-Fault Rate | 5.442328E-5 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 31 |
Table Of Contents

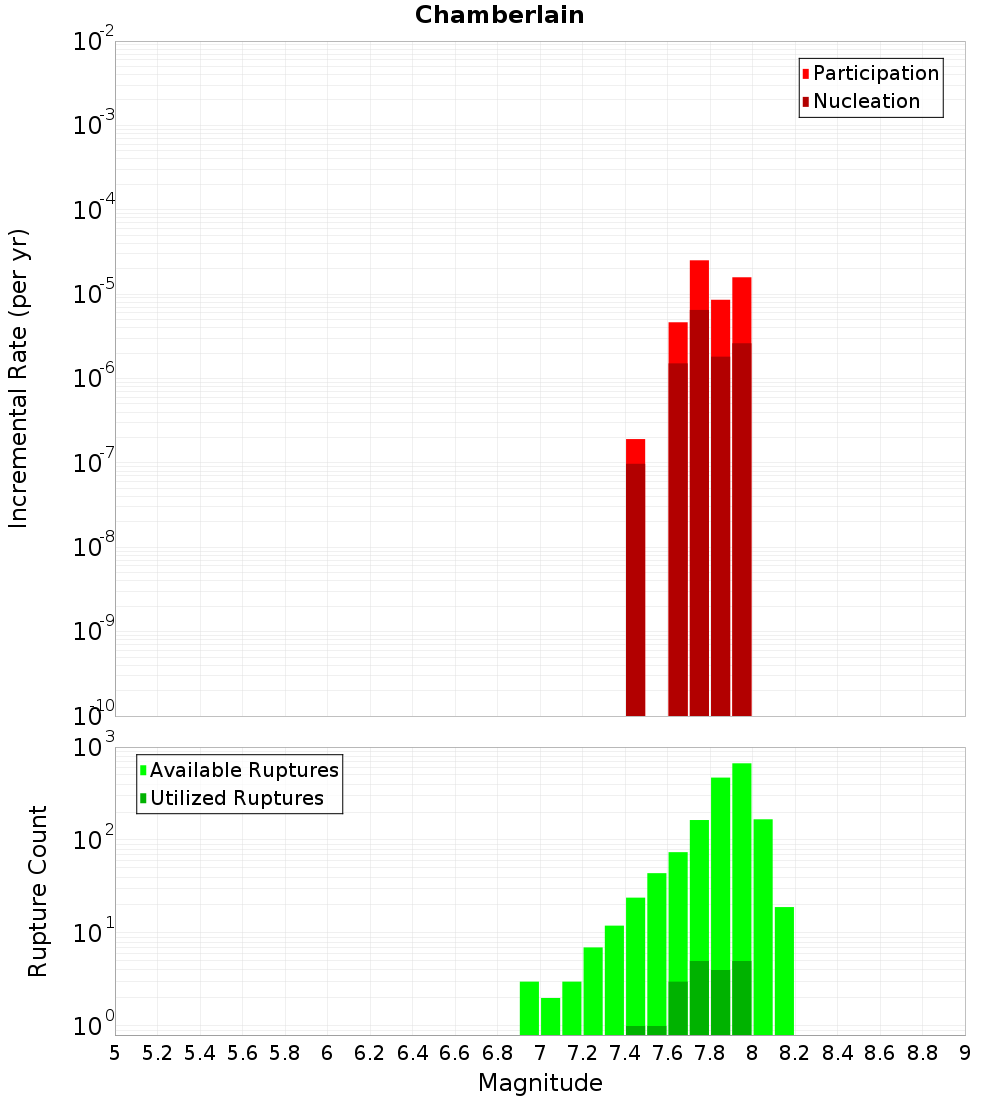

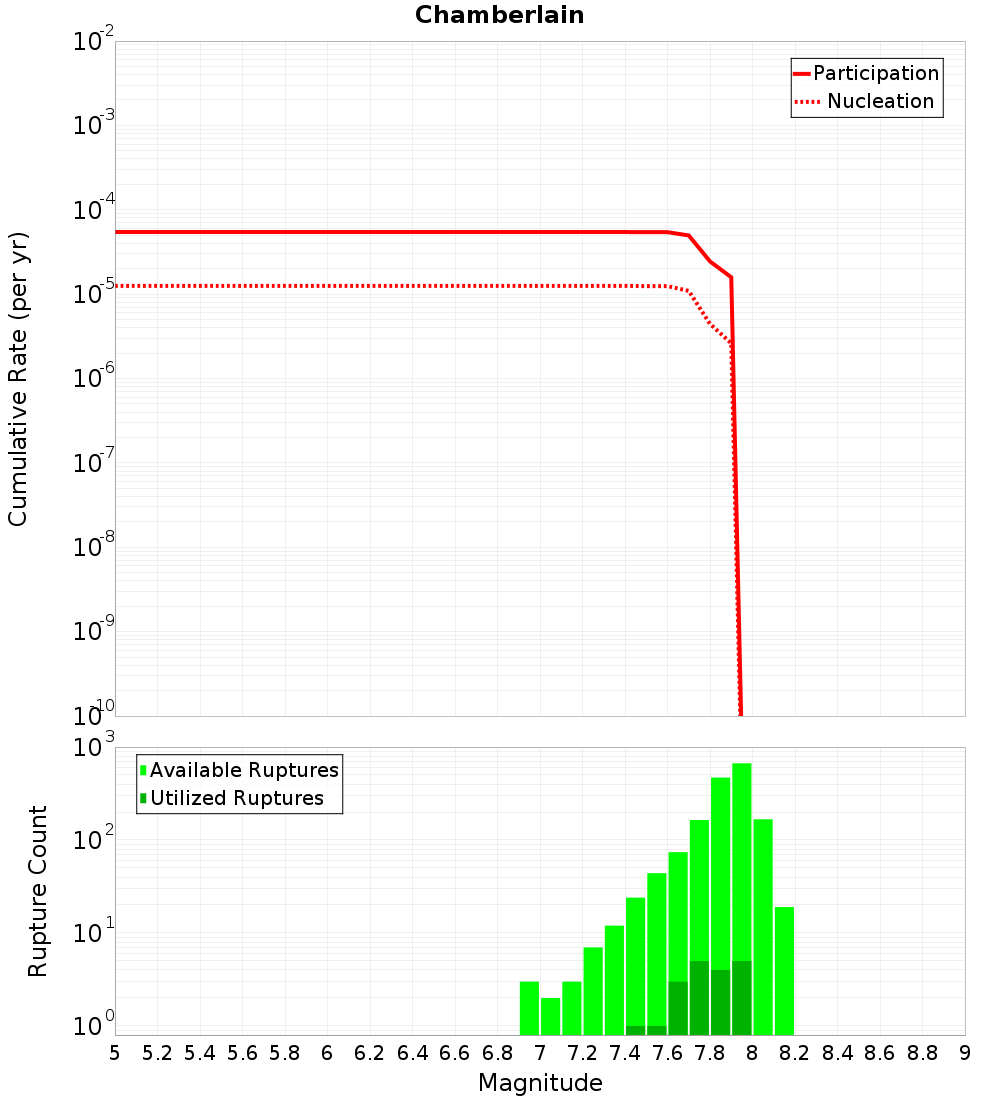

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Opawa, 1.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,066 |
| Co-rupture Rate | 1.7812321E-5 |
Campbell Hills, 1.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,027 |
| Co-rupture Rate | 5.254356E-5 |
The Wolds, 2.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 76 |
| Co-rupture Rate | 3.660375E-5 |
Hunters, 2.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 669 |
| Co-rupture Rate | 1.9994663E-5 |
Dalgety, 2.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 454 |
| Co-rupture Rate | 7.205815E-9 |
Albury, 7.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Maungati, 8.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kirkliston, 9.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Irishman Creek, 10.73 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 274 |
| Co-rupture Rate | 3.1774332E-5 |
Grampian, 11.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Brothers, 12.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Fox Peak, 14.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,665 |
| Co-rupture Rate | 2.0344252E-5 |
