Raukumara 9 Details
| Property | Value |
|---|---|
| Rupture Count | 348 |
| Ruptures Above Sect Min Mag | 345 |
| Ruptures w/ Nonzero Rates | 12 |
| Magnitude Range | [6.24, 8.28] |
| Length Range | [5, 525] km |
| Total Rate | 1.19035045E-4 /yr |
| Multi-Fault Rate | 1.19035045E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 38 |
Table Of Contents

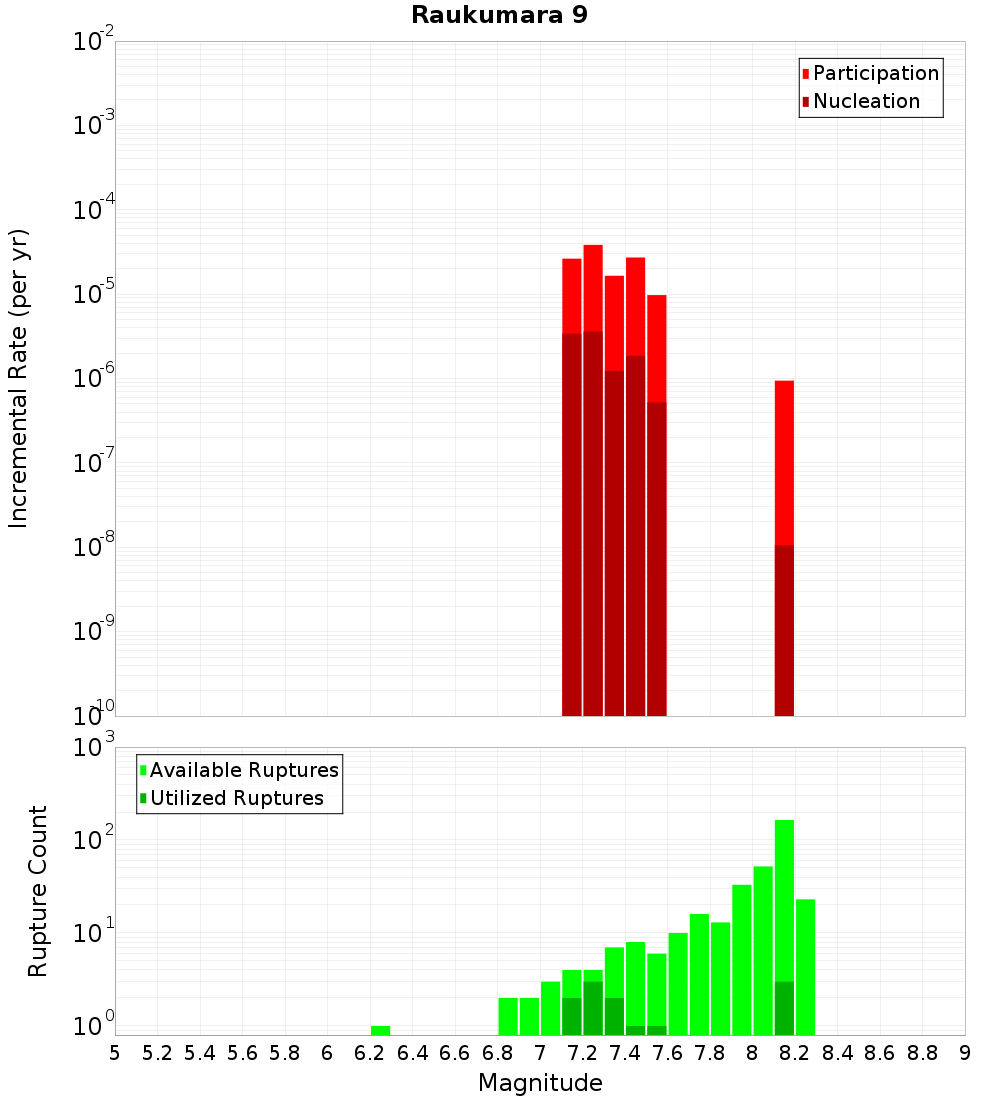

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

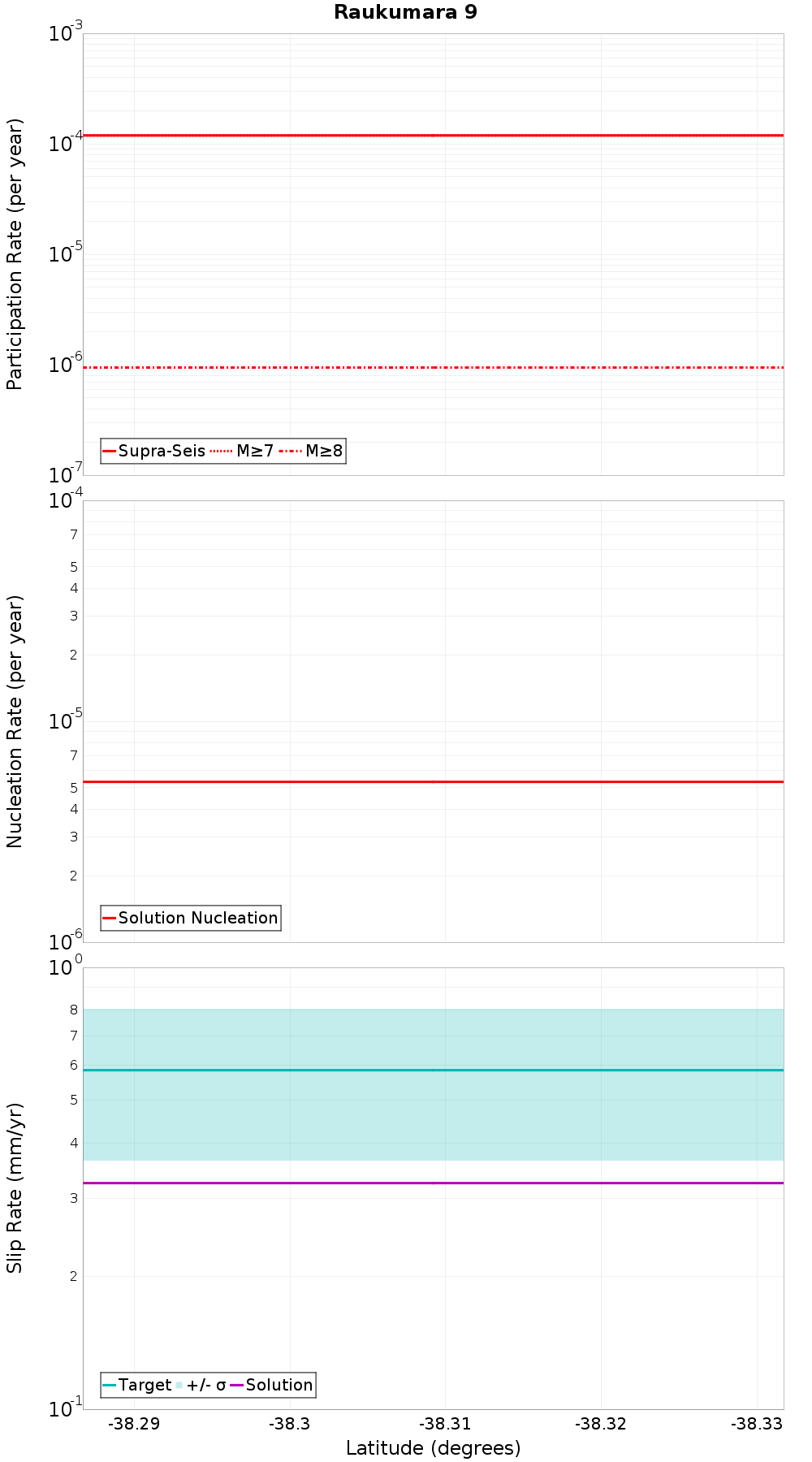

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Wairata, 0.98 km away |
| Waiotahi: North, 6.8 km away |
| Kotare - Moutuhora, 7.8 km away |
| Waimana: North, 14.06 km away |
Wairata, 0.98 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waiotahi: North, 6.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 180 |
| Co-rupture Rate | 9.4330056E-7 |
Kotare - Moutuhora, 7.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6 |
| Co-rupture Rate | 5.4764594E-5 |
Waimana: North, 14.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 162 |
| Co-rupture Rate | 6.332715E-5 |
