Tukituki Thrust Details

PropertyValue
Rupture Count308
Ruptures Above Sect Min Mag296
Ruptures w/ Nonzero Rates32
Magnitude Range[6.77, 7.81]
Length Range[19, 168] km
Total Rate1.3202743E-4 /yr
Multi-Fault Rate1.3202742E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults18

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

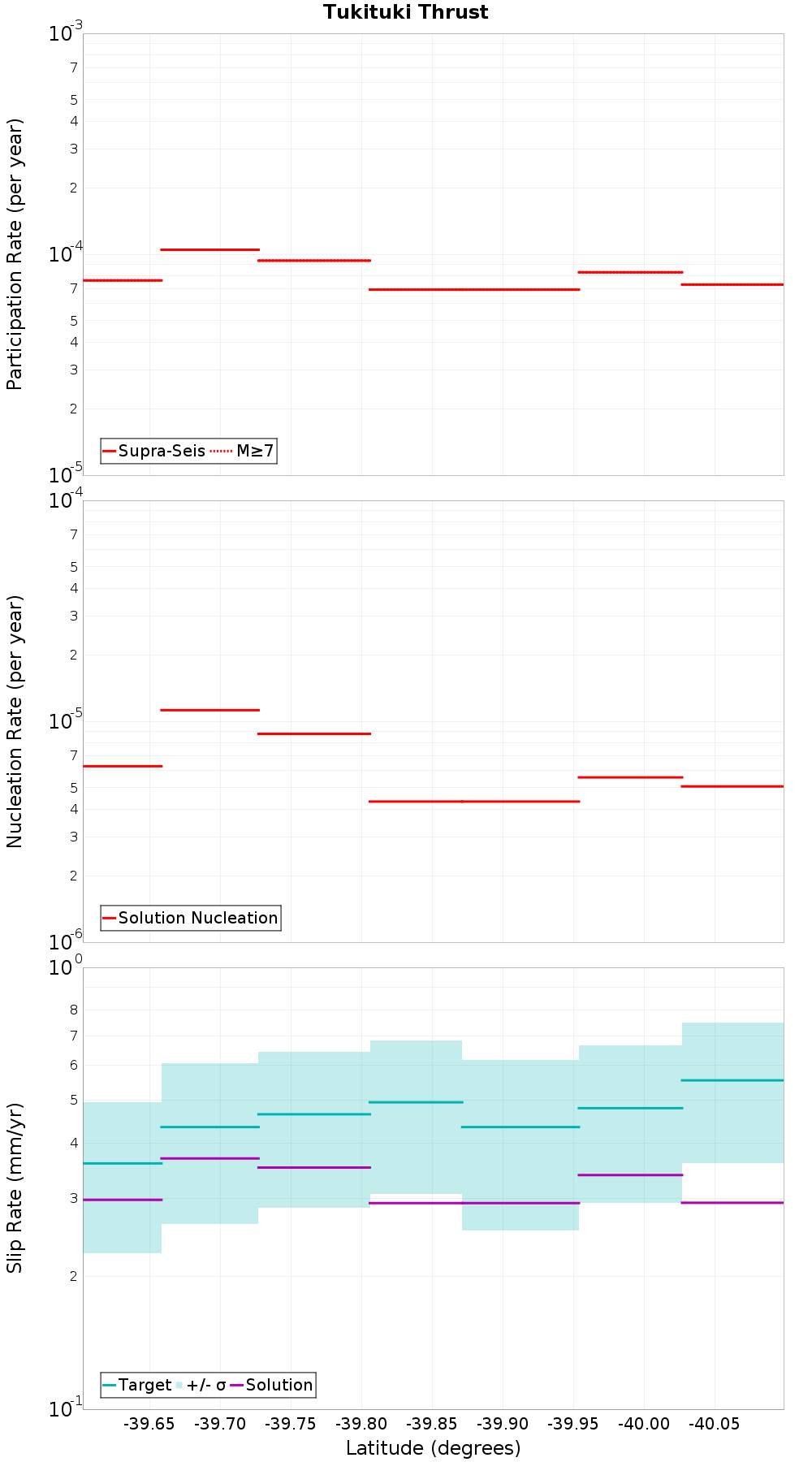

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

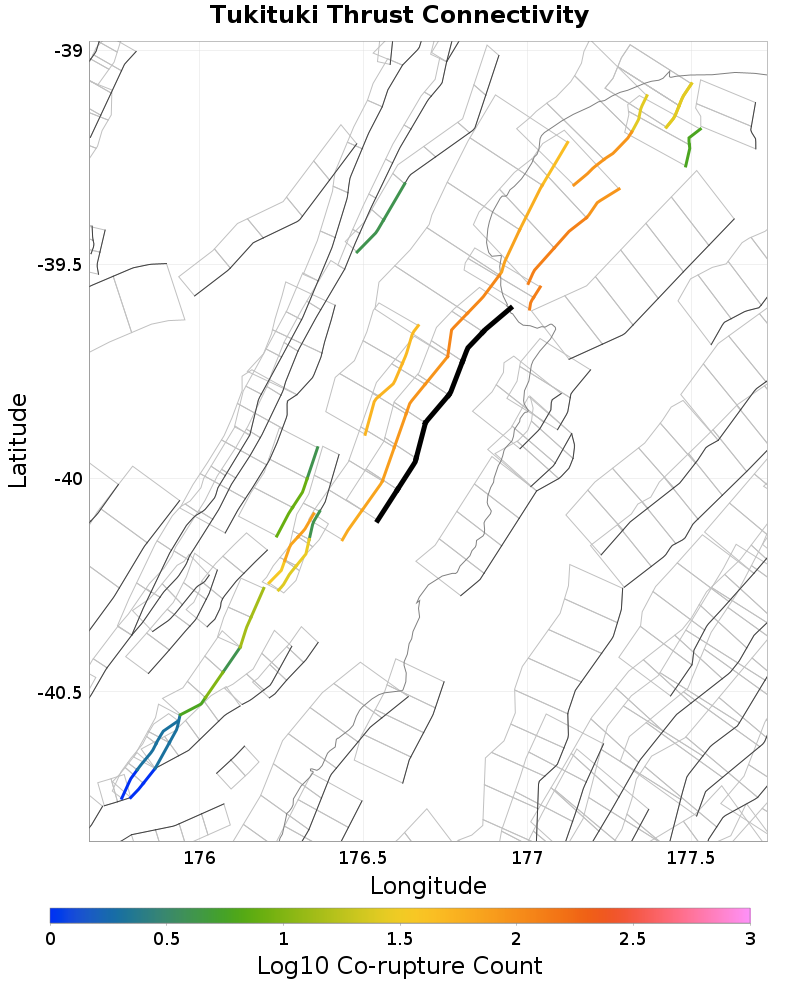

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hawke Bay 8, 2.13 km away
Waipukurau - Poukawa, 3.57 km away
Awanui, 3.57 km away
Clear Hills - Waikopiro, 7.83 km away
Hawke Bay 2, 7.9 km away
Oruawharo - Mangatoro, 9.23 km away
Te Heka, 11.15 km away
Kidnappers Ridge, 11.23 km away
Waimarama 1 & 2, 13.07 km away

Hawke Bay 8, 2.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2
Connected?true
Directly Connected?true
Co-rupture Count129
Co-rupture Rate6.294543E-5

Waipukurau - Poukawa, 3.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2
Connected?true
Directly Connected?true
Co-rupture Count90
Co-rupture Rate6.2907755E-5

Awanui, 3.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2
Connected?true
Directly Connected?true
Co-rupture Count116
Co-rupture Rate1.0772301E-5

Clear Hills - Waikopiro, 7.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2
Connected?true
Directly Connected?true
Co-rupture Count76
Co-rupture Rate5.40881E-5

Hawke Bay 2, 7.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2
Connected?true
Directly Connected?false
Co-rupture Count128
Co-rupture Rate4.910063E-5

Oruawharo - Mangatoro, 9.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2
Connected?true
Directly Connected?false
Co-rupture Count29
Co-rupture Rate4.5547677E-6

Te Heka, 11.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2
Connected?true
Directly Connected?true
Co-rupture Count52
Co-rupture Rate1.6498587E-5

Kidnappers Ridge, 11.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimarama 1 & 2, 13.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
