Wharekauhau Details

PropertyValue
Rupture Count18,401
Ruptures Above Sect Min Mag18,397
Ruptures w/ Nonzero Rates119
Magnitude Range[6.91, 8.53]
Length Range[20, 960] km
Total Rate9.4550465E-5 /yr
Multi-Fault Rate7.3392395E-5 /yr (77.62%)
Directly-Connected Faults10
All Co-Rupturing Faults192

Table Of Contents

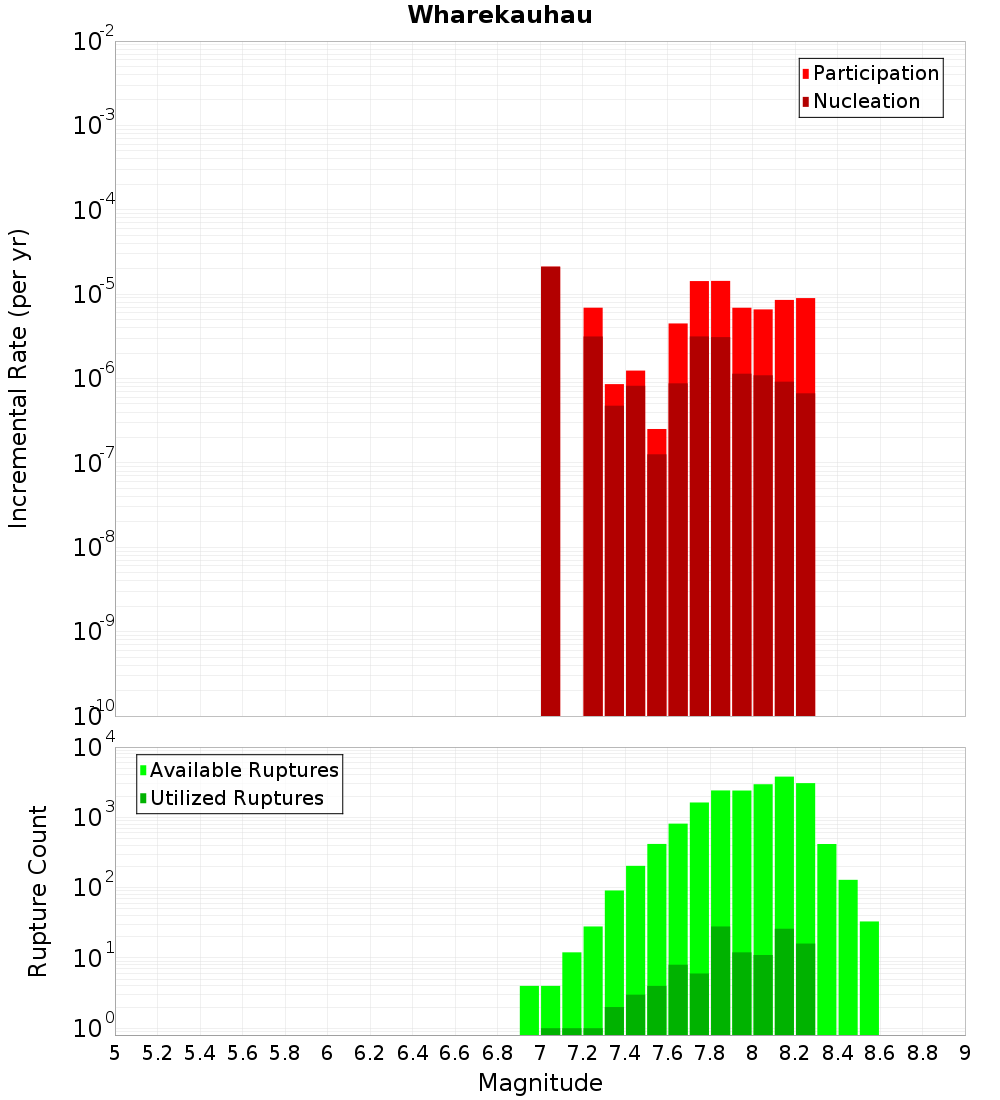

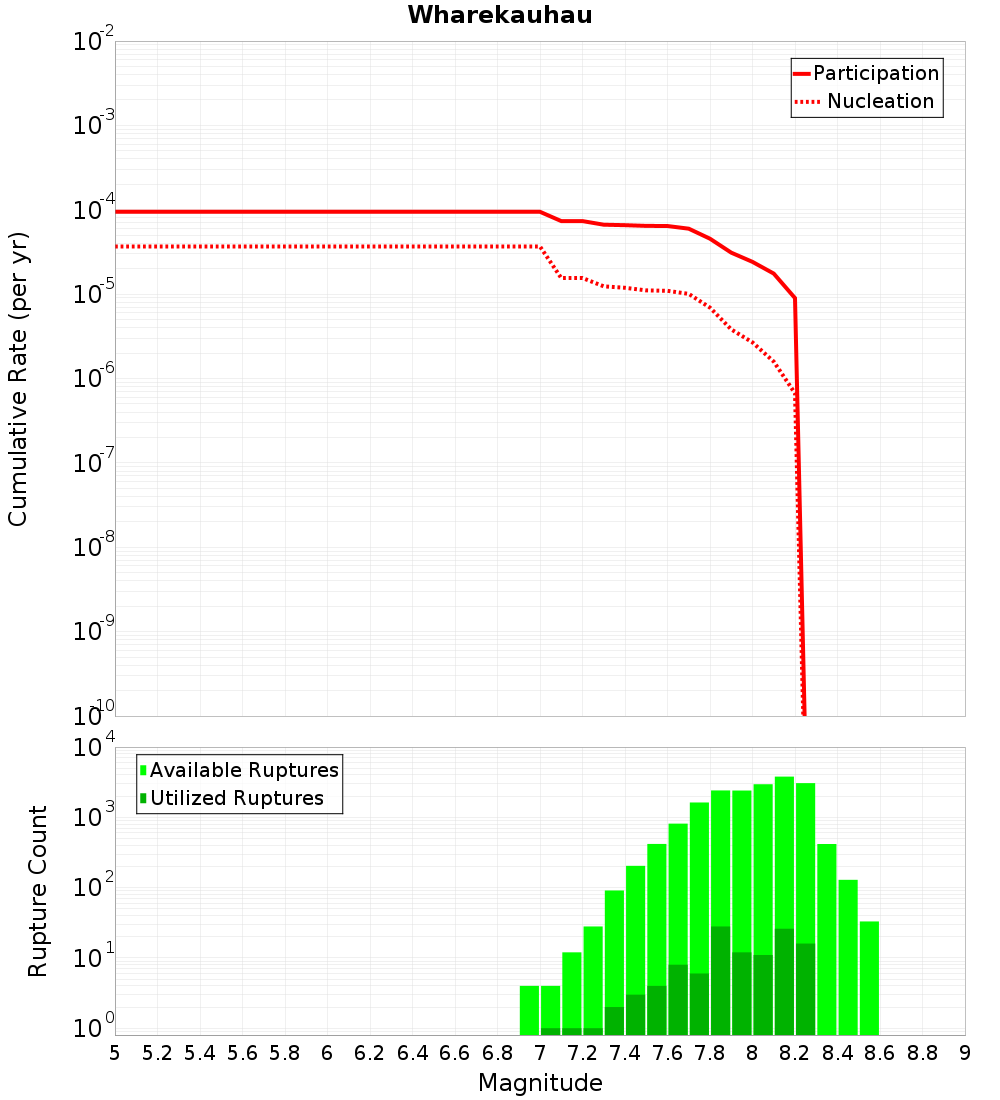

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

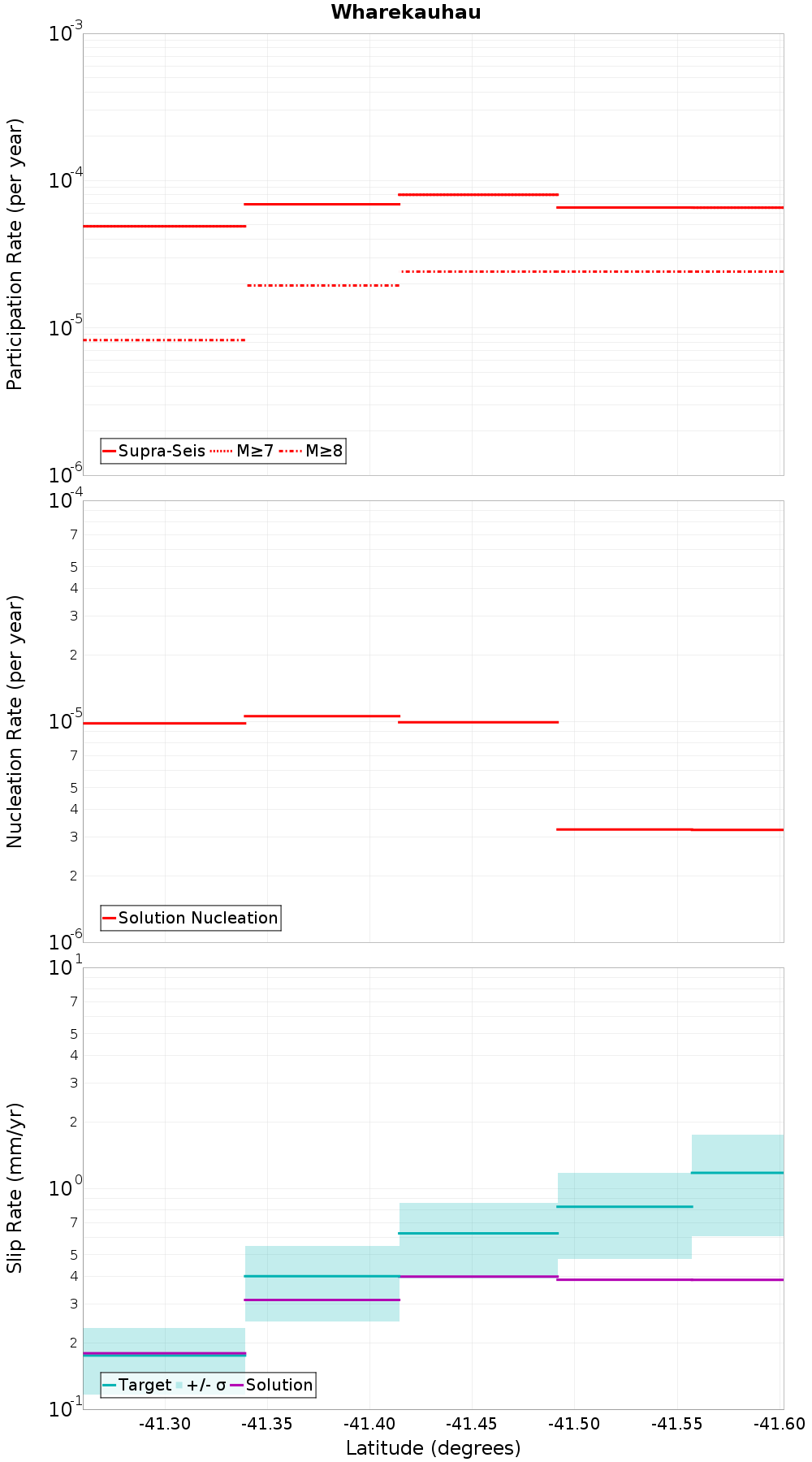

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

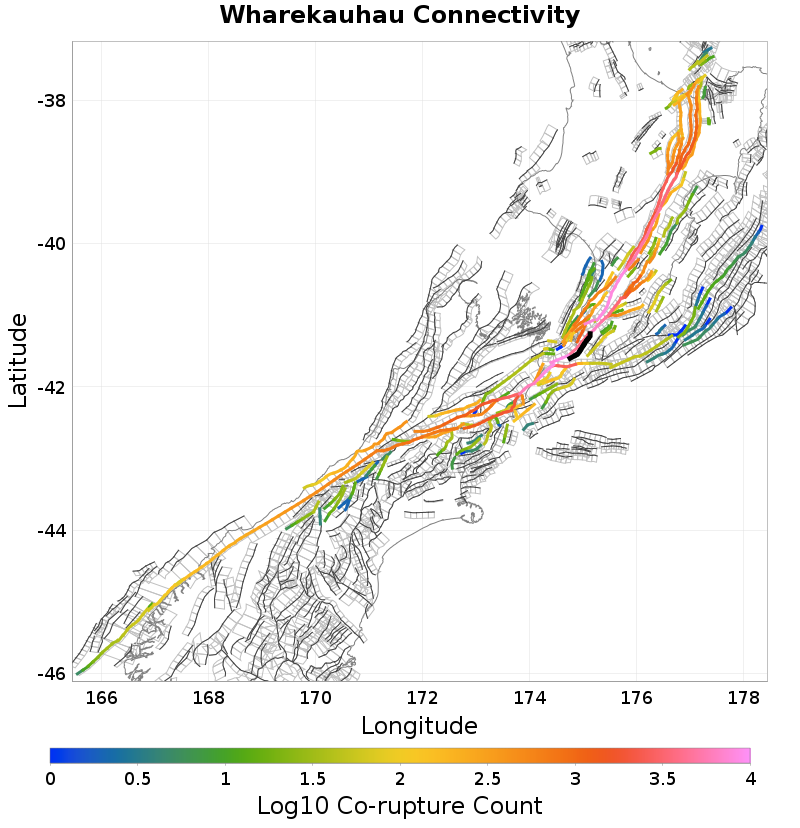

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wairarapa: 1, 0.2 km awayWellington Hutt Valley: 2, 8.32 km away
Wellington Hutt Valley: 4, 0.21 km awayOhariu, 10 km away
Aotea - Evans Bay, 0.31 km awayBooBoo, 10.67 km away
Wairarapa: Needles, 0.4 km awayWellington Hutt Valley: 1, 11.16 km away
Wairarapa: 2, 1.34 km awayWairau 3, 11.59 km away
Whitemans Valley, 3.06 km awayOtaraia, 12.78 km away
Wellington Hutt Valley: 5, 3.98 km awayDry River - Huangarua: 1, 12.89 km away
Moonshine, 4.85 km awayPukerua - Shepherds Gully: 3, 13.68 km away
Akatarawa, 6.22 km awayCampbell Bank, 13.94 km away
Wellington Hutt Valley: 3, 7.34 km awayGibbs, 14.76 km away

Wairarapa: 1, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2
Connected?true
Directly Connected?true
Co-rupture Count4,396
Co-rupture Rate2.8386603E-5

Wellington Hutt Valley: 4, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2
Connected?true
Directly Connected?true
Co-rupture Count710
Co-rupture Rate3.20892E-7

Aotea - Evans Bay, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2
Connected?true
Directly Connected?true
Co-rupture Count146
Co-rupture Rate4.203349E-11

Wairarapa: Needles, 0.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2
Connected?true
Directly Connected?true
Co-rupture Count8,513
Co-rupture Rate2.6152984E-5

Wairarapa: 2, 1.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2
Connected?true
Directly Connected?true
Co-rupture Count7,533
Co-rupture Rate5.2449668E-5

Whitemans Valley, 3.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2
Connected?true
Directly Connected?true
Co-rupture Count1,211
Co-rupture Rate7.615203E-8

Wellington Hutt Valley: 5, 3.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2
Connected?true
Directly Connected?true
Co-rupture Count7,313
Co-rupture Rate9.061857E-6

Moonshine, 4.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2
Connected?true
Directly Connected?true
Co-rupture Count963
Co-rupture Rate0.0

Akatarawa, 6.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2
Connected?true
Directly Connected?false
Co-rupture Count28
Co-rupture Rate0.0

Wellington Hutt Valley: 3, 7.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2
Connected?true
Directly Connected?false
Co-rupture Count61
Co-rupture Rate5.5300213E-9

Wellington Hutt Valley: 2, 8.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2
Connected?true
Directly Connected?false
Co-rupture Count382
Co-rupture Rate3.2652847E-6

Ohariu, 10 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2
Connected?true
Directly Connected?false
Co-rupture Count840
Co-rupture Rate3.5806888E-6

BooBoo, 10.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2
Connected?true
Directly Connected?true
Co-rupture Count2,832
Co-rupture Rate5.171784E-6

Wellington Hutt Valley: 1, 11.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Wairau 3, 11.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2
Connected?true
Directly Connected?false
Co-rupture Count64
Co-rupture Rate0.0

Otaraia, 12.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dry River - Huangarua: 1, 12.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2
Connected?true
Directly Connected?true
Co-rupture Count80
Co-rupture Rate1.5428053E-7

Pukerua - Shepherds Gully: 3, 13.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate0.0

Campbell Bank, 13.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2
Connected?true
Directly Connected?false
Co-rupture Count131
Co-rupture Rate5.0922067E-6

Gibbs, 14.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzODUuMG80N0I2
Connected?true
Directly Connected?false
Co-rupture Count16
Co-rupture Rate0.0
