Tauranga Trough West 2 Details

PropertyValue
Rupture Count79
Ruptures Above Sect Min Mag77
Ruptures w/ Nonzero Rates22
Magnitude Range[6.89, 7.73]
Length Range[24, 171] km
Total Rate3.584371E-4 /yr
Multi-Fault Rate3.0453826E-4 /yr (84.96%)
Directly-Connected Faults7
All Co-Rupturing Faults12

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

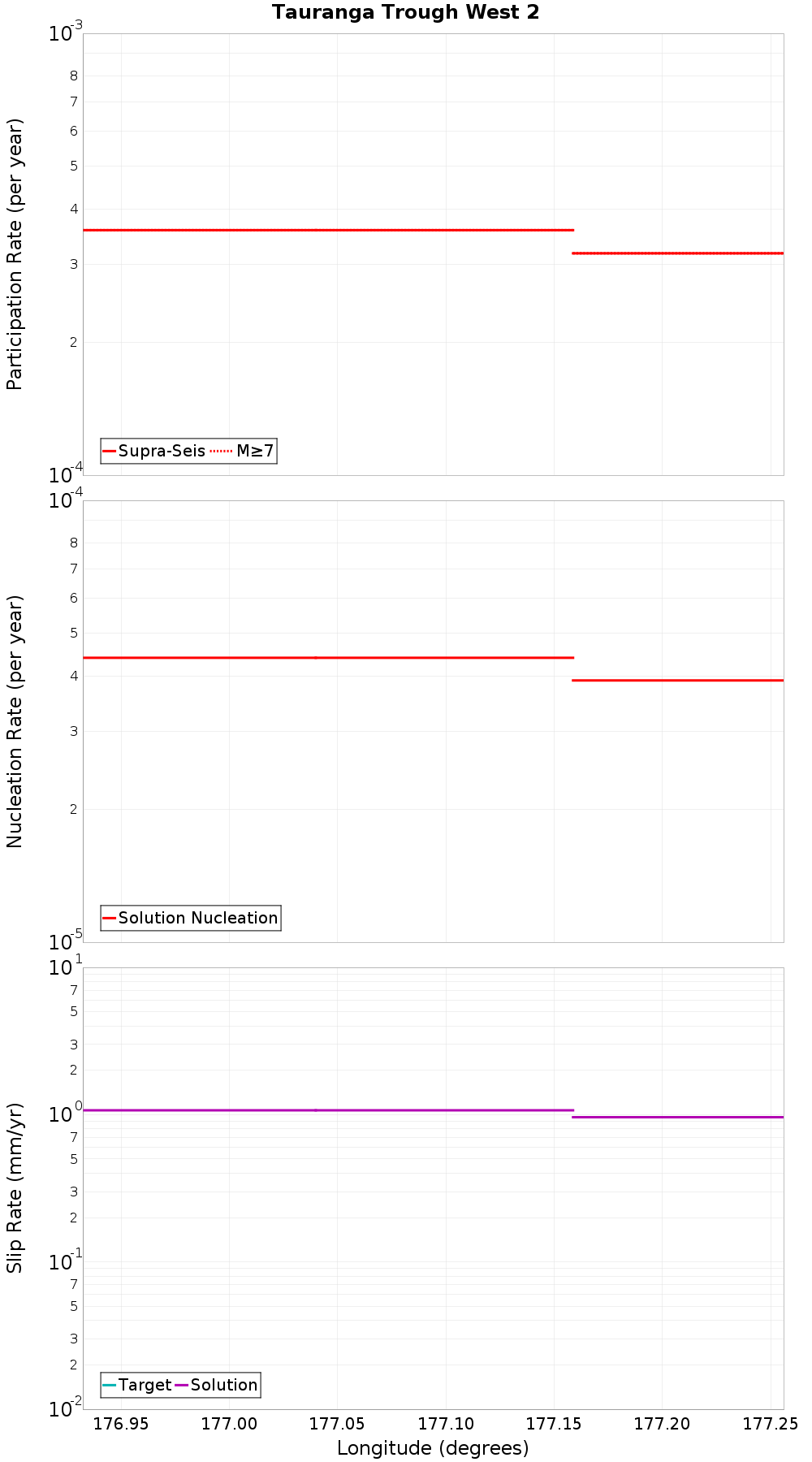

Along-Strike Values

(top)

Along-strike plot

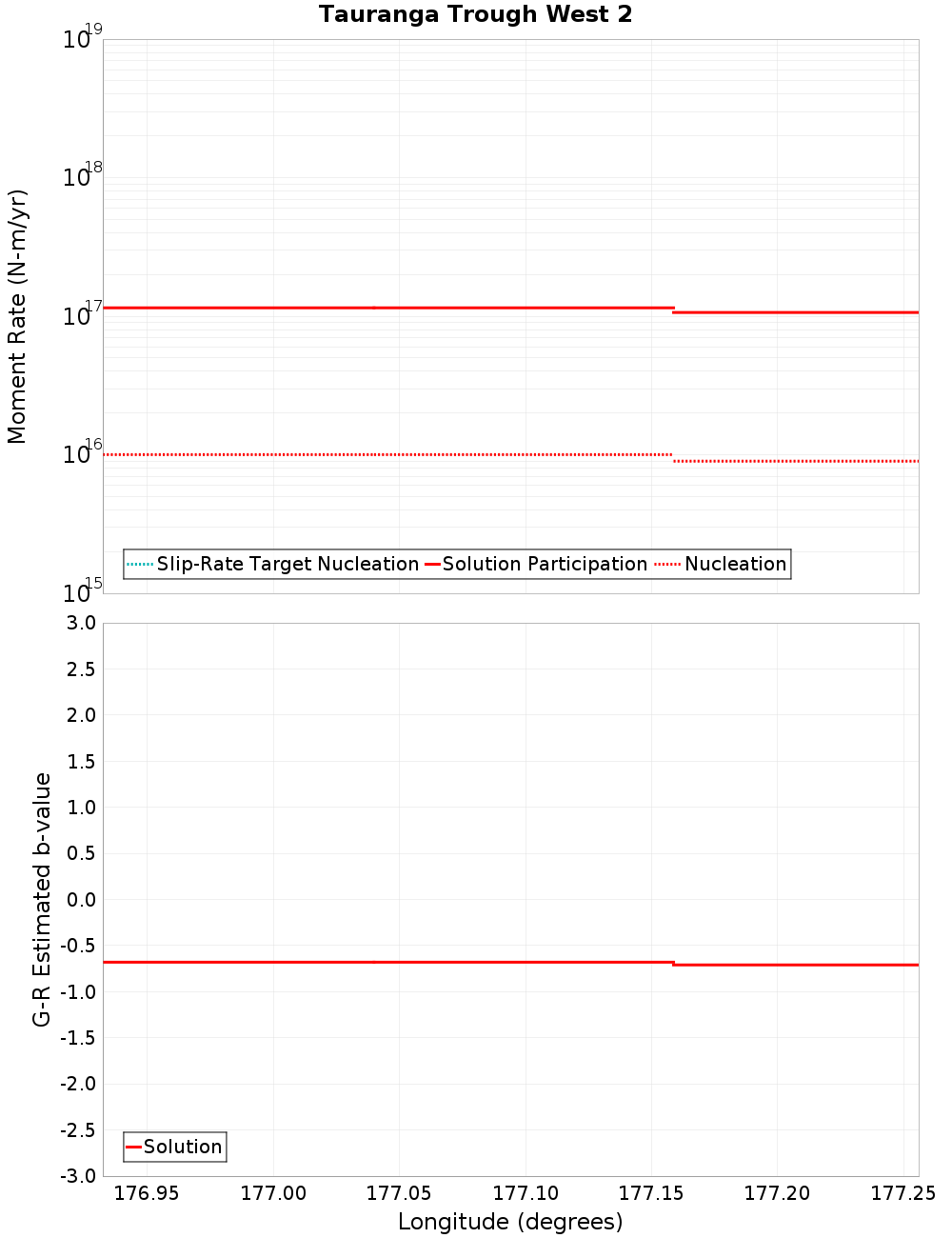

Moment-Rates and b-Values

(top)

Along-strike plot

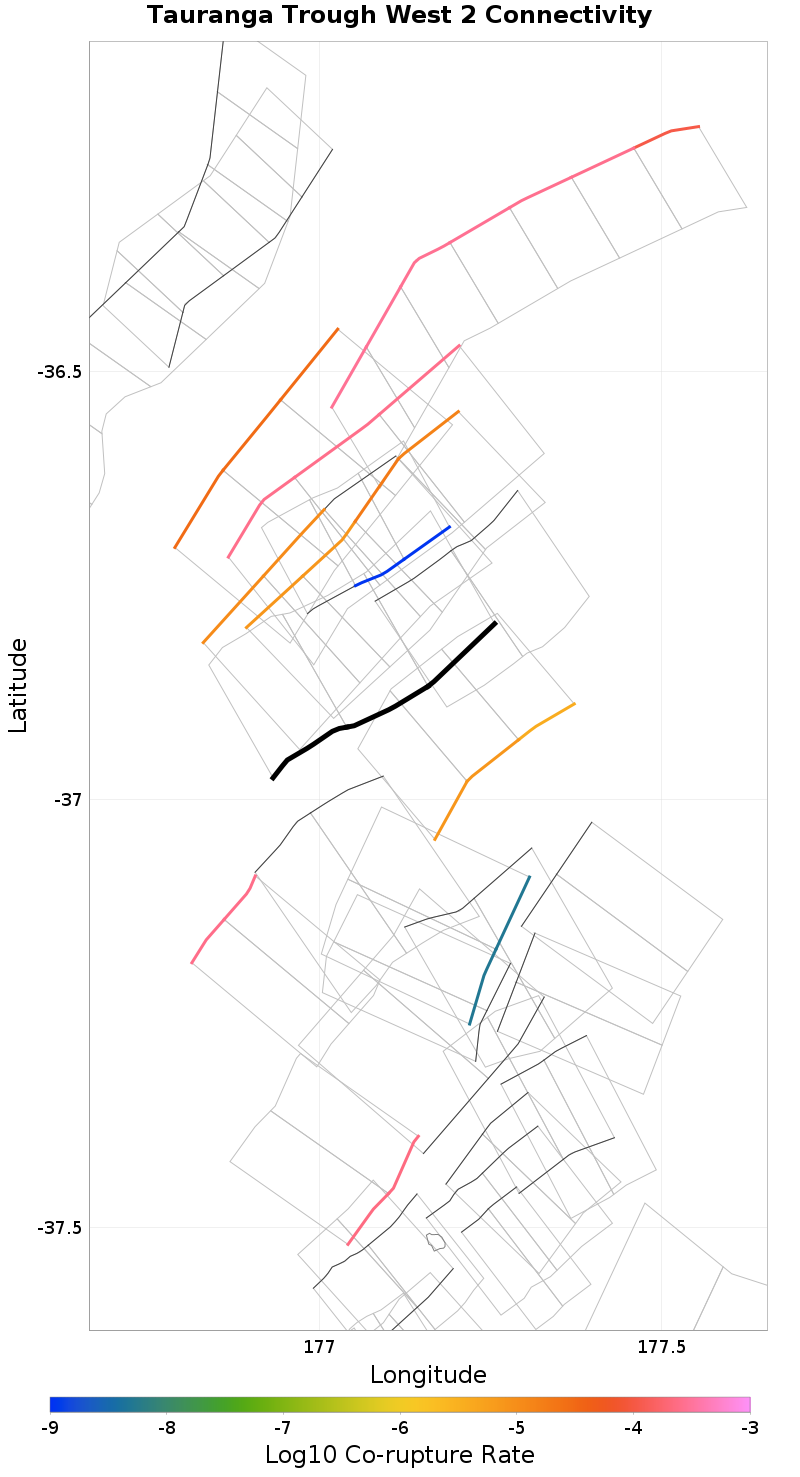

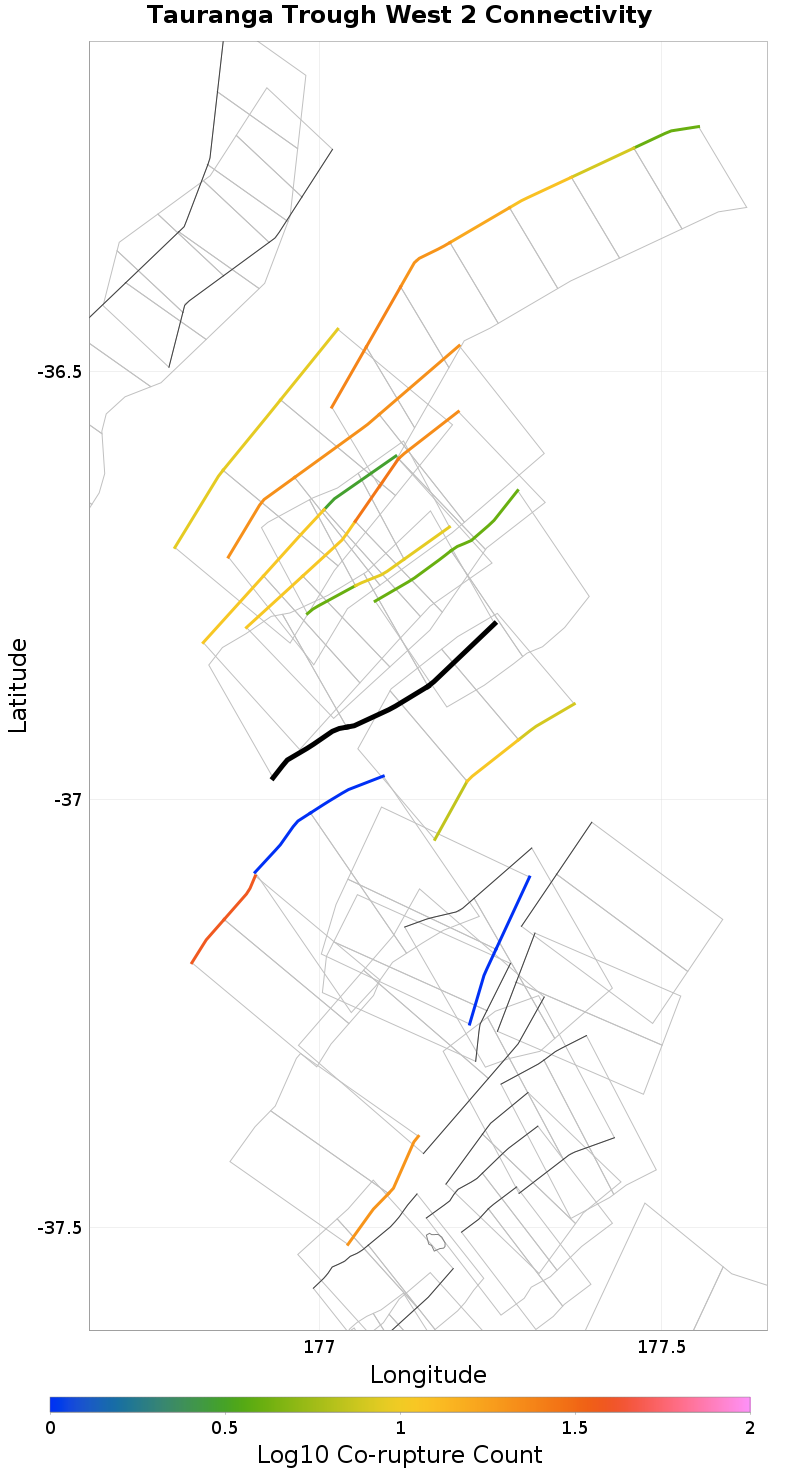

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Ohena 3, 0.08 km away
Ohena 2, 0.13 km away
Ngatoro South 2, 0.18 km away
Ohena 5, 0.32 km away
Ohena 4, 0.39 km away
Tuakana 7, 6.47 km away
Ngatoro West 1, 8.65 km away
Tauranga Trough East 2, 9.68 km away
Ngatoro South 5, 10.46 km away
Tuakana 6, 12.95 km away

Ohena 3, 0.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTEuMEgzR0Z3
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate1.09920165E-5

Ohena 2, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTEuMEgzR0Z3
Connected?true
Directly Connected?true
Co-rupture Count29
Co-rupture Rate1.8715744E-5

Ngatoro South 2, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTEuMEgzR0Z3
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate0.0

Ohena 5, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTEuMEgzR0Z3
Connected?true
Directly Connected?true
Co-rupture Count9
Co-rupture Rate2.9657305E-5

Ohena 4, 0.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTEuMEgzR0Z3
Connected?true
Directly Connected?true
Co-rupture Count21
Co-rupture Rate2.5616022E-4

Tuakana 7, 6.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTEuMEgzR0Z3
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Ngatoro West 1, 8.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTEuMEgzR0Z3
Connected?true
Directly Connected?false
Co-rupture Count24
Co-rupture Rate2.8581172E-4

Tauranga Trough East 2, 9.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTEuMEgzR0Z3
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate7.727647E-6

Ngatoro South 5, 10.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTEuMEgzR0Z3
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate1.0653898E-9

Tuakana 6, 12.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTEuMEgzR0Z3
Connected?true
Directly Connected?true
Co-rupture Count38
Co-rupture Rate2.467973E-4
