Caswell High 10 Details
| Property | Value |
|---|---|
| Rupture Count | 432 |
| Ruptures Above Sect Min Mag | 429 |
| Ruptures w/ Nonzero Rates | 9 |
| Magnitude Range | [6.89, 8.23] |
| Length Range | [19, 285] km |
| Total Rate | 7.5202785E-5 /yr |
| Multi-Fault Rate | 7.5202785E-5 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 20 |
Table Of Contents

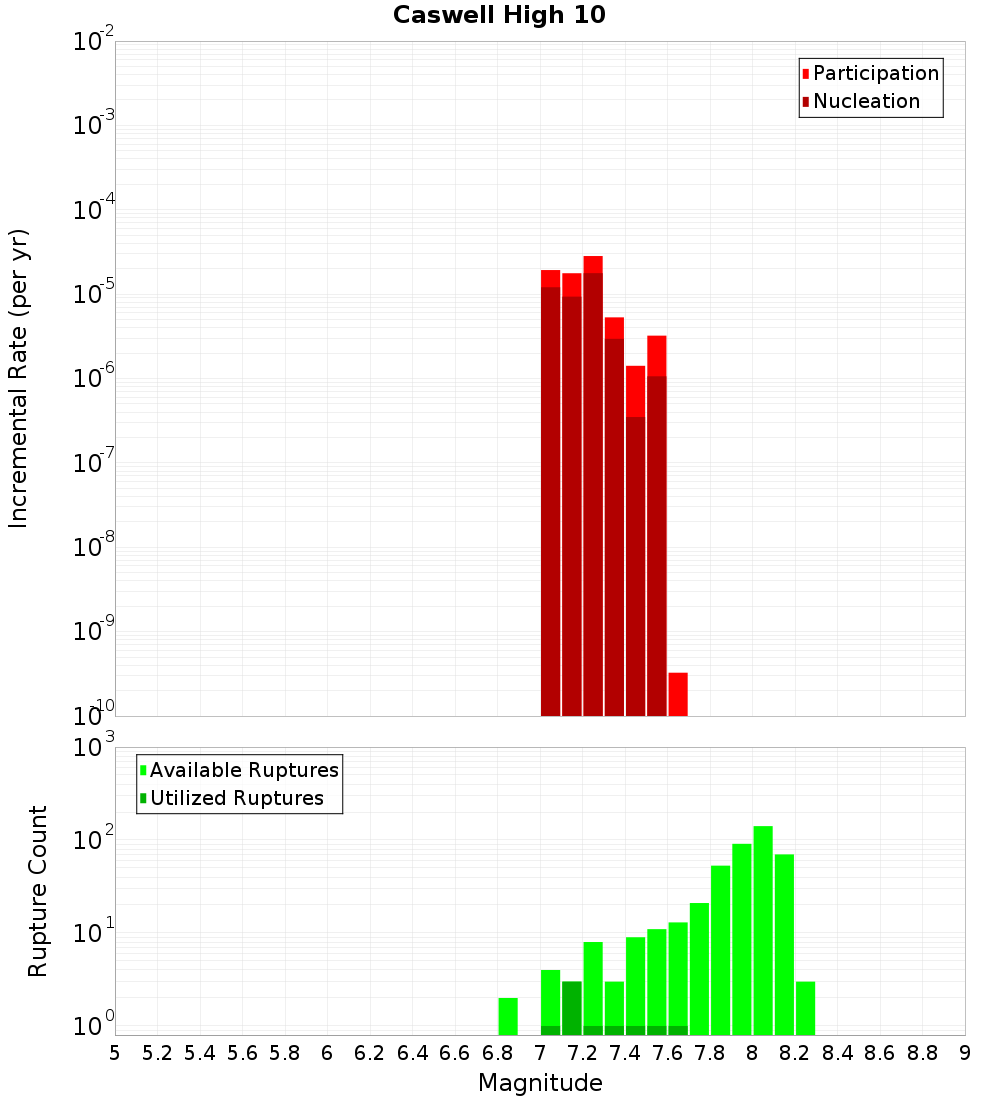

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

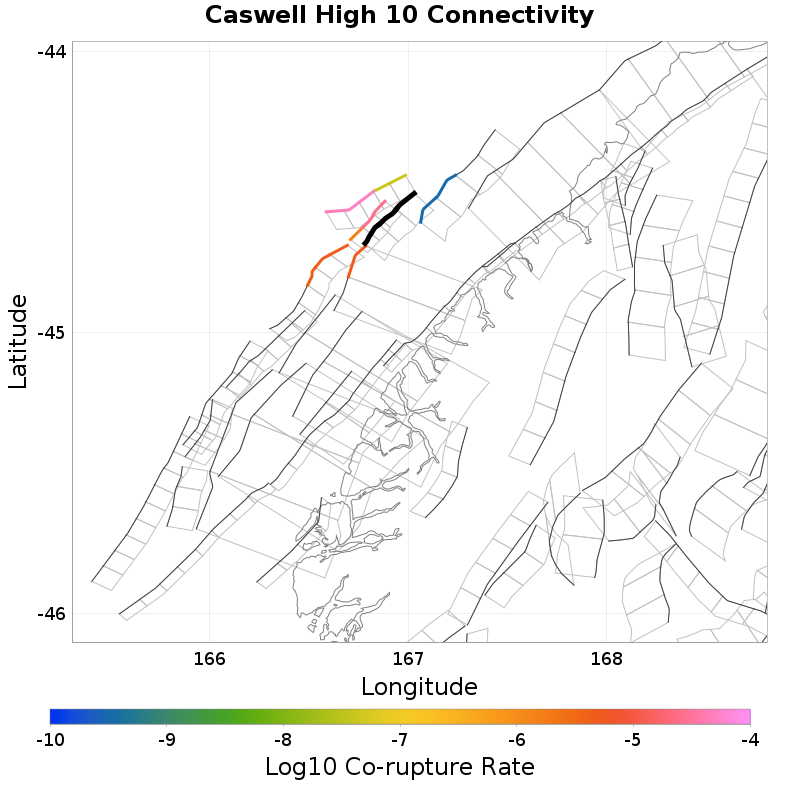

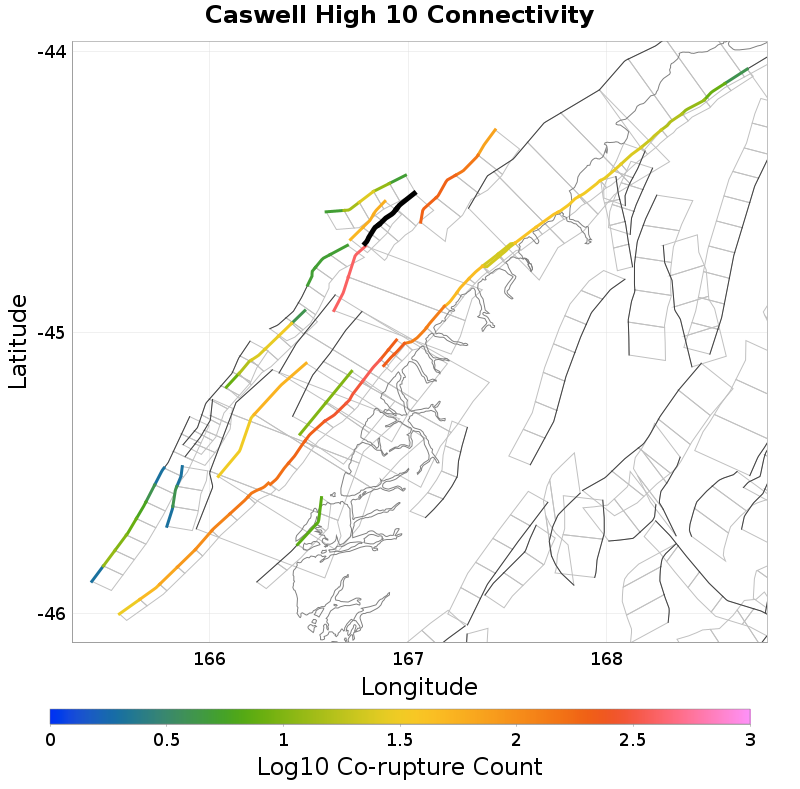

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Central Wedge 1 & 2 & 3, 1.11 km away |
| Caswell High 9, 3.01 km away |
| Caswell High 67, 6.05 km away |
| Milford Basin 5 to George R2, 6.09 km away |
| Caswell High 8, 6.73 km away |
Central Wedge 1 & 2 & 3, 1.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 391 |
| Co-rupture Rate | 4.635793E-6 |
Caswell High 9, 3.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 59 |
| Co-rupture Rate | 2.6200769E-5 |
Caswell High 67, 6.05 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 4.635793E-6 |
Milford Basin 5 to George R2, 6.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 198 |
| Co-rupture Rate | 3.2595798E-10 |
Caswell High 8, 6.73 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 25 |
| Co-rupture Rate | 4.9670798E-5 |
