Conway Trough West Details

PropertyValue
Rupture Count599
Ruptures Above Sect Min Mag597
Ruptures w/ Nonzero Rates27
Magnitude Range[6.80, 8.27]
Length Range[18, 418] km
Total Rate7.89065E-5 /yr
Multi-Fault Rate7.89065E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults56

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

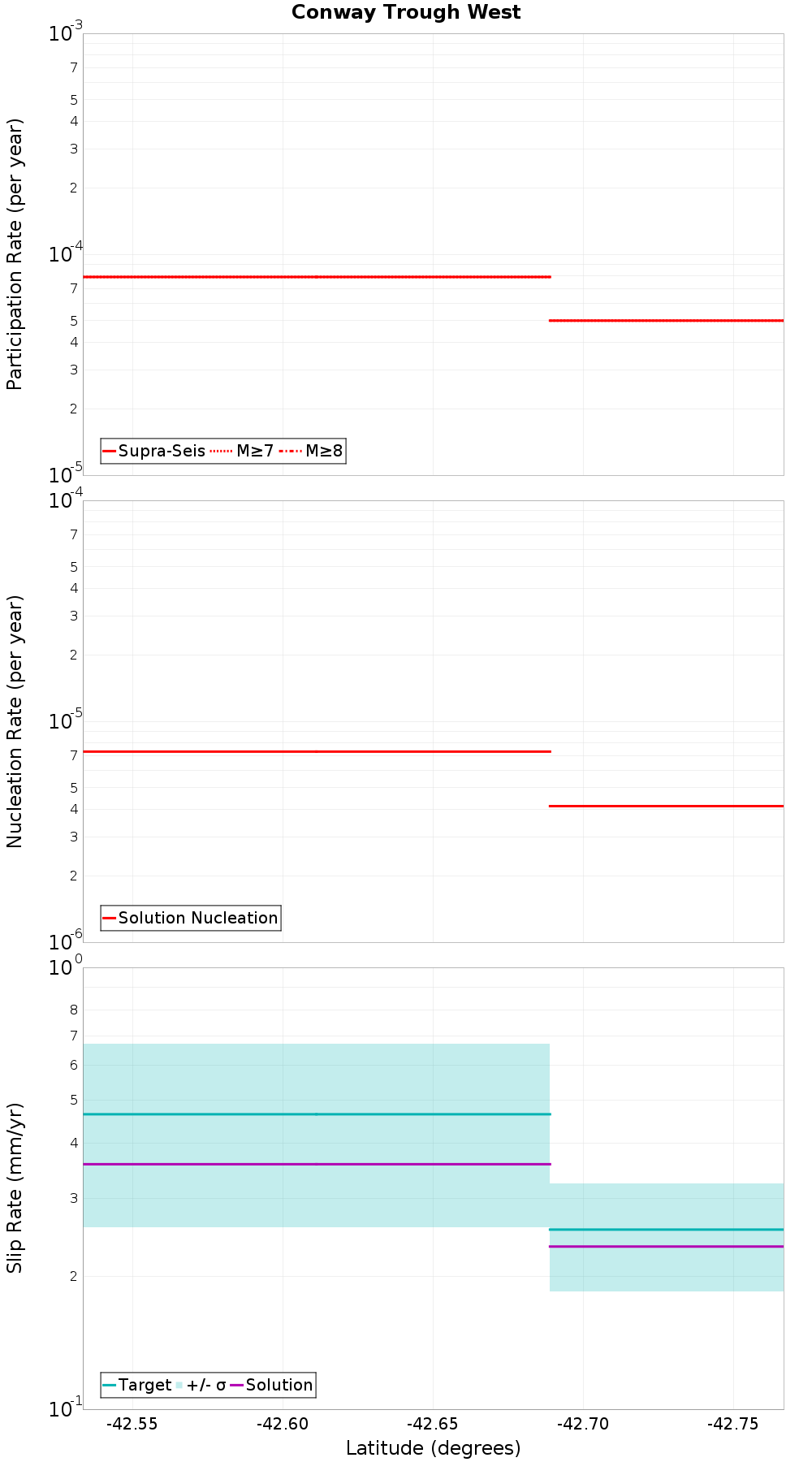

Along-Strike Values

(top)

Along-strike plot

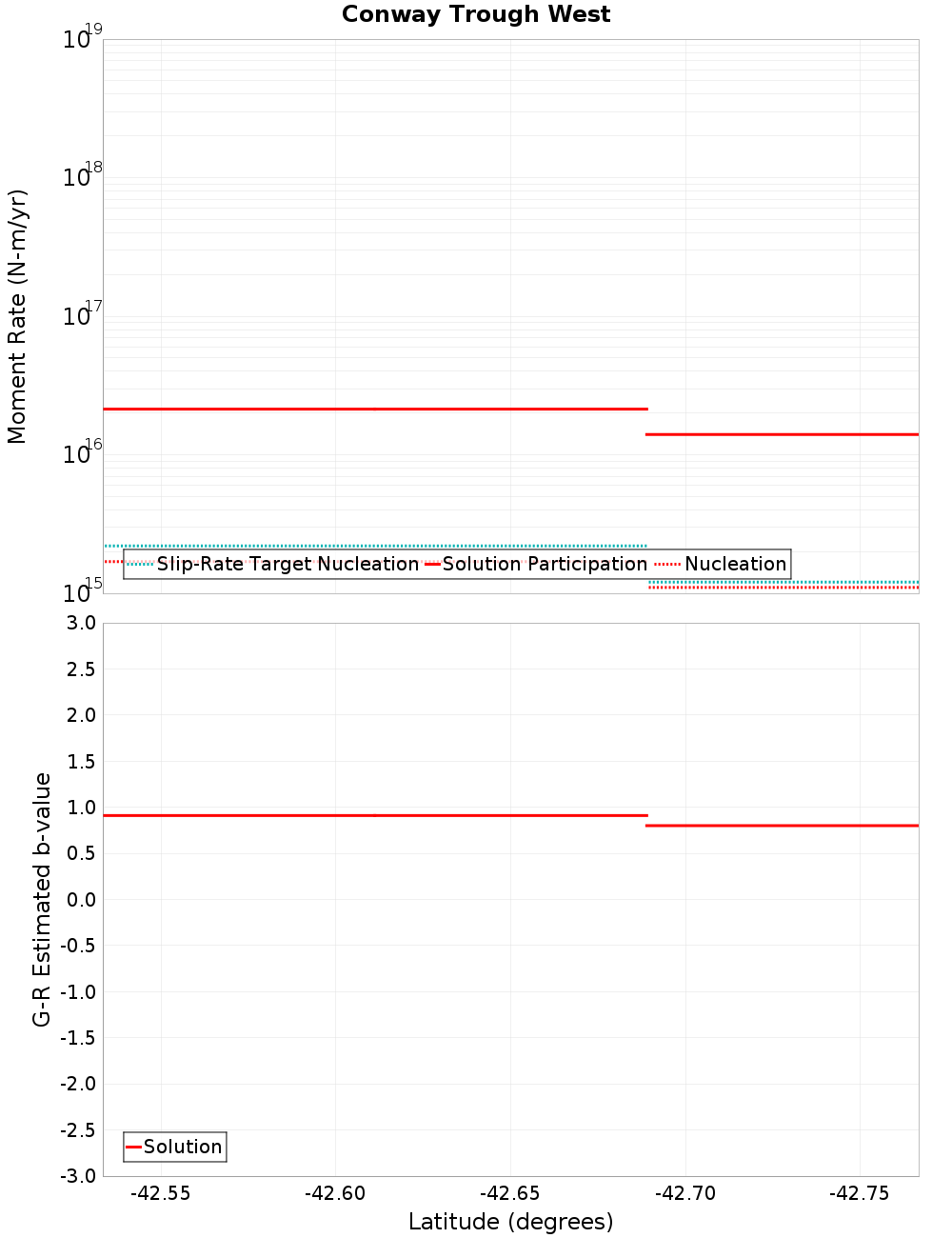

Moment-Rates and b-Values

(top)

Along-strike plot

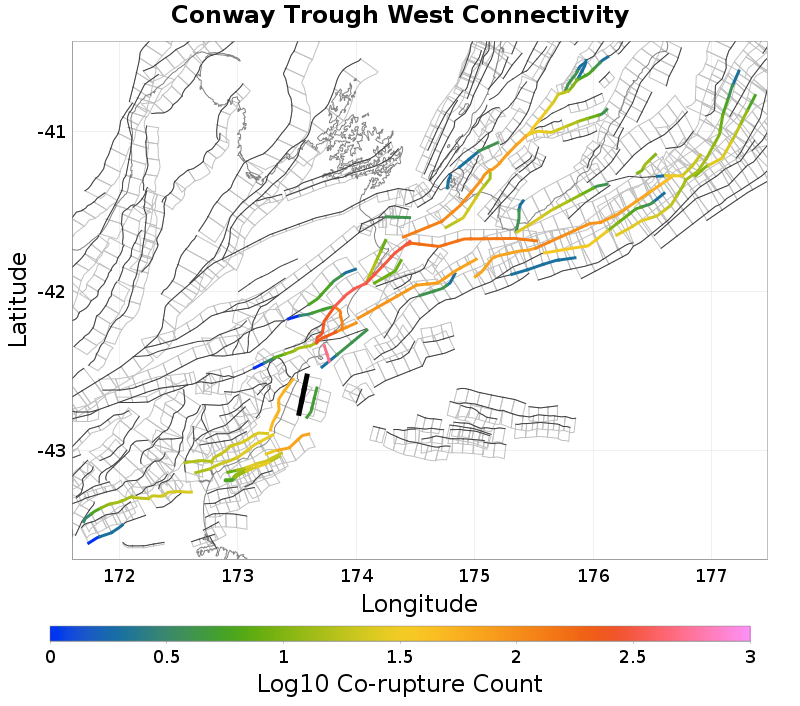

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hawkswood, 4.07 km away
Conway Trough East, 5.06 km away
Hundalee, 5.24 km away
Kaikoura 2, 10 km away
StoneJug, 10.85 km away
Offshore Splay Thrust, 10.93 km away
Marlborough Slope 2, 12.27 km away
Point Gibson, 14.94 km away

Hawkswood, 4.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?true
Directly Connected?true
Co-rupture Count53
Co-rupture Rate3.2193434E-8

Conway Trough East, 5.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?true
Directly Connected?true
Co-rupture Count5
Co-rupture Rate1.0100841E-5

Hundalee, 5.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaikoura 2, 10 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?true
Directly Connected?true
Co-rupture Count498
Co-rupture Rate6.630005E-5

StoneJug, 10.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Offshore Splay Thrust, 10.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate1.9239615E-6

Marlborough Slope 2, 12.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Point Gibson, 14.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?true
Directly Connected?true
Co-rupture Count69
Co-rupture Rate1.2570702E-5
