F17 - South Details

Property	Value
Rupture Count	13,935
Ruptures Above Sect Min Mag	13,931
Ruptures w/ Nonzero Rates	8
Magnitude Range	[7.16, 8.49]
Length Range	[26, 599] km
Total Rate	6.3842536E-9 /yr
Multi-Fault Rate	6.3842536E-9 /yr (100.00%)
Directly-Connected Faults	9
All Co-Rupturing Faults	57

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

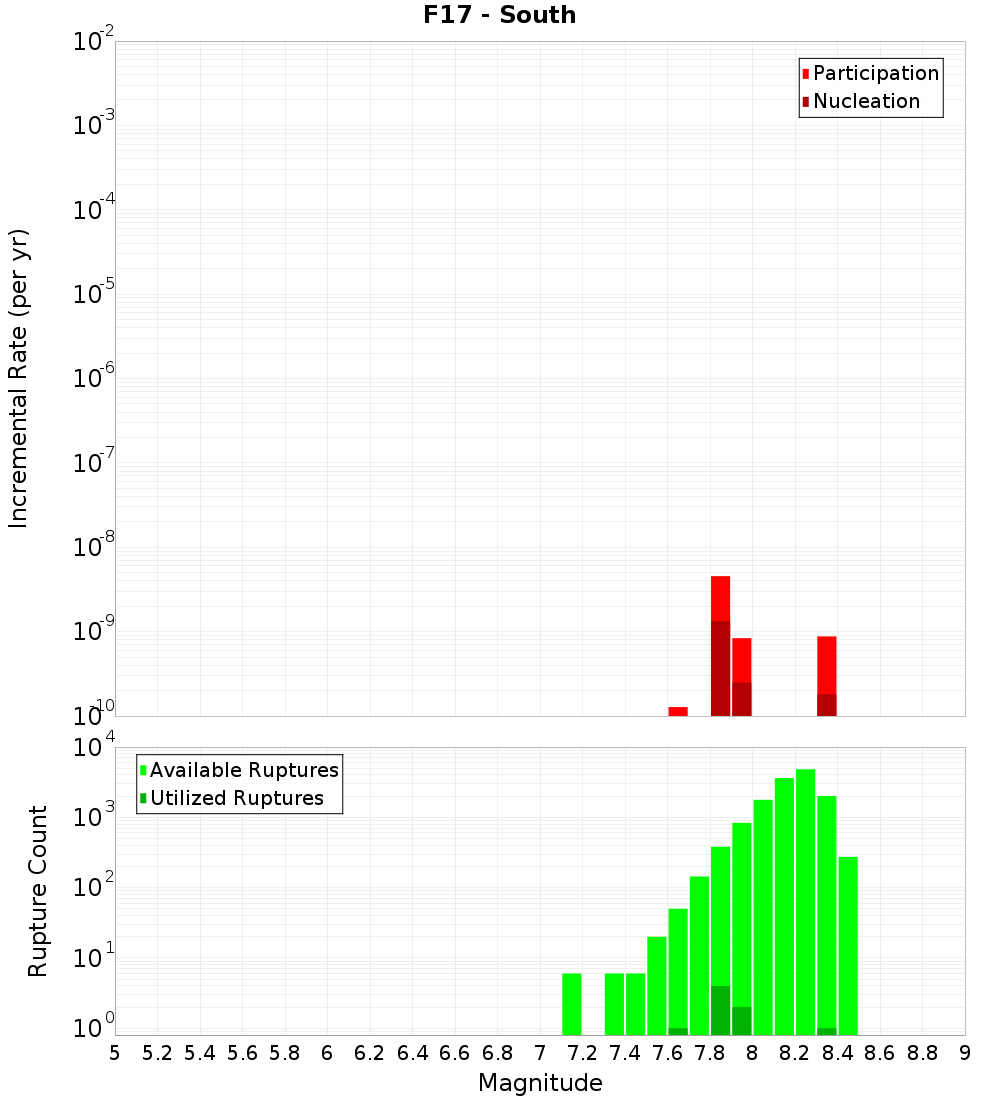

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

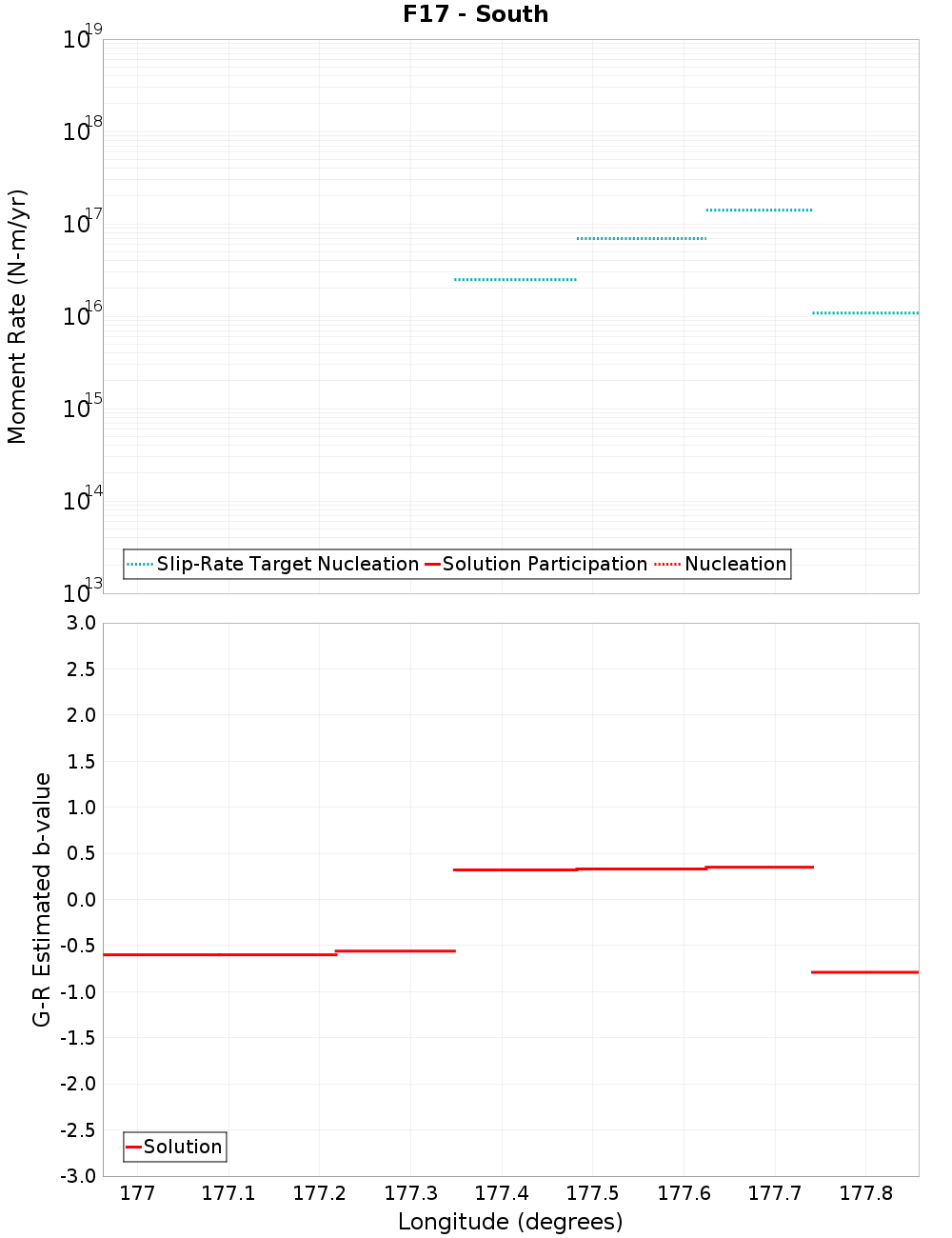

Moment-Rates and b-Values

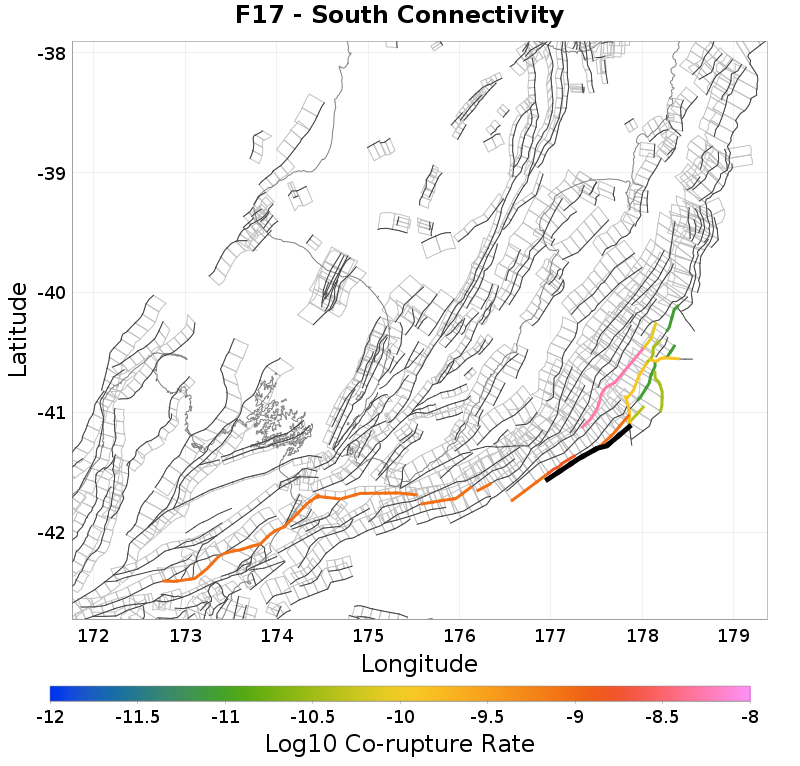

Connectivity

Nearby Sections

Fault Section
F16 - South, 0.02 km away
BKSmt-West, 0.41 km away
F17 - Central, 1.64 km away
Aorangi Ridge, 2.05 km away
Bennett Knoll, 5.32 km away
F16 - Central, 5.88 km away
Aorangi Trough, 5.98 km away
Pukeroro Ridge, 10.25 km away
Uruti Basin, 11.39 km away
Akitio Trough West, 11.75 km away
Porangahau Ridge, 12.1 km away
Akitio Ridge, 13.47 km away
Pukeroro 2, 14.86 km away

F16 - South, 0.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?	true
Directly Connected?	true
Co-rupture Count	821
Co-rupture Rate	8.774614E-10

BKSmt-West, 0.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?	true
Directly Connected?	true
Co-rupture Count	4,158
Co-rupture Rate	1.2750016E-10

F17 - Central, 1.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?	true
Directly Connected?	true
Co-rupture Count	3,130
Co-rupture Rate	4.4546183E-11

Aorangi Ridge, 2.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?	true
Directly Connected?	true
Co-rupture Count	8,186
Co-rupture Rate	1.6297143E-9

Bennett Knoll, 5.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?	true
Directly Connected?	true
Co-rupture Count	1,094
Co-rupture Rate	3.607201E-11

F16 - Central, 5.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?	true
Directly Connected?	true
Co-rupture Count	7,111
Co-rupture Rate	8.474169E-12

Aorangi Trough, 5.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?	true
Directly Connected?	true
Co-rupture Count	913
Co-rupture Rate	0.0

Pukeroro Ridge, 10.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?	true
Directly Connected?	true
Co-rupture Count	291
Co-rupture Rate	0.0

Uruti Basin, 11.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Akitio Trough West, 11.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?	true
Directly Connected?	true
Co-rupture Count	1,000
Co-rupture Rate	5.334746E-9

Porangahau Ridge, 12.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Akitio Ridge, 13.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?	true
Directly Connected?	false
Co-rupture Count	10,581
Co-rupture Rate	1.7204635E-10

Pukeroro 2, 14.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?	true
Directly Connected?	false
Co-rupture Count	2,014
Co-rupture Rate	8.774614E-10
