Lachlan 3 Details

Property	Value
Rupture Count	682
Ruptures Above Sect Min Mag	667
Ruptures w/ Nonzero Rates	49
Magnitude Range	[6.70, 7.96]
Length Range	[15, 250] km
Total Rate	1.0378781E-4 /yr
Multi-Fault Rate	9.643868E-5 /yr (92.92%)
Directly-Connected Faults	5
All Co-Rupturing Faults	15

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

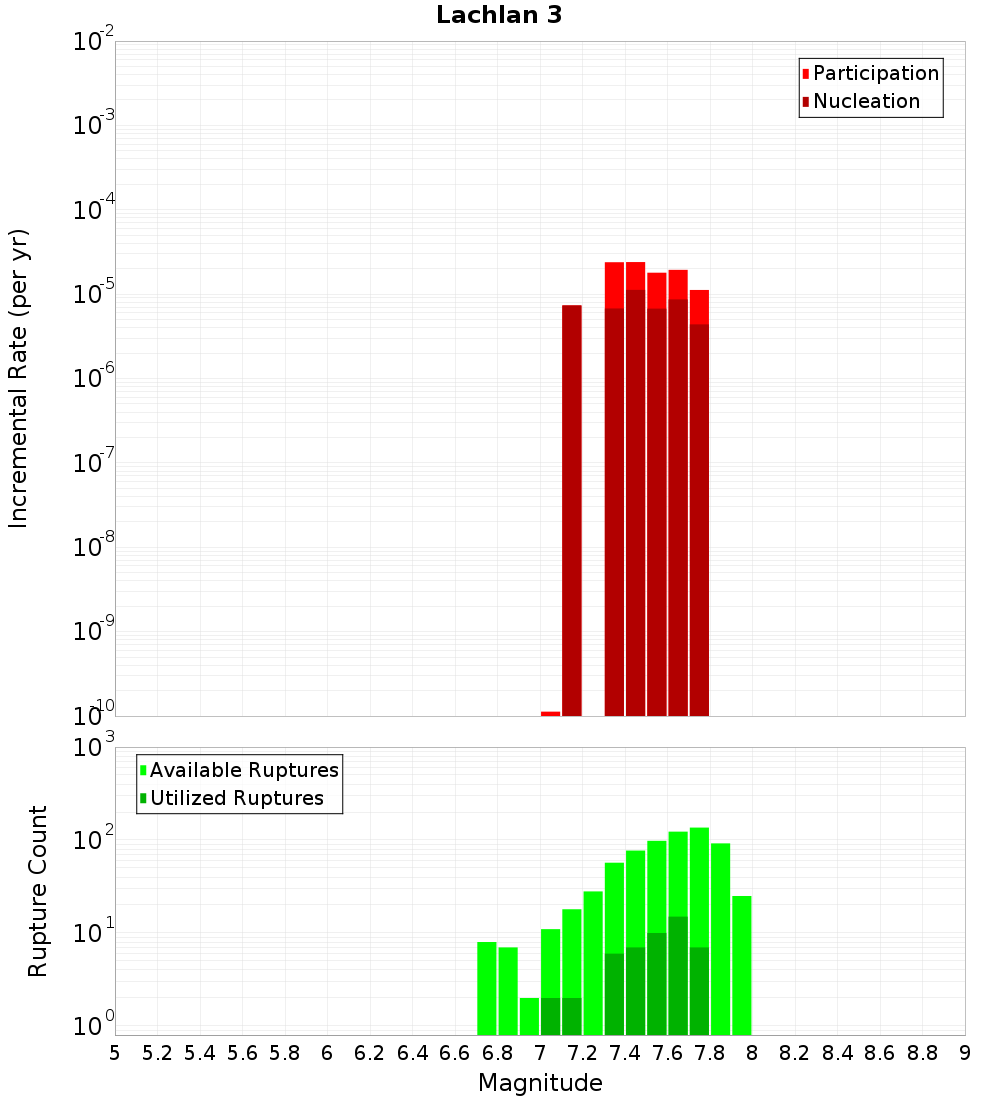

Magnitude-Frequency Distribution

Incremental	Cumulative

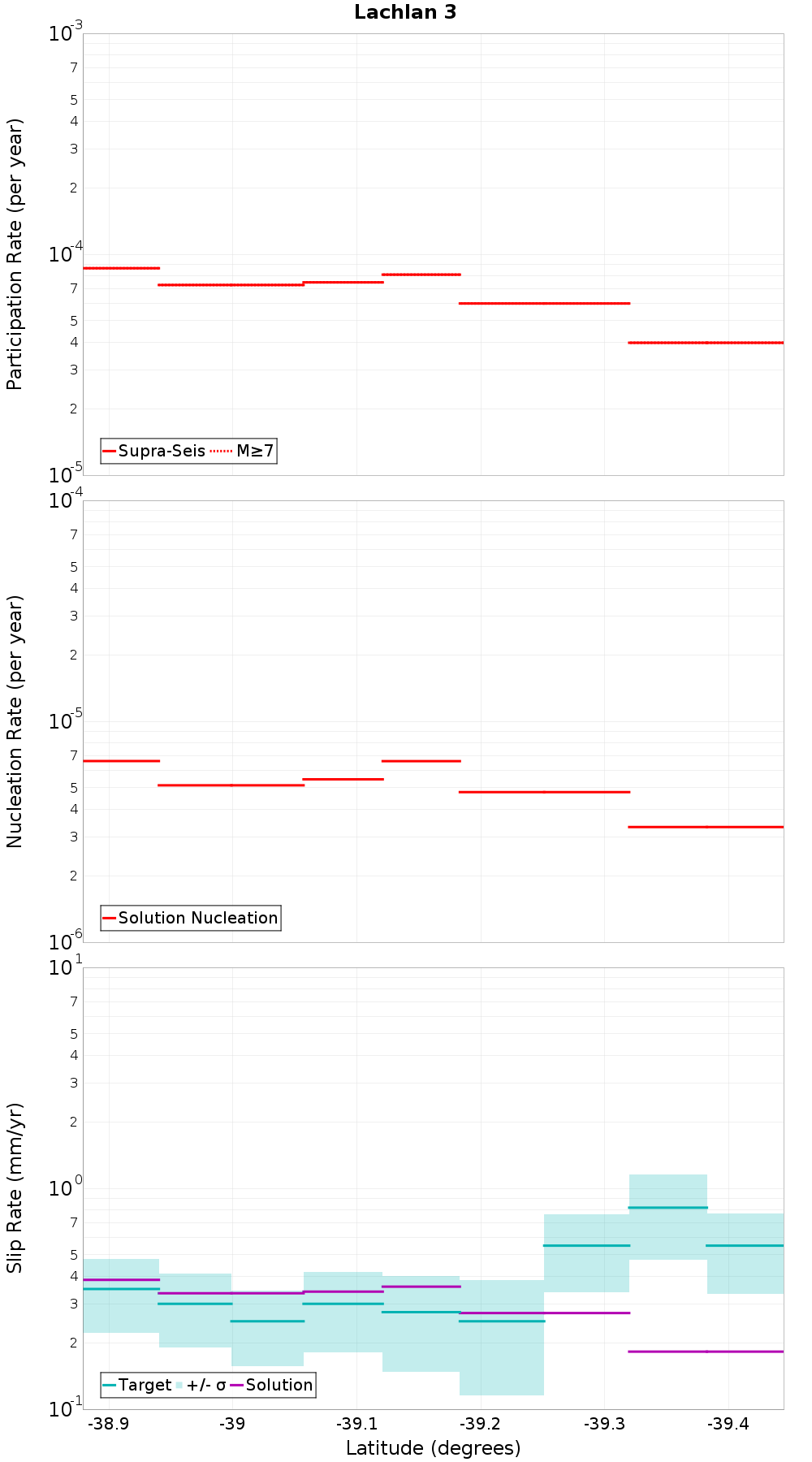

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Lachlan 1 & 2, 0.53 km away
Mahia 2, 2.4 km away
Ariel East, 3.12 km away
Poverty Bay, 3.82 km away
Ariel Bank, 6.88 km away
Gable End South, 14.38 km away

Lachlan 1 & 2, 0.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?	true
Directly Connected?	true
Co-rupture Count	327
Co-rupture Rate	3.238202E-5

Mahia 2, 2.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?	true
Directly Connected?	true
Co-rupture Count	92
Co-rupture Rate	5.024312E-5

Ariel East, 3.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?	true
Directly Connected?	true
Co-rupture Count	188
Co-rupture Rate	3.7331367E-5

Poverty Bay, 3.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?	true
Directly Connected?	true
Co-rupture Count	124
Co-rupture Rate	4.5738736E-5

Ariel Bank, 6.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?	true
Directly Connected?	true
Co-rupture Count	252
Co-rupture Rate	2.9451036E-5

Gable End South, 14.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?	true
Directly Connected?	false
Co-rupture Count	87
Co-rupture Rate	1.9136194E-5
