Ngatoro West 1 Details

PropertyValue
Rupture Count171
Ruptures Above Sect Min Mag165
Ruptures w/ Nonzero Rates35
Magnitude Range[6.84, 7.93]
Length Range[18, 184] km
Total Rate1.09849374E-4 /yr
Multi-Fault Rate2.0121779E-5 /yr (18.32%)
Directly-Connected Faults3
All Co-Rupturing Faults9

Table Of Contents

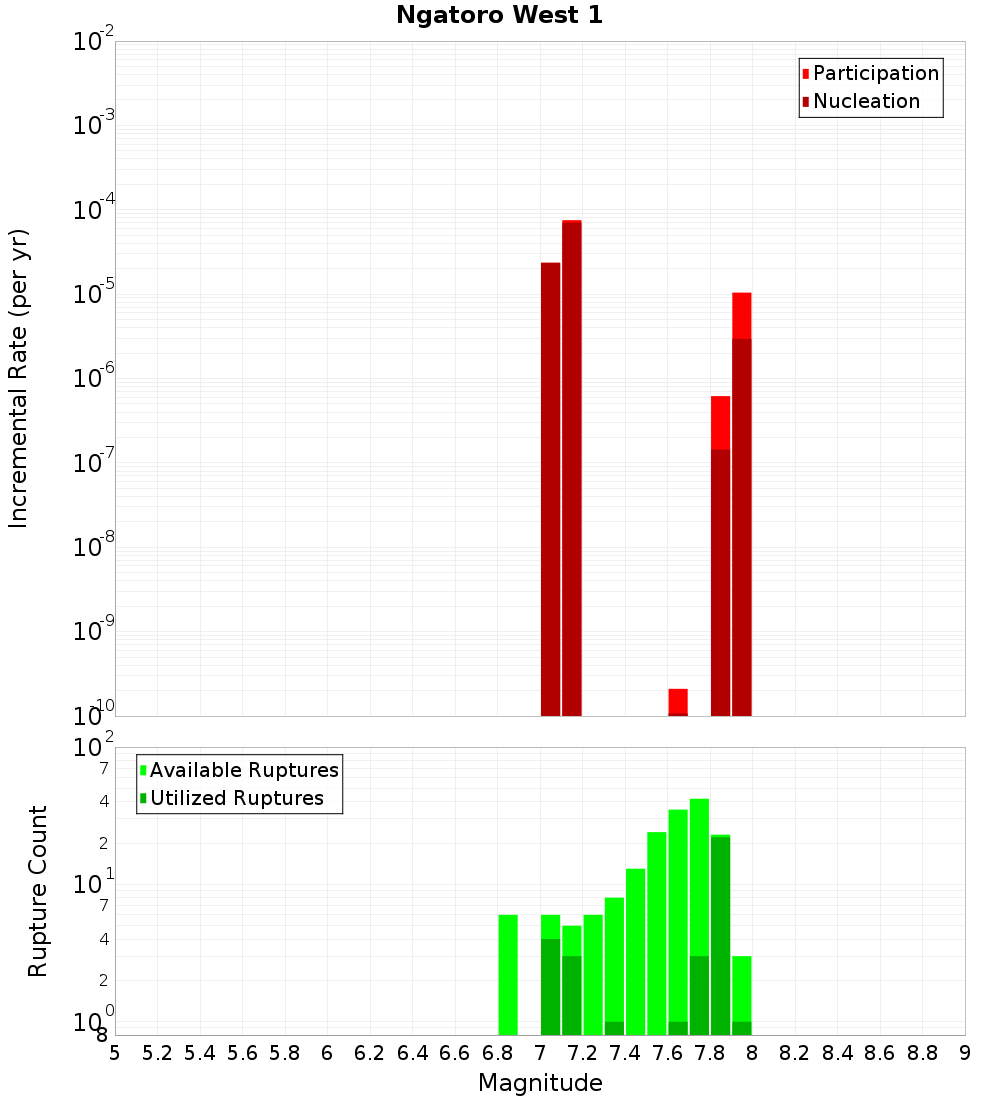

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Ngatoro South 5, 0.33 km away
Ohena 5, 2.38 km away
Ohena 4, 3.51 km away
Ohena 3, 7.61 km away
Tauranga Trough West 2, 8.65 km away
Ohena 2, 8.71 km away

Ngatoro South 5, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?true
Directly Connected?true
Co-rupture Count66
Co-rupture Rate1.9759082E-5

Ohena 5, 2.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?true
Directly Connected?true
Co-rupture Count78
Co-rupture Rate1.0716196E-5

Ohena 4, 3.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?true
Directly Connected?true
Co-rupture Count90
Co-rupture Rate1.104107E-5

Ohena 3, 7.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?true
Directly Connected?false
Co-rupture Count24
Co-rupture Rate0.0

Tauranga Trough West 2, 8.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?true
Directly Connected?false
Co-rupture Count24
Co-rupture Rate3.2468787E-7

Ohena 2, 8.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0
