Patoka - Rangiora Details

PropertyValue
Rupture Count4,645
Ruptures Above Sect Min Mag4,642
Ruptures w/ Nonzero Rates52
Magnitude Range[7.01, 8.44]
Length Range[22, 605] km
Total Rate2.5801834E-5 /yr
Multi-Fault Rate2.2726686E-5 /yr (88.08%)
Directly-Connected Faults3
All Co-Rupturing Faults84

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

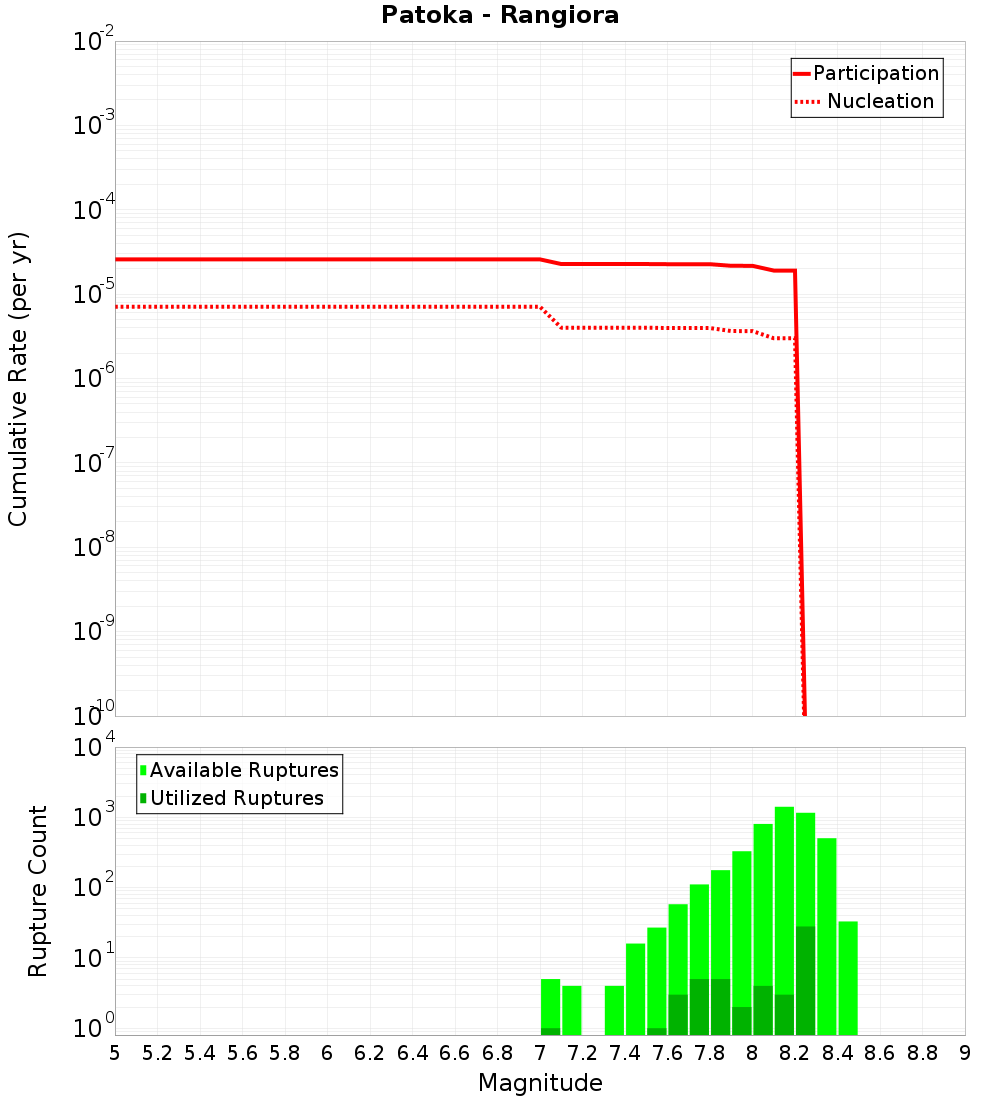

Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Mohaka: North, 0.38 km away
Awanui, 3.5 km away
Mohaka: South, 5.52 km away
Ruahine: North, 6.53 km away
Waiotahi: South, 7.73 km away
Waimana: South, 10.75 km away
Whakatane: South, 12.37 km away
Ruahine: Central, 12.67 km away
Hawke Bay 1, 13.16 km away
Wakarara, 14.99 km away

Mohaka: North, 0.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?true
Directly Connected?true
Co-rupture Count1,990
Co-rupture Rate2.1636106E-5

Awanui, 3.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?true
Directly Connected?true
Co-rupture Count213
Co-rupture Rate3.4187297E-9

Mohaka: South, 5.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?true
Directly Connected?true
Co-rupture Count4,930
Co-rupture Rate3.2552973E-5

Ruahine: North, 6.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?true
Directly Connected?false
Co-rupture Count94
Co-rupture Rate1.751822E-7

Waiotahi: South, 7.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?true
Directly Connected?false
Co-rupture Count40
Co-rupture Rate3.442157E-11

Waimana: South, 10.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?true
Directly Connected?false
Co-rupture Count946
Co-rupture Rate4.7667336E-7

Whakatane: South, 12.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?true
Directly Connected?false
Co-rupture Count941
Co-rupture Rate2.1159398E-5

Ruahine: Central, 12.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawke Bay 1, 13.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Wakarara, 14.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
