Queen Charlotte Details
| Property | Value |
|---|---|
| Rupture Count | 5,611 |
| Ruptures Above Sect Min Mag | 5,603 |
| Ruptures w/ Nonzero Rates | 60 |
| Magnitude Range | [6.92, 8.67] |
| Length Range | [19, 958] km |
| Total Rate | 4.855193E-5 /yr |
| Multi-Fault Rate | 1.88152E-5 /yr (38.75%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 75 |
Table Of Contents

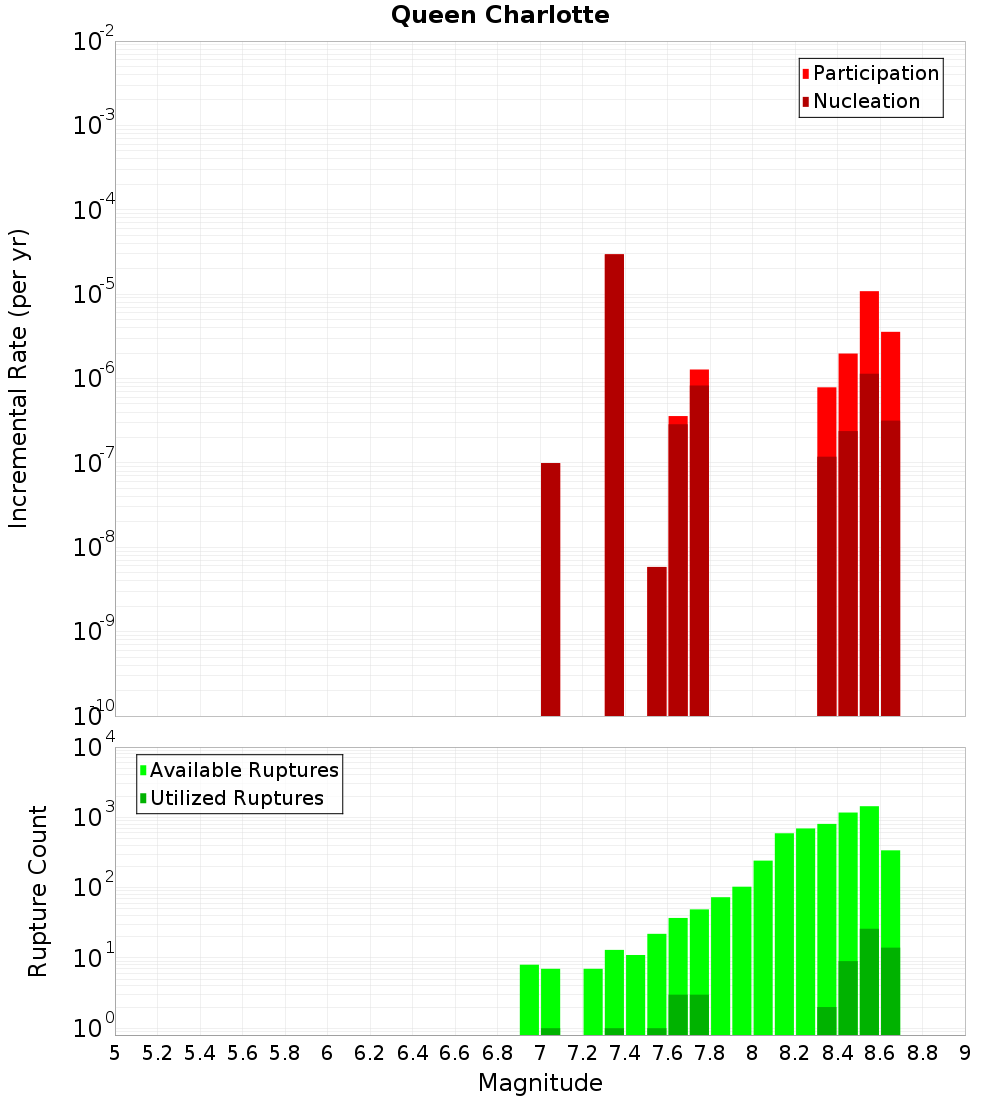

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Whangamoa, 3.21 km away |
| Kenepuru, 3.32 km away |
| Totara Saddle, 3.33 km away |
| Flaxmore - Waimea - Tahunanui, 10.15 km away |
Whangamoa, 3.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5,517 |
| Co-rupture Rate | 1.7214408E-5 |
Kenepuru, 3.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 359 |
| Co-rupture Rate | 1.6838525E-5 |
Totara Saddle, 3.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,623 |
| Co-rupture Rate | 1.4341735E-5 |
Flaxmore - Waimea - Tahunanui, 10.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzOTIuMEt5Ynd2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 44 |
| Co-rupture Rate | 1.2775677E-6 |
